X-Keys XK-1502-UHIO14-R USB General Purpose Input Output Module

ITEM #: XK-1502-UHIO14-R MFG #: XK-1502-UHIO14-R

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$99.95

Availability: Temporarily Out of Stock
iAvailability Description Popup


    XK-1502-UHIO14-R - Overview

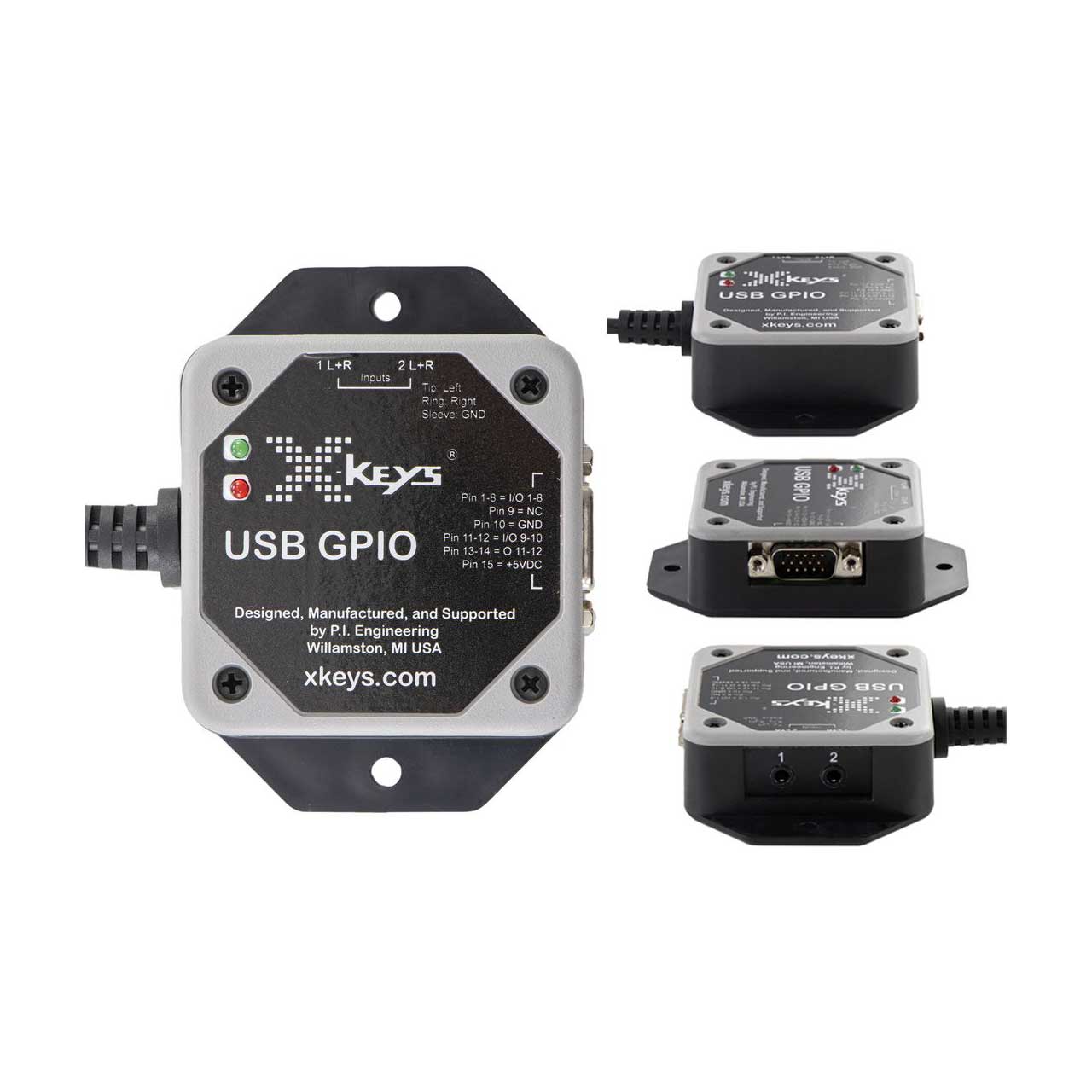

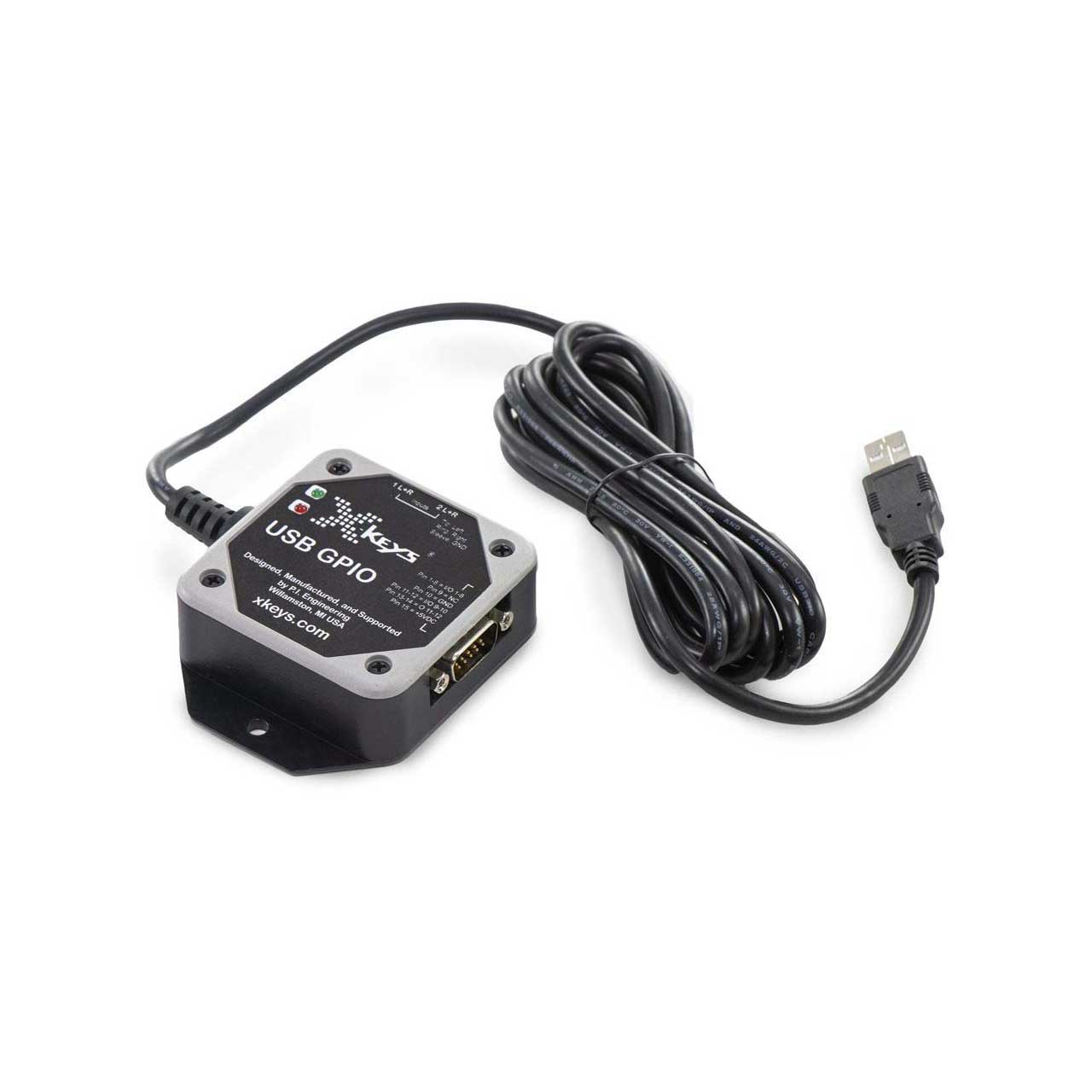

    The X-Keys XK-1502-UHIO14-R USB GPIO unit features 10 configurable ports which can be 5 volt outputs, short-to-ground inputs, or 5 volt pull down inputs. It also has two more dedicated 5 volt outputs, and four more dedicated short-to-ground inputs.

    The ten configurable ports are set with a free Windows utility we provide via download (link). All inputs and are programmable and can send a wide range of USB keyboard, mouse, game controller, multi-media and other proprietary USB HID messages. All outputs can be triggered via USB HID with support from our free SDKs for Windows, OS X, Linux, and Android.

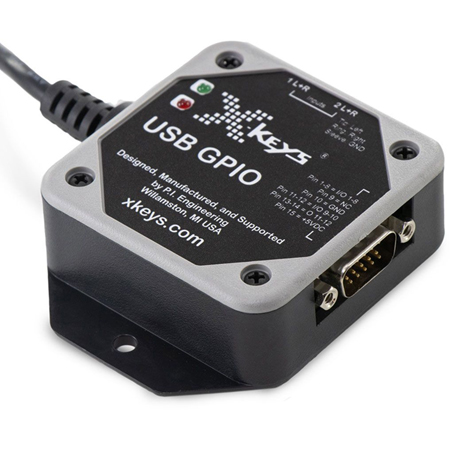

    A standard HD15 male connector provides reliable connection to all configurable I/O ports and dedicated outputs. Two 3.5 mm TRS (Tip-Ring-Sleeve, AKA Stereo) ports provide connection to the four dedicated short-to-ground inputs to facilitate the addition of external switches.

    Keyboard Specialists (KBS) are officially the UK distributor of X-Keys products and we take pride when dealing with all X-Keys enquiries. We keep large amounts of stock of all products and take care when packaging and dispatching to ensure these products arrive in pristine condition. KBS will happily work on any custom X-Keys projects and supports you through the entire ordering process, working quickly and efficiently on any enquiry. Even after-purchase support is available if you need any help with installing or setting up your X-Keys.

    XK-1502-UHIO14-R - Required Accessories

      XK-1502-UHIO14-R - Recommended Accessories
