Tripp Lite IBAR12-20T Isobar Surge Protector Rackmount 20A 12 Outlet 15ft Cord 1URM

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

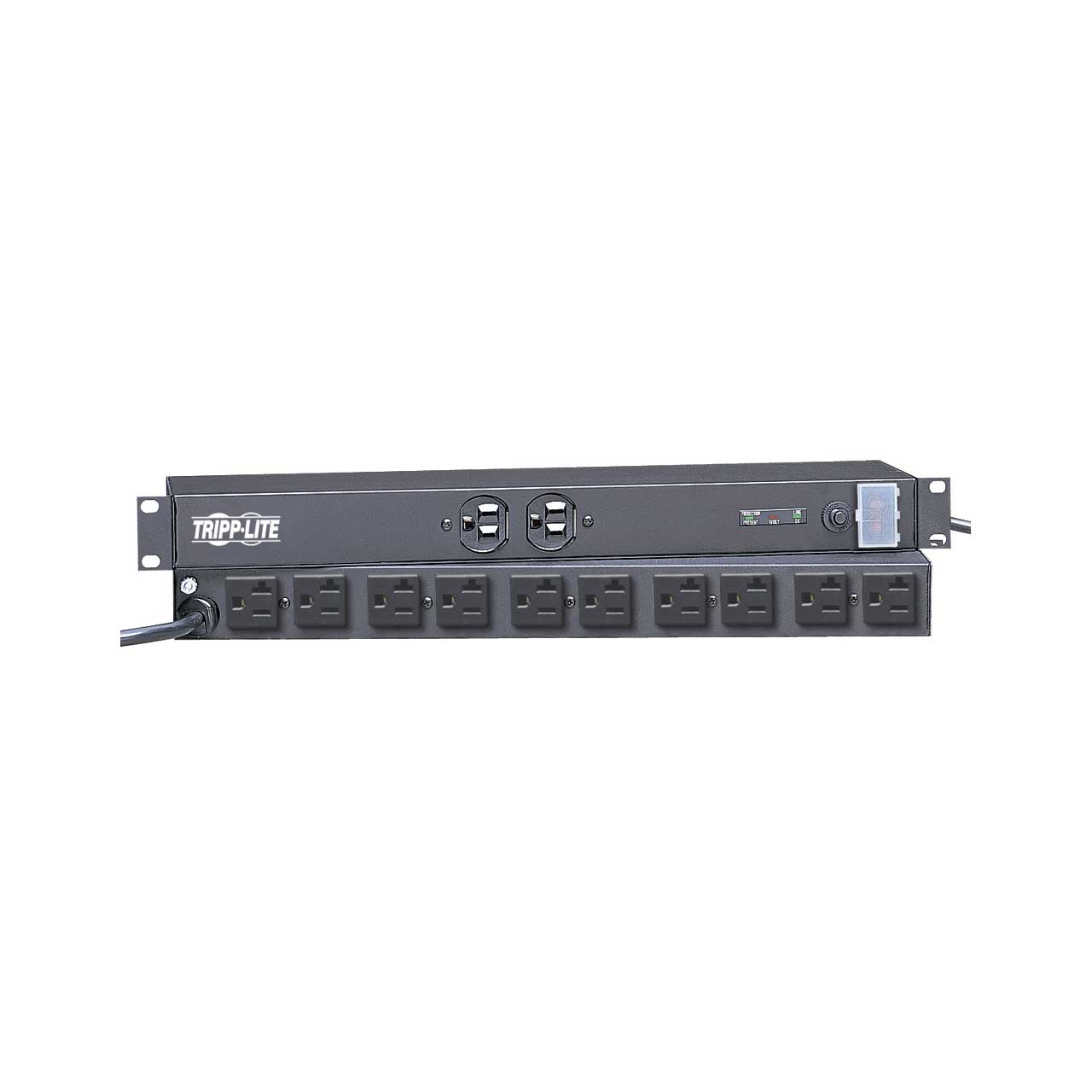

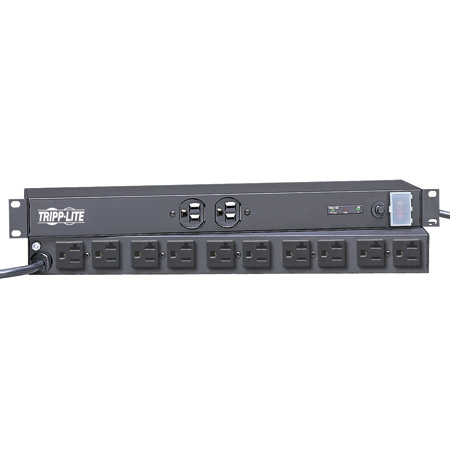

    Tripp Lite IBAR12-20T Isobar Surge Protector Rackmount 20A 12 Outlet 15ft Cord 1URM

    Manufacturer: Tripp Lite

    Item #: TRL-IBAR12-20T   •   MFG #: IBAR12-20T



    List Price:$228.80
    Our Price:$156.49

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rack mount, wall mount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.PLUG/OUTLETS: Input: NEMA L5-20P (twist lock)/Output: 2 NEMA5-15R (front) & 10 NEMA5-20R (rear)ELECTRICAL: 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/60,000 ampsFORMAT: Supports 19 in. rack mount (uses 1 rack space/1U), wall mount, under-counter and more.


      What is the main culprit of electrical surges?
      Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
      When should you use a surge protector?
      All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.


      • Features

        • Tripp Lite's ISOBAR is the world's number one selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+ years
        • Versatile all-metal cabinet with detachable mounting flanges allows rack mount, wall mount, under-counter and other creative mounting options
        • Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
        • 3840 joules/60,000 amp network-grade AC surge suppression with EMI/RFI filtering
        • 12 output receptacles outlets (2 front mounted NEMA 5-15R/10 rear mounted NEMA 5-20R)
        • Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items
        • 15 foot AC cord with NEMA L5-20P twist-lock plug
        • Diagnostic LEDs confirm AC present (green), Line Fault (red) and Protected (green)
        • Front panel switch controls power to all outlets
        • 20 amp electrical capacity with circuit breaker
        • 120VAC, 50/60Hz electrical compatibility
        • $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

      • Specifications

        • Selector Type: SURGE SUPPRESSORS
        • Product Group: SURGE PROTECTORS
        • TAA Compliant: No
        • Intended Application: Computer Networks
        • Style: Rack-Mount
        • Surge Style: Strip
        • Surge Type: Premium Isobar; Network/Server
        • Frequency Compatibility: 50 / 60 Hz
        • Output Receptacles: (12) 5-15R
        • Output (Watts): 2400
        • Circuit Breaker (amps): 20
        • Outlet Quantity / Type: 12 NEMA 5-15R
        • Number of Outlets: 12
        • Nominal Input Voltage(s) Supported: 120V AC
        • Recommended Electrical Service: 120V (110-125V)
        • Input Connection Type: NEMA L5-20P locking input plug
        • Input Plug Features: Space-saving right angle input plug
        • Input Cord Length (ft.): 15
        • Input Cord Length (m): 4.57
        • Voltage Compatibility (VAC): 120
        • Maximum Surge Amps: 150000
        • Switches: Red illuminated power switch controls power to all outlets
        • Diagnostic LEDs: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
        • Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff
        • AC Suppression Joule Rating: 3840
        • AC Suppression Response Time: NM = 0 ns. CM = <1 ns
        • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
        • Clamping Voltage (RMS): 140
        • AC Suppression Surge Current Rating: 96,000 amps
        • AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes and VHF capacitors
        • Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
        • UL1449 Let Through Rating: 330V
        • EMI / RFI Filtering: 40-80 dB
        • Immunity: Conforms to IEE 587 / ANSI C62.41
        • Telephone/DSL Protection: No
        • Cable (Coax) Protection: No
        • Network (Ethernet) Protection: No
        • Shipping Dimensions (hwd / in.): 2 x 20.5 x 9.25
        • Shipping Dimensions (hwd / cm): 5.08 x 52.07 x 23.50
        • Shipping Weight (lbs.): 6.4
        • Shipping Weight (kg): 2.9
        • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4
        • Unit Dimensions (hwd / cm): 4.45 x 44.45 x 10.16
        • Unit Weight (lbs.): 5.4
        • Unit Weight (kg): 2.45
        • Material of Construction: Metal
        • Included Mounting Accessories: Included mounting flanges are pre-installed for 1U rackmount installation and can be re-configured to support a variety of mounting options
        • Housing Color: Black
        • Receptacle Color: Black
        • Color (AC Line Cord): Black
        • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
        • Outlets Measurement (Center to Center): Distance between front outlets = 38.9mm; Distance between rear outlets = 60.45mm
        • Metal Case: Yes
        • Right-Angle Plug: Yes
        • UL1449 3rd Edition (AC Suppression): Tested to UL1449 3rd Edition by ETL
        • cUL / CSA (Canada): Approved for Canada by ETL
        • Approvals: Exceeds IEEE 587 category A&B specifications
        • Product Warranty Period (Worldwide): Lifetime limited warranty
        • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $25,000 Ultimate Lifetime Insurance

      • Item Includes

        • IBAR12-20T Surge Suppressor
        • Warranty information
        • Instruction manual
