Tripp Lite SU5000RT4U 5000VA 3800W UPS Smart Online Rackmount 5kVA 208/240/120V PDU 4U
  • Tripp Lite SU5000RT4U 5000VA 3800W UPS Smart Online Rackmount 5kVA 208/240/120V PDU 4U
  • Tripp Lite SU5000RT4U 5000VA 3800W UPS Smart Online Rackmount 5kVA 208/240/120V PDU 4U
  • Tripp Lite SU5000RT4U 5000VA 3800W UPS Smart Online Rackmount 5kVA 208/240/120V PDU 4U
  • Tripp Lite SU5000RT4U 5000VA 3800W UPS Smart Online Rackmount 5kVA 208/240/120V PDU 4U
  • Tripp Lite SU5000RT4U 5000VA 3800W UPS Smart Online Rackmount 5kVA 208/240/120V PDU 4U

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite SU5000RT4U 5000VA 3800W UPS Smart Online Rackmount 5kVA 208/240/120V PDU 4U

Manufacturer: Tripp Lite

Item #: TRL-SU5000RT4U   •   MFG #: SU5000RT4U



List Price:$5,200.20
Our Price:$3,543.95

no free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Drop-shipped (normal delivery time 2-7 business days) shipping truck freight. (Sales tax may apply)


Share!





Tripp Lite 5kVA SmartOnline Hot-Swappable Modular Rack/Tower UPS. 5000VA on-line, double-conversion UPS for server, network and telecommunications equipment. Maintains battery-derived AC output during blackouts with active, full-time power conditioning. Fault tolerant auto-bypass prevents unexpected service interruptions during overload or internal fault conditions. Single all-in-one housing installs in 4 rack spaces (4U). Upright tower installation with optional 2-9USTAND accessory. 2-post rackmount installation with optional 2POSTRMKITHD. Full-time sine wave output within 3% of selectable 208/120 or 240/120V AC. Corrects brownouts and overvoltages from 65V to 140V (L-N). Expandable runtime with optional external battery packs. Dual-conversion UPS converts raw input from AC to DC, then back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Network-grade AC surge and noise suppression. Network management interfaces include combination RS-232 enabled and contact closure serial port, enhanced USB port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Front panel LEDs and LCD readout with scroll controls support visual monitoring of all major UPS functions. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm. Self test. 4-post rackmount accessories. Includes NEMA L14-30P split phase 4 wire input plug and 12 total output receptacles (2 L6-30R, 2 L6-20R and 8 5-15/20R). Input cord and outlets are mounted on a detachable backplate with manual bypass switch to enable hot-swappable UPS replacement without powering off connected equipment. Optional SUPDM56HW detachable backplate accessory enables hardwire input-output connections to the UPS. Additional external Power Distribution Unit (PDU) options available. Internal batteries and optional external battery packs are field replaceable and hot swappable. Attractive all-black color scheme. $250,000 Ultimate Lifetime Insurance.


  • Features

    • True on-line, double-conversion UPS provides pure, full-time sine wave AC output free of surges, voltage fluctuations and line noise
    • 5000VA/3800 watt output power capacity with dual voltage output of 208/120 or 240/120V
    • 4U all-in-one high power density housing supports rackmount installation in only 4 rack spaces
    • Dual conversion UPS actively converts raw input from AC to DC, then back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types

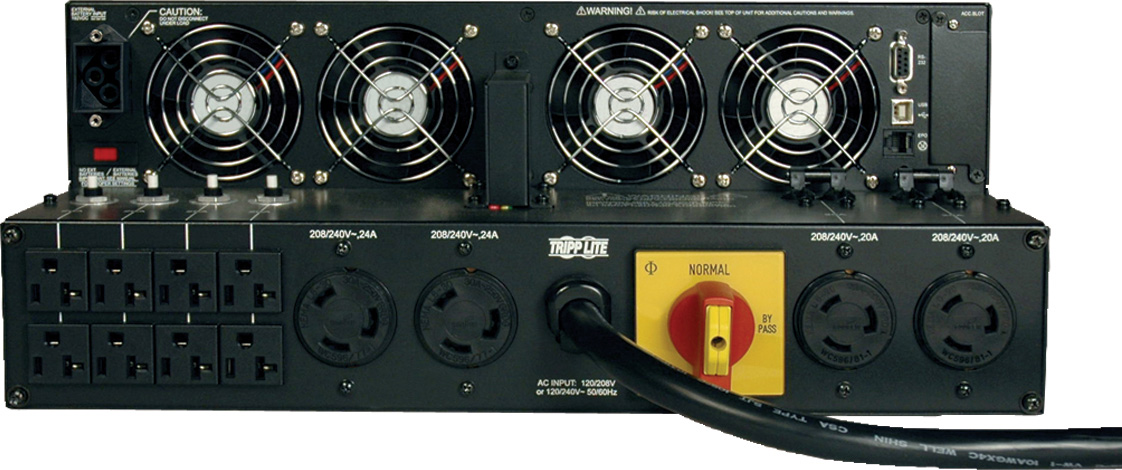

    • Input cord and outlets are mounted on a detachable backplate with manual bypass switch to enable hot-swappable UPS replacement without powering off connected equipment
    • Optional SUPDM56HW detachable backplate accessory enables hardwire input-output connections to the UPS
    • Provides perfectly regulated, sine wave output power free of line noise, transient surges and frequency variation for the most efficient operation of critical servers, networking and telecommunications equipment
    • Maintains output within 3% of selected 208/120 or 240/120V nominal voltage during brownouts and overvoltages
    • Supports connected equipment during blackouts for 14/6 minutes at half/full load levels, runtime is further expandable with optional external battery packs
    • Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
    • Network interfaces support simultaneous communications via DB9 port, USB port and SNMPWEBCARD slot
    • Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
    • Communication ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test and output power control
    • Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.
    • Built-in Emergency Power Off (EPO) interface with cable
    • Includes 12 built-in output receptacles (2 L6-30R, 2 L6-20R, 8 NEMA 5-15/20R)
    • L14-30P split phase, 4 wire plug-in connection (featured on included detachable PDU). Optional SUPDM56HW hardwire input/output PDU available separately
    • Front panel LEDs and LCD readout with scroll button enables visual confirmation of all major UPS functions and current site electrical conditions
    • Front panel switches enable power on/off control, self-test and alarm cancel functions
    • Included adjustable mounting rails support installation in 4 post 19-inch rack enclosures
    • Optional 2-9USTAND set of tower stands supports upright tower installation
    • Optional 2POSTRMKITHD accessory enables 2-post rackmount installation
    • UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required
    • Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

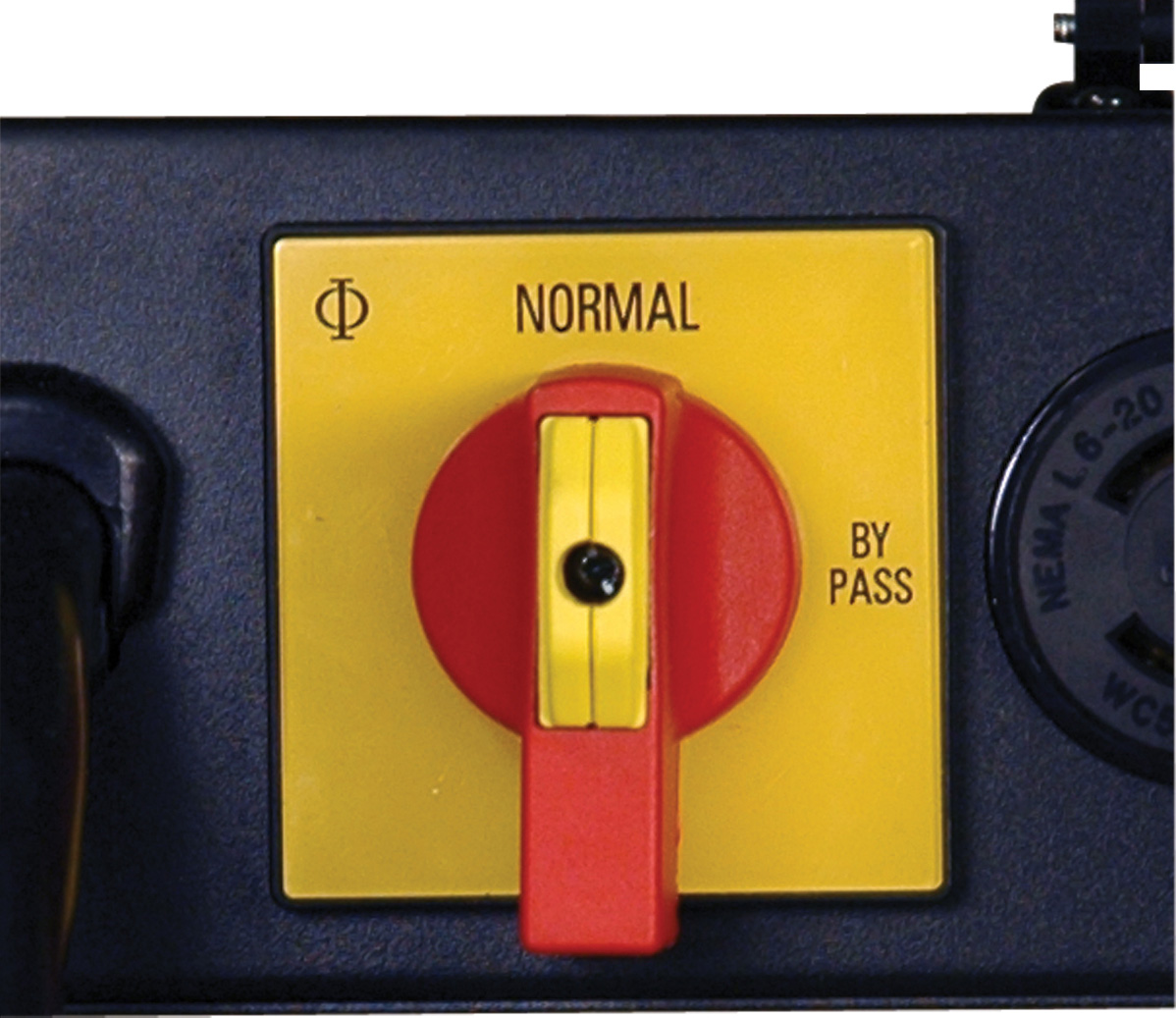

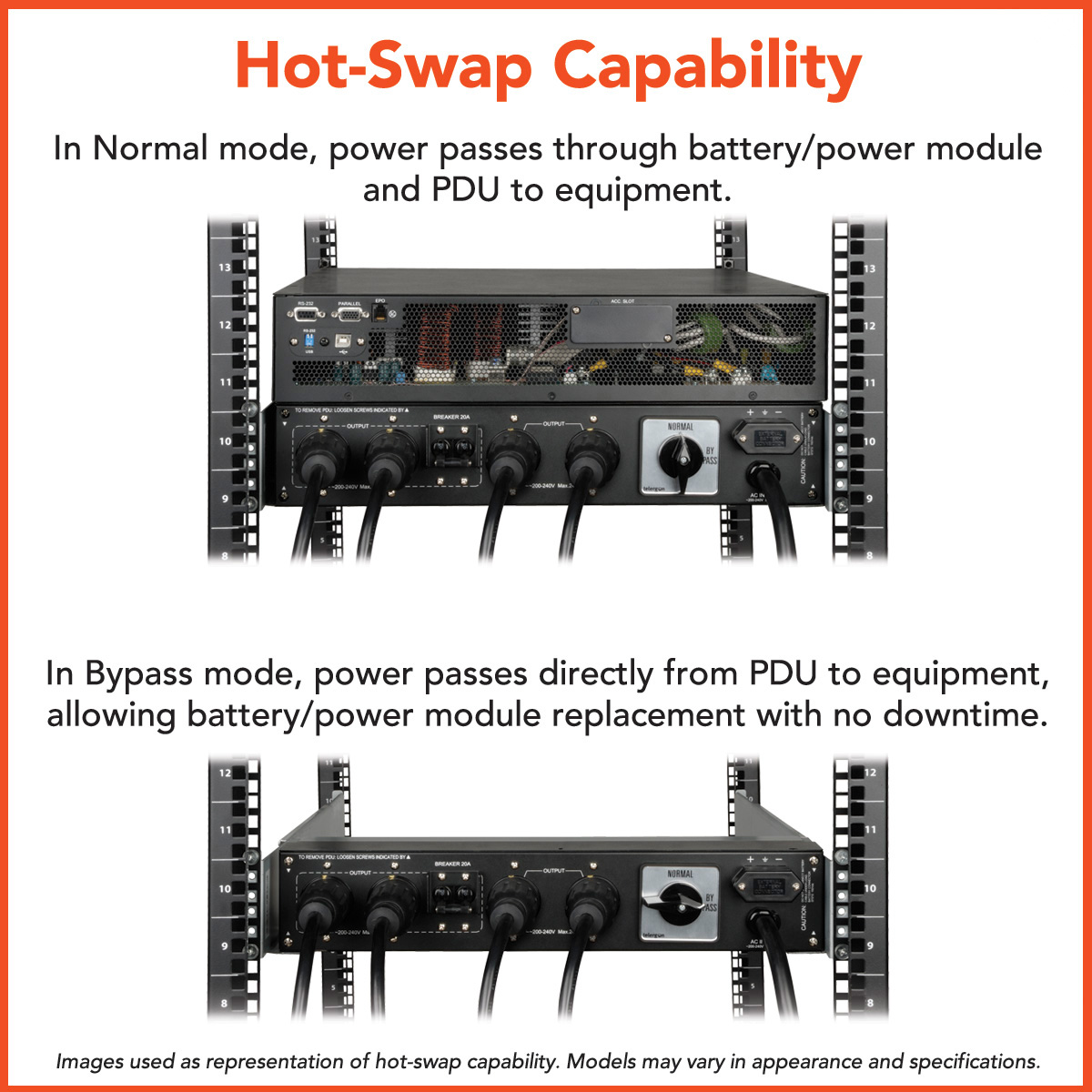

    • Detachable PDU with built-in manual bypass switch enables hot-swappable UPS replacement without powering off connected equipment
    • $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

  • Specifications

    • Output Voltage Regulation (Line Mode): +/- 3%
    • Output Voltage Regulation (Economy Line Mode): +/- 10%
    • Output Voltage Regulation (Battery Mode): +/- 3%
    • Output Receptacles: (8) 5-15/20R; (2) L6-20R; (2) L6-30R
    • Output AC Waveform (AC Mode): Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave
    • UPS Input Cord Length (ft.): 10
    • Input Phase: Single-Phase
    • Full Load Runtime (min.): 6 min. (3800w)
    • Half Load Runtime (min.): 14 min. (1900w)
    • Green Energy-Saving Features: High efficiency economy mode operation; Schedulable daily hours of economy mode operation

  • Item Includes

    • SU5000RT4U UPS System (with SUPDMB56 detachable PDU module)
    • USB, DB9 and EPO cabling
    • Rackmount installation kit for 4 post rack enclosures
    • Owner's manual and warranty information
