Shure WL184 Supercardiod Lavalier Mic

ITEM #: WL184 MFG #: WL184

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WL184

WL184 - Overview

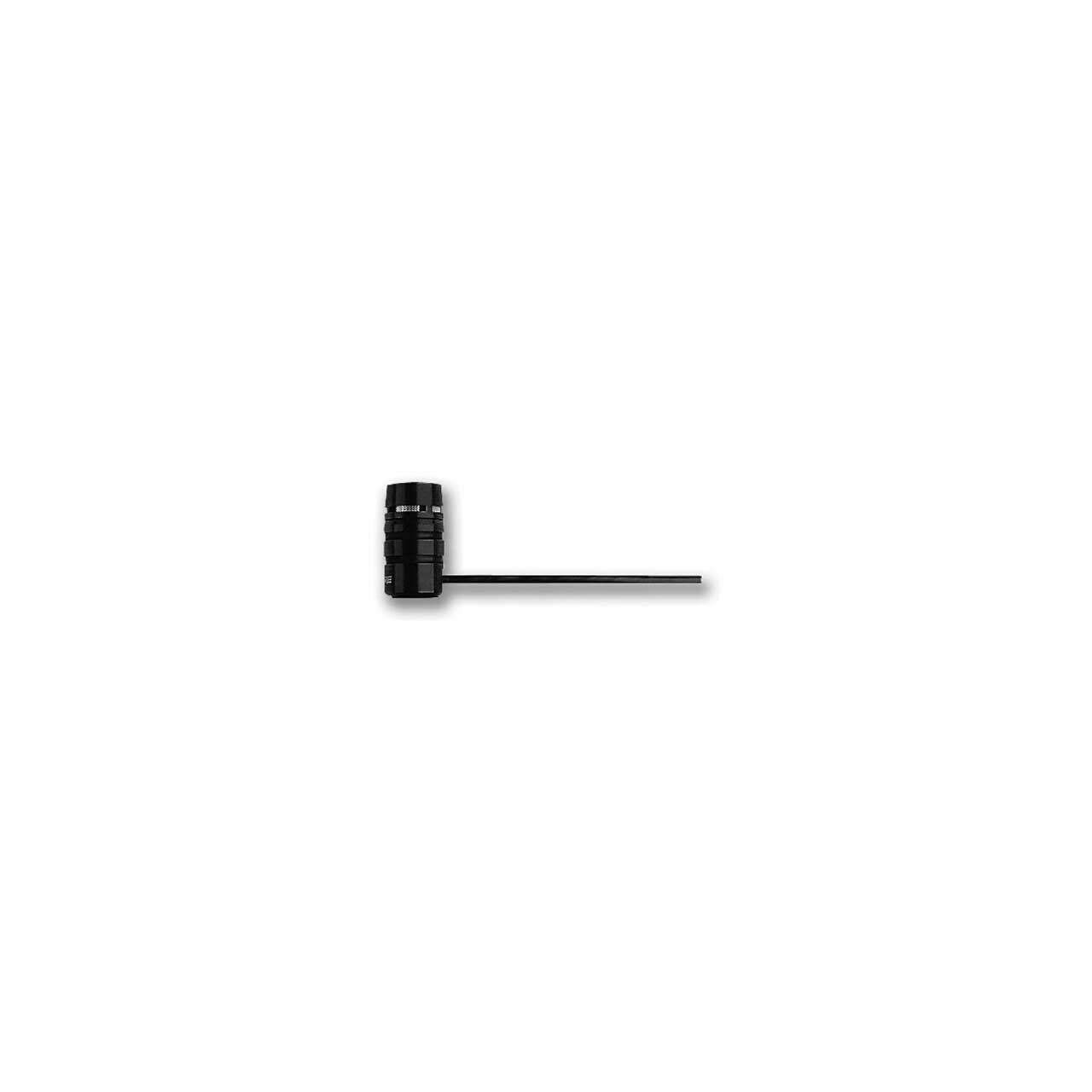

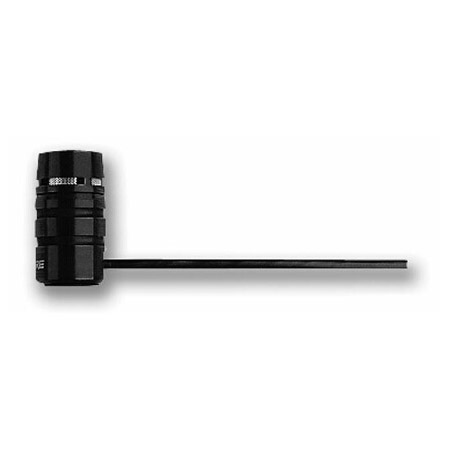

WL184 is a lavalier condenser microphone designed for use with a wireless bodypack transmitter. It has a four foot (1.2 meter) cable terminated with a miniature Switchcraft TA4F connector. The furnished tie clip can be rotated in 90 Degree intervals for placement flexibility.

  • Specifications:

    • Recommended for sound reinforcement applications requiring high rejection of ambient noise and narrow pickup angle
    • Pickup Angle : 115 degree
    • Type : Condenser (electret bias)
    • Frequency Response : 50 to 17,000 Hz
    • Polar Pattern : Supercardioid
    • Output Impedance : 1800 ohms
    • Sensitivity (1 Pa=94dB SPL) : -44.5 dBV/Pa
    • Maximum Sound Pressure Level : 129.5 dB SPL
    • Output Noise (A-Weighted) : 27.0 dB SPL
    • Dynamic Range : 102.5 dB
    • Polarity : Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
    • Power Requirements : Regulated nominal +5Vdc (1.5Vdc to 10Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
    • Use of windscreen highly recommended

  • GTIN:

    0042406055314
