West Penn 3245 16 AWG 4 Conductor Communication Cable - 1000 Ft.
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn 3245 16 AWG 4 Conductor Communication Cable - 1000 Ft.

    Manufacturer: West Penn Wire Corp

    Item #: WP-3245-1000   •   MFG #: 3245


    List Price:$462.00
    Our Price:$374.95

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

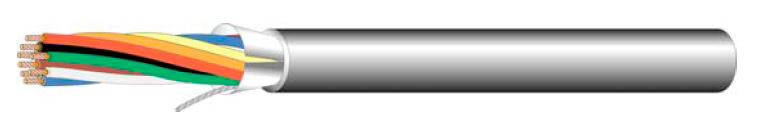

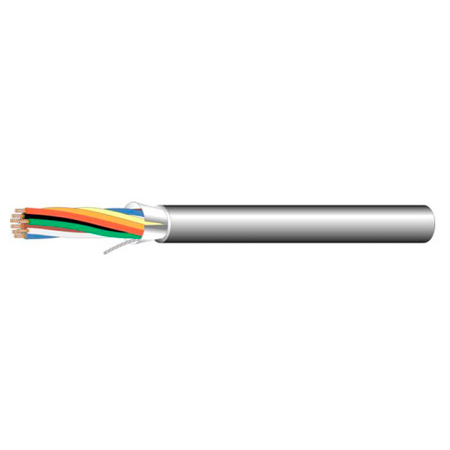

    16/4 Stranded bare copper conductors, shielded with an overall jacket.

    APPLICATION: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control

    • Specifications

      • Construction Parameters:
      • Conductor 16 AWG Bare Copper
      • Stranding 19x29
      • Insulation Material PVC
      • Insulation Thickness 0.008'' Nom.
      • Number of Conductors 4
      • Shield 100% Aluminum Polyester Foil
      • Drain Stranded Tinned Copper
      • Jacket Material PVC
      • Jacket Thickness 0.017'' Nom.
      • Overall Cable Diameter 0.225'' Nom.
      • Approximate Cable Weight 50.5 Lbs/1M' Nom.
      • Flame Rating UL 1666 Riser Flame Test
      • Electrical & Environmental Properties:
      • Temperature Rating -20°C To +60°C
      • Operating Voltage 300 V RMS
      • Max.Capacitance Between Conductors @ 1 KHz 80 pf/ft Nom.
      • Capacitance Between Conductors to Shield @ 1 KHz 144 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
      • Insulation Colors Black, Red ,White ,Green
      • Jacket Color Gray
      • RoHS Compliant Yes
      • Mechanical Properties:
      • Max. Recommended Pull Tension 146.3 lbs.
      • Min. Bend Radius (Install) 2.2"
