Amphenol Connex 112179 BNC Right Angle Crimp Plug for RG-179/ RG-187/ 75 Ohm

ITEM #: 112179 MFG #: 112179

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$14.79

Our Price:

$12.99

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

112179 - Overview

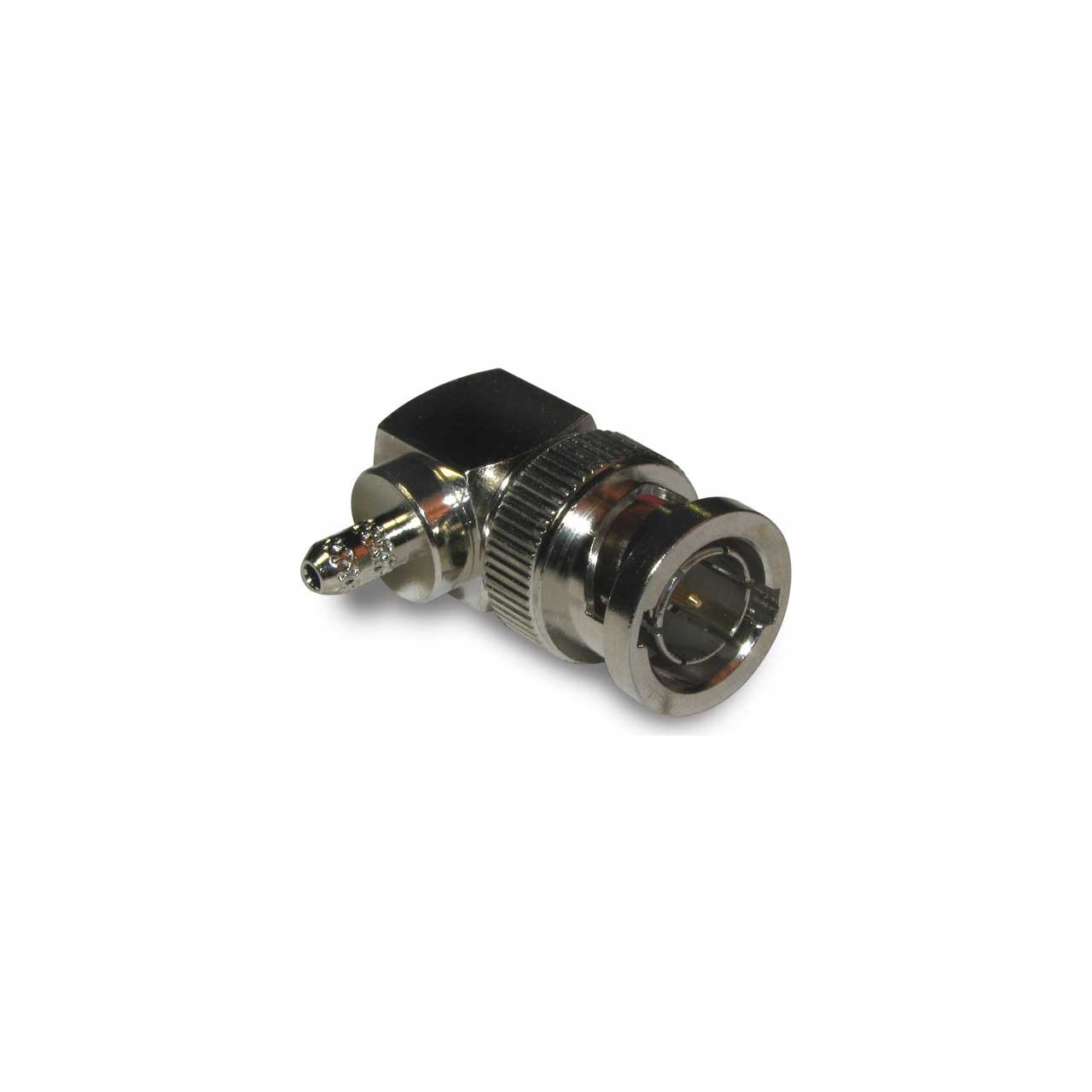

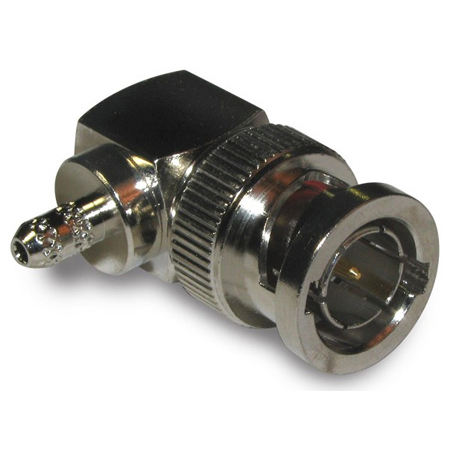

The 112179 is an RF Connector BNC Right Angle Crimp Plug for RG-179, RG-187, 75 Ohm. The connector features a nickel body with brass finish and a gold finished brass contact.

  • Specifications:

    • Orientation: Right Angle
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Brass
    • Contact Termination Style: Solder
    • Insulator Material: Delrin
    • Cable Group: B1
    • Cable Type: Belden 9221, M17/94-RG179, RG-179, RG-179A, RG-179B, RG-187, RG-187A
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Min. Temp. (Celsius): -40
    • Max. Temp. (Celsius): 85
    • Mating Cycles: 500
    • Weight (Grams): 19.3
