Kings 2065-10-9 75 Ohm 12G BNC Connector for Belden 1694A/4694R & West Penn 6350 & Gepco VSD2001

ITEM #: 2065-10-9 MFG #: 2065-10-9

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    2065-10-9 - Overview

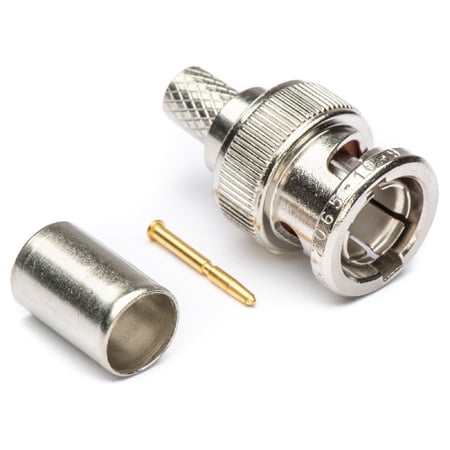

    Kings 2065-10-9 BNC Crimp Connector is Now 12G Compliant! 75 Ohm BNC Connector for Belden 4694R/1694A/1694D/1695A & Gepco VSD2001

    RF BNC connectors for the most popular and widely used miniature size connectors for coaxial cables. The 2065 Series True 75 Ohm BNC connectors from Kings Electronics are ideal for Broadcast applications - meeting the industry's stringent HDTV standards. Kings 75 Ohm BNCs feature a full crimp design, and are field installable using our hand crimping tools, which were developed to perfectly fit our connector design. Kings 75 Ohm BNC connectors feature a bayonet coupling for quick connect and disconnect, and are designed to terminate to the most commonly used coaxial cables in the broadcast industry.

    • Features:

      • Superior RF performance - meets or exceeds HDTV standards.
      • Designed to accommodate industry leading analog and digital cables, from manufacturers like Belden and GepCo.
      • Easy connect and disconnect with bayonet coupling.
      • Full crimp design with standard cable stripping dimensions and crimp tooling.
      • Complete line of BNC products available, including adapters and terminations.
      • Use: KTH-5017 Die with KTH-5000 CrimpTool Frame
      • Use: KTH-2325 Crimp Die with KTH1000 Crimp Tool Frame
      • Use Gepco Cable: VSD2001 & VSD2001TS
      • Use Belden: Belden 1694A & 1695A
      • America's Best Source For Kings!

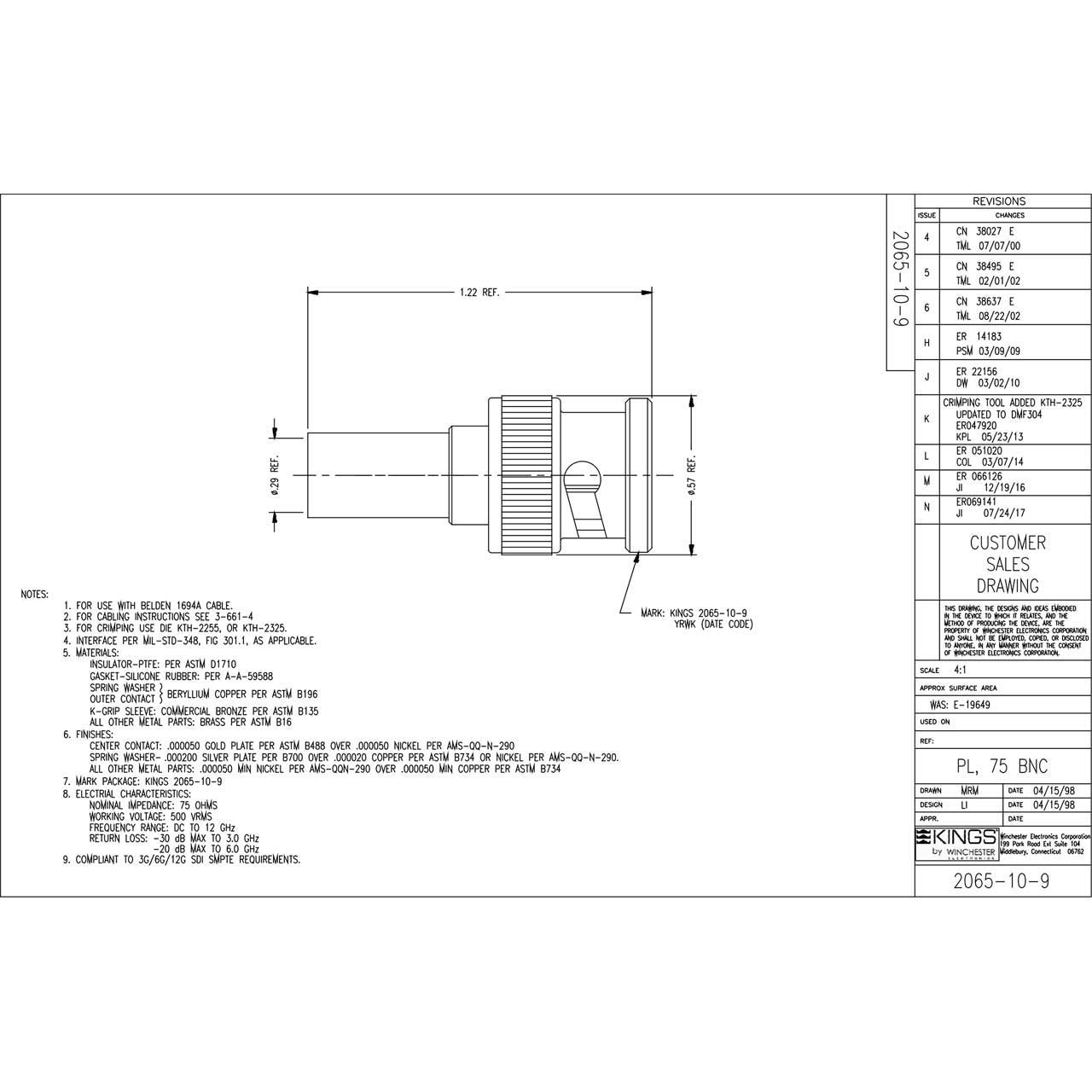

    • Specifications:

      • Trim Code 3-661-1:
        A = 0.624"
        B = 0.312"
        C = 0.155"
      • Center Pin Crimp Size: 0.046"
      • Ferrule Crimp Size: 0.278"
      • Impedance: 75Ohm
      • AC Voltage: 500Volts
      • Regulatory Compliance: RoHS
      • Connector Finish: Nickel
      • ROHS Compliant: Yes
      • UL Rated: Yes
      • Certifications: UL 94-VO, ISO 9001-2000/ AS9100 NEBS Level III
      • Adapter Type: Network
      • Adapter/Connector Type: 1 - BNC
      • Adapter/Connector Type: 1 - RF
      • ROHS Compliant: Yes
      • UL Rated: Yes
