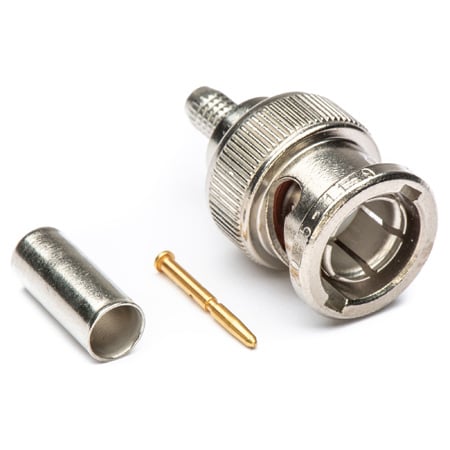

Kings 2065-11-9 75 Ohm 12G BNC Connector for Belden 1855A/4855R Mini-RG59 Coax Cable

ITEM #: 2065-11-9 MFG #: 2065-11-9

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2.57

Our Price:

$2.19

Availability: In Stock
iAvailability Description Popup


    2065-11-9 - Overview

    Kings 2065-11-9 75 Ohm BNC Is Now 12G SDI Compliant!

    Winchester's 2065-11-9 KINGS® brand 75 Ohm BNC series RF connectors are manufactured with a reduced dielectric to achieve 75 Ohm nominal impedance. They will mate with 50 Ohm BNC connectors with no damage. All the connectors in this group have captive center contacts.

    RF BNC connectors are the most popular and widely used miniature size connectors for coaxial cables. The KINGS® brand 2065 Series True 75 Ohm BNC connectors are ideal for Broadcast applications - meeting the industry's stringent HDTV standards. Kings 75 Ohm BNCs feature a full crimp design, and are field installable using our hand crimping tools, which were developed to perfectly fit our connector design. KINGS 75 Ohm BNC connectors feature a bayonet coupling for quick connect and disconnect, and are designed to terminate to the most commonly used coaxial cables in the broadcast industry.

    • Features:

      • Serial Digital 75 Ohm 500 volts RMS BNC Connectors
      • Frequency to 5 GHz
      • 500 cycles minimum
      • Full crimp design
      • Fits analog & digital cables
      • Field installable
      • Meets or exceeds HDTV standards
      • Use: KTH-5003 Die with KTH-5000 CrimpTool Frame
      • Use: KTH-2025 Crimp Die with KTH1000 Crimp Tool Frame
      • Use Belden: 4855R, 1855A and 1865A
      • Use Gepco: VDM230
      • America's Best Source For Kings!

    • Specifications:

      • Trim Code 3-661-1:
        A = 0.624"
        B = 0.312"
        C = 0.155"
      • Gender: Male
      • Frequency: 4 GHz
      • Cable Procedure: 3-661-1
      • Crimp Tool: KTH-1000
      • Crimp Die: KTH-2025
      • Center Pin Crimp Cavity: 0.042"
      • Ferrule Crimp Cavity: 0.178"
      • Part Status: Active
      • Connector Style: BNC
      • Connector Type: Plug, Male Pin
      • Contact Termination: Crimp
      • Shield Termination: Crimp
      • Impedance: 75 Ohm
      • Mounting Type: Free Hanging (In-Line)
      • Orientation: Straight Non-QPL
      • Fastening Type: Bayonet Lock
      • Frequency Max: 12GHz
      • Number of Ports: 1
      • Plating: Nickel
      • Type: Plug
