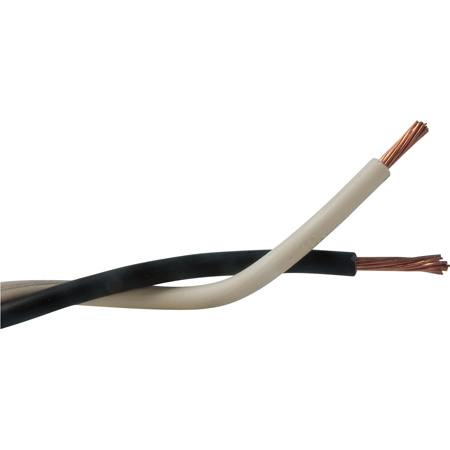

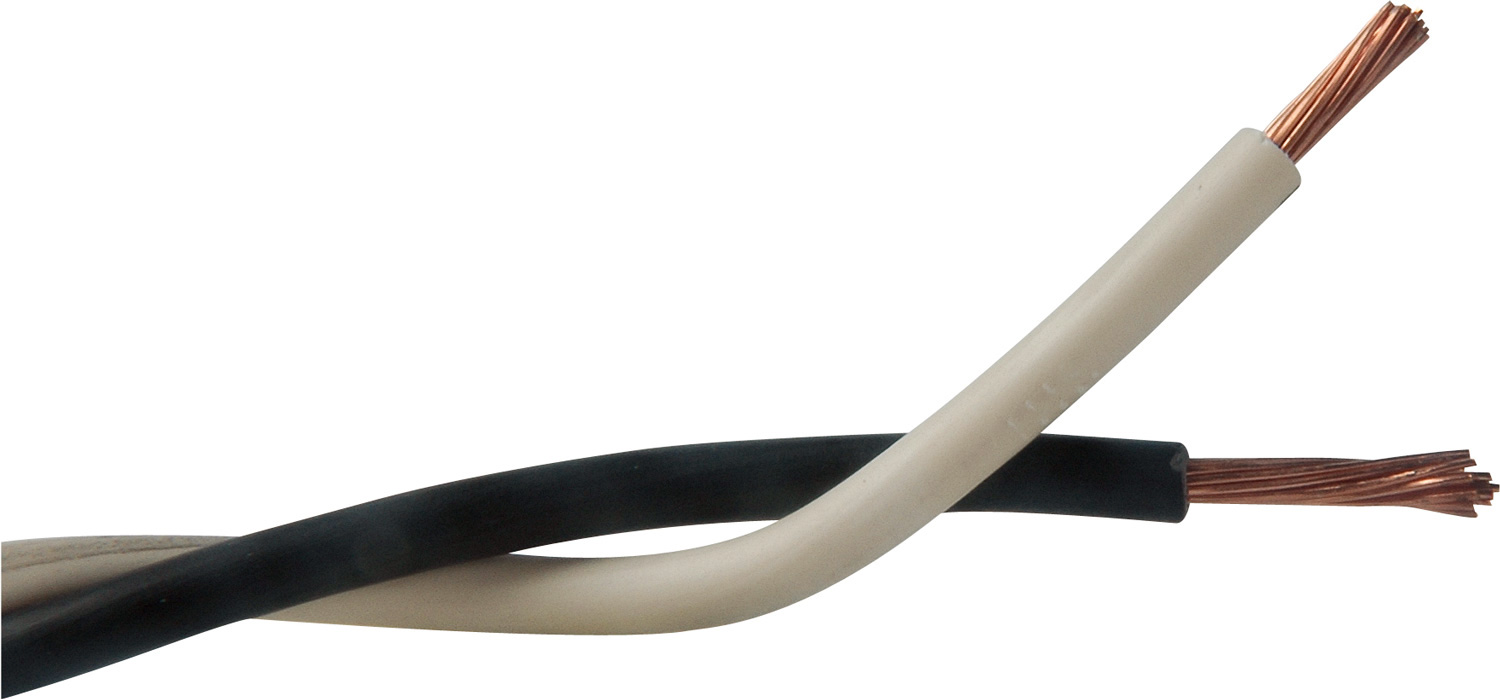

Belden 1860A CL2P/Plenum Unshielded Speaker Cable BC 2x12AWG - Black & Natural Pair - Per Foot

1860A - Overview

1860A - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings

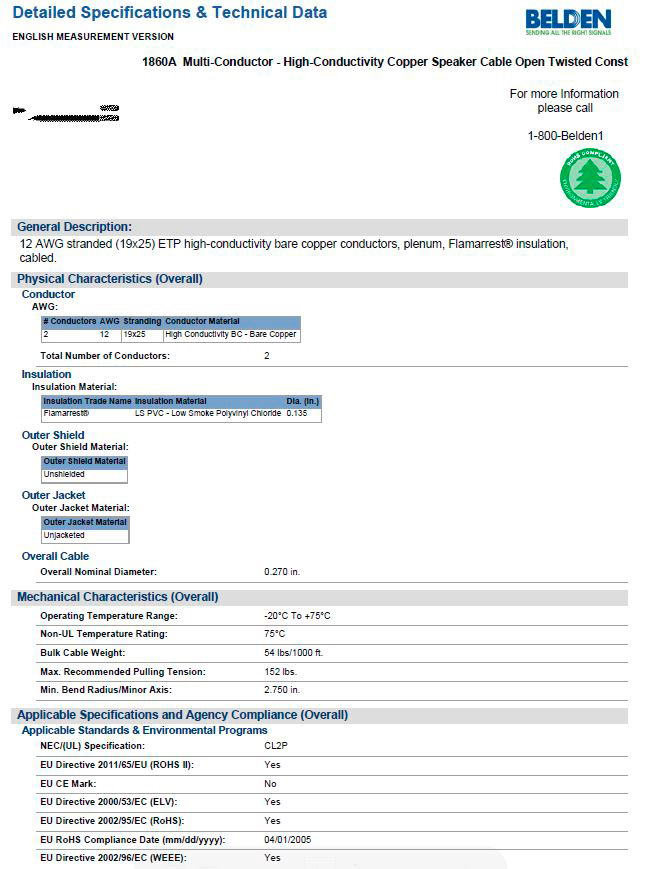

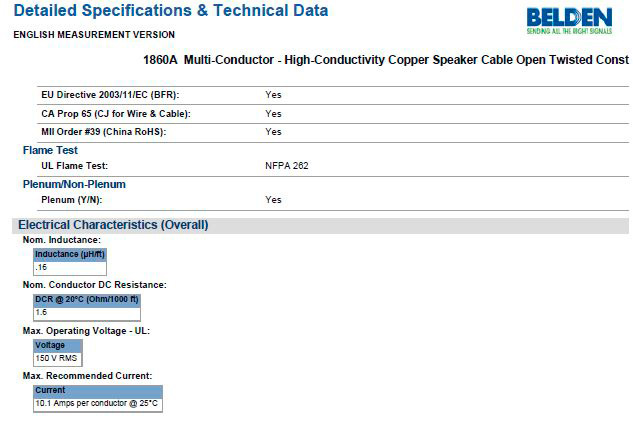

• Specifications:

  • Number of Conductors: 2
  • Total Number of Conductors: 2
  • Conductor AWG: 12
  • Conductor Stranding: 19x25
  • Conductor Material: High Conductivity BC - Bare Copper
  • Insulation Material Trade Name: Flamarrest
  • Insulation Material: LS PVC - Low Smoke Polyvinylchloride
  • Insulation Nominal Diameter: 0.135 in
  • Outer Shield Material: Unshielded - No Shield
  • Outer Jacket Nominal Diameter: 0.27 in
  • Plenum (Y/N): Y
  • Nominal Conductor DCR: 1.6 Ohm/1000ft
  • Nominal Inductance: 0.16 µH/ft
  • Max. Recommended Current [A]: 10.1 Amps per Conductor at 25°C
  • UL Voltage Rating: 150 V RMS
  • Non-UL Temp Rating: 75°C
  • Operating Temp Range: -20°C To +75°C
  • Bulk Cable Weight: 54 lbs/1000ft
  • Max. Pull Tension: 152 lbs
  • Min Bend Radius/Minor Axis: 2.75 in
  • Environmental Space: Indoor - Plenum
  • NEC/(UL) Compliance: CL2P
  • CPR Euroclass: Eca


• Item Includes:

  • 1860A Plenum 12 AWG Audio Cable - Black & Natural Pair - Per Foot


• Warranty:

  • 10 Year Limited Warranty
