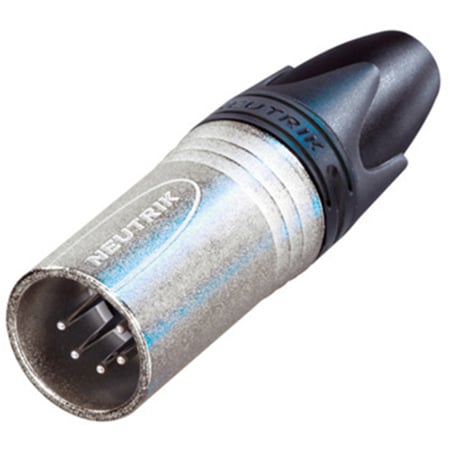

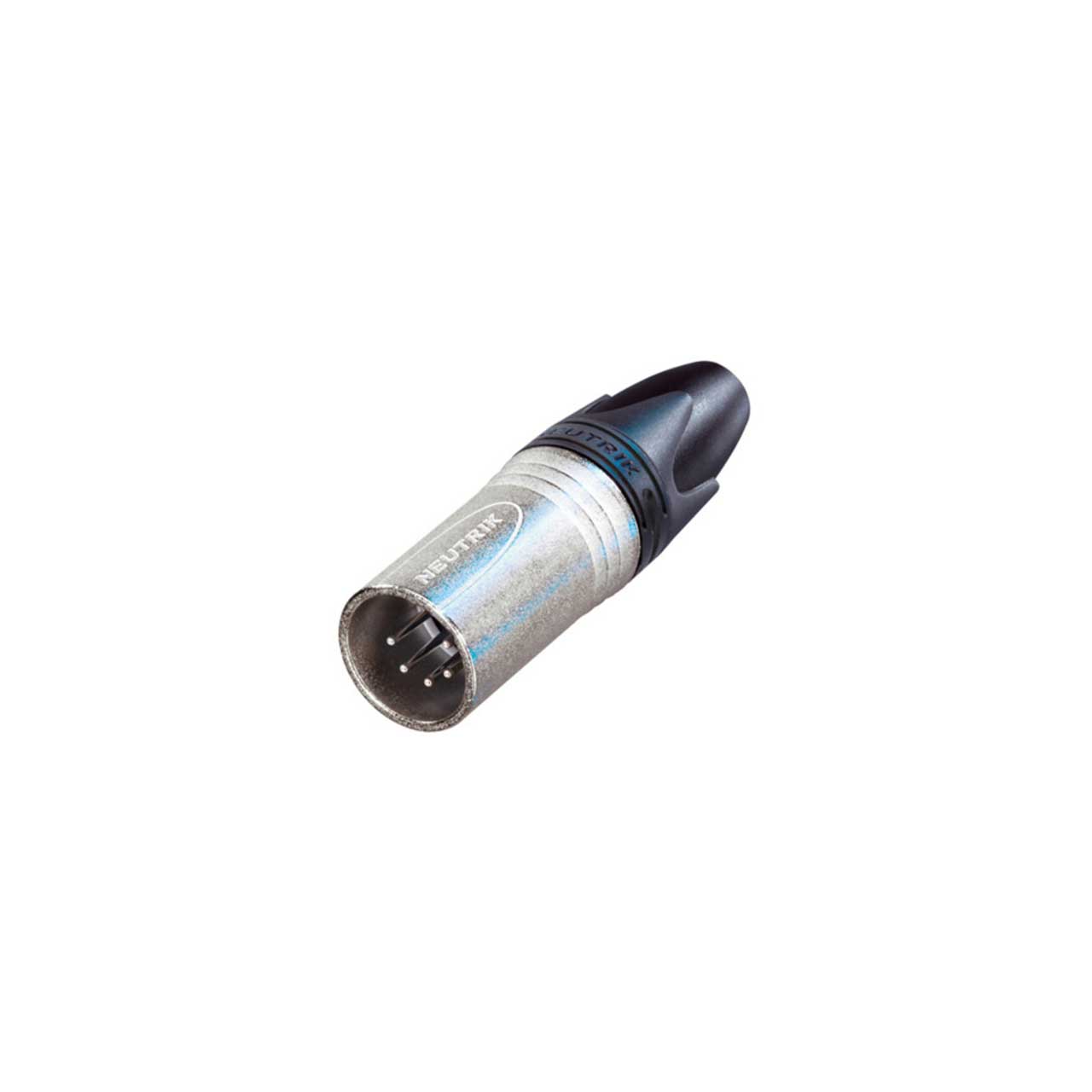

Neutrik NC5MXX Male XLR XX Series Cable Connector

NC5MXX - Overview

NC5MXX - Overview

The next generation of the worldwide accepted standard of XLR cable connectors

• Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable


• Specifications:

  • Connection Type: XLR
  • Gender: female
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 3 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 7,5 A
  • Rated voltage: 50 V
  • Cabel O.D: 3.5 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresizemax: 1.0 mm²
  • Wiresizemax: 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Boot: Polyuretan
  • Bushing: Polyamide (PA 6 15% GR)
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C


• GTIN:

  7613187000294
