Canare 32MD-STS-15U-JN 32-Point Mid-Size HD Straight Video Patchbay - 2 x 32 - 1.5RU

ITEM #: 32MD-STS-15U-JN MFG #: 32MD-STS-15U-JN

Primary Image
Canare
Free Shipping with $49 Minimum Order

List Price:

$1,381.60

Our Price:

$1,165.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    32MD-STS-15U-JN - Overview

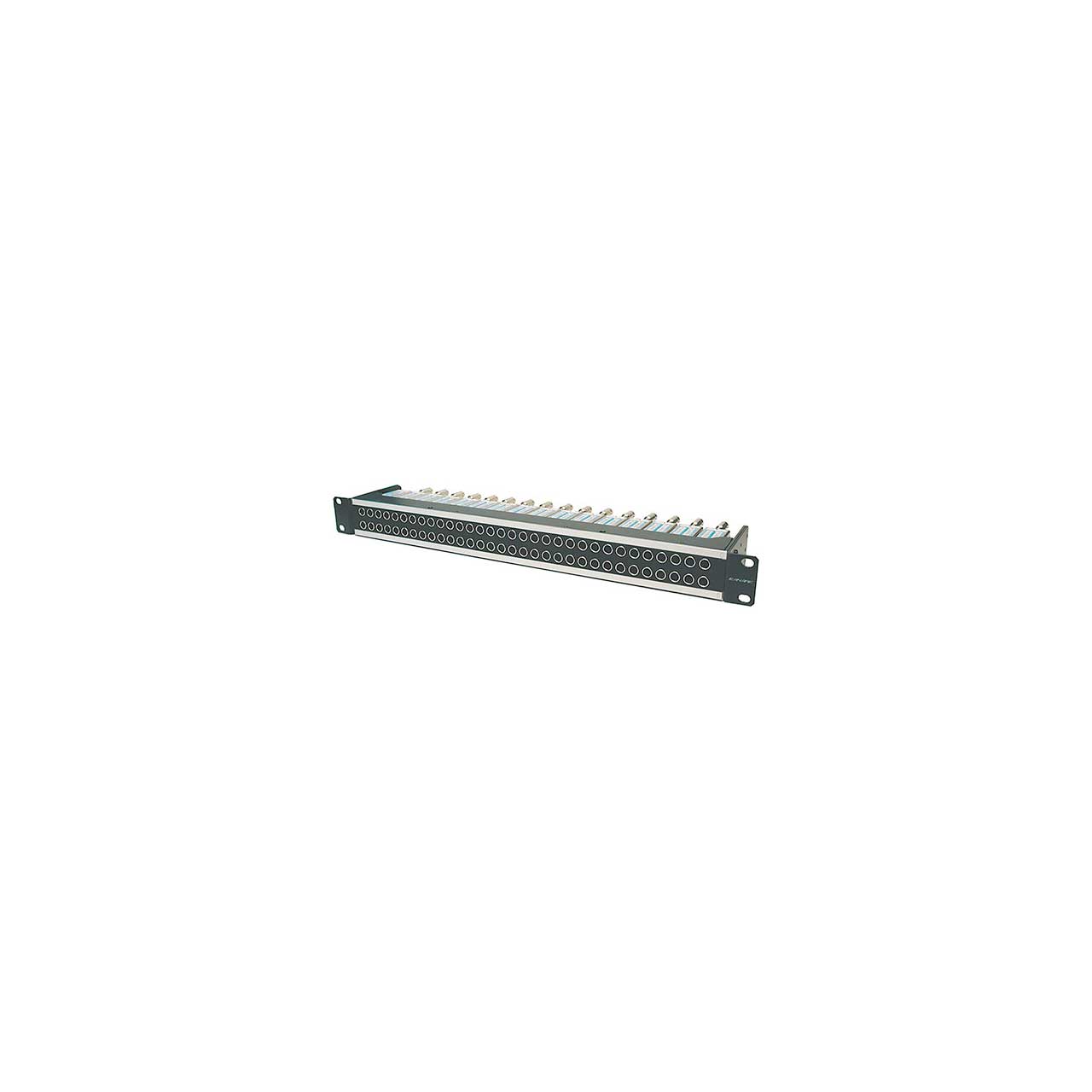

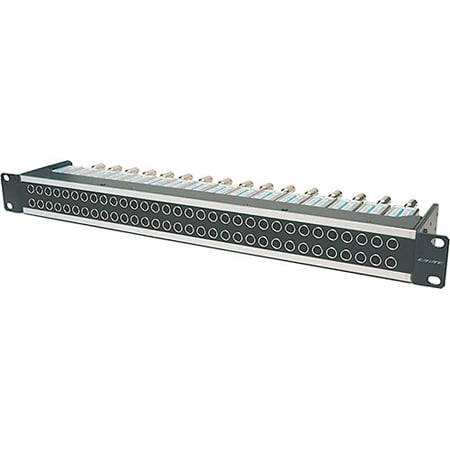

    The Canare 32MD-STS-15U-JN is a 75Ω Mid Size Video Patchbay with 32 3G ready MDVJ-W-ST-SC Straight Through Video Jacks Loaded.

    Applications:
    Studio
    OB Van
    Broadband Telecom

    • Features:

      • 32 Channel Across
      • Serial Digital Video (3G-SDI,HD-SDI,SD-SDI)
      • DC to 3.0GHz greater than 10dB Return Loss
      • Canare Original "Rotary" Switch
      • Beryllium Copper, Gold Plated Center Contacts
      • Light Weight Alloy Body
      • Easy Maintenance with standard and Canare "Slim BNC"
      • Easy Front Mount Assembly


    • Specifications:

      • Model Number: 32MD-STS-15U-JN

        Return Loss:
      • 26dB or greater (~750 MHz)
      • 20dB or greater (~2.4 GHz)
      • 10dB or greater (~3.0 GHz)

      • Isolation:
      • 35dB or greater (~1.5 GHz)
      • 20dB or greater (~2.0 GH
