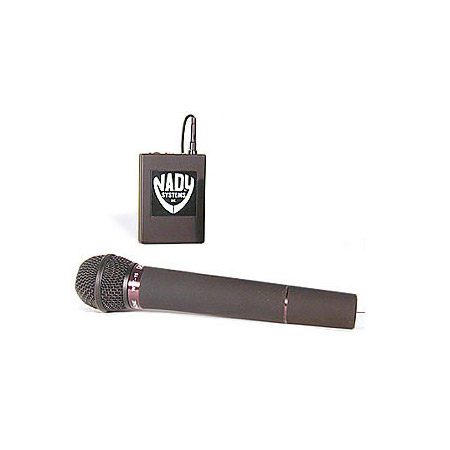

Nady VHF Handheld Camcord Sys. 203.400Mz

351VR/HT-F - Overview

• Specifications:

  • 351 VR Receiver.
  • WHT-15 Handheld Mic Transmitter.351 VR Receiver:
  • Controls: Headphone volume controls with unit OFF/ON switch,
  • Mute adjust, Audio output level adjust
  • Audio output: 600 ohm unbalanced
  • Connectors: Audio output; 3.5 mm mini jack; Headset output; 3.5 mm mini jack
  • LED Indicators: "TX" on; "LOW BATT": unit "ON" (single flash), Low Battery Alert (steady)Mute Externally adjustable; 1 preset minimum
  • Unwanted Signal Rejection: 60 dB image and spurious
  • Power Requirements: Single 9V alkaline, internal
  • Antenna: Softwire, detachableWLT-15:
  • Audio Input: 3.5 mm mono locking jack for connecting to omni or unidirectionallavalier mic or unidirectional head worn mic, with phantom power.
  • Controls: OFF/STANDBY/ON switch, input level adjust
  • LED Indicators: Unit "ON" (single flash), Low Battery Alert (steady)
  • RF Power Out:50 mW (maximum allowed by FCC)
  • Harmonic and Spurious Emissions: > -40 dB
  • Battery: 9V alkaline Battery Life: Up to 15 hoursWHT-15:
  • Audio Input: Nady DM-10D neodymium dynamic cartridge
  • Controls: OFF/STANDBY/ON switch
  • LED Indicators: Unit "ON" (single flash), Low Battery Alert (steady)
  • RF Power Out: 50 mW (maximum allowed by FCC)
  • Harmonic and Spurious Emissions: < -40 dB
  • Battery: 9V alkaline Battery Life: up to 15 hours Overall System Performance:
  • Frequency Response: 25 - 20,000 Hz ± 3 dB
  • Operating Frequency Range: Choice of 5 channel between 170-216 MHz
  • Dynamic Range: 120 dB (max SPL to A-weighted noise level)
  • Harmonic Distortion: .< 0.3%
  • Frequency Stability: ±.005%, crystal controlled
  • Modulation: FM, ± 15 KHz
  • Operating Range: Up to 250 feet (depending on site conditions)


• GTIN:

  0634343132564
