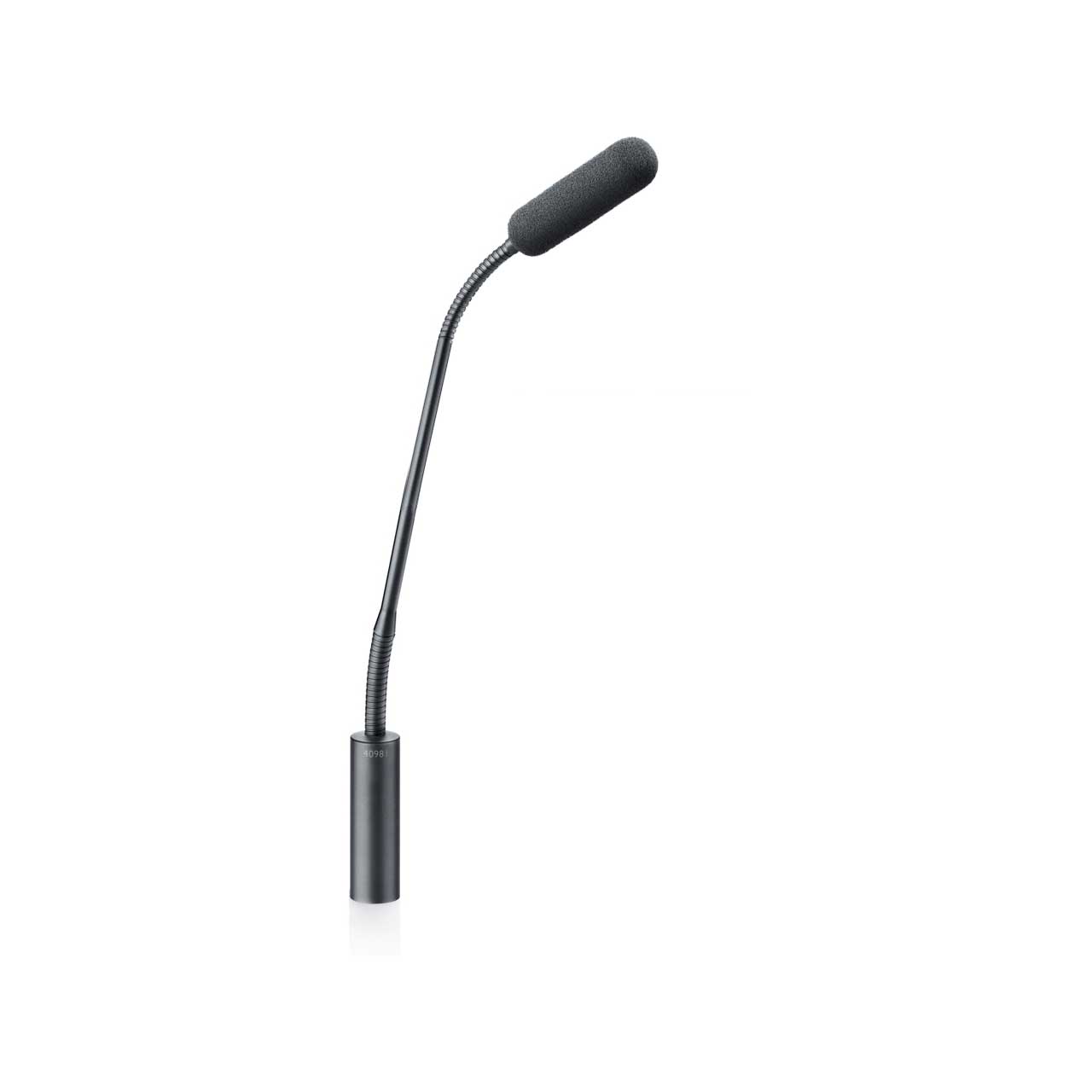

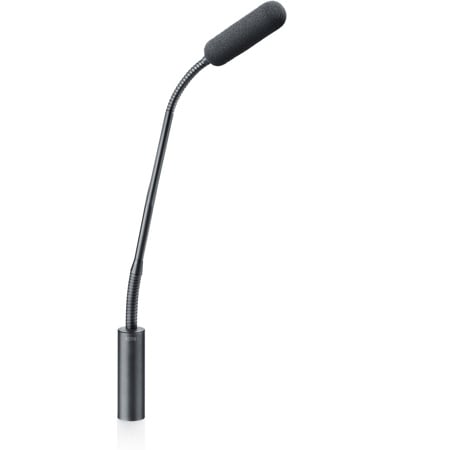

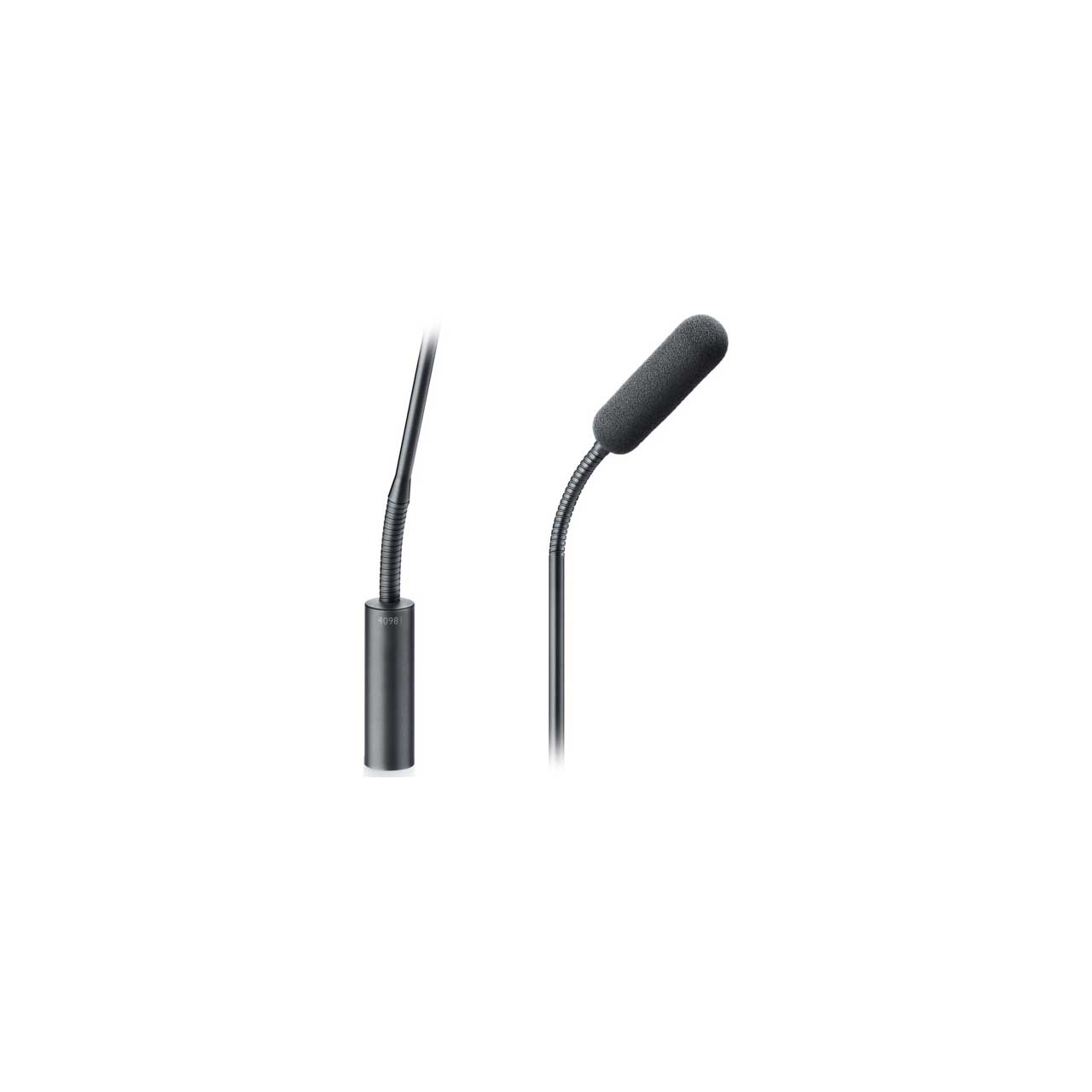

DPA 4098-DC-G-B01-045 4098 CORE Supercardioid Microphone - XLR - 18-Inch Boom - Top and Bottom Gooseneck - Black

ITEM #: 4098-DC-G-B01045 MFG #: 4098-DC-G-B010-45

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$815.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    4098-DC-G-B010-45 - Overview

    DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount.

    These microphones have, on numerous occasions, been the preferred type to turn to when high speech intelligibility is paramount. This for instance is the fact at parliaments where multiple languages are to be simultaneous interpreted and the interpreters must catch every word and nuances of the spoken word and in a split second deliver the perfect translation.

    4098 CORE Supercardioid Microphones
    CORE by DPA technology has been added to the 4098 microphone, lifting sound quality even more, just like all of the other products using CORE technology. The 4098s dynamic range has been increased by 8 dB, so that the 1% THD is lifted significantly to 133 dB.

    With very low noise and a high sensitivity, 4098 CORE Supercardioid Microphones offer the most clear, transparent, and natural sound available on the miniature mic market. The mics are capable of handling extremely high SPL before clipping, which allows the mic to deliver high speech intelligibility even when the speaker gets excited and starts to speak VERY loudly. With a linear response, low distortion and an extremely large dynamic range, these mics sound great no matter how challenging the environment.

    In addition, speaking into the side (off-axis) of the microphone doesn't make the audio sound worse, it just drops the level of your voice.

    The 4098 CORE Supercardioid Microphone is available in many variants. It comes in either black or white, with either an XLR or a MicroDot termination and in five lengths ranging from 16 cm (6 in) to 122 cm (48 in).

    • Features:

      • Outstanding audio quality
      • Wireless podium mic capability
      • Highly directional - very isolated
      • High rejection of radio frequency interference
      • Sleek Scandinavian design

    • Specifications:

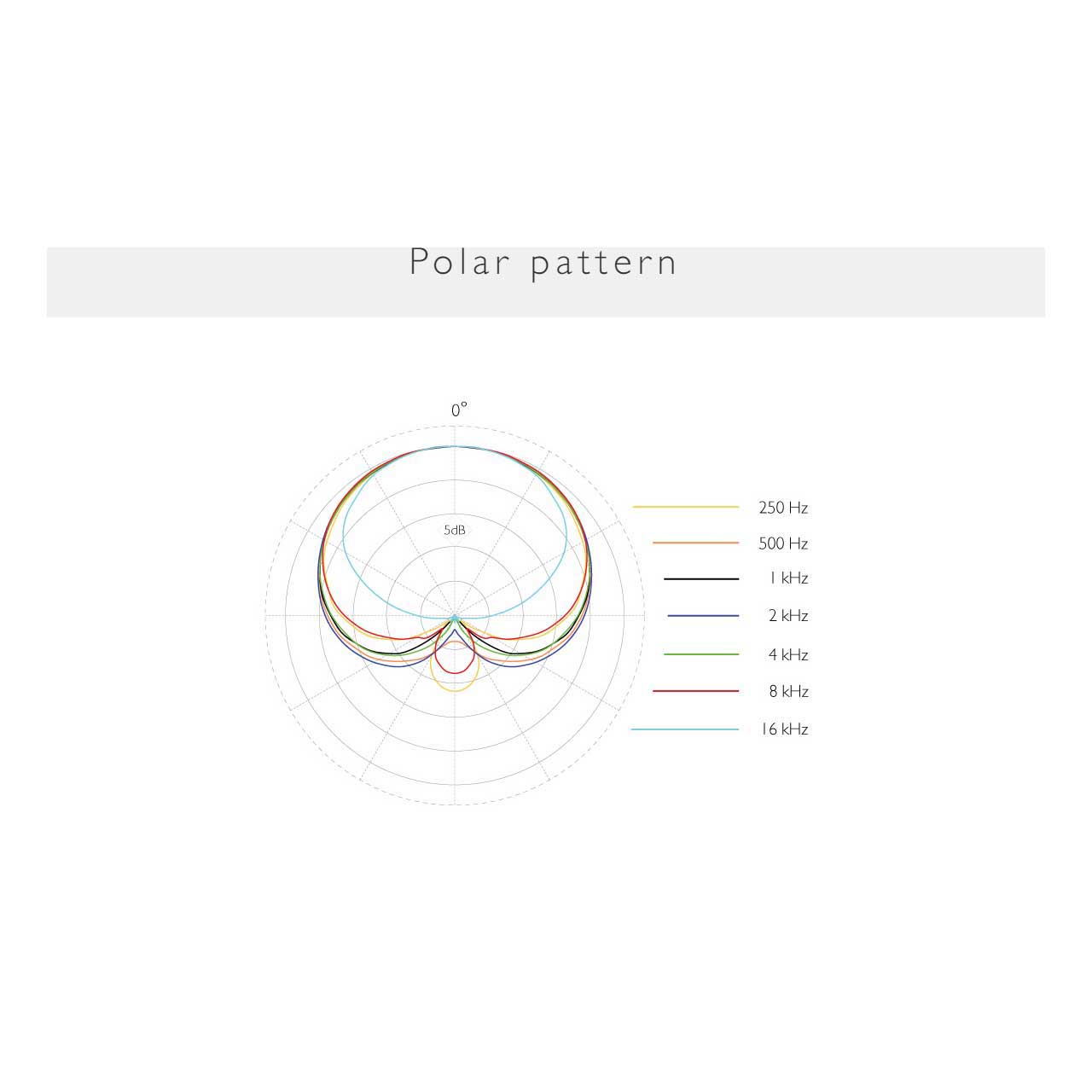

      • Directional Pattern: Supercardioid
      • Principle of Operation: Pressure gradient
      • Cartridge Type: Pre-polarized condenser

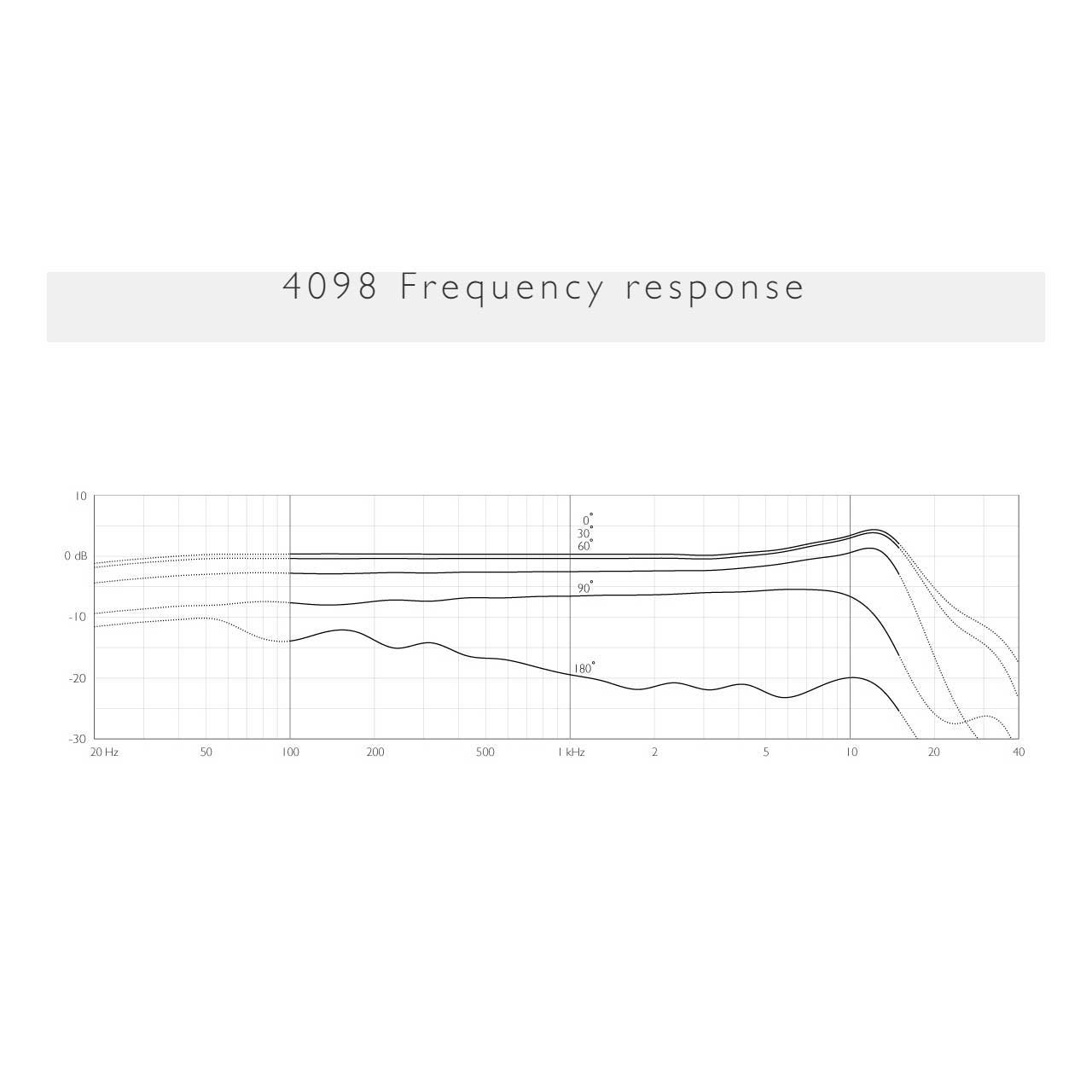

      • Frequency Response: 20Hz - 20kHz
      • Effective Frequency Range: ±2dB, at 7.9" (20cm) 100Hz - 15kHz with 3dB soft boost at 8-15kHz and permanent 2nd order low-cut filter at 80Hz
      • Sensitivity, Nominal, ±3dB at 1kHz: 16 mV/Pa; -36dB re. 1 V/Pa
      • Equivalent Noise Level, A-Weighted: Typ. 23dB(A) re. 20 µPa (max. 26dB(A))
      • Equivalent Noise Level, ITU-R BS.468-4: Typ. 35dB (max. 38dB)
      • Distortion, THD < 1% - Legacy: 122dB SPL RMS, 125dB SPL peak
      • Distortion, THD < 1% - CORE: 130dB SPL RMS, 133dB SPL peak
      • Dynamic Range - Legacy: Typ. 102dB
      • Dynamic Range - CORE: Typ. 110dB
      • Max. SPL, THD 10%: 135dB SPL peak
      • Rated Output Impedance: From MicroDot: 30 - 40Ω. From XLR connector or DAD6001-BC XLR Adapter: 100Ω
      • Minimum Load Impedance: 2kΩ
      • Cable Drive Capability: Up to 328' (100m)
      • Output Balance Principle: Signal balanced with XLR connector or DAD6001-BC XLR Adapter
      • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz to 15kHz with DAD6001-BC XLR Adapter
      • Power Supply (for Full Performance): P48 (Phantom Power)
      • Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Connector: XLR-3M
      • Color: Black
      • Weight: 3.1oz (88g)
      • Microphone Diameter: 0.22" (5.7mm)
      • Microphone Length: 18" (47cm)
      • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter)
      • Temperature Range: -40° to 113°F (-40° to 45°C)
      • Relative Humidity (RH): Up to 90%
