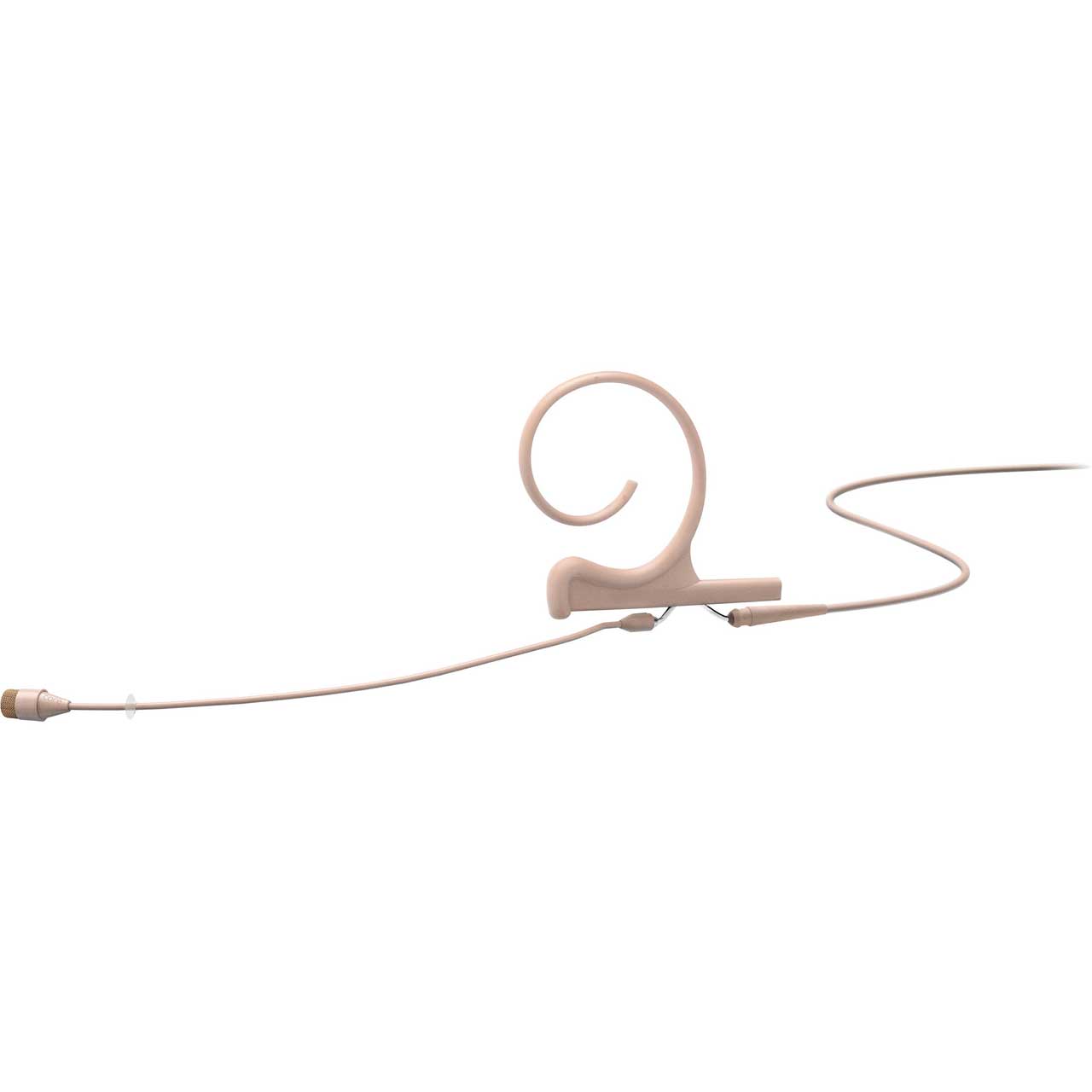

DPA 4266-OC-F-F10-ME CORE 4266 Omni Flex Earset Mic - 90mm Boom - TA4F Mini-XLR - Beige

ITEM #: 4266-OC-F-F10-ME MFG #: 4266-OC-F-F10-ME

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$910.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    4266-OC-F-F10-ME - Overview

    The DPA 4266-OC-F-F10-ME 4266 Omnidirectional Headset Microphone combines the legendary sound of the 4066 Omnidirectional Capsule with a lightweight and flexible headset system. This condenser mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom. The capsule itself is the same type as the 4066, but is attached to an interchangeable boom arm.

    This microphone is available as an earset or headset. Earset variants are the quickest to put on and often the best choice when miking needs to be fast and easy for example for conference use. Headset variants sit more securely around the head and are ideal for active performance situations where the person wearing the headset won't feel the presence of the microphone. Both types are ergonomically designed to fit comfortably and easily. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the earhook, the microphone can be easily used on either the left or the right ear. The connector splits the cable from the microphone boom allowing you to swap broken cables and / or wireless connectors quickly.

    Three boom lengths are available to accommodate different applications and head sizes: 40 mm (1.6"), 90 mm (3.5") and 110 mm (4.3"). The 110 mm (4.3") is the standard choice for most users.

    • Features:

      • Pristine audio quality
      • Lightweight and flexible
      • Easy mounting to the left or right
      • Minimal visual impact
      • Resistant to humidity
      • Flexible adapter system fits most professional wireless systems

    • Specifications:

      • Directional Pattern: Omnidirectional
      • Principle of Operation: Pressure
      • Cartridge Type: Pre-polarized condenser
      • Frequency Response: 20 Hz - 20 kHz
      • Effective Frequency Range ±2 dB: Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB Boost at 12 kHz
      • Sensitivity, Nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
      • Equivalent Noise Level, A-Weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
      • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
      • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
      • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
      • Dynamic Range - Legacy: Typ. 97 dB
      • Dynamic Range - CORE: Typ. 111 dB
      • Max. SPL, THD 10%: 144 dB SPL peak
      • Rated Output Impedance: 30 - 40Ω
      • Cable Drive Capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
      • Output Balance Principle: Signal balanced with DAD6001-BC XLR Adapter
      • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
      • Power Supply (for Full Performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
      • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
      • Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
      • Color: Black, beige or brown
      • Weight: Single Ear: 10 g (0.35 oz)
      • Microphone Diameter: 5.4 mm (0.21")
      • Microphone Length: 12.7 mm (0.5")
      • Cable Length: 1.3m (4.3 ft)
      • Cable Color: Black, beige or brown
      • Cable Diameter: 1.6 mm (0.06")
      • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      • Temperature Range: -40°C to 45°C (-40°F to 113°F)
      • Relative Humidity (RH): Up to 90%
