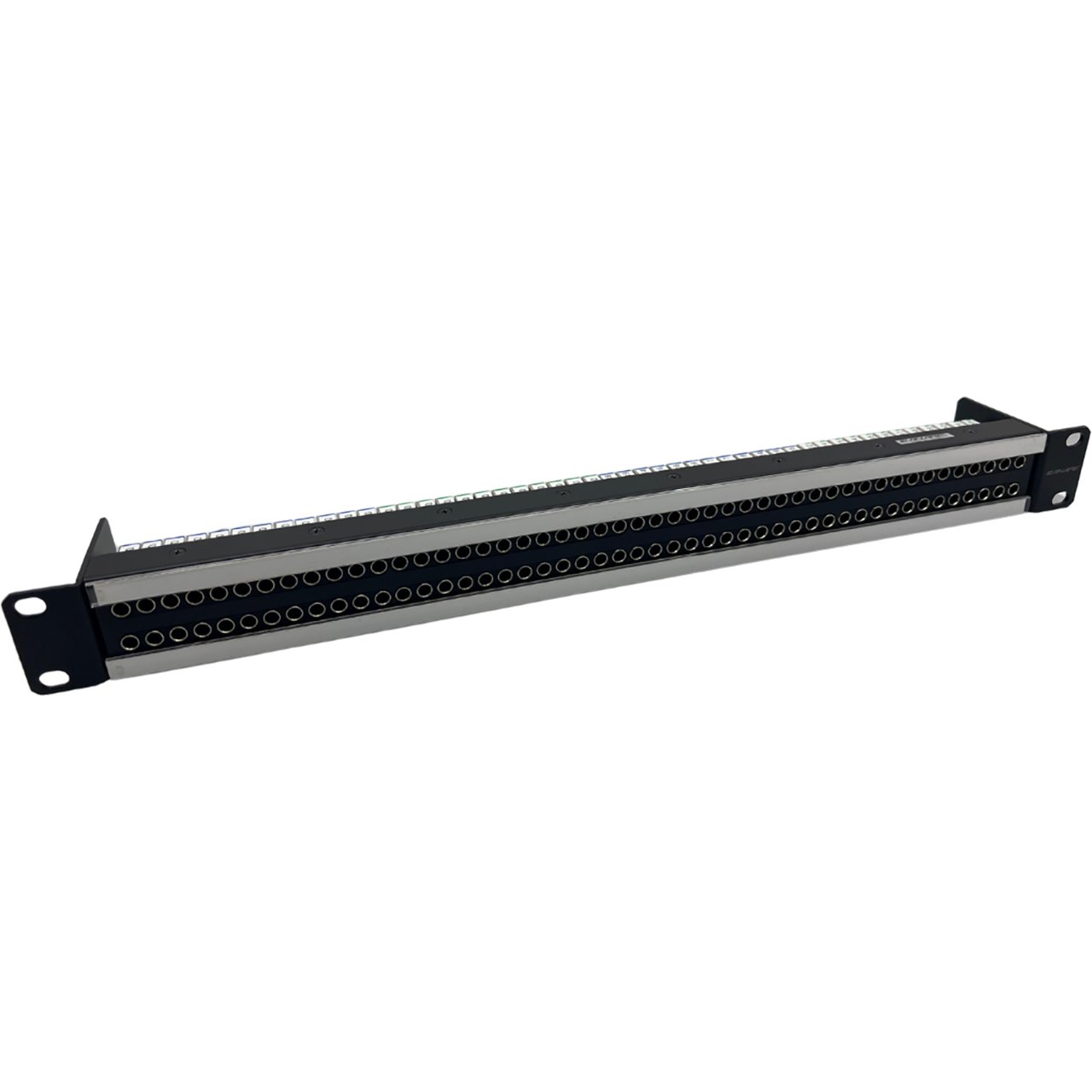

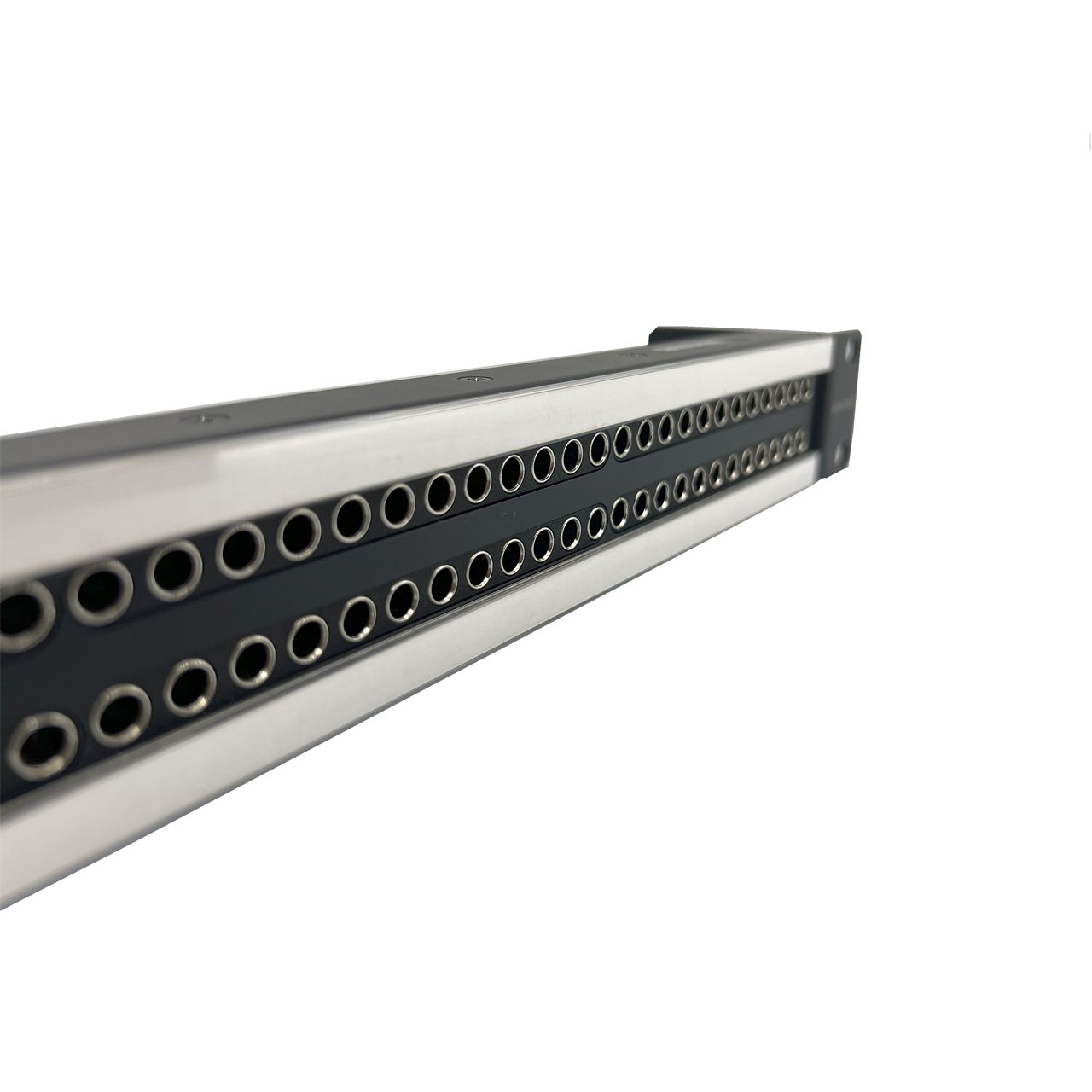

Canare 48MCK-H 12G-SDI 48-Channel Micro Video Patchbay with Normal Through Jacks and Rear Micro BNC Connector Type

48MCK-H - Overview

• Features:

  • High density 48 channels of I/O
  • Space and weight saving
  • Beneficial for O.B. vans
  • Dust-proof shutter
  • Supports 12G-SDI
  • Normal through Micro BNC video jack
  • Half the size of other conventional video jacks
  • When using the following plugs on the micro BNC connectors at the rear panel, BET-HBNC can be used for insertion/removal: HBCP-D25HDA,HBCP-D25HWA,HBCP-D33UHDA


• Specifications:

  • Dimensions: 24" x 7" x 3" (625mm x 190mm x 70mm)
  • Weight: 5lbs (2.3kg)
  • Panel Size: EIA 1 Rack Unit 19"x 1" (482.6mm x 44.45mm)
  • Designation Strips: Kent paper
  • Size: 16.8" x 0.3" (426mm x 8.5mm)
  • Jacks Loaded: Normal Through Jacks (MCVJHK-W)
  • Quantities: 48pcs
  • Environment: RoHS Compliant
  • Accessories:
    - Dust Cap (100pcs) 1pcs
    - Cross recessed binding head (M5x15) 4pcs
    - Plain Washers: 4pcs
  • Packaging: Carton box
  • Return Loss:
    - 15dB or greater @ 1.5GHz
    - 10dB or greater @ 3.0GHz
    - 7dB or greater @ 6.0GHz
    - 4dB or greater @ 12.0GHz


• Item Includes:

  • 1x 48MCK-H 12G-SDI 48-Channel Micro Video Patchbay
