Amphenol 031-70545-12G Right Angle Crimp Plug 12G BNC Connector for Belden 4794R Cable - 75 Ohm
  • Amphenol 031-70545-12G Right Angle Crimp Plug 12G BNC Connector for Belden 4794R Cable - 75 Ohm
  • Amphenol 031-70545-12G Right Angle Crimp Plug 12G BNC Connector for Belden 4794R Cable - 75 Ohm

Questions? Ask a Markertek Expert:
800-522-2025 Email

Amphenol 031-70545-12G Right Angle Crimp Plug 12G BNC Connector for Belden 4794R Cable - 75 Ohm

Manufacturer: Amphenol

Item #: AMPH-0317054512G   •   MFG #: 031-70545-12G



List Price:$14.48
Our Price:$11.14
Quantity Pricing

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

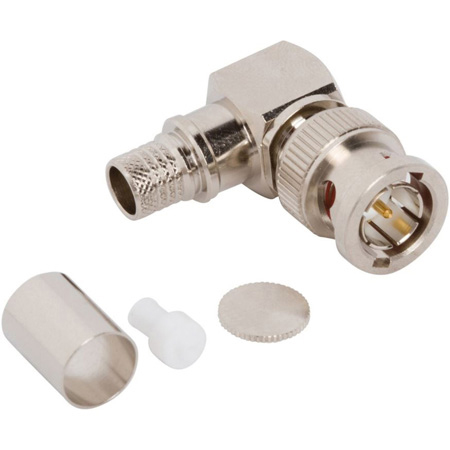

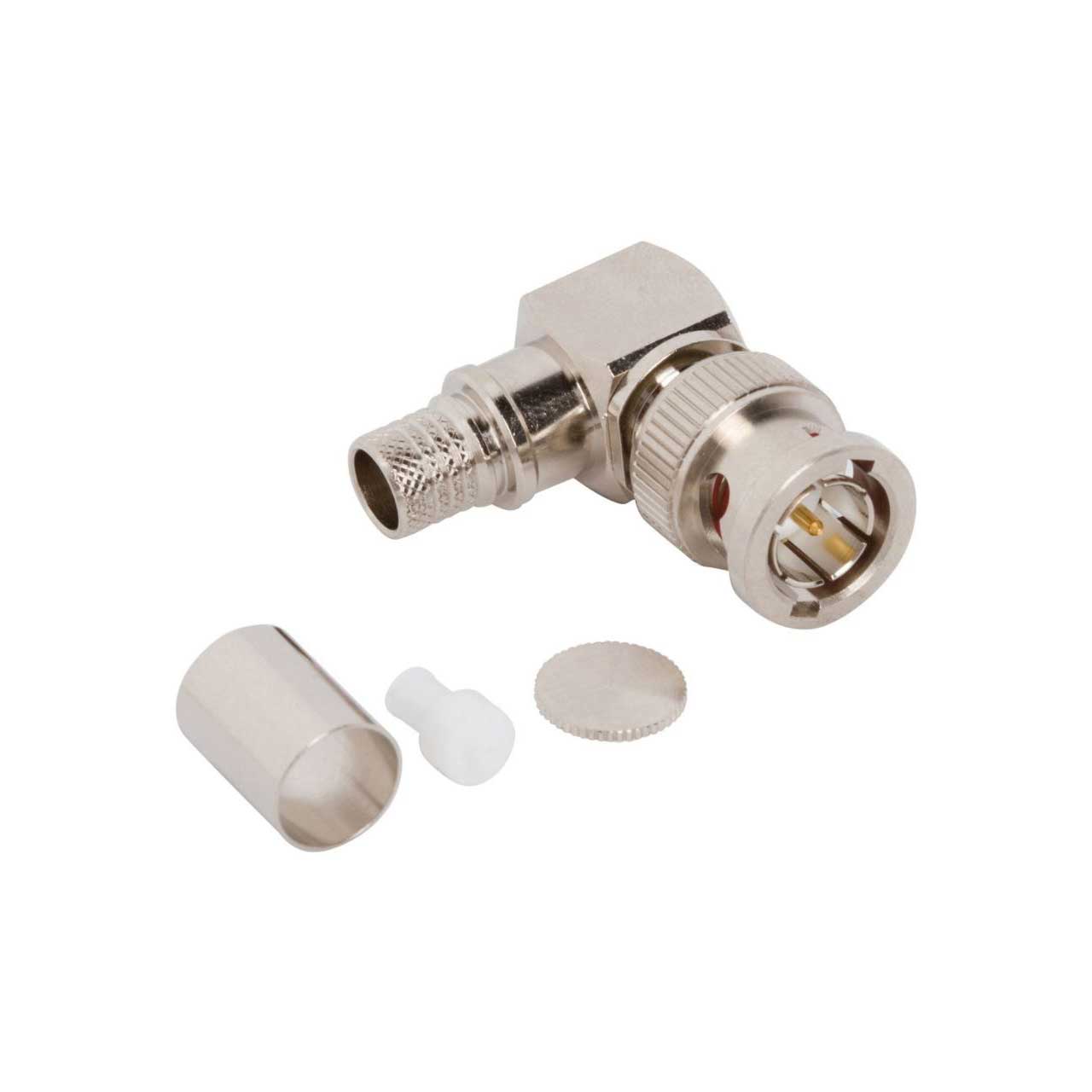

The Amphenol 031-70545-12G is a BNC right-angle crimp plug for Belden 12G optimized 4794R cables.

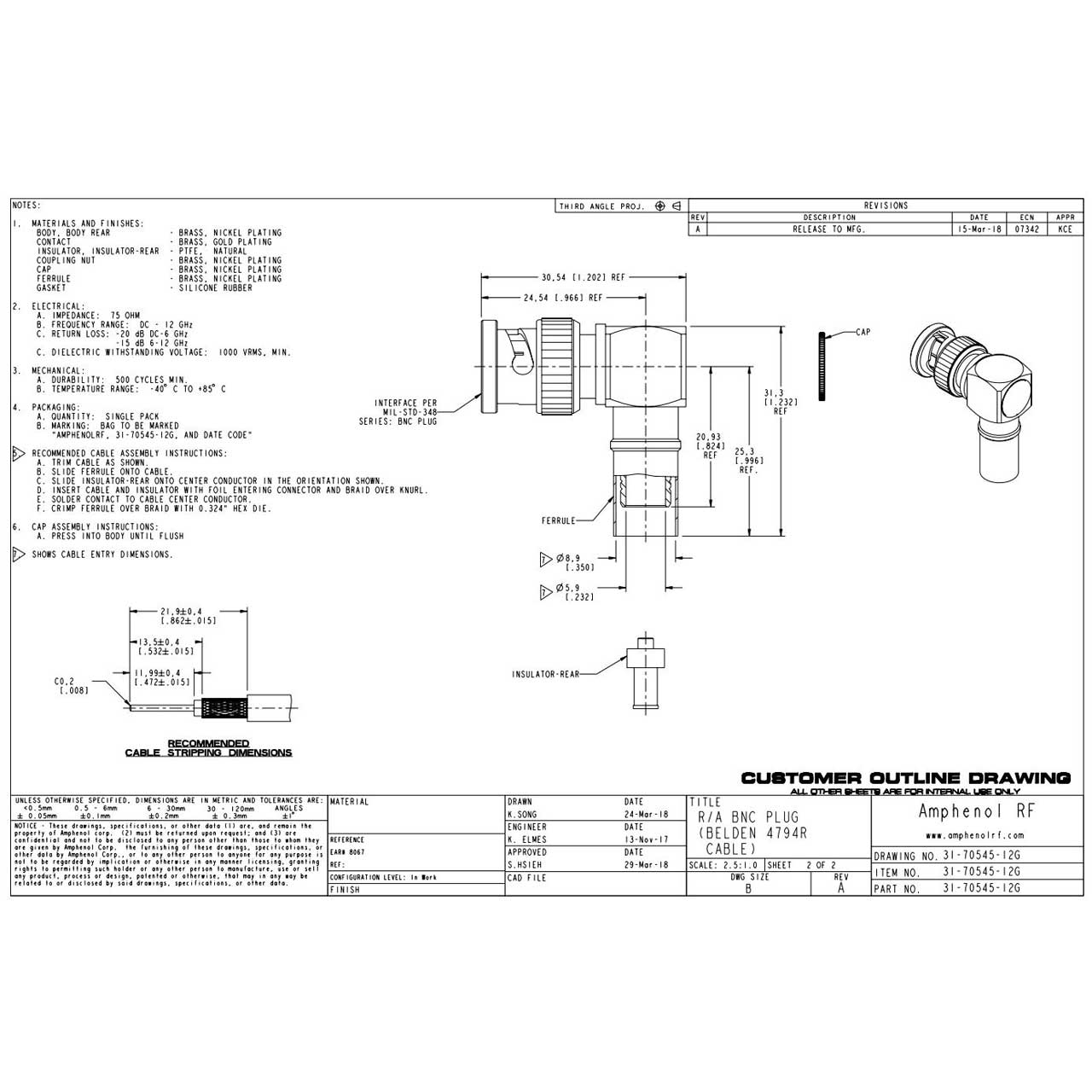

Please note! Assembly requires soldering and crimping. See above for recommended cable assembly instructions. A 0.324 hex die would be required for crimping.


  • Specifications

    • Gender: Plug
    • Orientation: Right Angle
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Brass
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: Special
    • Cable Type: Belden 1794A, Belden 4794R
    • Crimp Tool: 47-10110
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 18
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Package Type: BAG
