Remee 4CSMPTRW 4-Channel Water Blocked Indoor CMR Outdoor Riser Rated SMPTE 311M Cable - 2500 Foot

ITEM #: 4CSMPTRWBUB25K MFG #: 4CSMPTRWBUB25K

Primary Image
Remee Wire & Cable
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

4CSMPTRWBUB25K - Overview

The Remee 4CSMPTRW is a 2500 foot, 4-channel SMPTE 311M hybrid fiber camera cable designed for indoor riser (CMR) and outdoor wet-location installations. It is water-blocked and engineered for professional broadcast, studio, and live-event camera connectivity.

Please Note: Spools have a +/- 5% variance in length. Contact one of our sales reps for exact reel size.

  • Features:

    • 4-channel SMPTE 311M compliant hybrid fiber camera cable
    • Indoor CMR/Outdoor Wet-Location rated construction
    • Water-blocked design with water-block tape to resist moisture intrusion
    • 8x single-mode optical fibers, color-coded and numbered 1-8
    • Shielded subassemblies with drain wire for improved EMI protection
    • UV-resistant PVC outer jacket for outdoor exposure
    • 300V voltage rating


  • Specifications:

      Construction Details - Component 1
    • Conductor: 18AWG 19/30 TC
    • Insulation: Polyethylene
    • Nominal Diameter: 0.07" (1.8mm)
    • Colors: Blk, Wht, Blk/Yel, Wht/Yel, Blk/Orn, Wht/Orn, Blk/Blu, Wht/Blu

      Construction Details - Component 2
    • Conductor: 24AWG 7/32 TC
    • Insulation: Polyethylene
    • Nominal Diameter: 0.044" (1.1mm)
    • Colors: Red, Gry,Red/Yel, Gry/Yel,Red/Orn, Gry/Orn, Red/Blu, Gry/Blu

      Construction Details - Component 3
    • Fiber Type: Simplex Single-Mode
    • Buffer: Tight Buffer
    • Material: Thermoplastic
    • Diameter: 900 ± 50 micron (.035 ± .002")
    • Color/Diameter: Yellow numbered 1-8. Nominal Diameter 0.120"

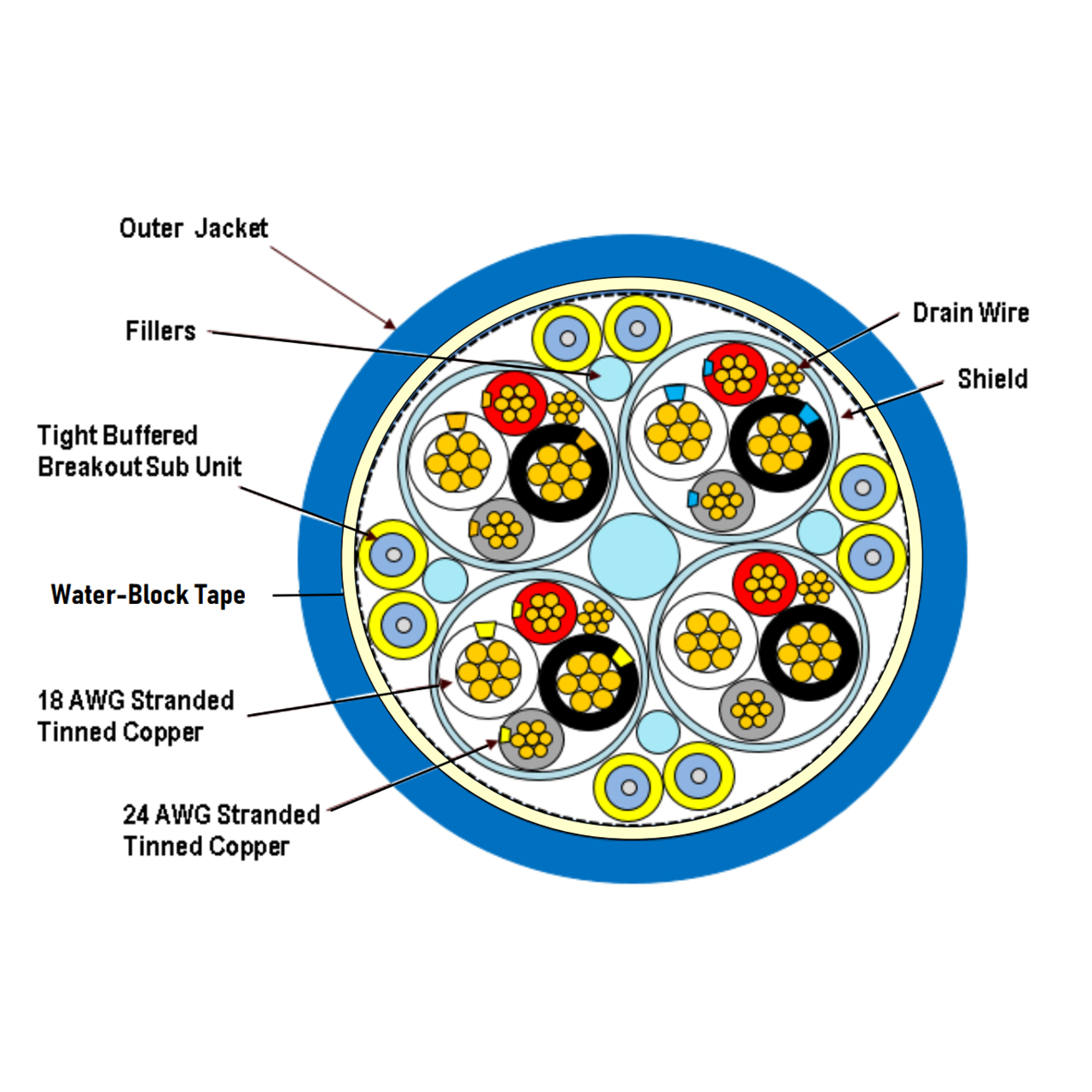

      Overall Construction Details
    • Filler: Solid PVC. Fibrillated Polypropylene for roundness.
    • Cable Assembly: 2x 18AWG and 2x 24awg cabled with drain wire and shield. 4x components and 8x fiber cabled in 8" left hand lay
    • Tape: Water Block Tape
    • Jacket Material: PVC
    • Jacket Thickness: 0.050" (1.3mm), Nominal
    • Nominal Diameter: 0.719" (18.3mm)
    • Jacket Color: UV Resistant Black, (Other Colors Available with MOQ)
    • Footage Marking: Sequentially Marked every 2 Feet

      Electricals
    • Voltage Rating: 300V
    • Optical Attenuation @ 1310nm: ≤ 0.5dB/km
    • Optical Attenuation @ 1550nm: ≤ 0.5dB/km
    • Component 1 (18AWG) DCR 6.21Ω/1M' @ 68°F (20°C)
    • Component 2 (24AWG) DCR: 26.25Ω/1M' @ 68°F (20°C)

      Other
    • Spool Length: 2500 feet (762m)
    • Maximum Cable Pull Strength: 145lbs (65.8kg)
    • Minimum Bend Radius: 4.8" (121.92mm)


  • Item Includes:

    • 1x Remee 4CSMPTRW 4-Channel Water Blocked Indoor CMR Outdoor Riser Rated SMPTE 311M Cable - 2500 Foot


  • Warranty:

    • 1-Year Limited Warranty
