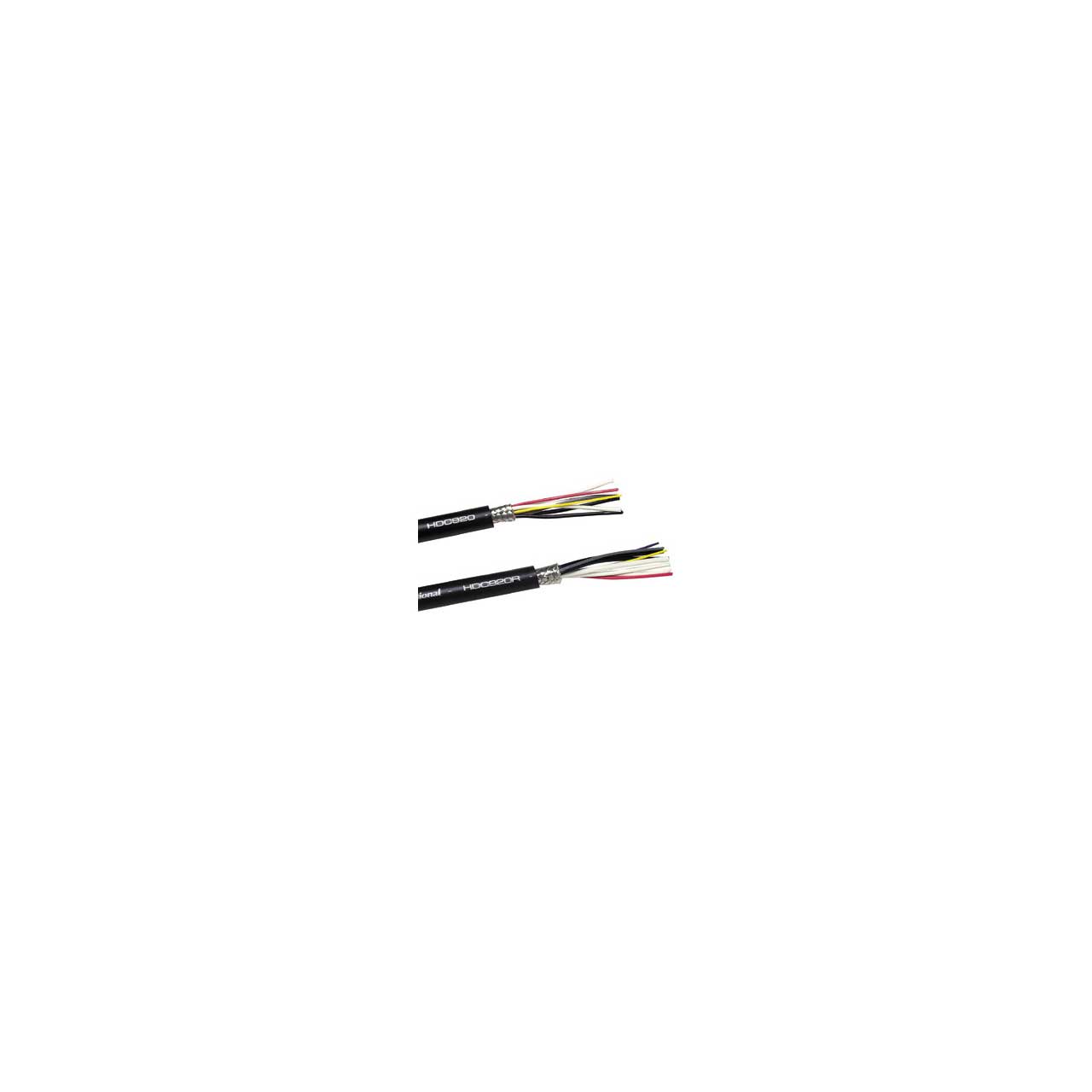

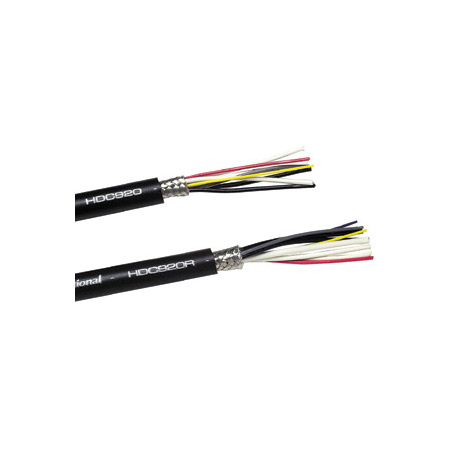

Gepco HDC920 9.2mm Flexible Hybrid SMPTE 311M Cable - Per Foot

ITEM #: GEP-HDC920-FT MFG #: HDC920.99

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2.94

Our Price:

$2.46

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in April.


HDC920.99 - Overview

Fiber optic and copper conductor SMPTE 311M hybrid cable for High Definition video cameras. In the hybrid 311M format, the HD video signal is transmitted over two single-mode optical fibers to ensure accurate and extended-distance data transmission. To increase the durability, a special nylon-based polymer with increased tensile strength is used for the fiber coatings, and a 16-gage steel strength member is cabled at the center of the cable core. All copper elements feature heat-resistant PE insulation and are shielded by a dense 95% copper braid. The outer jacket is a flexible, riser-rated PVC for permanent installation applications.

  • Features:

    • Extra-flexible TPE Jacket
    • Ultra-low Attenuation
    • SMPTE 311M Compliant
    • Single-mode Optical Glass Fibers
    • Proprietary Fiber Coating for Increased Tensile Strength
    • Six Copper Conductors
    • Heat Resistant
    • Strength Member for Additional Durability
    • Copper Braid Shield

  • Specifications:

    • Optical Component: (2) Single Mode 9æ Mode Field, 125æ Cladding
    • Signal Component: (2) 24 AWG Stranded TC
    • Auxiliary Component: (4) 20 AWG Stranded TC
    • Strength Member: (1) 16 AWG Stranded Steel
    • Overall Shield: 95% TC Braid
    • Jacket: Flexible TPE
    • UL Type: AWM
    • Weight: 90 lbs/Mft

  • GTIN:

    0612825405276
