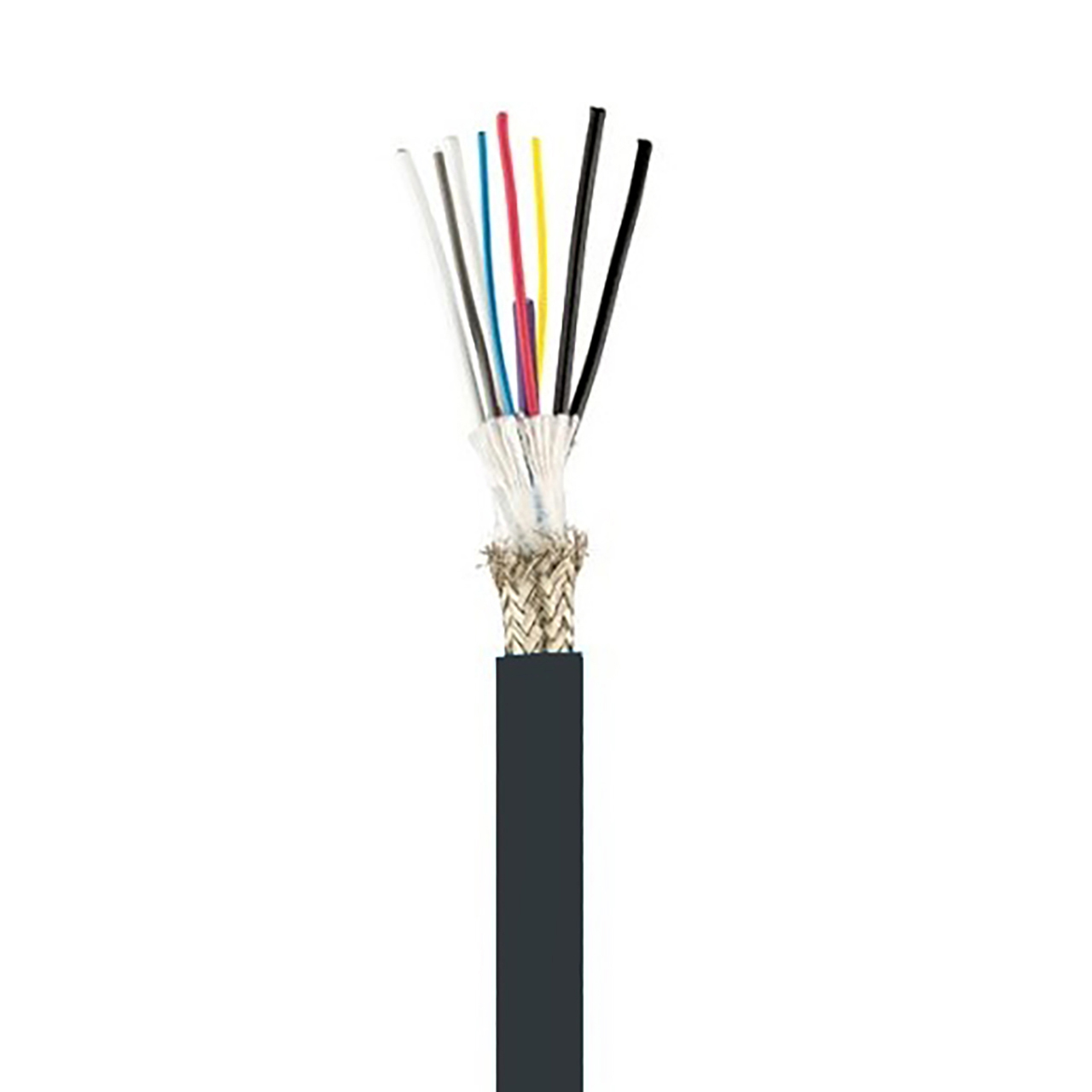

OCC CX008HBWA9KR SMPTE Riser WBT Indoor/Outdoor Cable - 2 Fiber/4x 20 AWG/2x 24 AWG with TC - 1000 Foot

ITEM #: CX008HBWA9KR1000 MFG #: CX008HBWA9KR 1000 FOOT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,320.00

Our Price:

$2,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CX008HBWA9KR 1000 FOOT - Overview

The OCC CX008HBWA9KR is a SMPTE-riser rated broadcast cable with waterblocking tape that offers the durability you expect from OCC. These SMPTE cables allow you to source all your connection needs from one place. This riser utilizes the OCC Ultra-Fox™ Plus deployable buffer system with the combination of a triple thickness 500µm diameter acrylate coating together with a hard elastomer 900µm tight buffer for maximum fiber protection.

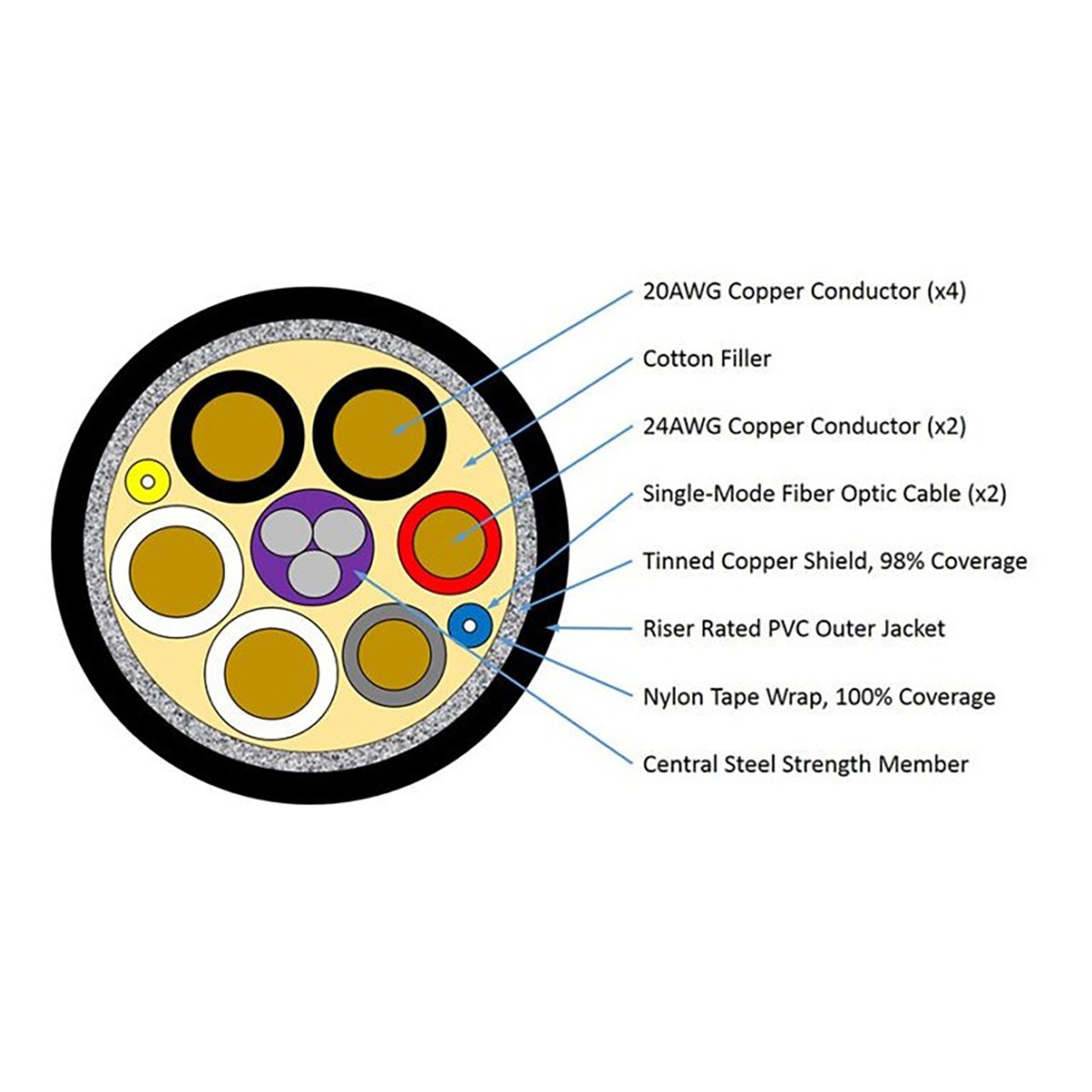

  • Features:

    • UL Riser Rated
    • Fully SMPTE 311 Compliant
    • Riser Rated PVC Jacket
    • 500µm Acrylate Primary Buffer on Fiber for Added Durability
    • Jacketed Steel Central Strength Member
    • Cotton Filler and Nylon Over-Wrap Help Minimize Cable Migration During Flexing
    • 98% Braided Shield Coverage

  • Specifications:

      Performance
    • Fiber Code/Count: SLA/2
    • Industry Standard Designation: Bend tolerant, single-mode, ITU-T G.657.A1, ITU-T G.652.D (Yellow and Blue)
    • Core/Cladding Diamater: 9/125µm
    • Wavelength: 1310/1550nm
    • Maximum Cable Attenuation 0.5dB/0.5km
    • Primary Coating Diameter: 2245µm
    • Secondary Buffer Diameter: 900µm
    • Zero Dispersion Slope: 0.092ps/nm²-km
    • Proof Test Level: 100kpsi

      Cable Characteristics
    • Jacket Color: UV Resistant Black
    • Jacket Material: Riser Rated PVC
    • Buffer Material: Indoor/Outdoor PVC
    • Subunit OD: 0.9mm
    • Cable Weight 80lbs/1000' (199kg/km)
    • Cable Diameter: 0.36" (9.17mm)
    • Strength Member: 16 AWG Galvanized Steel PVC Insulated - Purple
    • Tape: Water-Blocking Tape, Overall, 100% Coverage

      Conductors
    • 4x 20 AWG 19 Strand Class C Annealed Tinned Copper PE Insulated 300V - Black, Black/White, White/Black, White
    • 2x 24 AWG 7 Strand Class B Annealed Tinned Copper PE Insulated 300V - Red, Gray

      Mechanical and Enviornmental
    • Operating Temperature: -4°F - 167°F (-20°C - 75°C)
    • Installation Temperature: 32°F - 167°F (0°C - 75°C)
    • Standards: UL Subject 444, Type CMR-OF/FT4

  • Item Includes:

    • 1x OCC CX008HBWA9KR Broadcast Cable 1000 Foot

  • Warranty:

    • 25 Year Limited Warranty
