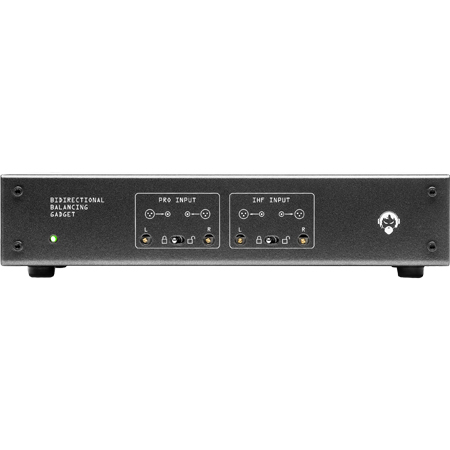

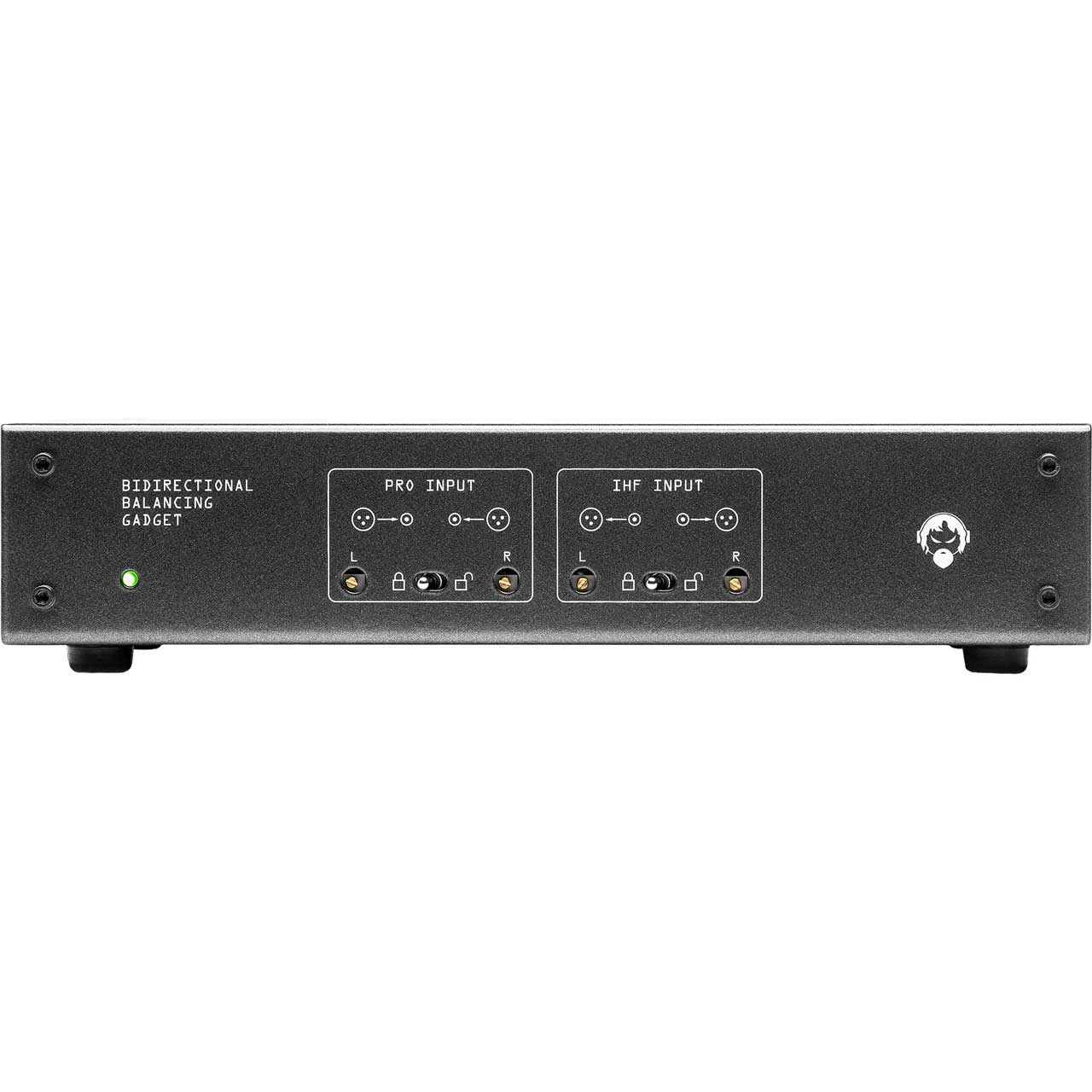

Angry Audio BIDIRECTIONAL BALANCING GADGET Stereo Converter - 2 IHF Inputs/Outputs - 115VAC Version

ITEM #: AA-BIDIRECTIONAL MFG #: BIDIRECTIONAL BALANCING GA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$289.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    BIDIRECTIONAL BALANCING GA - Overview

    Professional applications use balanced audio for good reason. Balanced circuits offer many performance advantages compared to unbalanced audio, such as increased headroom and reduced noise from radiation and ground differentials. Sometimes, though, unbalanced devices are unavoidable. The Balancing Gadgets were made for those times.

    Bidirectional Balancing Gadget

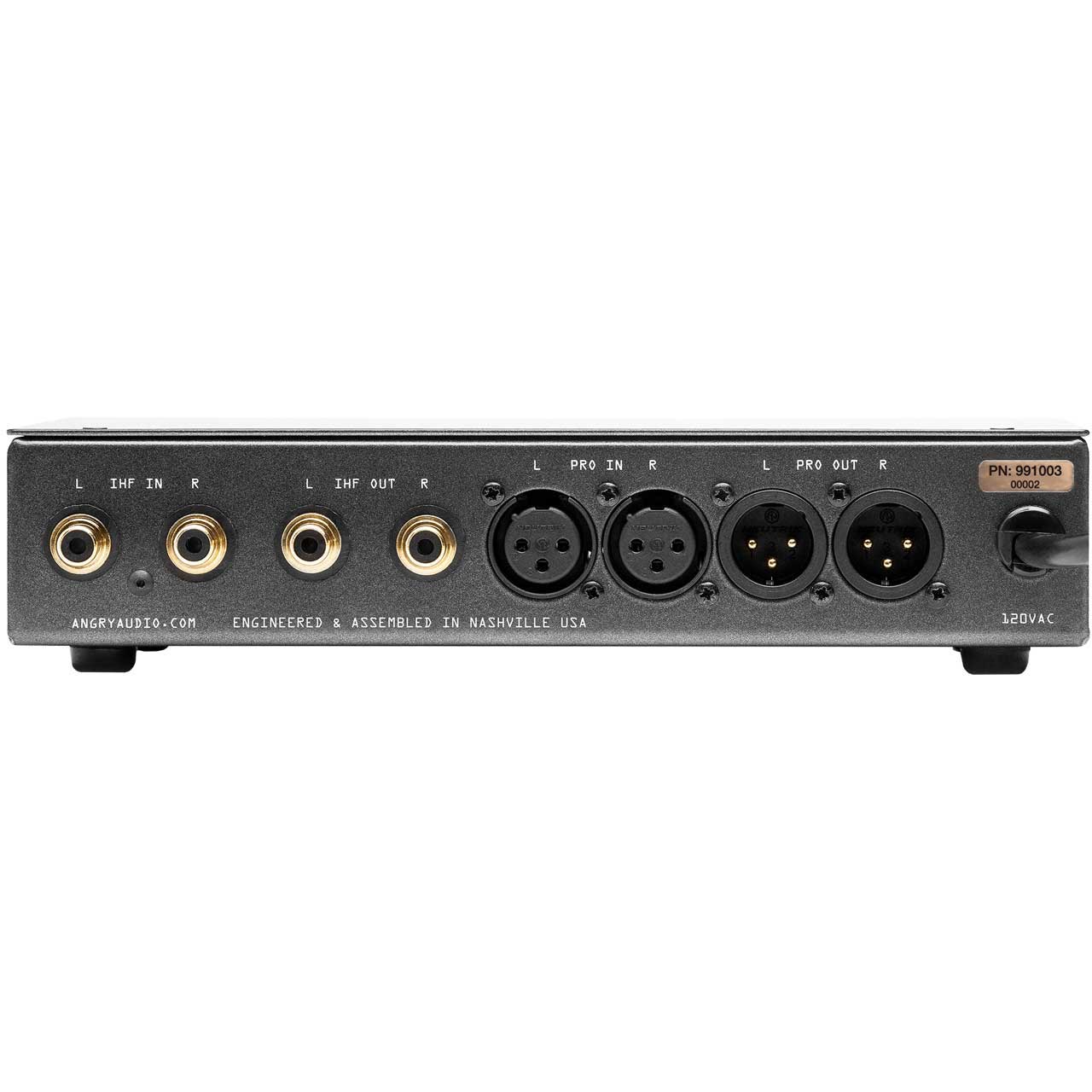

    Converts one stereo pair from unbalanced to balanced and another stereo pair from balanced to unbalanced. Perfect for a recording device or a computer sound-card. All unbalanced and balanced signals are on RCA/Phono jacks and XLR connectors, respectively. Plenty of gain in the unlocked position means even low-level computer sound-cards are no problem.

    • Specifications:

      • Unbalanced to Balanced Conversion
      • Fixed Gain: +11.8dB (-10dBv in = +4dBu out)
      • Adjustable Gain Range: +10dB to +28db
      • Frequency Response: ± 0.2dB, 20Hz - 20kHz
      • THD+N: ≤ 0.004%, 20Hz - 20kHz
      • Noise: ≤ 90dBu (20Hz to 20kHz, fixed gain position)
      • Headroom: ≥ 20dB
      • Maximum Output Level: +26dBu (+24dBm @ 600Ω load)
      • Input Impedance: 100kΩ
      • Output Impedance: 100Ω balanced
      • Crosstalk: ≤ -75dB (10kHz)
      • CMRR: ≥ 70dB (20Hz to 20kHz)

        Balanced to Unbalanced Conversion
      • Fixed Gain: -11.8dB (+4dBu in = -10dBv out)
      • Adjustable Gain Range: -17dB to +1dB
      • Frequency Response: ± 0.2dB (20Hz to 20kHz)
      • THD+N: ≤ 0.004% (20Hz to 20kHz)
      • Noise: ≤ 90dBu (20Hz to 20kHz, fixed gain position)
      • Headroom: ≥ 20dB
      • Maximum Output Level: +15dBv
      • Input Impedance: 20kΩ
      • Output Impedance: 100Ω (pseudo-balanced)
      • Crosstalk: ≤ -75dB (10kHz)
      • CMRR: ≥ 70dB (20Hz to 20kHz)

        Power and Environmental
      • North American Version: 115VAC 60Hz, NEMA 5-15P power plug
      • Power Consumption: 5VA
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 113° F
      • Relative Humidity :0% to 90% non-condensing
      • Cooling: Vented chassis (fanless)

        Product Weight & Dimensions
      • Width x depth x height: 8.5 x 6.25 x 1.70 in.
      • Weight: 3.5 pounds

        Shipping Weight & Dimensions
      • Length x width x height: 12 x 9 x 6 in.
      • Weight: 5 pounds

    • Item Includes:

      • 1x Angry Audio BIDIRECTIONAL BALANCING GADGET Stereo Converter - 2 IHF Inputs/Outputs - 115VAC Version
