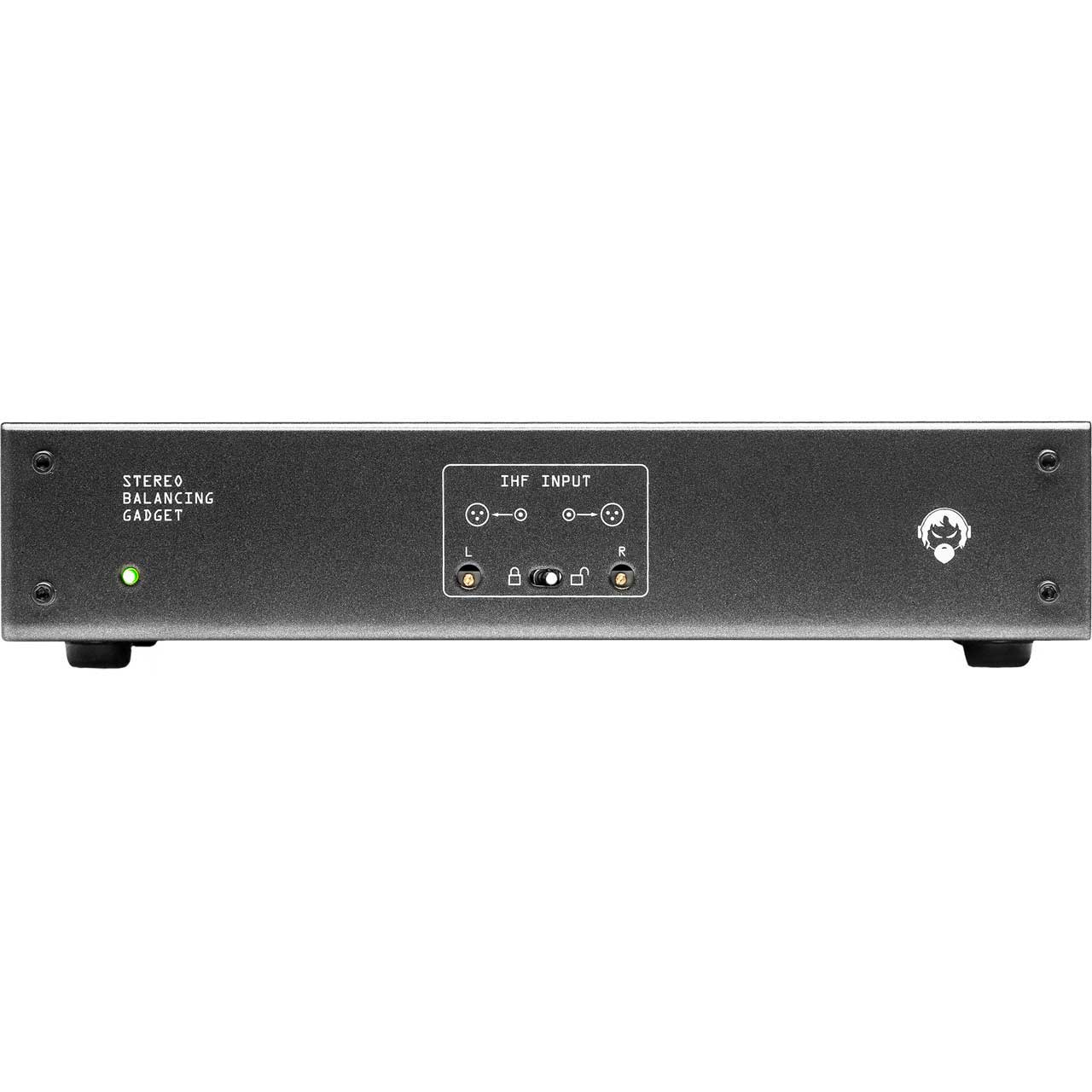

Angry Audio STEREO BALANCING GADGET Stereo Converter - 2 IHF Unbalanced Audio Inputs & 2 PRO Balanced Audio Outputs

ITEM #: AA-STEREOBALANCE MFG #: STEREO BALANCING GADGET

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$239.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    STEREO BALANCING GADGET - Overview

    Professional applications use balanced audio for good reason. Balanced circuits offer many performance advantages compared to unbalanced audio, such as increased headroom and reduced noise from radiation and ground differentials. Sometimes, though, unbalanced devices are unavoidable. The Balancing Gadgets were made for those times.

    Stereo Balancing Gadget
    Converts unbalanced stereo -10dBv audio via two RCA/Phono jacks into professional +4dBu fully balanced lines on two XLR connectors. Ideal for a single playback-only consumer device. State-of-the-art analog circuitry is low-distortion, low-noise, and includes DC offset correction and our exclusive input stage that reduces ground-loop noise.

    Two IHF unbalanced audio inputs, two PRO balanced audio outputs. Includes one stereo RCA cable, one stereo RCA to 3.5mm plug adapter and one StudioHub XLR adapter.

    • Specifications:

      • Unbalanced to Balanced Conversion
      • Fixed Gain: +11.8dB (-10dBv in = +4dBu out)
      • Adjustable Gain Range: +10dB to +28db
      • Frequency Response: ± 0.2dB, 20Hz - 20kHz
      • THD+N: ≤ 0.004%, 20Hz - 20kHz
      • Noise: ≤ 90dBu (20Hz to 20kHz, fixed gain position)
      • Headroom: ≥ 20dB
      • Maximum Output Level: +26dBu (+24dBm @ 600Ω load)
      • Input Impedance: 100kΩ
      • Output Impedance: 100Ω balanced
      • Crosstalk: ≤ -75dB (10kHz)
      • CMRR: ≥ 70dB (20Hz to 20kHz)

        Balanced to Unbalanced Conversion
      • Fixed Gain: -11.8dB (+4dBu in = -10dBv out)
      • Adjustable Gain Range: -17dB to +1dB
      • Frequency Response: ± 0.2dB (20Hz to 20kHz)
      • THD+N: ≤ 0.004% (20Hz to 20kHz)
      • Noise: ≤ 90dBu (20Hz to 20kHz, fixed gain position)
      • Headroom: ≥ 20dB
      • Maximum Output Level: +15dBv
      • Input Impedance: 20kΩ
      • Output Impedance: 100Ω (pseudo-balanced)
      • Crosstalk: ≤ -75dB (10kHz)
      • CMRR: ≥ 70dB (20Hz to 20kHz)

        Power and Environmental
      • North American Version: 115VAC 60Hz, NEMA 5-15P power plug
      • Power Consumption: 5VA
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 113° F
      • Relative Humidity :0% to 90% non-condensing
      • Cooling: Vented chassis (fanless)

        Product Weight & Dimensions
      • Width x depth x height: 8.5 x 6.25 x 1.70 in.
      • Weight: 3.5 pounds

        Shipping Weight & Dimensions
      • Length x width x height: 12 x 9 x 6 in.
      • Weight: 5 pounds

    • Item Includes:

      • 1x Angry Audio STEREO BALANCING GADGET Stereo Converter - 2 IHF Unbalanced Audio Inputs & 2 PRO Balanced Audio Outputs
