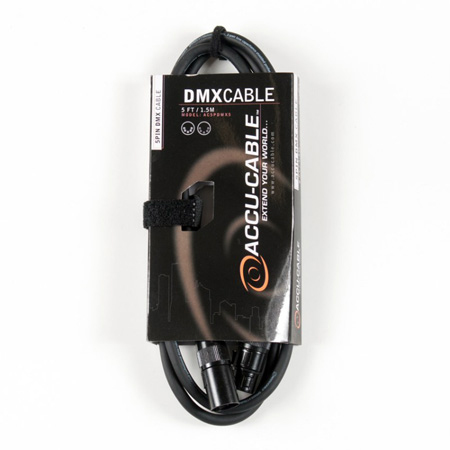

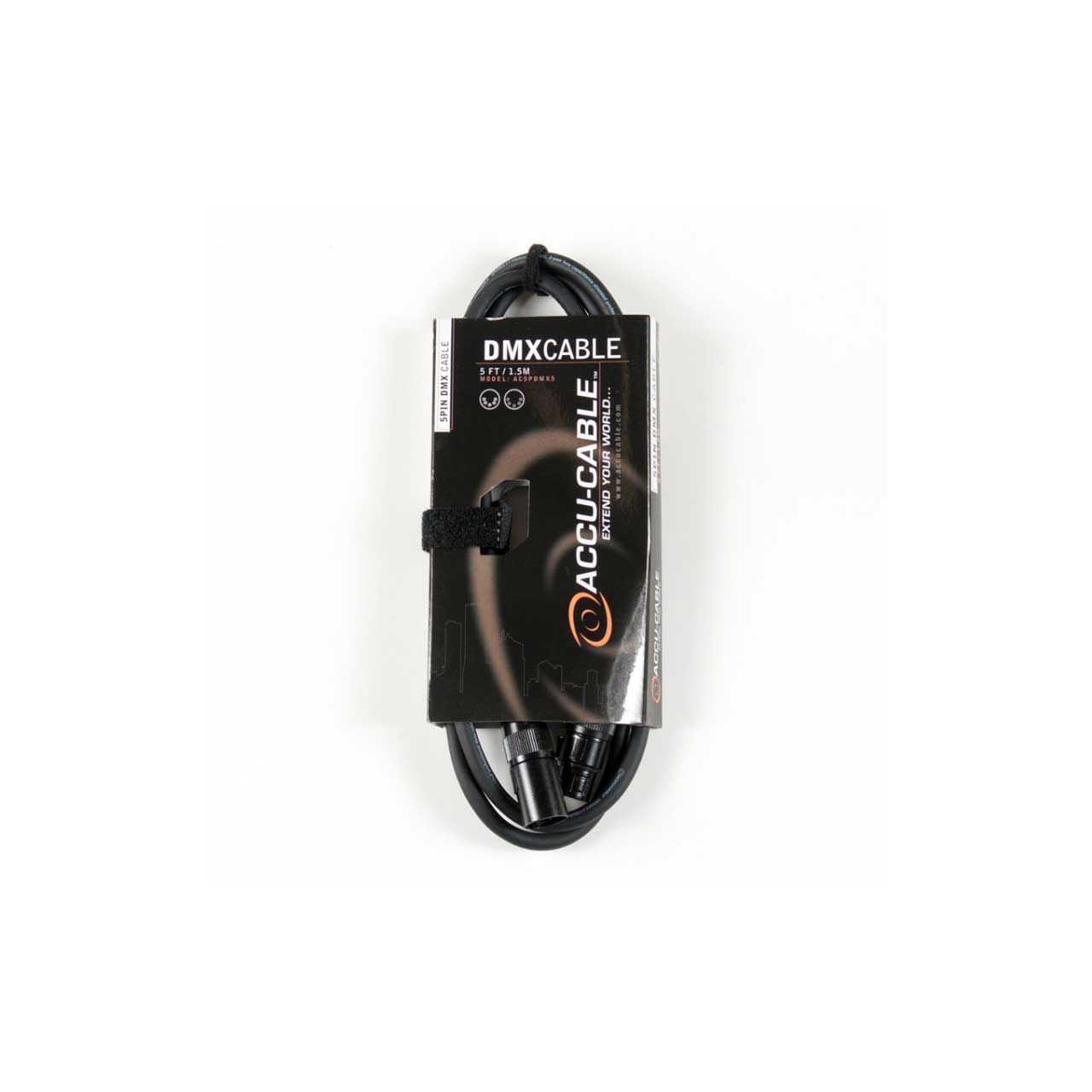

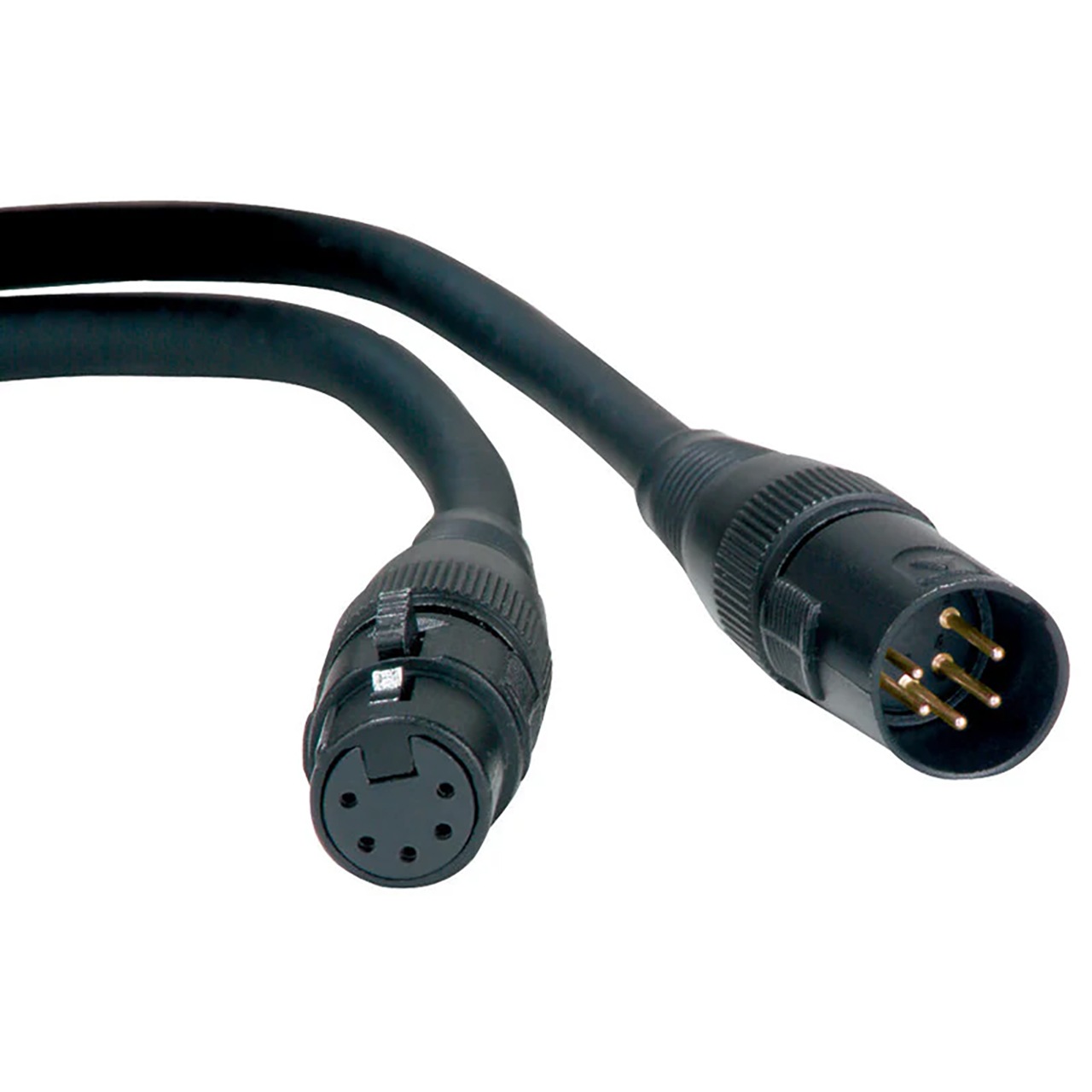

ACCU-CABLE AC5PDMX10 5 Pin DMX Cable - 10 Foot

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    ACCU-CABLE AC5PDMX10 5 Pin DMX Cable - 10 Foot

    Manufacturer: ACCU-CABLE

    Item #: AC5PDMX10   •   MFG #: AC5PDMX10



    List Price:$15.95
    Our Price:$14.72

    free ship


    Lengths:



    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.


      • Specifications

        • Physical Characteristics:
        • Conductor:
        • Number of Pairs: 2
        • Total Number of Conductors: 4
        • AWG: 22
        • Stranding: 0.15 x 19
        • Conductor Diameter: .0354"
        • Conduct or Material: TC-Tinned Copper

        • Insulation:
        • Insulation Material PE Polyethylene

        • Lay Length:
        • Lay Length: 1.1"
        • Direction: Left Hand Lay
        • Twists: 10.9 per foot

        • Inner Jacket:
        • Inner Jacket Material: PE- Polyethylene
        • Inner Jacket Diameter: .055"
        • Pair Color Code: Green/Black/Red/White

        • Outer Shield:
        • Outer Shield Trade Name: Duofoil
        • Outer Shield Type: Tape/Braid

        • Outer Shield Material:
        • Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
        • Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

        • Outer Jacket:
        • Outer Jacket Material: PVC-Polyvinyl Chloride

        • Overall Nominal Diameter:
        • Overall Nominal Diameter: .295"

        • Mechanical Characteristics:
        • Operating Temperature Range: (-30 degrees C To + 75 degrees C)
        • Bulk Cable Weight: 50 lbs/1000
        • Minimum Bend Radius (Install): 3.5"
        • Maximum Recommended Pull Tension: 22 lbs.

        • Electrical Characteristics:
        • Nominal Characteristic Impedence: 110 Ohms
        • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
        • Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
        • Nominal Velocity of Propagation: 76%
        • Nominal Delay: 1.6 Nanoseconds per foot
        • Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
        • Nominal Outer Shield D C Resistance @ 20 degrees C: 15 Ohms/ 1000 ft
        • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
        • Maximum Recommended Current: 2.1 Amps per conductor @ 25 degree C
