    NPOE-30W-1G - Overview

    Adds PoE Devices to Your LAN Without a PoE Switch
    Now you can add a surveillance camera, wireless access point, VoIP phone or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE+ injector to send 30 watts of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling.

    Saves You Time and Money on Unnecessary Equipment Updates
    This compact PoE plus injector delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.

    Expand Your Wireless Network Up to 328 ft.
    The NPOE-30W-1G delivers both power and data to any IEEE 802.3at (PoE+) or IEEE 802.3af (PoE) device up to 100 meters (328 feet) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, overloads and power surges.

    Simple Plug-and-Play Installation Has Your Device Connected in Minutes

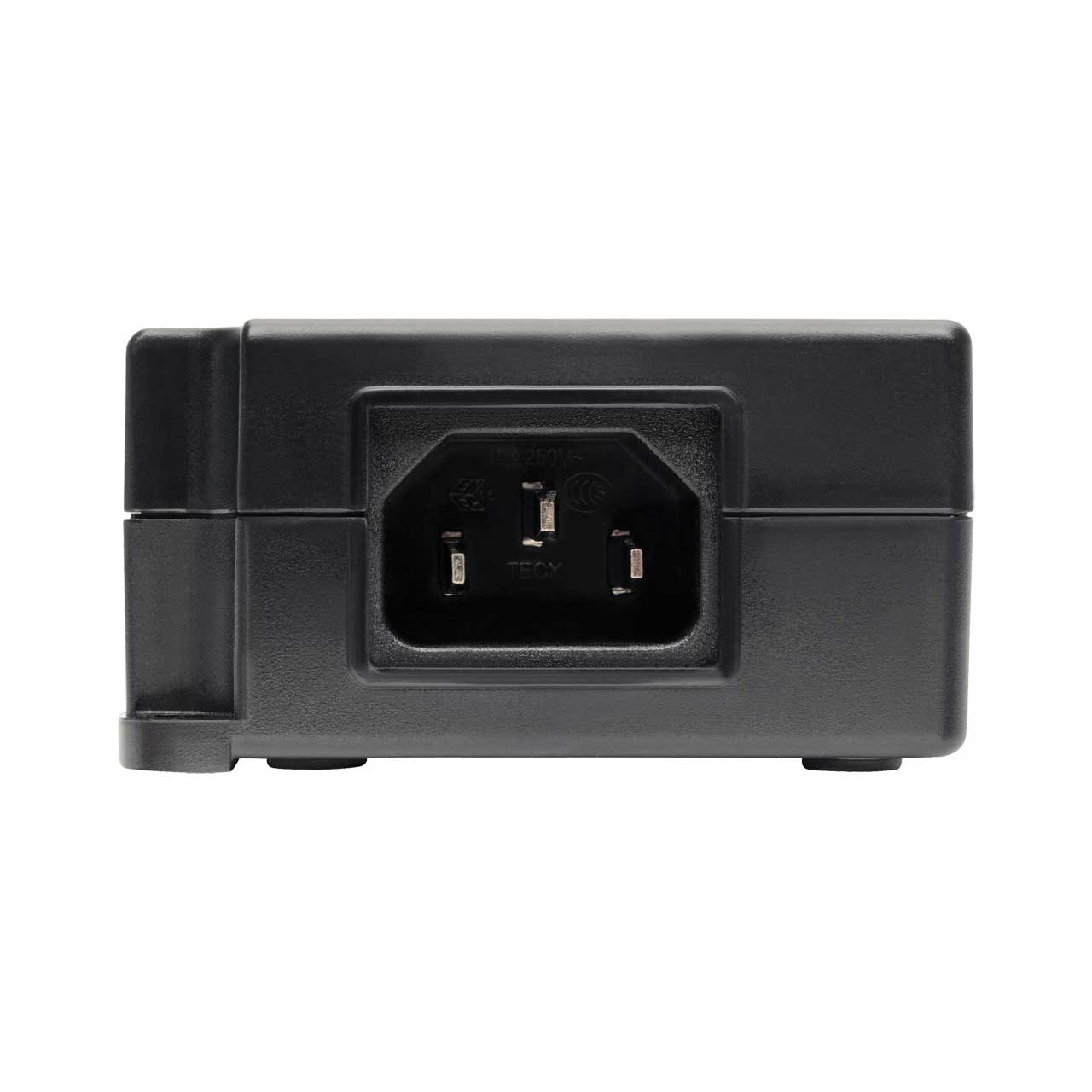

    No configuration or software is required to add the NPOE-30W-1G to your LAN. Just connect your switch or network jack to the shielded RJ45 Data port and your PoE device to the shielded RJ45 Power + Data port using existing Cat5e/6/6a cable. Connect the unit's C14 inlet to a NEMA 5-15R outlet using the included power cord. LEDs indicate the unit is receiving power and is ready to transmit data.

    Designed for Installation Almost Anywhere
    Mounting holes are featured for installing the midspan injector on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or d‚cor. The fanless design is ideal for silent operation.

    Add a security camera to your network without upgrading to a new PoE switch
    Install a touchscreen kiosk or VoIP phone in an area without a standard power connection
    Fill in Wi-Fi dead spots in your office with a wireless access point connected to your LAN

    System Requirements: Device that meets IEEE 802.3af or IEEE 802.3at standards

    • Features:

      • Saves money by delivering 30W of power + data up to 328 ft. through existing cabling
      • Extends power + data to any PoE or PoE+ device installed where no AC outlet is available
      • Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps
      • Quick and easy plug-and-play installation with no configuration necessary
      • Compact, hand-sized plastic housing ready for mounting on any smooth surface
    • Specifications:

      • Input
      • Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
      • Input Frequency: 50/60 Hz

      • Color: Black
      • Primary Form Factor: Desktop
      • Unit Dimensions (HxWxD): 1.4 x 2.6 x 5.4"

      • Operating Temperature Range: 32° to 122°F (0° to 50°C)
      • Storage Temperature Range: -4° to 176°F (-20° to 80°C)
      • Relative Humidity: 10% to 90% RH, Non-Condensing

      • Network Speed: 1Gbps
      • IEEE Standards Supported: 802.3; 802.3ab; 802.3af; 802.3at; 802.3u
      • Connections:
        Side A - Connector 1: RJ45 (FEMALE)
        Side B - Connector 1: RJ45 (FEMALE)
      • Network Switch Ports: 10/100/1000 (RJ45)
      • Technology: Cat5/5e; Cat6; Cat6a
      • Certifications: Tested to CE, FCC, RoHS, REACH
    • Item Includes:

      • 1x NPOE-30W-1G Gigabit PoE+ Midspan Active Injector - IEEE 802.3at, 30W, 1 Port
      • 1x Detachable C13 to NEMA 5-15P power cord, 6 ft.
      • 1x Owner's manual
    • Warranty:

      • 3-year limited warranty
    • GTIN:
