ADDERLink ALAV101R-US VGA AV KVM Extender for Digital Signage - Point-to-Point Receiver with DeSkew

ITEM #: ADR-ALAV101R-US MFG #: ALAV101R-US

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$325.00

Our Price:

$292.50

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ALAV101R-US - Overview

    Receiver with DeSkew

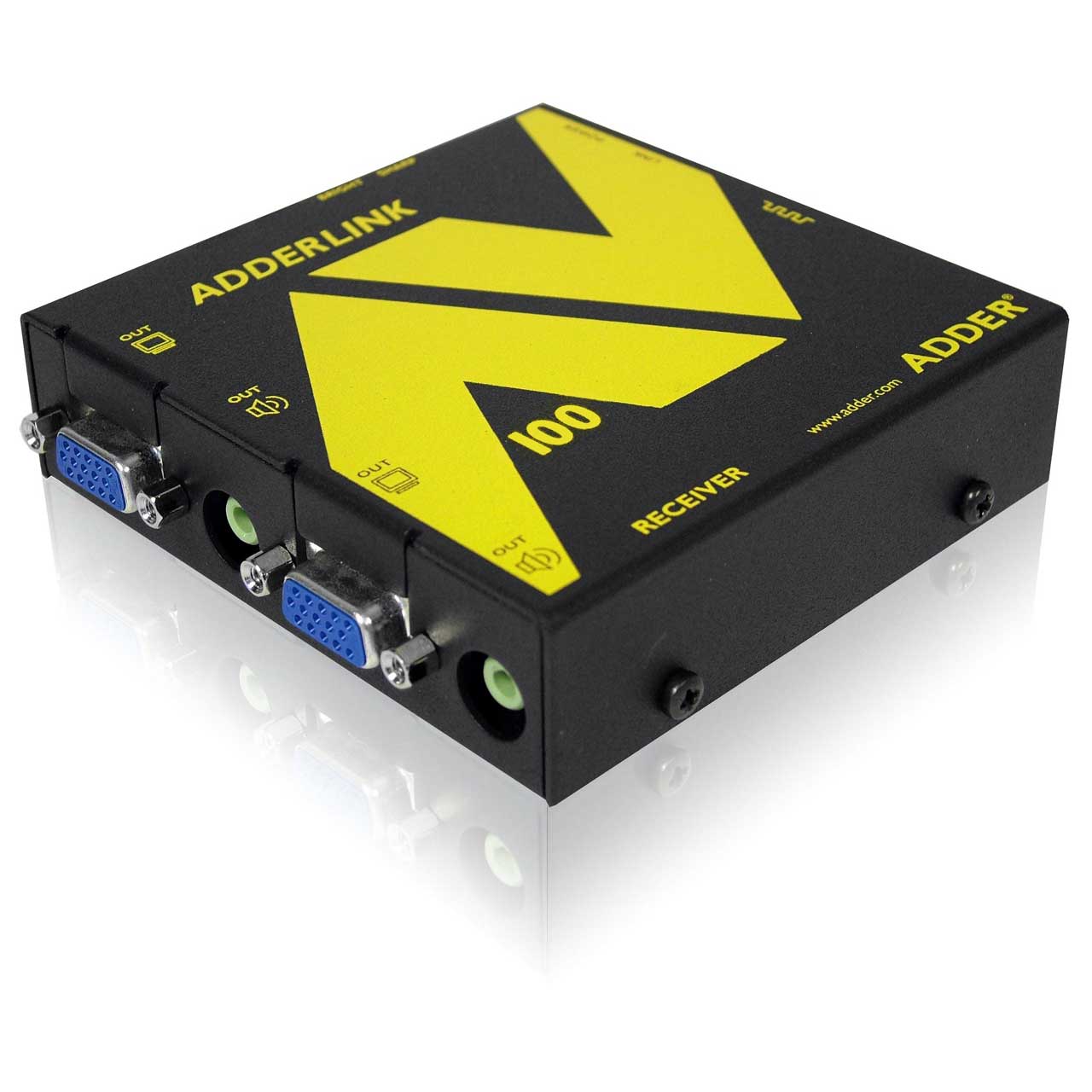

    The ADDERLink AV101R receiver unit duplicates the input from the transmitter allowing for 2 video and 2 audio outputs. Integrated skew adjustment allows the receiver to be located further from the transmitter and/or cope with higher video resolutions. The unit can be used as a receiver up to 300m from ADDER Link AV100T or ADDER Link AV104T transmitters (sold separately). The local cascade port allows for other receivers to be cascaded from the original receiver.

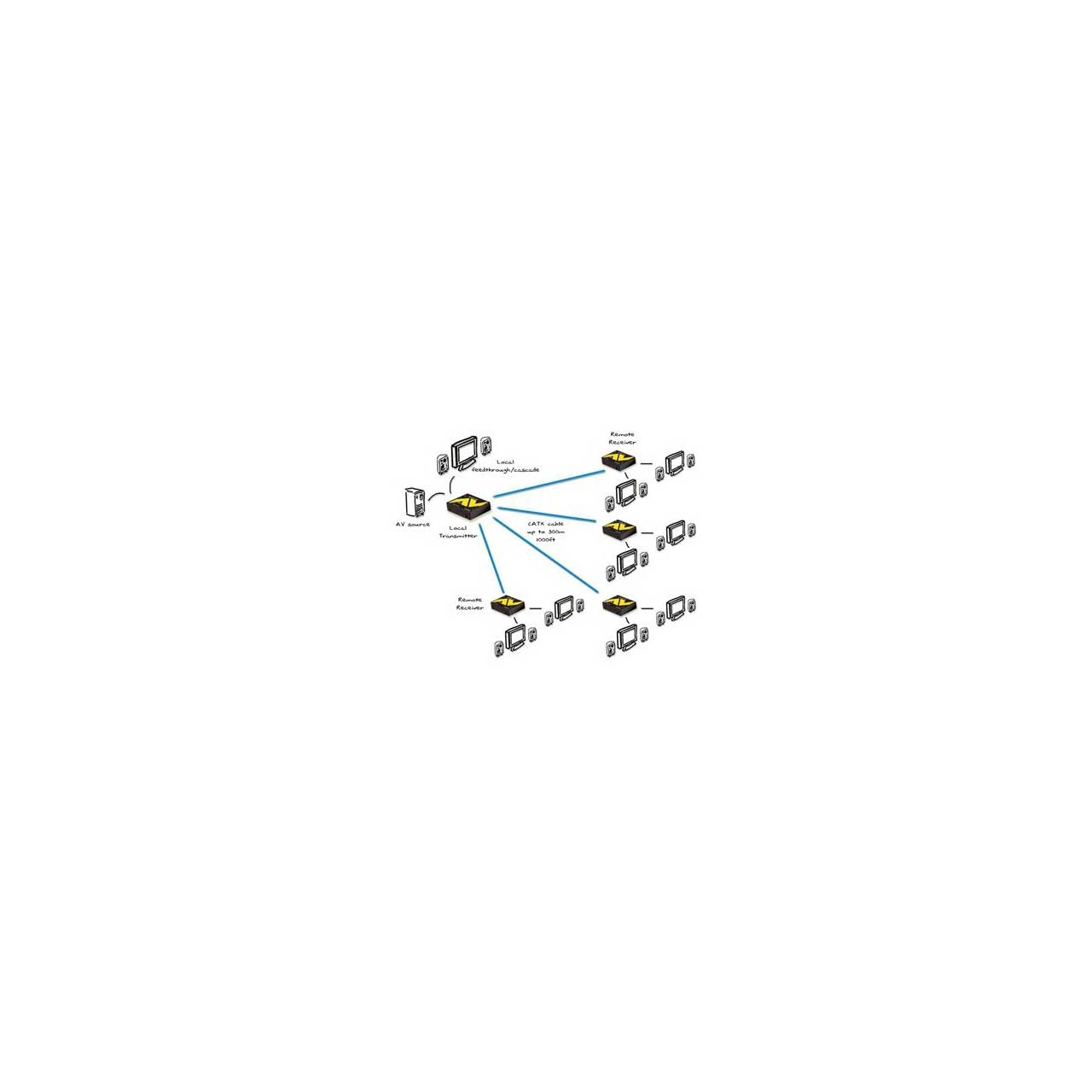

    The ADDER Link AV Series is a range of audiovisual extenders delivering high video resolutions and superb quality audio up to 1000 feet/300m using standard CAT5, 5e, 6, 7 cable.

    Designed for use in Digital Signage applications, the innovative design allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision. The ADDER Link AV Series avoids the prohibitive costs of fiber optic cabling, displays with built in CPUs or locating a CPU next to each screen.

    • Features:

      • Duplicates input from transmitter allowing for 2 video and 2 audio outputs
      • Integrated skew adjustment allowing the receiver to be located further from the transmitter and/or cope with higher video resolutions
      • Can be used as a receiver up to 300m from AdderLink AV100T or AdderLink AV104T transmitters (sold separately)
      • Has local cascade port allowing for other receivers to be cascaded from the original receiver

    • Specifications:

      • Video Resolutions:
      • HD 1920x1080 at distances up to 100 meters/325 feet, 1280 x 1024 at distances up to 300 meters/1000 feet. Extension distance Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).

      • Extension technology:
      • Differential analog signaling for video signals.

      • Cable Equalization:
      • Finely adjustable cable equalization amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.

      • Integral DeSkew (ADDER Link AV101R only):
      • Skew compensation adjustments can be made using the two rotary dials on the ADDER Link AV101R receiver unit. The first dial affects the relationship between green and blue color signals, the second red and green. The cable skew is produced due to wire length differences between different twisted pairs in a CATx cable that arise due to the different twist rates used to reduce signaling cross talk. The amount of cable skew seen depends on the cable type used and the cable length. The ADDER Link AV101R provides up to 62ns of DeSkew with a fine 2ns resolution. This means that high-resolution video can be accurately DeSkewed even at long cable distances. The DeSkew supports 300MHz bandwidths, which means that the DeSkew function does not adversely affect the video quality.

      • Indicators:
      • The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.

      • Audio:
      • Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.

      • Rack mount options:
      • Both the local (computer-end) and remote (display-end) units may be rack mounted in the ADDER Link AV Series rack mount chassis. The chassis enable 16 units to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.

      • Connectors (ADDER Link AV100R):
      • 2 x blue 15-pin high-density D-type female connector for video output
      • 2 x light green 3.5mm audio jack for audio output.
      • 1 x RJ45 connector for CATx cable connection.
      • 1 x 2.5mm DC jack for power adapter.

      • Physical (All ADDER Link AV units):
      • Metal case (steel and stainless steel), 98mm x 95mm x 25mm.

      • Power:
      • All ADDER Link AV units are powered by an external 5V DC, 2A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using a 4amp power supply and the Adder "squid" cable.

      • Spike suppression:
      • All ADDER Link AV units are fitted with spike suppression circuits.

      • Display Data Channel:
      • DDC signaling is supported to enable the computer to communicate with the local monitor and thus configure its video card for optimal operation.

      • Optional accessories:
      • ALAV - Series rack mount chassis (part code: ALAV-RMK-CHASSIS), rack mount plate for local/remote unit (part codes: ALAV-RMK-FACIA). Adder 4amp power supply and "squid" cable to power 4 ALAV units (part code ALAV-PDM-KIT).

      • Approvals:
      • FCC class A, CE marked.

      • Operating Voltage:
      • 100-240VAC

      • Power Frequency:
      • 50-60Hz

      • Usage:
      • 5VDC at 500mA.

      • Temperature Tolerance:
      • 0 - 40 deg C (32 to 104 deg F)

      • Humidity Tolerance:
      • 5 to 60% non-condensing

    • Item Includes:

      • 1x ALAV100R-US receiver
      • 1x Power Supply with US cord

    • Warranty:

      • 2 Year Limited

    • GTIN:

      0609385900273
