NTI ST-C5V-L-600 VGA Transmitter via CATx to 600 Feet

Name: NTI ST-C5V-L-600 VGA Transmitter via CATx to 600 Feet
Brand: Network Technologies Inc
SKU: NETT-ST-C5V-L600
Price: 305.00 USD
Availability: PreSale

ITEM #: NETT-ST-C5V-L600 MFG #: ST-C5V-L-600

Network Technologies Inc

Our Price:

$305.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Required Accessories

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

ST-C5V-L-600 - Overview

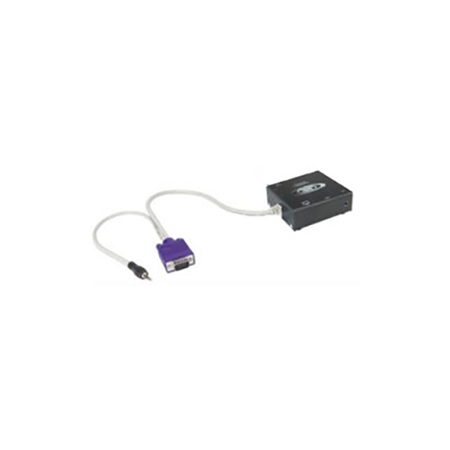

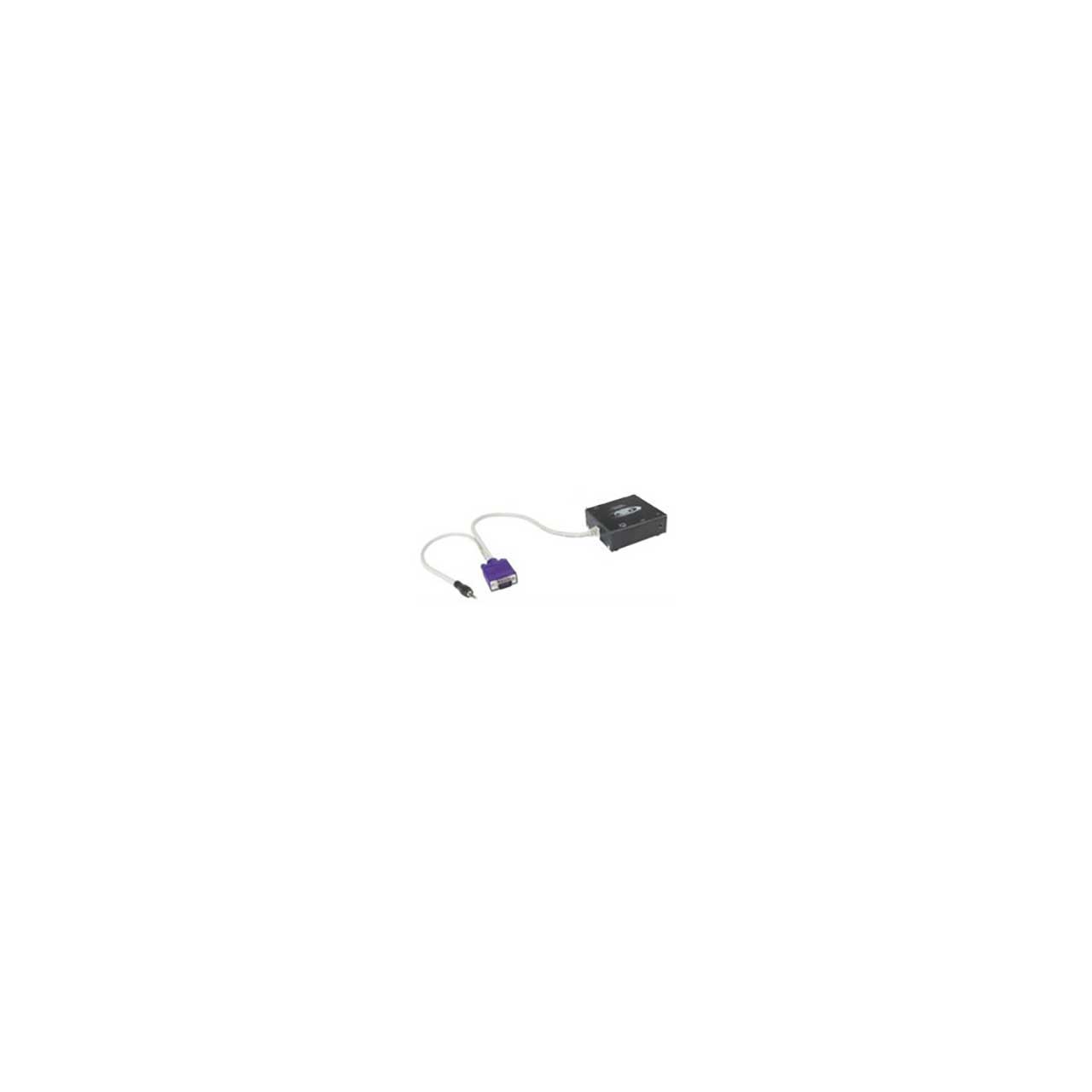

The NTI ST-C5V-L-600 is a VGA Transmitter, Local Unit. The ST-C5V-L-600 works together with the NTI CAT5 receivers and KVM Switches to create a high performance audio/video signal routing system with a maximum extension of 600 feet between the local and remote units.

Specifications:
- Video
- Connector: Male 15-pin HD
- Compatible with: SVGA, XGA, and VGA
- Input impedance: 75 Ohms
- Maximum input level: 1.45Vp-p
- Input Sync frequency ranges: Horizontal: 15 kHz to 130 kHz
- Vertical: 30 kHz to 150 Hz
- Supports Separate and Composite TTL level sync
- Video is DC coupled

  Power
- Operating Voltage: 110 or 220 VAC
- Power Frequency: 50 or 60 Hz via AC adapter
- Power Consumption: 10W
- Add the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment
- MTBF: 88,708 hrs

  Environmental
- Operating temperature: 32°F to 100°F (0°C to 38°C)
- Storage temperature: -20°F to 140°F (-30°C to 60°C)
- Relative Humidity: 17 to 90% non-condensing RH
- Regulatory Approvals: CE
