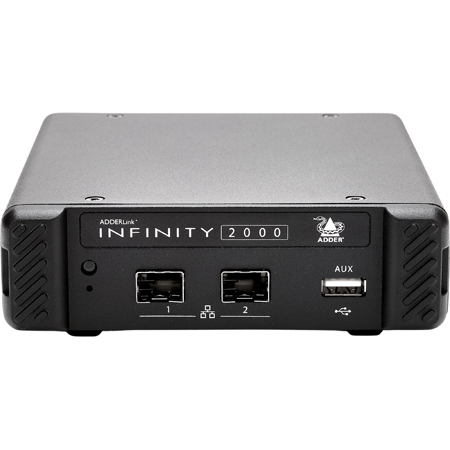

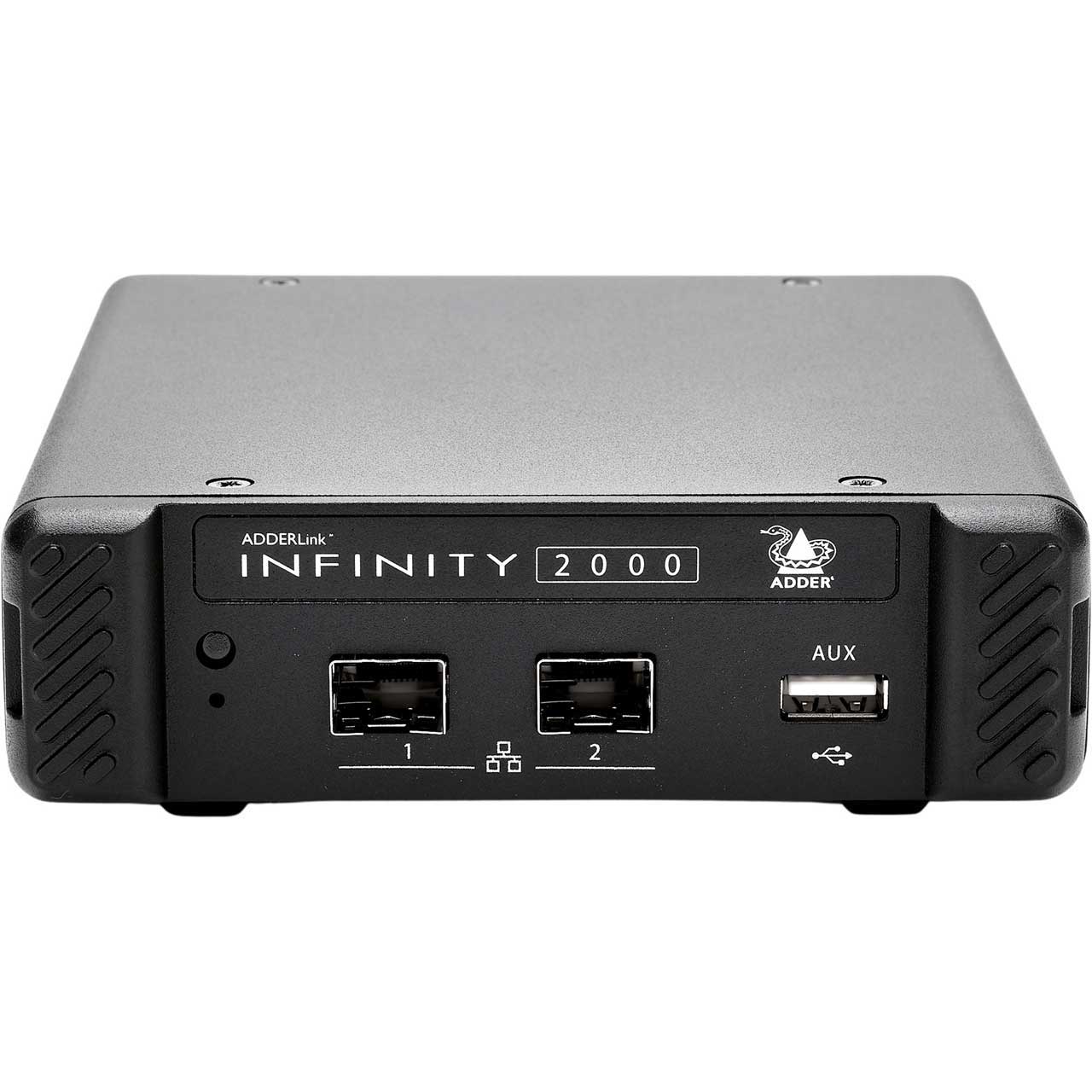

ADDERLink INFINITY 2124T Dual Head Digital Video/Audio and USB2.0 over 1GbE IP Network KVM Extender

ALIF2124T-US - Overview

• Features:

  • HDMI® connectivity

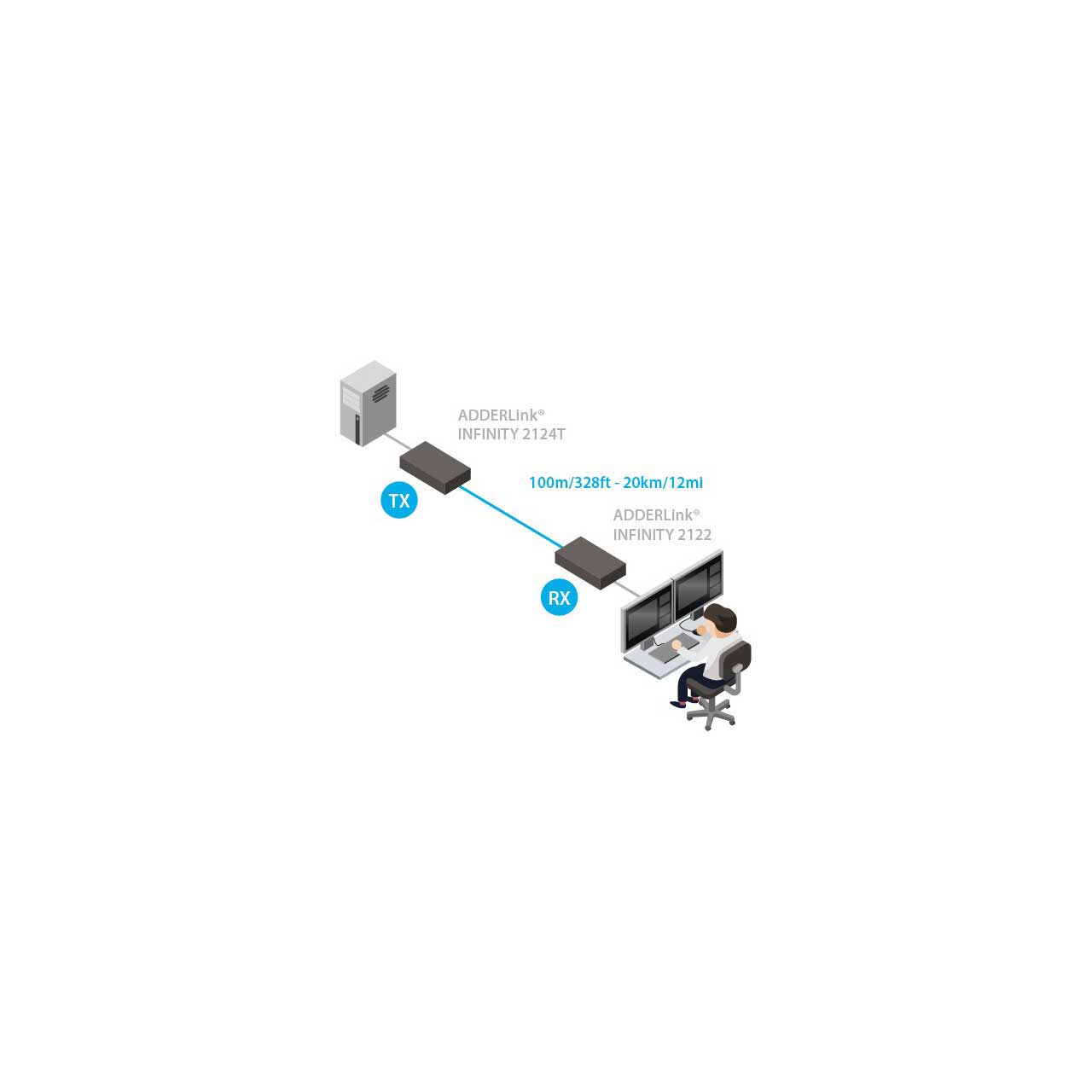

  • 2x SFP ports for maximum flexibility. Can be used with either CATx or fiber modules, allowing distances of up to 20km
  • Video resolutions up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
  • USB mass storage devices supported plus keyboard, mouse, tablet and touch
  • Plug and play
  • Redundant network operation


• Specifications:

  • Operating Systems and Compatibility
  • All known operating systems. Does not support HDCP or CEC control.

    Video resolutions
  • The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz

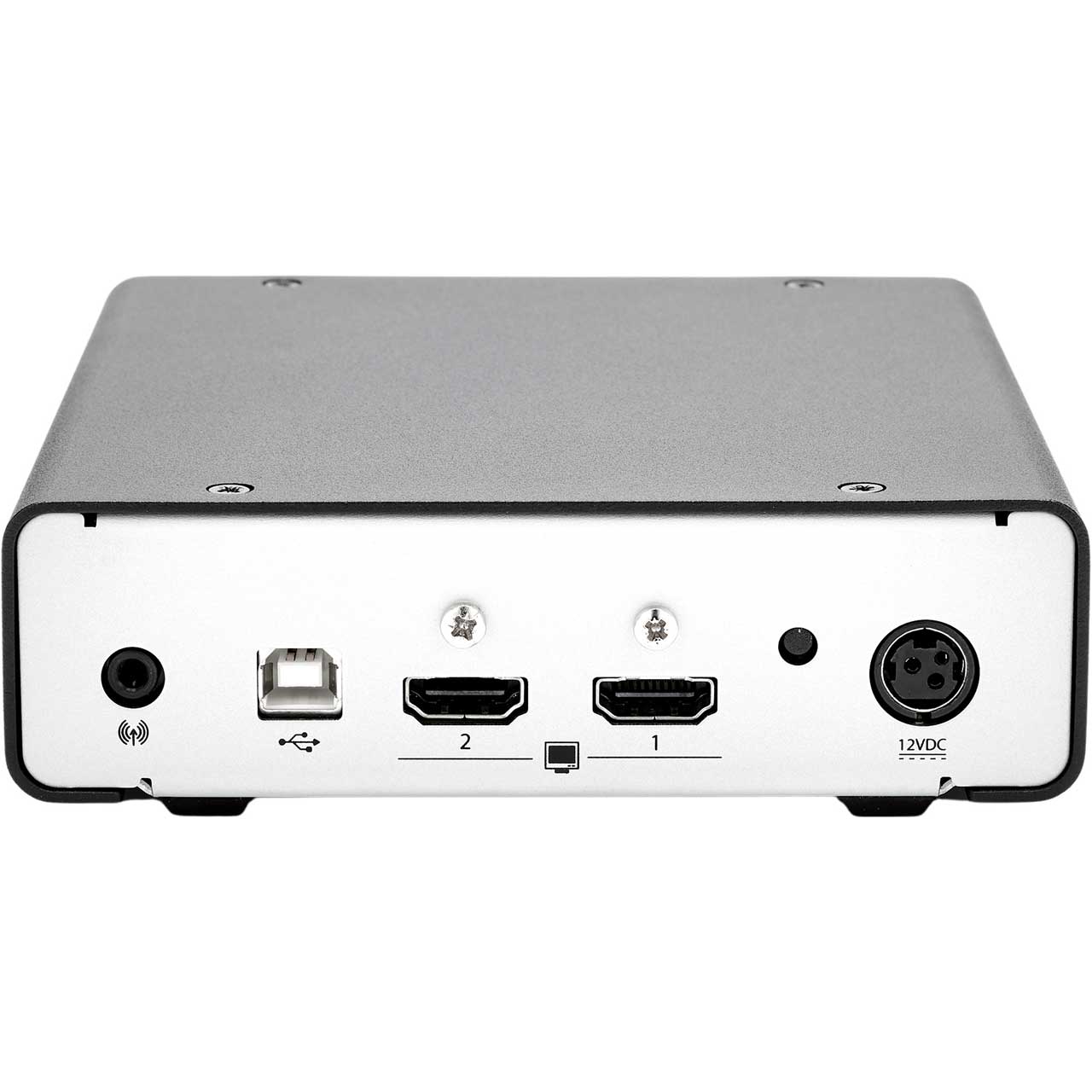

    Computer Connections
  • 1x USB B 2.0 (True Emulation, High Speed)
  • 1x USB A 2.0 (True Emulation) (Auxiliary connection)
  • 2x HDMI®

    Audio
  • Audio in Port: 1 x USB
  • Audio Type: Analog/Digital
  • Channels: 2
  • Audio Direction: Bi-directional
  • Audio Additional Information: Analog audio and audio via video connector is uni-directional
  • Size (bit): 16
  • Speed (kHz): 48

    Link Ports
  • 2x SFP

    Serial Comms
  • RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters.

    Network Support
  • Bandwidth: 1GbE

    Physical design
  • 1U compact case, robust metal construction
  • Dimensions (HxWxD): 1.5 x 5.3 x 5.9" (39 x 136 x 150mm)
  • Weight: 1.76Lbs (0.8kg)

    Approvals
  • CE, cULus - E476334, FCC, ICES, UKCA

    Standards
  • ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003

    Other
  • Cal Prop 65, EU REACH, UK REACH

    Power
  • Power Type: 1 x 12V 3-pin Kycon
  • Maximum Power (Watts): 18
  • Typical Power (Watts): 7

    Environmental
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: 32° to 104°F (0° to 40°C)
  • Storage/Operating Relative Humidity: 10 to 90% (non-condensing)

    Mean Time Between Failure
  • Mean Time Between Failure (MTBF) @ 55degC: 461,000 h
  • Temperature Regulation: Fanless


• Item Includes:

  • 1x ALIF2124 Transmitter
  • 1x PSU-IEC-12VDC-1.5A: Mains Power Supply
  • 1x IEC PSU Cable of Country Code
  • 2x VSCD15 HDMI Cable - 6.5-Foot
  • 1x VSC24 USB Cable - 6.5-Foot
  • 1x SFP-CATX-RJ45 1GbE SFP FOR CATX
