    ALPV154T-US - Overview

    A 4-way transmitter for point-to-multipoint transmission.

    The ADDERLink ALPV154T 4-port digital signage transmitter/extender is possibly the easiest to install point-to-multipoint extender available today. Simply plug the transmitter's VGA port into your computer and plug in the USB port, then plug a receiver unit (sold separately) into your screen. Finally, connect the two units together with CATx cable, and you're finished. By transmitting the power to the receiver via the cable the LPV154T removes the need for extra power supplies and sockets at the screen.

    The LPV154T transmitter requires one to four ADR-ALPV150R receiver units to operate (receivers sold separately).

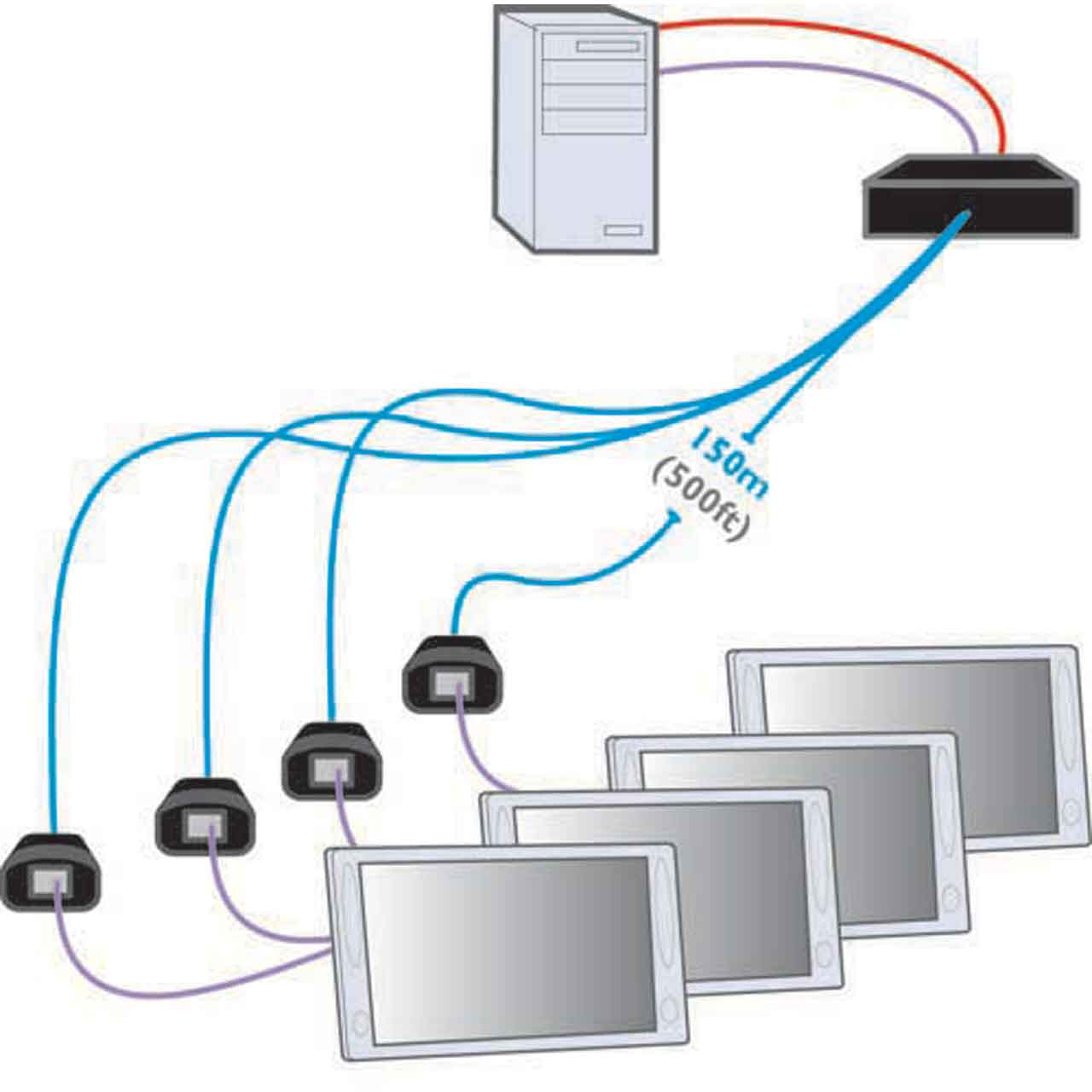

    4-way transmitter for point-to-multipoint
    The ALPV154T is able to take the same HD input and send it to 4 different screens connected via the ALPV150R receivers. There is a feed through port on the unit to allow a local display or you can cascade another ALAV154T so you can supply 8 screens.

    High-definition analog VGA video
    The ALPV154 video extension system supports Full HD 1080p, 1080i and 720p with distance up to 492 feet (150 meters). The ALPV150R remote module also has a video adjustment to control picture sharpness on the display screen.

    No external power supplies required - Highly energy efficient
    To help reduce cable clutter, the Adder Link LPV has been designed to be powered by a USB port on your computer and this power is also transmitted alongside the video over CatX cable, in turn powering your receiver unit.

    Absolute Simplicity
    Getting into professional Digital Signage has never been so easy - simply plug the transmitters VGA port into your computer and plug in the USB port, then plug the receiver unit into your screen. Finally, connect the two units together with a length of CATx cable and you are done. Now start delivering your message to customers, visitors, staff or whoever you wish.

    Advanced EDID cloning
    The ALPV154T extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

    On/off control via Serial RS232
    The LPV154T unit is fitted with a serial port that enables you to remotely switch video on and off. This feature provides a simple way of switching remote screens on and off as most will go into standby when the video signal is removed.

    Plug and Play
    The AdderLink ALPV154T extender is delivered in a zero config state so you can plug in the units and start working with them straight away. There is no need for drivers or software to be installed.

    Note: Recommended cables are CAT7 shielded foiled twisted pairs.
