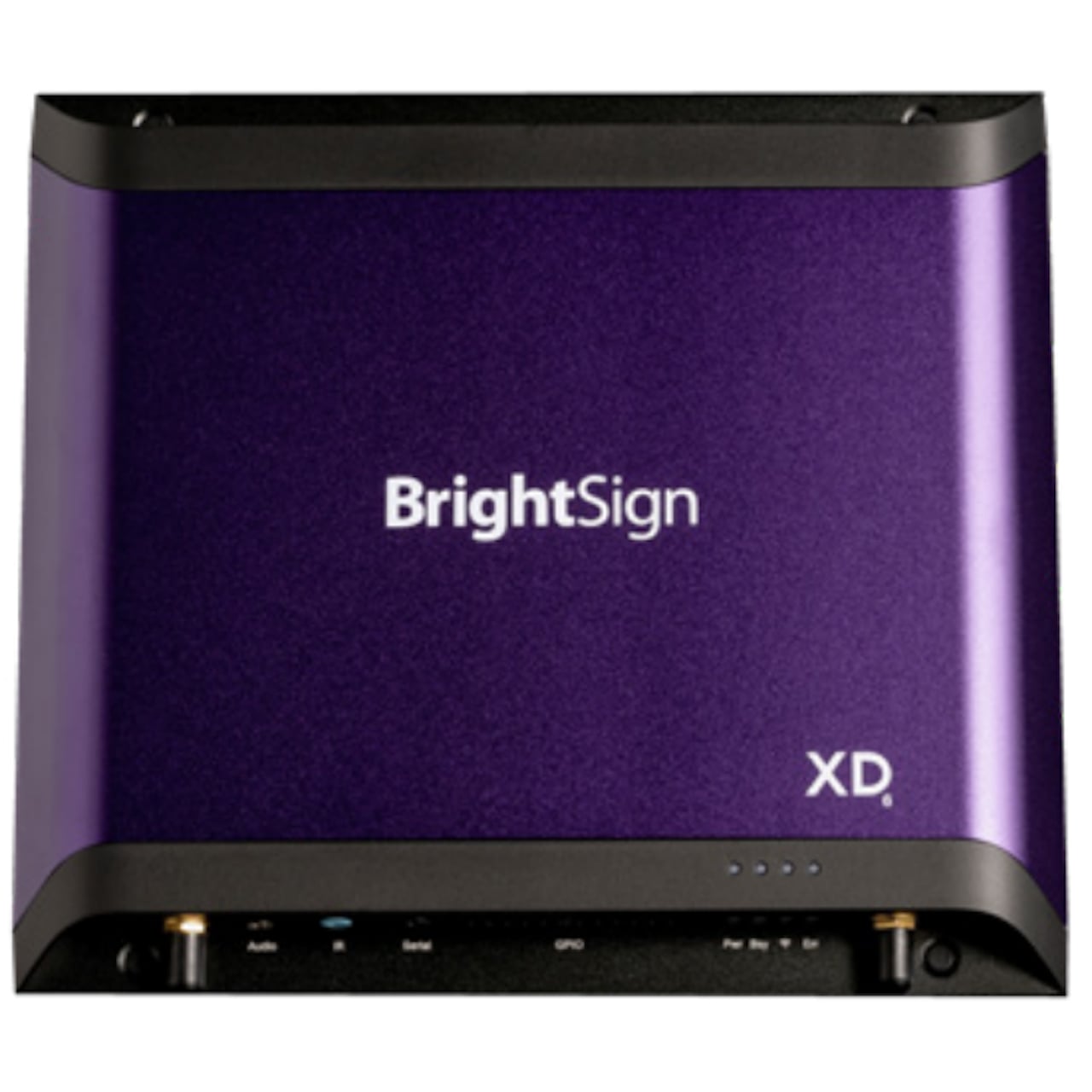

BrightSign XD1036 4K Digital Signage Media Player with Dual UHD Video Decode and PoE+ / USB-C / USB-A / GPIO Support

XD1036 - Overview

Exceptional 4K video and graphics performance - Deployable anywhere

• Features:

  • Deploy high-performance and creative experiences anywhere using the flexibility of PoE+
  • Stellar 4K or dual 4k video, ideal for on-screen and projected displays, and support for 10-bit HDR
  • Deploy immersive and captivating 4K graphics
  • Expandable internal storage via an M2 interface SSD storage option
  • Operate with unparalleled reliability, security, and sustainability on BrightSignOST
  • Reduce total cost of ownership with complimentary remote player management and controls
  • Achieve CMS choice flexibility with a trusted global network of leading integrated partner solutions
  • Leverage an integrated Neural Processing Unit (NPU) which enables BrightSign players to run powerful AI applications without compromising on video or graphics performance


• Specifications:

  • Input/Output Package: Expanded
  • Neural Processing Unit (NPU): Yes
  • 4K Video Decoding: Dual 10-bit at 60p
  • Full HD at 60p Video Decoding: Yes (Dual)
  • 4K Video Rotation: Yes
  • HTML5 Performance: Responsive multi-touch 2D WebGL
  • HTML Support: HTML5, CSS, JavaScript, SVG, WebGL, and Chromium compatible
  • Supports 4K IP Streaming: Yes
  • Image & Graphics Resolution: 4K
  • 10-Bit HDR Support: Yes
  • 4K Video Codecs: H.265, H.264 at 60p
  • 4K Video Containers: MP4, .MOV, .MKV, .WEBM, .TS, .MPG, .MPEG, .PS, .M2P, .MPV, .AVI, .HEVC, .H264, .AV1, .VP9, and .MJPG
  • Full HD Video Codecs: H.265/HEVC, H.264/AVC, VP9, MPEG 4 part 2, MPEG1 video, MPEG2 vide
  • Full HD Video Containers: MP4, .MOV, .MKV, .WEBM, .TS, .MPG, .MPEG, .PS, .M2P, .MPV, .AVI, .HEVC, .H264, .AV1, .VP9, and .MJPG
  • Images Formats: BMP, JPEG, PNG
  • Audio Formats: MP2, MP3, AAC and WAV (eAC3 is passed through)
  • Display Resolutions:
    - Supports all common screen resolutions up to 4K
    - Supports additional & customizable display resolutions with unique aspect ratios
  • Brightsign Acessory Support:
    - BP200 & BP900 USB Button Pads: Compatible
    - MicroSD Class 10 Cards (various capacities)
    - 256GB PCIe NVMe M.2 SSD
    - BrightSign Mobile USB Modem & Service
  • Dimensions: 8.1" x 7.3" x 0.8" (205mm x 185.9mm x 19.2mm)
  • Product Weight: 1.3lbs (0.59kg)
  • Shipping Weight: 2.9lbs (1.3kg)
  • Locking Power Supply: 12V/3A


• Item Includes:

  • 1x BrightSign XD1036 4K Digital Signage Media Player (Expanded I/O)
  • 1x Locking Power Supply


• Warranty:

  • 5-Year Limited Warranty
