    AV4PRO-DVI-DUAL-US - Overview

    Flexible switch for sharing high resolution video, audio, and USB between multiple sources.

    The ADDERView® AV4PRO-DVI-DUAL Dual-Head KVM Switch is designed to enable four computers to be controlled from a single high resolution KVM console using either Dual-Link DVI or high-definition analog video links. The switch makes use of Adder's USB True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching. Two independently switchable USB2.0 channels and an audio channel give the user the flexibility to attach selected peripherals to different computers.

    Dual link DVI-I with extended profile DDC EDID: The ADDERView® 4PRO-DVI (AV4PRO) features full dual link DVI video delivering up to 4 megapixel resolutions at 60Hz. The AV4PRO features DVI-I, allowing you to choose from digital or analog sources. The extended DDC (Data Display Channel) EDID (Extended Display Identification Data) profile ensures that the switched graphics card is always optimized to work with your screen. The dual link DVI capabilities enable users to work at high resolutions including 2K (2048x1080) for film production and WQXGA (2560x1600) for detailed medical imaging.

    True Emulation USB2.0 technology: The AV4PRO features Adder's advanced True Emulation USB technology. This provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. It emulates the true character of the connected devices to all the computers simultaneously, allowing you to use the extra function keys, wheels, buttons and controls that are commonly found on a modern keyboard and mouse.

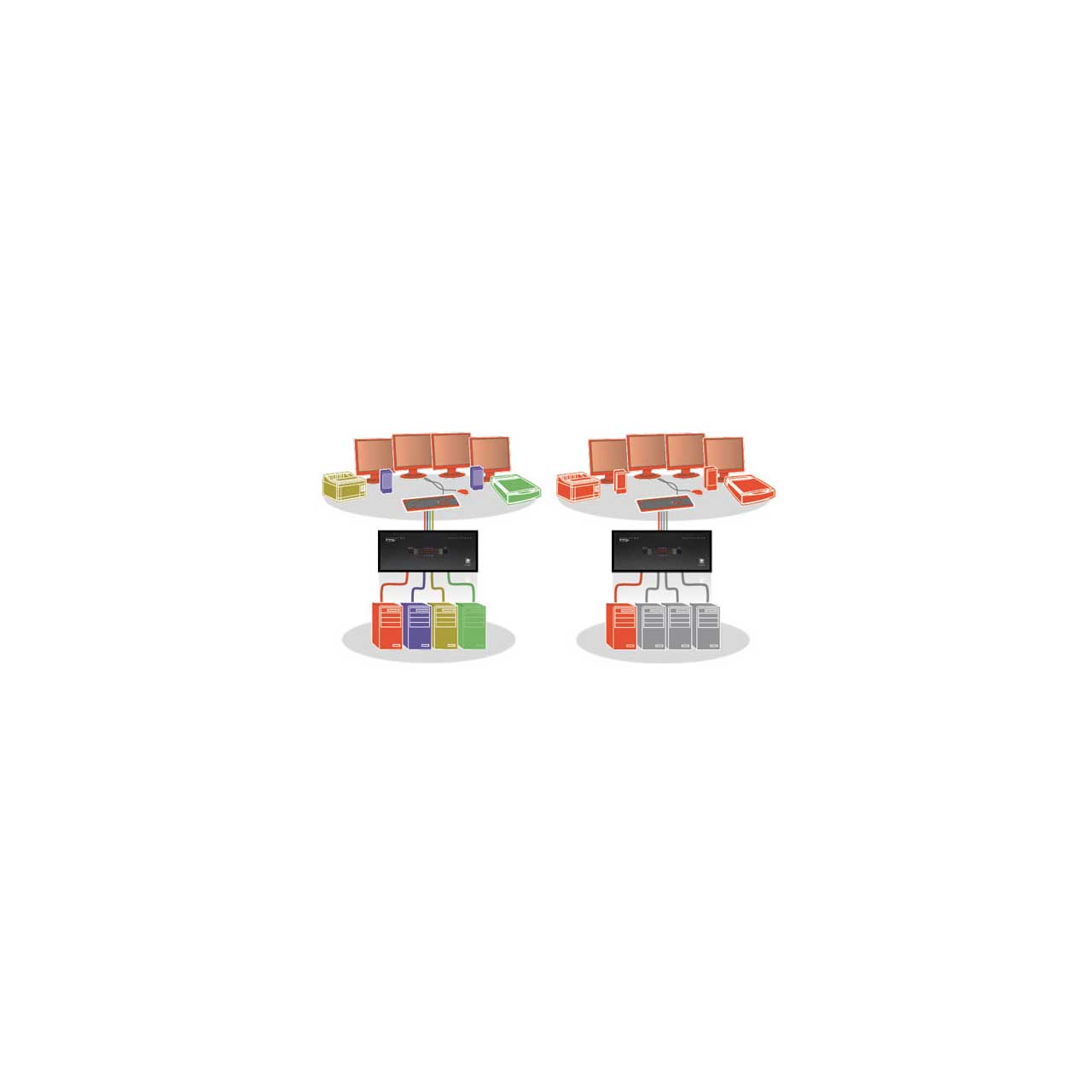

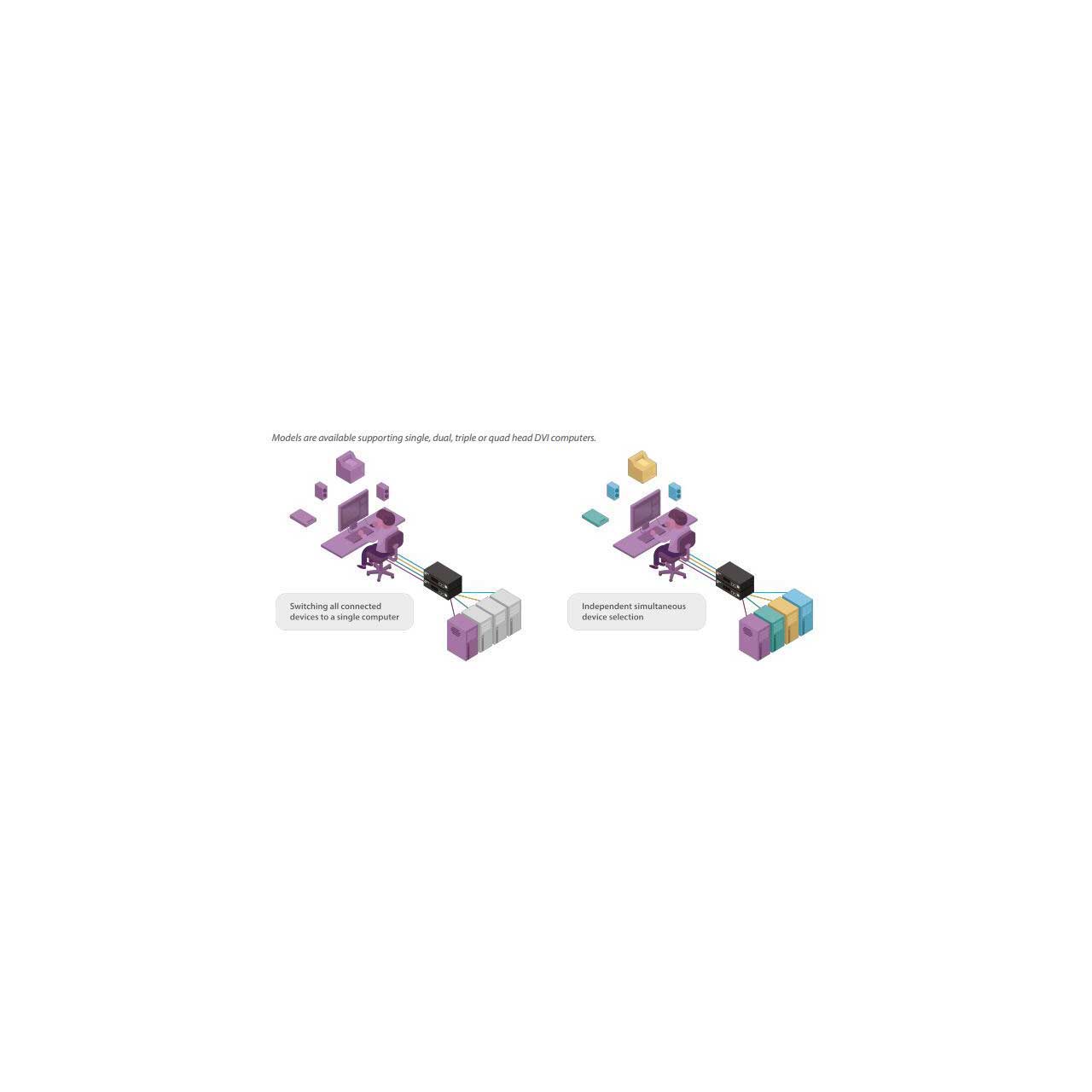

    Independent simultaneous device selection: The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can switch all connected devices to any one of the connected computers, as with most other KVM switches.

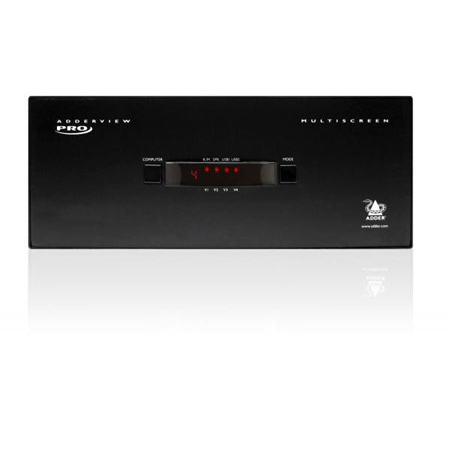

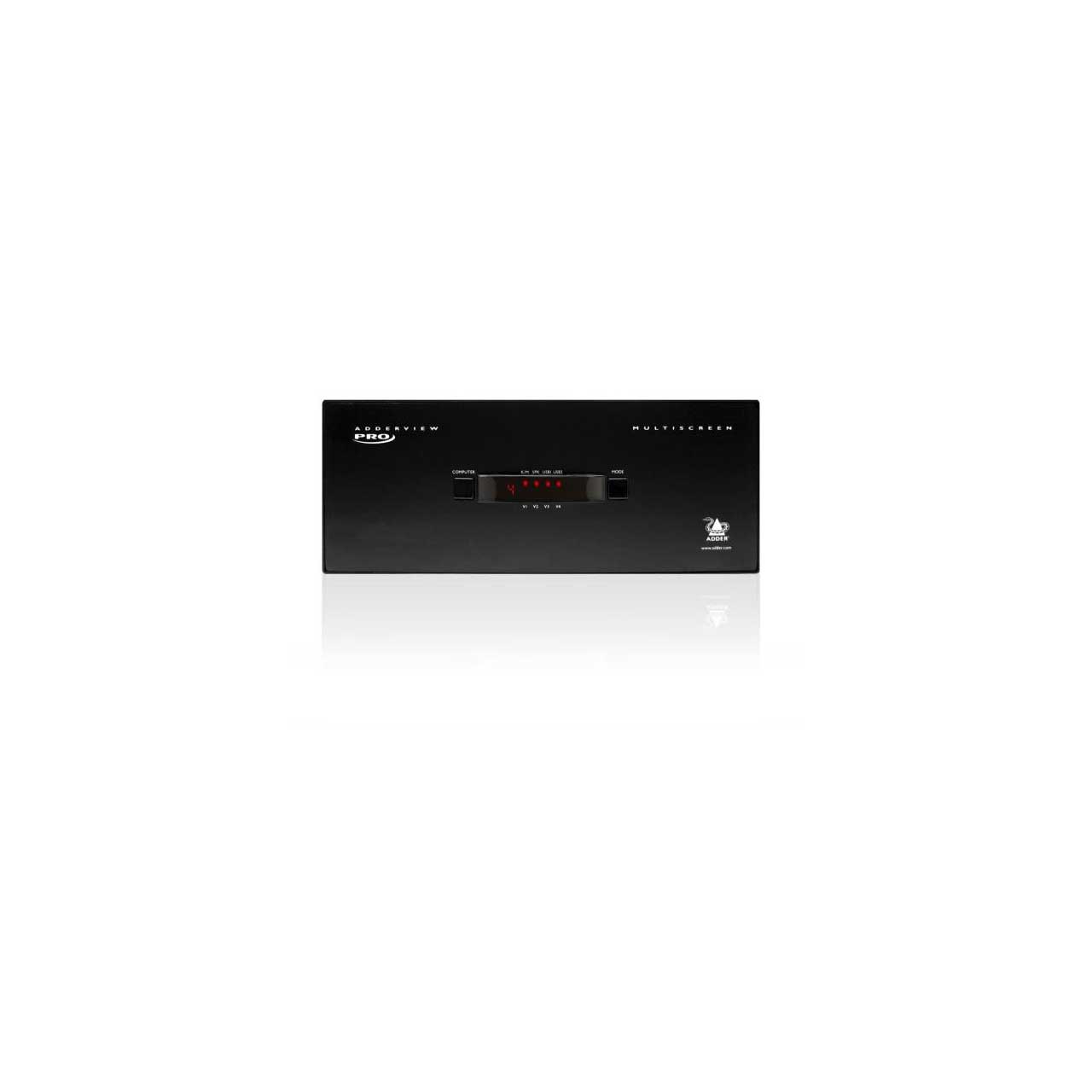

    Channel selection options: The AV4PRO can be switched using selectable keyboard hotkeys, a 3 button mouse or the front panel controls on the unit. You can also use the ADDER® RC4 remote switch. These switching options allow you to rapidly reassign connected devices to any of the connected computers.

    Broad USB2.0 hi-speed device support: A vast range of USB devices can be connected to the AV4PRO from non-standard human interface devices (HID) to printers and scanners. This flexibility allows you to scan a set of documents onto one computer whilst working on another and printing from yet another, all at the same time.

    • Specifications:

      • Operating Systems and Software Compatibility Software
      • All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS.

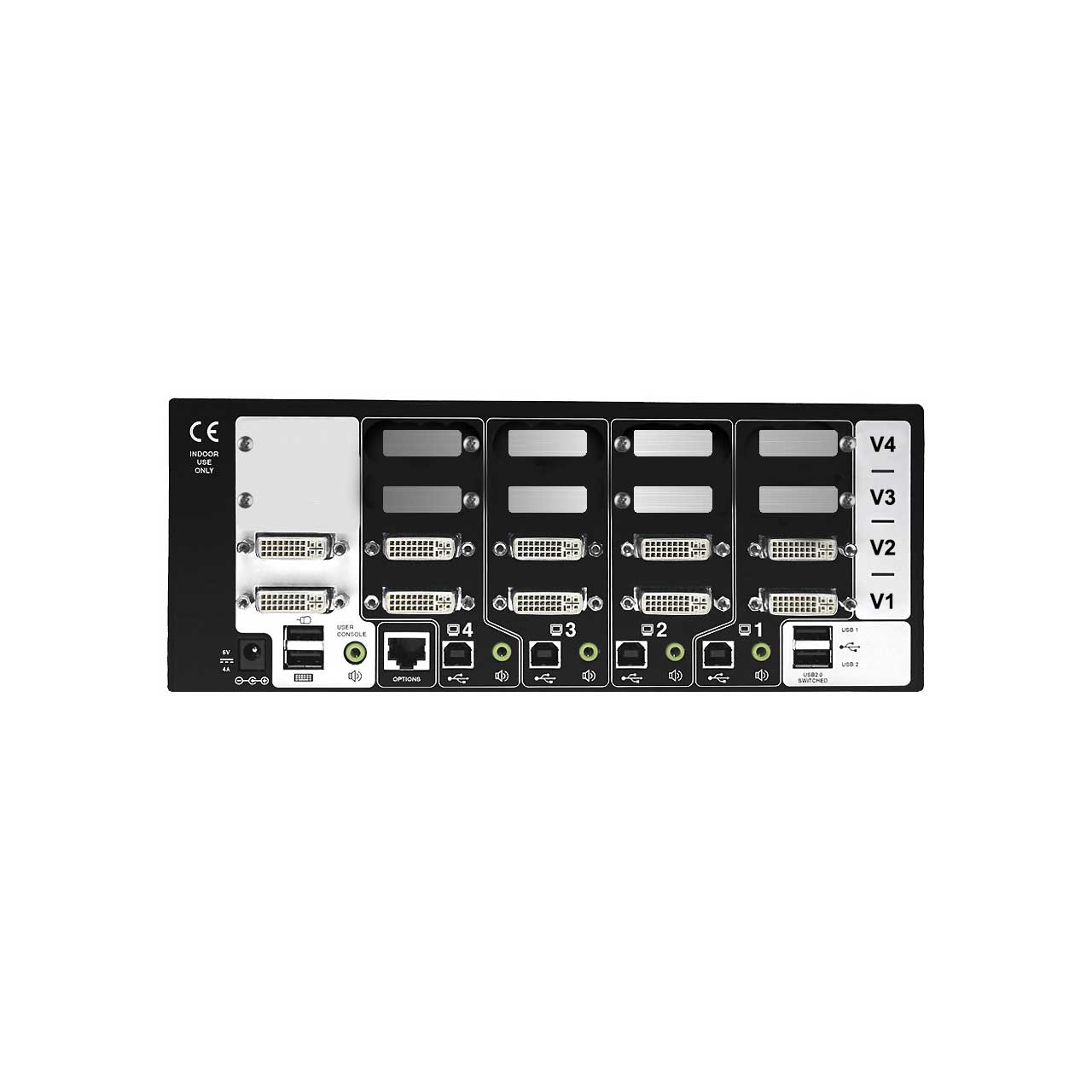

      • Computer connections at switch
      • USB: USB2.0 Type-B
      • Video: Dual link DVI-I (up to 4 per connection)
      • Audio: 3.5mm stereo jack

      • Local KVM console connection:
      • Video: Dual link DVI-I (Dual x 2, Triple x 3 or Quad x 4)
      • Keyboard/mouse: 2x USB Type-A
      • 2x Transparent Hi-Speed USB 2.0 Type-A
      • Audio: 3.5mm stereo jack
      • Serial: Options 10P10C port

      • True Emulation:
      • Emulates keyboard and mouse on each port, low-speed HID
      • USB2.0 devices supported
      • Audio: 3.5mm stereo jack.
      • Other connections: Options (flash upgrade, sync with other AV4PRO and RS232 triggered power switches): Modular 10P10C

      • Physical design
      • Single head: 1U high metal case, 233mm/9.17"(W) x 115mm/4.52"(D) x 44mm/1.73"(H)
      • Multi-head: 2.5U high metal case, 260mm/10.23"(W), 150mm/5.90"(D), 100mm/3.93"(H)

      • Power
      • 2.5mm DC jack (power adapter included)
      • 100-240VAC 50/60Hz input to power adapter
      • 5VDC 2A output from power adapter

      • Operating temperature
      • 0 to 40°C/32 to 104°F

      • Approvals
      • CE, FCC, UKCA
    • Item Includes:

      • 1x AV4PRO unit
      • 1x US Power supply
    • Warranty:

      • 2 Year Limited
    • GTIN:
