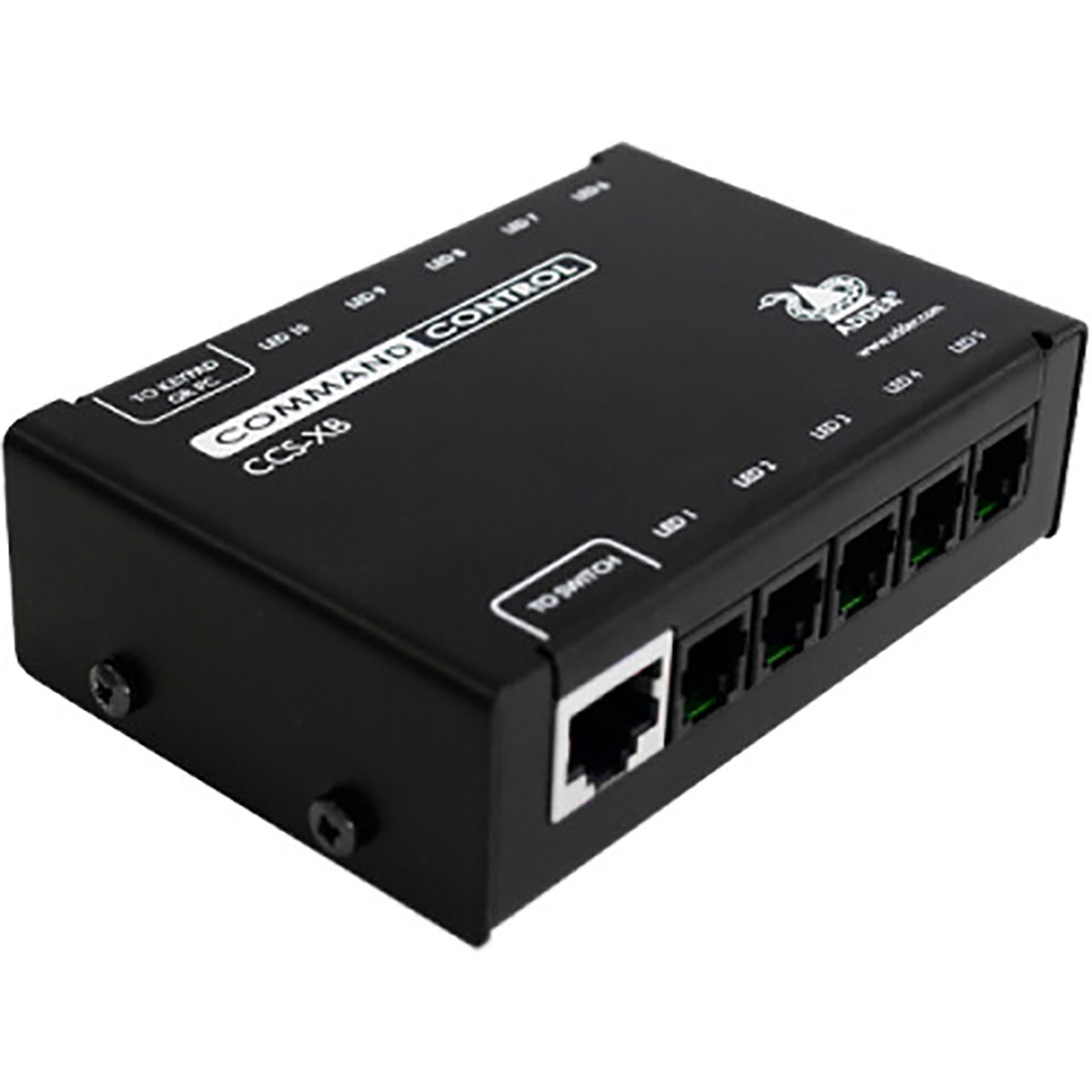

ADDER CCS-XB8 Command Control LED Light Module Kit for CCS-PRO4 with 8 LED Modules

CCS-XB8 - Overview

• Features:

  • Add-on module for use with CCS4USB and Free-Flow (sold separately).
  • This module controls a set of CCS-LED lights which mount onto your screens.
  • The LED's are fully configurable allowing the user to assign a specified color and intensity via the setup application.
  • These units provide loop through support for additional accessories such as the RC4 or RC8 remote control modules for greater flexibility.
  • Each LED module is pre-wired with 9.84 feet/3 meters of cable allowing the user to route the module discreetly to the screen.
  • The flexible cable used is of oval profile making it easier to tuck into channeling, wall gaps or any similar room features.

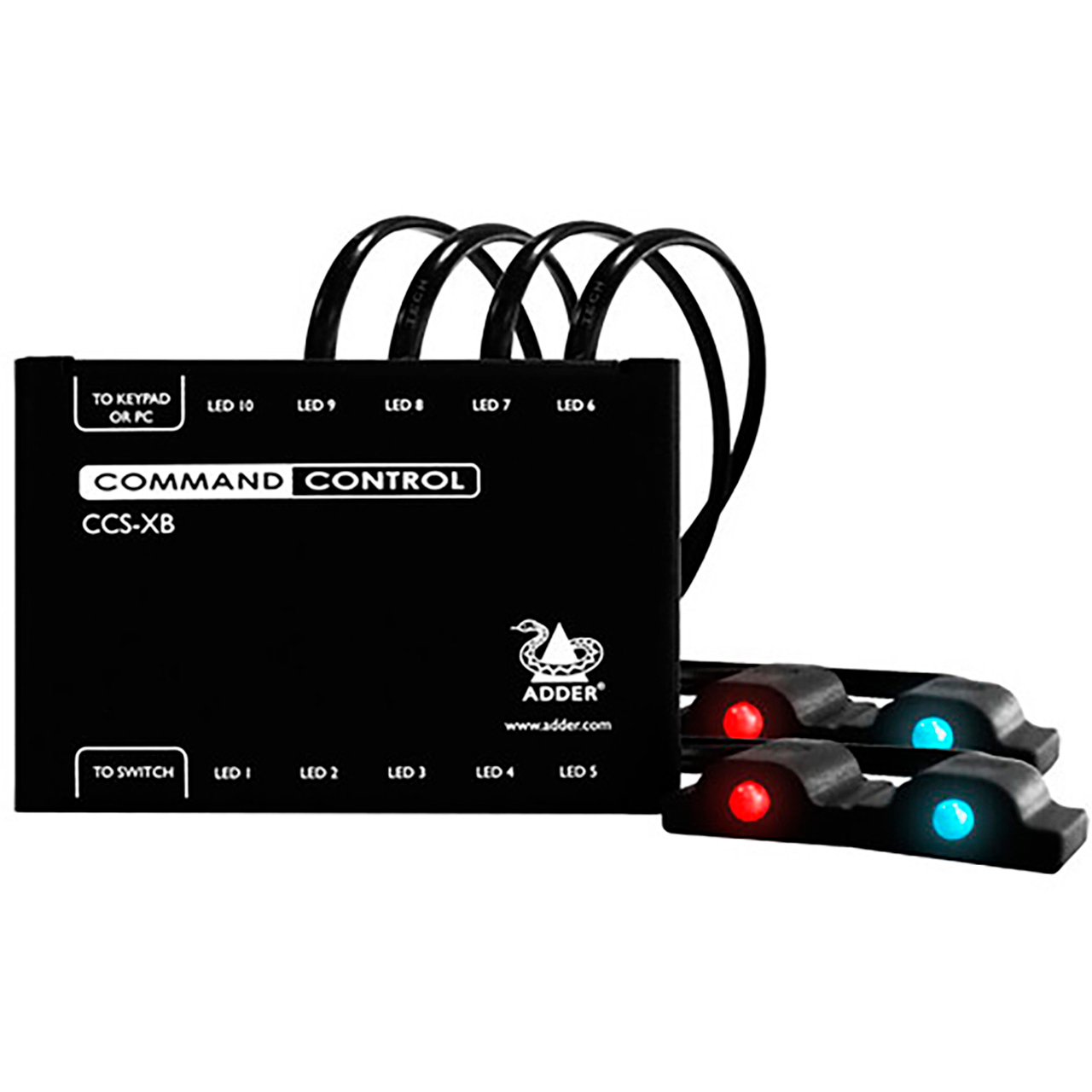

  • Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.
  • The CCS-XB8 is interface powered making installation very simple.
  • Each CCS-XB8 ships with 8 LED modules. Additional modules can be ordered (to a maximum of 10 per unit) using order code: CCS-LED


• Specifications:

  Connectivity
  • To CCS-PRO8: 10p10c connector via cable VSC46
  • Other Connections:
    - 10x 6P6C connecters for the CCS-LED modules
    - 1x 10P10C connector for upgrade cable or remote control RC8 8-button switch
  • Approvals: CE, FCC

    Mechanical
  • Height: 1.2" (30mm)
  • Width: 3.7" (9mm)
  • Depth: 2.6" (65mm)
  • Weight: 0.5lbs (0.22kg)


• Item Includes:

  • 1x CCS-XB Controller
  • 8x LED Monitor Indicators (CCS-LED)
  • 1x 10ft CATx Link Cable (VSC46)
  • 4x Self-Adhesive Rubber Fee


• Warranty:

  • 2 Year Limited Warranty


• GTIN:

  0997250401896
