Adder VSC41 Synchronizing Cable for AdderView PRO KVM Switches

ITEM #: ADR-VSC41 MFG #: VSC41

Primary Image
Adder Corporation
Free Shipping with $49 Minimum Order

List Price:

$43.00

Our Price:

$38.70

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

VSC41 - Overview

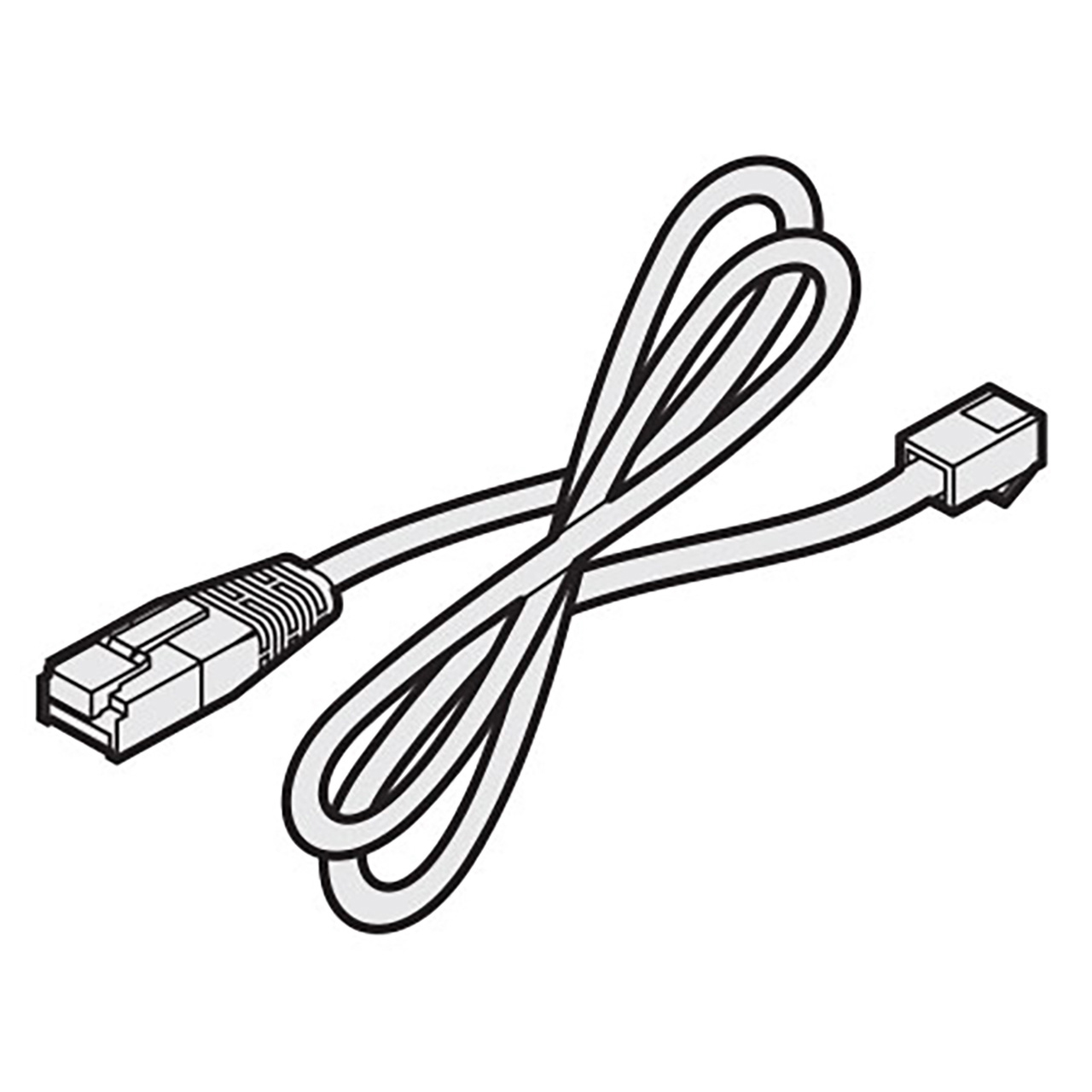

The Adder VSC41 synchronisation cable allows 2x AdderView PRO KVM Switches (DP, DVI, or VGA) to be connected together so that they operate in a synchronised manner. This allows creating dual-monitor, triple-monitor, quad-monitor, or up to 8-monitor KVM Switching systems.

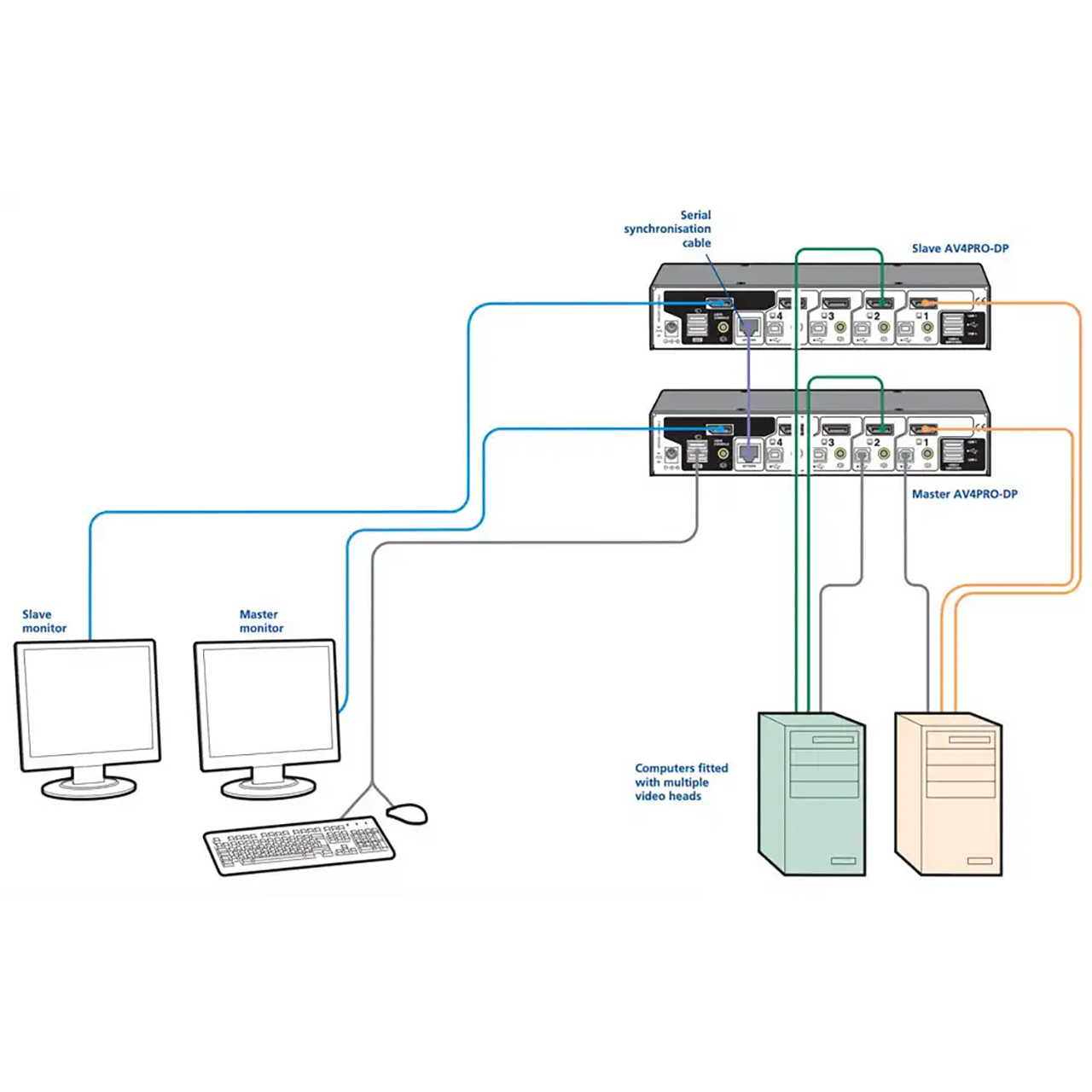

Whenever an AV4PRO or AV8PRO channel is switched, it sends an RS232 command out on its serial interface (marked OPTIONS on the rear panel). An AVPRO unit will switch its channel if it receives the same command on its serial interface. Consequently, by linking the serial interfaces, a master unit may be made to automatically switch one or more slave units as shown in the diagram.

The synchronisation cable deliberately does not have the transmit pin of the Slave End connector linked to the receive pin of the Master End connector. To do so would cause the Slave unit to be able to switch the Master unit. This would setup an endless cyclical switching sequence that would prevent the AV4PRO devices from operating correctly.

  • Features:

    • Options Port Synchronization - Links the Options ports of AV4PRO switches so ASCII channel-change codes from the master are followed by every connected unit.
    • Multi-Head System Building Block - Enables dual, triple, quad and five-monitor KVM switching systems from standard 4-port AV4PRO units.
    • Cross-Interface Compatibility - Works across the AV4PRO-DVI, AV4PRO-DP and AV4PRO-VGA switch families.
    • Automatic Channel Tracking - Slave units switch in step with the master, so operators never manage screens individually.
    • No Additional Hardware Required - Synchronization uses the switches' built-in remote-switching capability over a single cable link.


  • Specifications:

    • Function: Links Options ports so 2x or more units switch in synchrony (ASCII code echo)
    • Compatible Switches: AdderView 4 PRO series: AV4PRO-DVI, AV4PRO-DP, AV4PRO-VGA
    • Application: Multi-head (dual to five-monitor) KVM switching systems
    • Shipping Dimensions: 10.24" x 5.91" x 3.94" (260.1mm x 150.1mm x 100mm)
    • Shipping Weight: 1lb (0.5kg)


  • Item Includes:

    • 1x Synchronizing Cable


  • Warranty:

    • 1-Year Limited Warranty
