Audio-Technica AEW-4240AC 4000 Series Wireless Handheld Mic System - Channel C

Name: Audio-Technica AEW-4240AC 4000 Series Wireless Handheld Mic System - Channel C
Brand: Audio-Technica
SKU: AEW-4240AC
Price: 999.00 USD
Availability: SoldOut

ITEM #: AEW-4240AC MFG #: AEW-4240AC

Audio-Technica

Frequencies:

Frequencies

Item unavailable.Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Availability: Sold Out

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AEW-4240AC - Overview

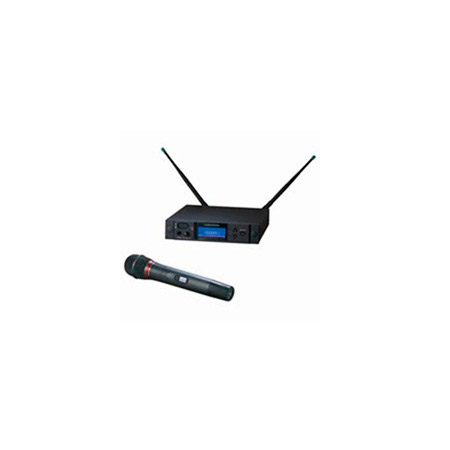

Audio-Technica's upgraded 4000 Series frequency-agile UHF body-pack and handheld wireless systems bring outstanding clarity and versatility to live performance, regional touring, fixed installations and more. At the heart of the 4000 Series is a rugged True Diversity half-rack receiver, the AEW-R4100, with 996 selectable channels offered in each of two available UHF bands.

Receivers from both the 4000 and 5000 Series may be linked; they may be monitored by the 5000 Series system software. The included IntelliScan™ feature automatically determines and sets the best available frequencies on all linked receivers.

Multiple system configurations are available, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars.

The AEW-T4100a transmitter requires two 1.5V AA alkaline batteries (not included) and has a battery Life of approximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern.

Features:
- 996 selectable UHF channels per band and True Diversity reception for interference-resistant operation
- Available in two frequency bands: 541.500 - 566.375MHz (TV Channels 25 - 30) and 655.500 - 680.375MHz (TV Channels 44 - 49)
- IntelliScan feature automatically finds and sets best available frequencies on all linked receivers
- Advanced digital Tone Lock squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
- Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
- Link and coordinate multiple receiver channels
- High-visibility white-on-blue LCD information display
- Metal half-rack receiver chassis with mounting hardware
- All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35mW switchable RF power
- Backlit LCD displays on transmitters
- Locking battery door on UniPak body-pack transmitter
- All components store up to five preset configurations, with customized "names" if desired
Specifications:
- Overall System Specifications
- Operating Frequencies: UHF band - Band C: 541.500 to 566.375MHz (996 frequencies)
- Frequency Stability: ±0.005%, Phase Lock Loop frequency control
- Minimum Frequency Step: 25kHz
- Modulation Mode: FM
- Normal Deviation: ±5kHz
- Operating Range: 300ft typical
- Operating Temperature Range: 41°F - 113°F
- Frequency Response: 70Hz - 15kHz
- Maximum Simultaneous Use (Recommended): 300ft typical

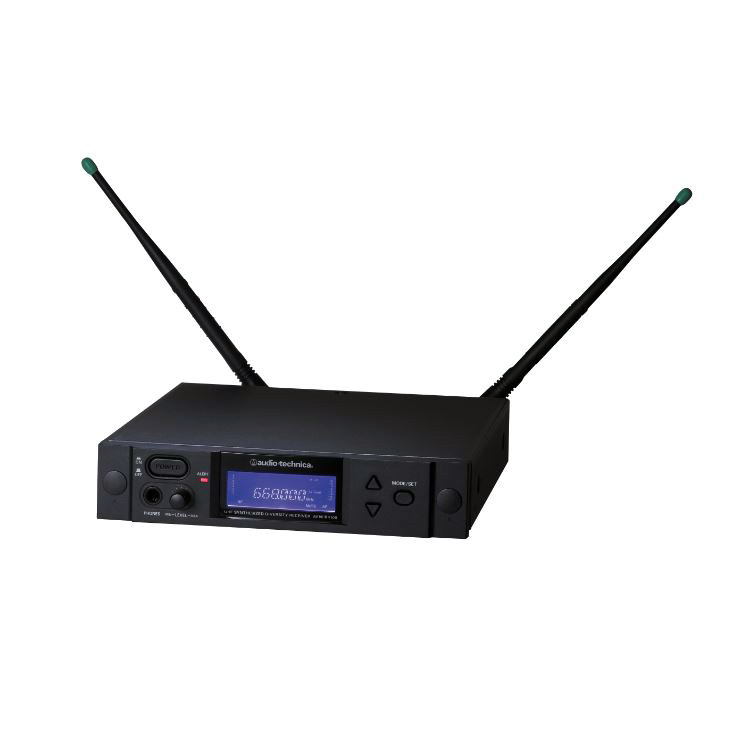

  Receiver Specifications
- Receiving System: Dual independent RF sections, automatic-switching diversity
- Image Rejection: 60dB typical
- Signal-To-Noise Ratio: 115dB @ 40kHz deviation (IEC-weighted, 75kHz maximum modulation)
- Total Harmonic Distortion: <=1% (10kHz deviation @ 1kHz)
- Sensitivity: 20dBæV (S/N 70dB @ 5kHz deviation, IEC-weighted)
- Intermediate Frequency: 65.75MHz, 10.7MHz
- Audio Output - Microphone: (ATTN switch at "0"); 25mV (@ 1kHz, ±5kHz deviation, 10kΩ load)
- Audio Output - Instrument: (ATTN switch at "0"); 50mV (@ 1kHz, ±5kHz deviation, 10kΩ load)
- Audio Output Attenuator (ATTN): Three-position switch: 0/-6/-12dB
- Output Connectors (Microphone): XLRM-type (balanced)
- Output Connectors (Instrument): 1/4" TS unbalanced phone jack
- Headphone Output: Connector 1/4" TRS stereo phone jack; Power Output: 10mW + 10mW @ 1kHz, ±5kHz deviation into 32Ω; maximum output, 220mW + 220mW into 32Ω
- Antenna Power: DC 10V - 12V, 20mA (BNC-type jack)
- Power Supply: 100 - 240V AC 50/60Hz; 8W
- Operating Temperature Range: 41°F - 113°F
- Dimensions (HxWxD): 1.74" x 8.31" x 9.26"
- Net Weight: 3.8lbs

  Handheld Transmitter Specifications
- RF Power Output: High: 35mW; Low: 10mW, nominal
- Spurious Emissions: Under federal regulations
- Dynamic Range: >=110dB, A-weighted
- Microphone Element: AEW-T4100a: Cardioid Dynamic
- Batteries: Two 1.5V AA alkaline (not included)
- Current Consumption: High: 185mA; Low: 165mA, typical
- Battery Life: Approximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern
- Dimensions: 9.33" long, 1.89" maximum diameter
- Net Weight: 9.7oz
Item Includes:
- Detachable IEC-type AC power cable
- Two flexible UHF half-wave antennas
- Link cable
- Rack-mount adapters
- AT8456a Quiet-Flex™ stand clamp
Warranty:
- 5 Year Limited End-User
GTIN:
0042005163663

AEW-4240AC - Required Accessories

Duracell PC1500 ProCell Heavy Duty AA Batteries - 24 Pack
24DURAA
Our Price: $15.15

AEW-4240AC - Recommended Accessories

Sescom Mic Cable Canare Star-Quad 3-Pin XLR Male to 3-Pin XLR Female - Black - 15 Foot
SC15XXJ
Our Price: $21.95
Sescom Audio Cable Canare Star-Quad 1/4 TS Mono Male to 1/4 TS Mono Male - Black - 15 Foot
SC15SS
Our Price: $25.49
Portabrace RM-MULTI Wireless Mic Case
RM-MULTI
Our Price: $99.06
Sescom Pro Audio Hum Eliminator Inline with Isolation
IL-19
Our Price: $49.95
Gator Cases GR-2S Shallow Audio Rack - 3U
GR-3S
Our Price: $239.99
Middle Atlantic RK Series 8RU Rack - Black Laminate
RK-8
Our Price: $245.70
WindTech 900 series Medium Sized Windscreen 900-01 1 5/8in Sphere Grey
WT900-01
Our Price: $8.79
Atlas MS-10C All-Purpose Mic Stand 35 Inch - 63 Inch - Chrome - Each
MS-10C
Item Details
WindTech SMC-7 Hold All Spring Clamp Type Mic Clip
WTSMC-7
Our Price: $9.89
Gator Cases GM-2W Wired/Wireless Microphone Case For 2 Mics
GM-2W
Our Price: $99.99
WindTech 900 series Medium Sized Windscreen 900-01 1 5/8in Sphere Grey
WT900-01
Our Price: $8.79
Sony Pro MDR-7506 Foldable Large Diaphragm Headphones
MDR-7506
Our Price: $99.99

AEW-4240AC - Reviews

AEW-4240AC - Attachments

See Audio Technica AEW-4240AC Specifications (PDF)
