    AH-DLIVE-CDM32 - Overview

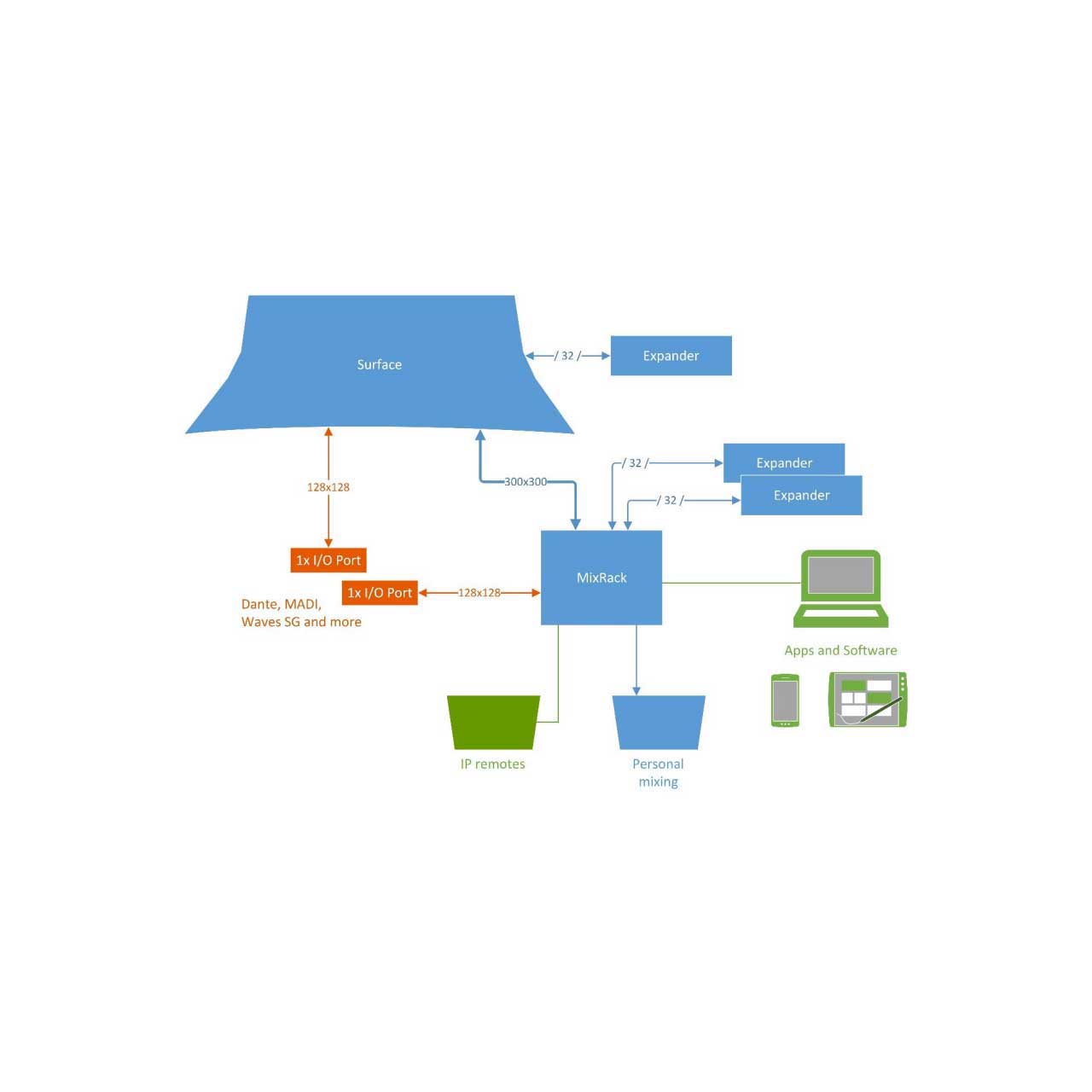

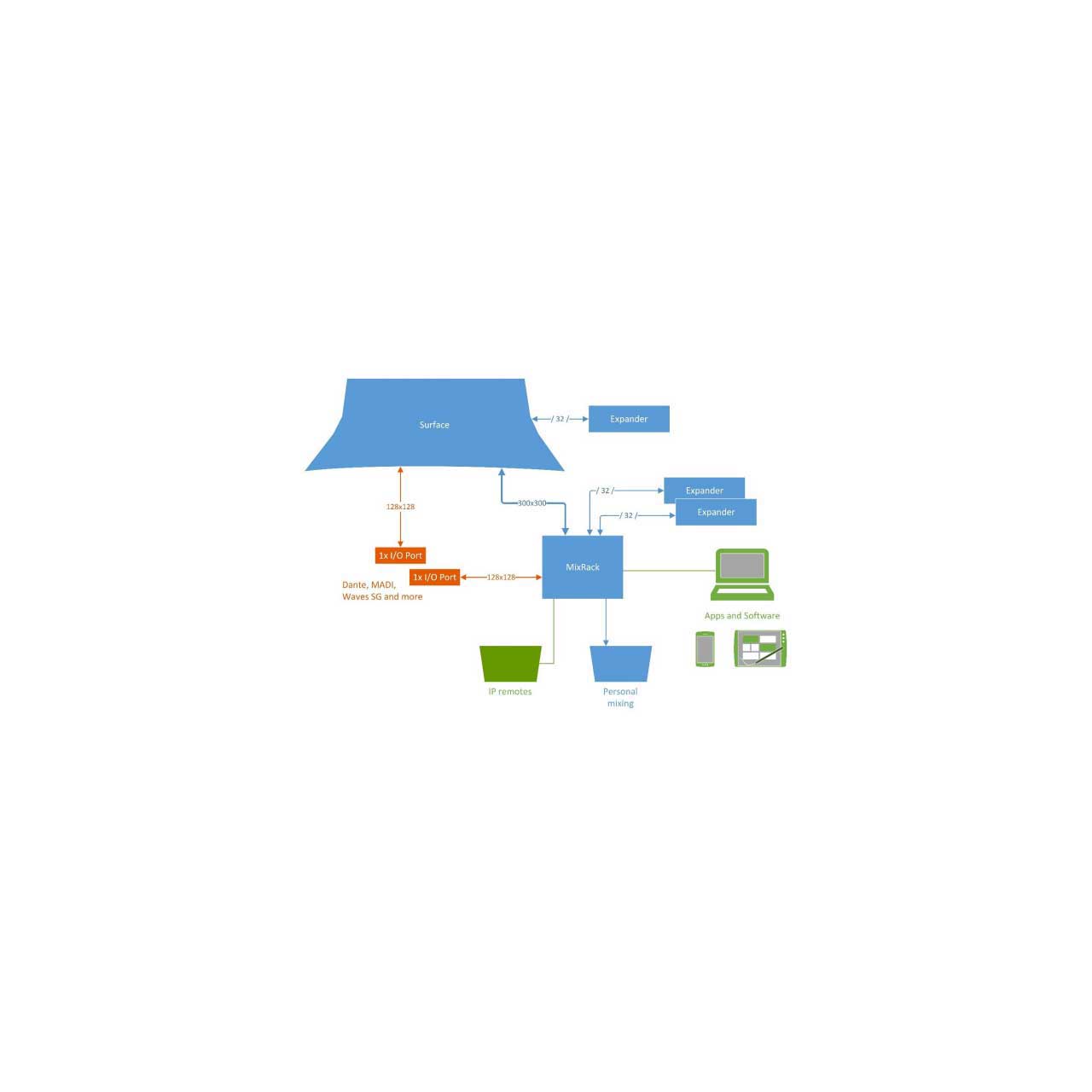

    The Allen & Heath AH-DLIVE-CDM32 dLive MixRack is the heart of the dLive system housing the XCVI processing core. The CDM32 is compatible with any dLive C class or S class Surface. It also can be ran with a laptop, iPad, via the Allen & Heath range of IP controllers, or with third party controllers. The CDM32 features 32 Inputs and 16 outputs, 96K sample rate, the ability to mix 128 input channels and 64 output channels with full processing, built in DEEP processing, Automatic Mic Mixer, and is expandable via the included DX link port and available option card slot.

    XCVI Core
    The power of dLive emanates from the XCVI Core - pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class leading latency at an ultra-low 0.7ms.

    DEEP Processing
    The DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive's input and mix channels. An array of bespoke algorithms including Graphic EQs, Compressors and a 64 channel Automatic Mic Mixer (AMM) can be inserted on the fly without burning FX slots and without the setup, latency and license hassles associated with external plug-ins - they're right there, where you need them, whenever you need them. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.

    • Features:

      • 32 mic/line inputs, 16 line outputs
      • XCVI 160×64 FPGA core
        - 96kHz sample rate
        - Variable bit-depth for ultimate precision and noise performance
        - Virtually infinite mix headroom thanks to 96bit accumulator
        - Class leading, ultra-low latency at 0.7ms
      • 128 Input Channels with full processing
      • 64 Mix Outputs with full processing
      • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
        - LR, LCR and up to 5.1 mains mode
        - Multiple PFLs
      • 16 RackExtra FX with dedicated stereo returns
      • 24 DCAs
      • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
      • Built-in signal generator and RTA
      • New preamp design for extra transparency
      • Unique Active PAD circuit for consistent performance with any source

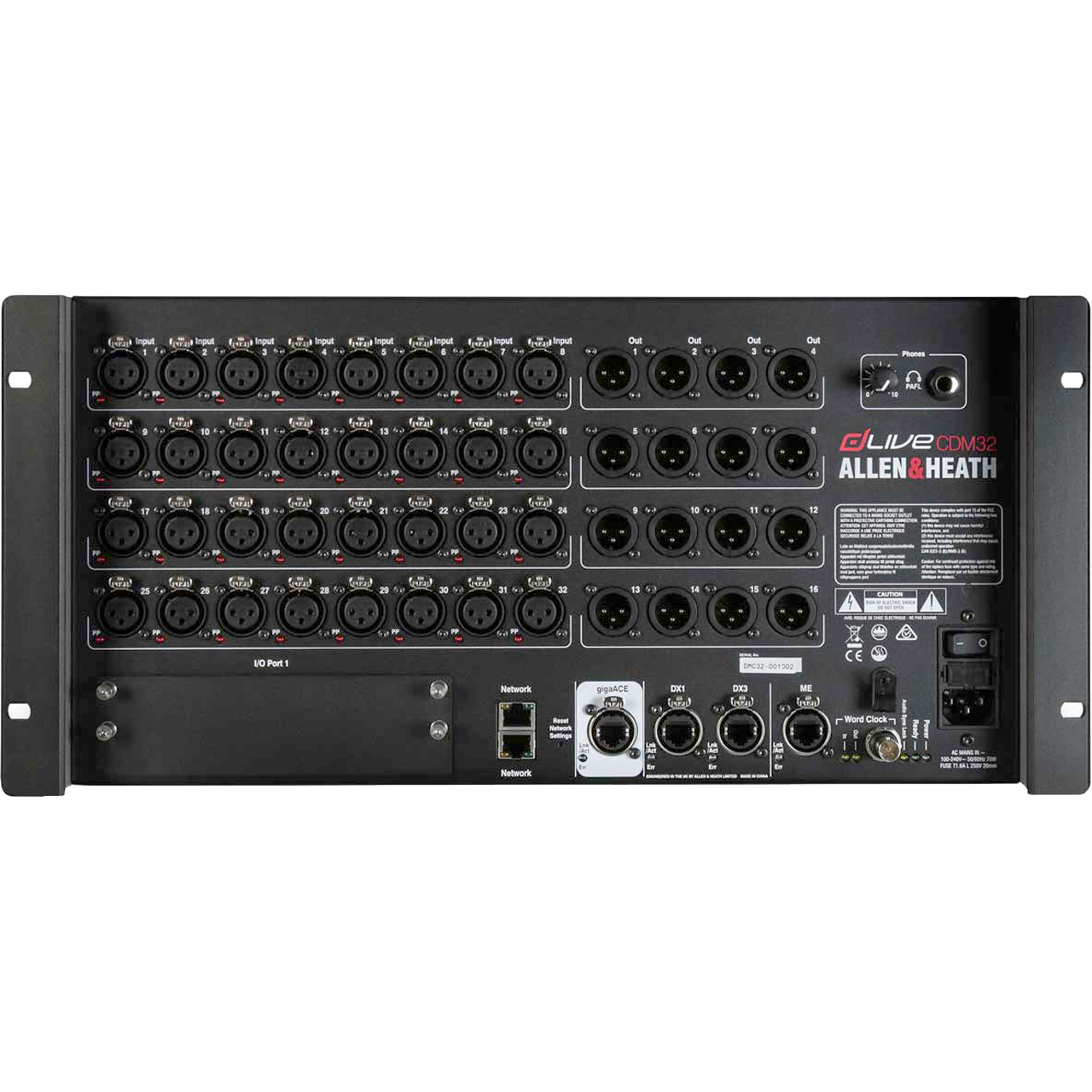

      • Connection hub
        - gigaACE gigabit link to Surface
        - 2x DX links for I/O expansion
        - I/O Port - 128 ch 96 kHz
        - Dedicated ME-1 48kHz port
        - 2x Network ports
        - Wordclock BNC I/O
      • Add up to 22 DX I/O expanders via DX Hub modules or DX Link cards

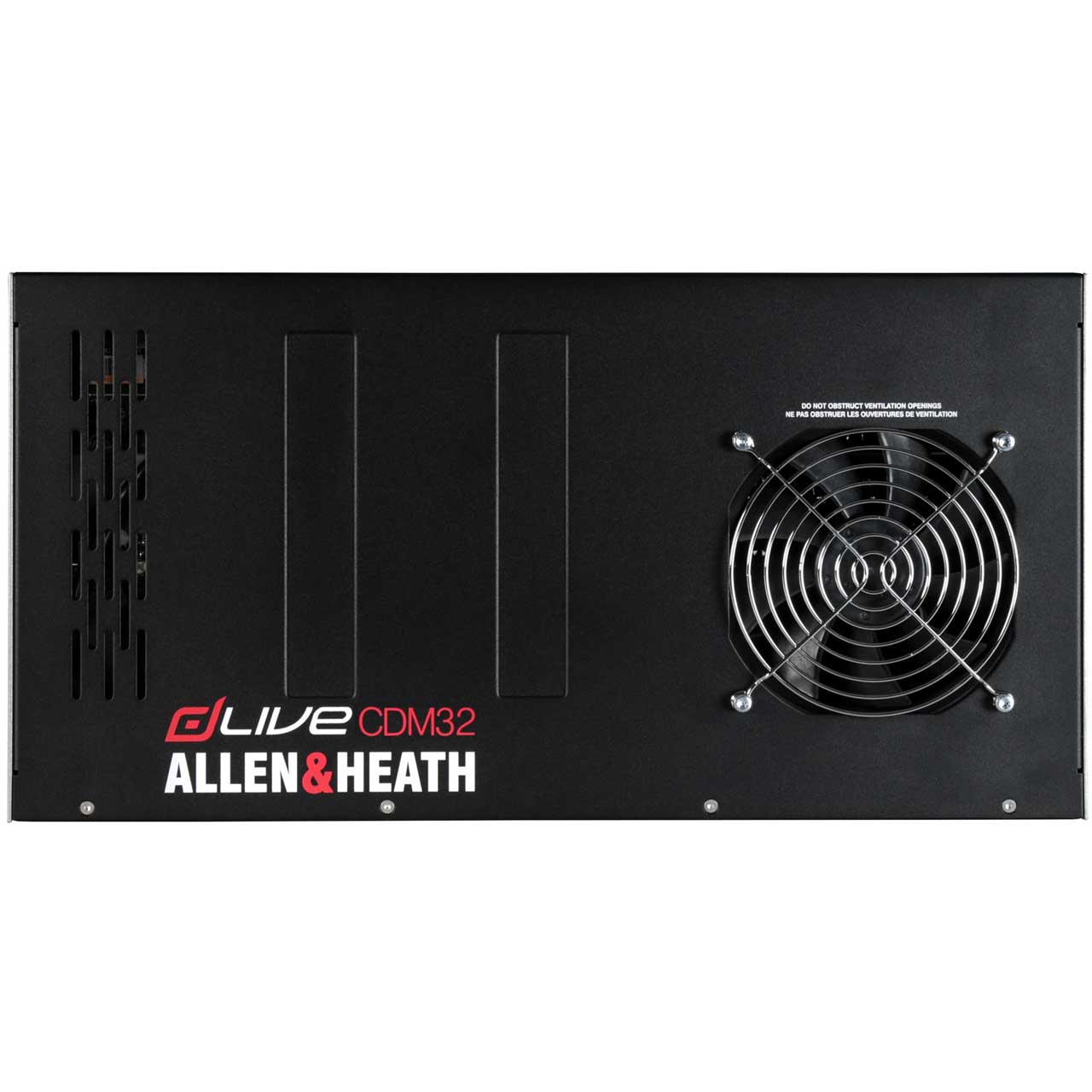

      • Flush front panel with ultra quiet fan
      • Reversible rack ears design

    • Specifications:

      • Inputs
      • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
      • Mic/Line Preamp: Fully recallable
      • Input Sensitivity: -60 to +15dBu
      • Analog Gain: +5 to +60dB, 1dB steps
      • Pad: -20dB Active PAD
      • Maximum Input Level: +30dBu (PAD in)
      • Input Impedance: >4kω (Pad out), >10kω (Pad in)
      • Mic EIN: -127dB with 150ω source
      • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V

        System
      • Measured balanced: XLR in to XLR out, 20-20kHz, minimum Gain, Pad out, signal @ 0dB (meter)
      • Dynamic Range: 110dB
      • System Signal to Noise: -92dB
      • Frequency Response: 20Hz - 30kHz +0/-0.8dB
      • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
      • Headroom: +18dB
      • Internal operating Level: 0dBu
      • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
      • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
      • Meter Peak indication: -3dBFS (+19dBu at XLR out)
      • Sampling Rate: 96kHz +/- 20 PPM
      • ADC: 24-bit Delta-Sigma
      • DAC: 24-bit Delta-Sigma
      • Latency:
        - 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
        - + 5 samples, Surface to Mixrack (GigaACE hop)
        - + 8 samples, DX32 to Mixrack (DX hop)

        Outputs:
      • Analog XLR Outputs: Balanced, Relay protected
      • Output Impedance: <75ω
      • Nominal Output +4dBu = 0dB meter reading
      • DAC: 24-bit Delta-Sigma
      • Maximum Output Level: +22dBu
      • Residual Output Noise:
        - -92dBu (muted, 20-20kHz)
        - -90dBu (muted, 20-40kHz)
      • Operating Temperature Range: 32 °F to 95 °F
      • Mains Power (MPS16): 100-240V, 50-60Hz, 175W max

        Dimensions:
      • Length: 16.9 In
      • Width: 23.6 In
      • Height: 15 In
      • Weight: 26.5 lbs

    • Item Includes:

      • 1x AH-DLIVE-CDM32 MixRack
      • 1x IEC cable
      • 1x 1M CAT cable
      • 1x Manual

    • Warranty:

      • 3 Year Warranty

    • GTIN:

      6938122245921
