Allen & Heath AH-DLIVE-S5000 dLive S Class 28 Fader Surface - 2 Option Card Slots - 27 SoftKeys - Dual 12in Touchscreens

ITEM #: AH-DLIVE-S5 MFG #: AH-DLIVE-S5000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


AH-DLIVE-S5000 - Overview

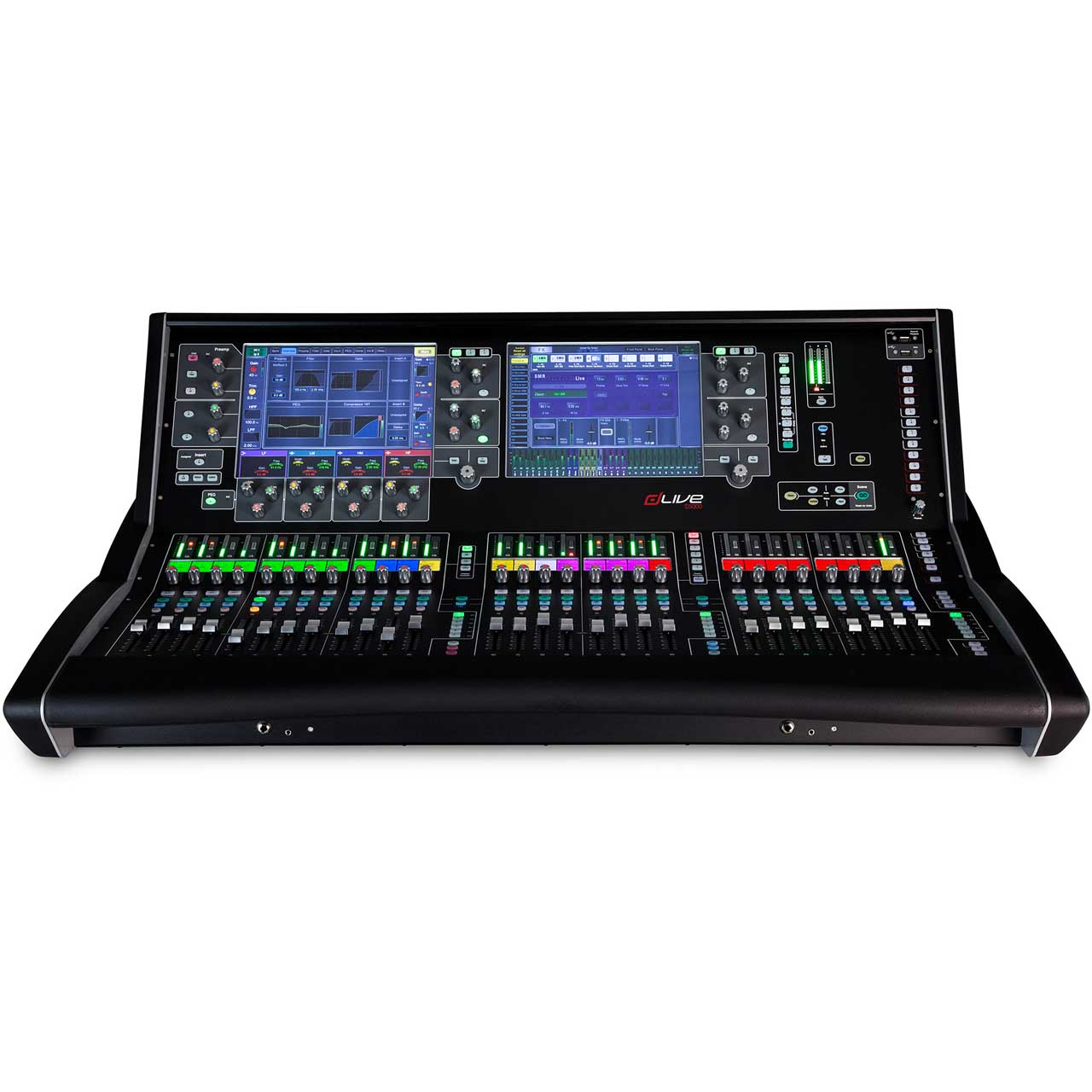

The Allen & Heath AH-DLIVE-S5000 is a medium-sized control Surface for the dLive MixRack, with the addition of built-in audio I/O and audio networking ports. It features 28 faders over 6 layers, dual 12" capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

Harmony User Interface
Where many digital consoles try to recreate the experience of using an analogue mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. The single or twin 12" capacitive touchscreens on the dLive consoles feel instantly familiar, responding to every pinch, swipe, drag and drop exactly how you'd expect them to. Bespoke "widget" areas can also be set up on the screens to keep track of scenes, meters, FX and other custom controls. The screen is framed by a set of one knob / one function rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen. The rotary knobs have been prototyped 20+ times to achieve optimal grip and precision control, and feature RGB illumination, with colors mapped to functions for instant visual orientation.

Built To Endure
Maybe it's no coincidence that Allen & Heath's lead mechanical designer on the dLive project used to be a tank commander. All dLive consoles have been designed to deliver the optimal balance between strength and weight, employing higher grade metal on the sides and folded steel at key points for added rigidity. Not only does every console, MixRack and expander have dual power supply slots for redundancy, but they've also employed the same rugged, hot-swappable PSU design across the range for maximum peace of mind and minimum inventory. Dual redundancy is also built into every audio connection throughout the system. They have also paid particular attention to console illumination, conducting rigorous trials to ensure that dLive excels in the sunny, outdoor settings where many digital consoles become almost unusable.

  • Features:

    • 28 faders
    • Fully assignable layout - 168 fader strips
    • Harmony UI integrates screen and wrap-around controls
      - Dual 12” capacitive touchscreen
      - Gesture control - pinch, swipe, drag ‘n drop
      - Dedicated multi-mode EQ view
      - Configurable widget areas for Scenes, meters, FX and more
      - 3 pages of 6 assignable rotaries per screen
    • 26 assignable SoftKeys
    • Engineer's Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback
    • 8 XLR mic/line in, 8 XLR line out
    • 2 digital st AES3 in, 3 digital st AES3 out

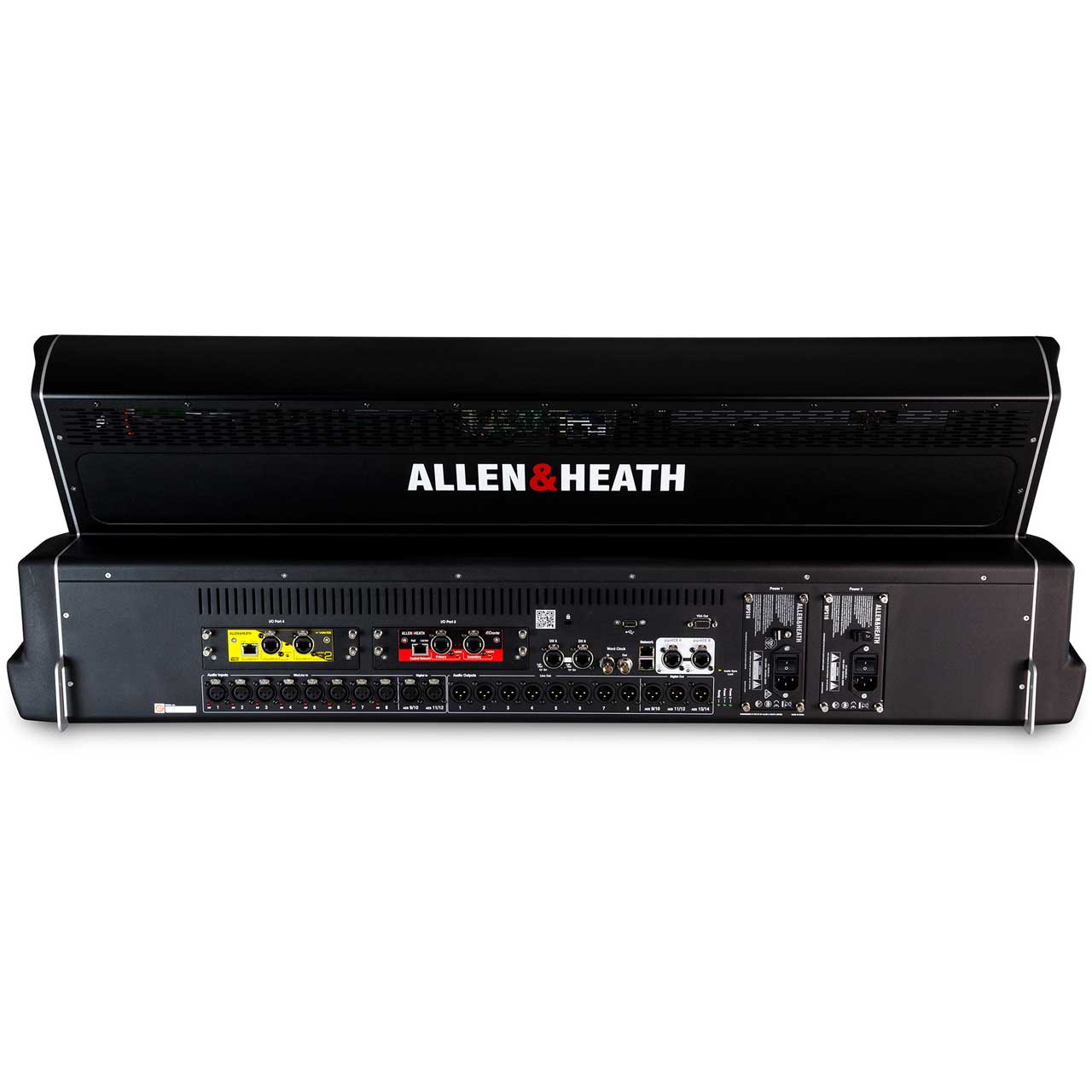

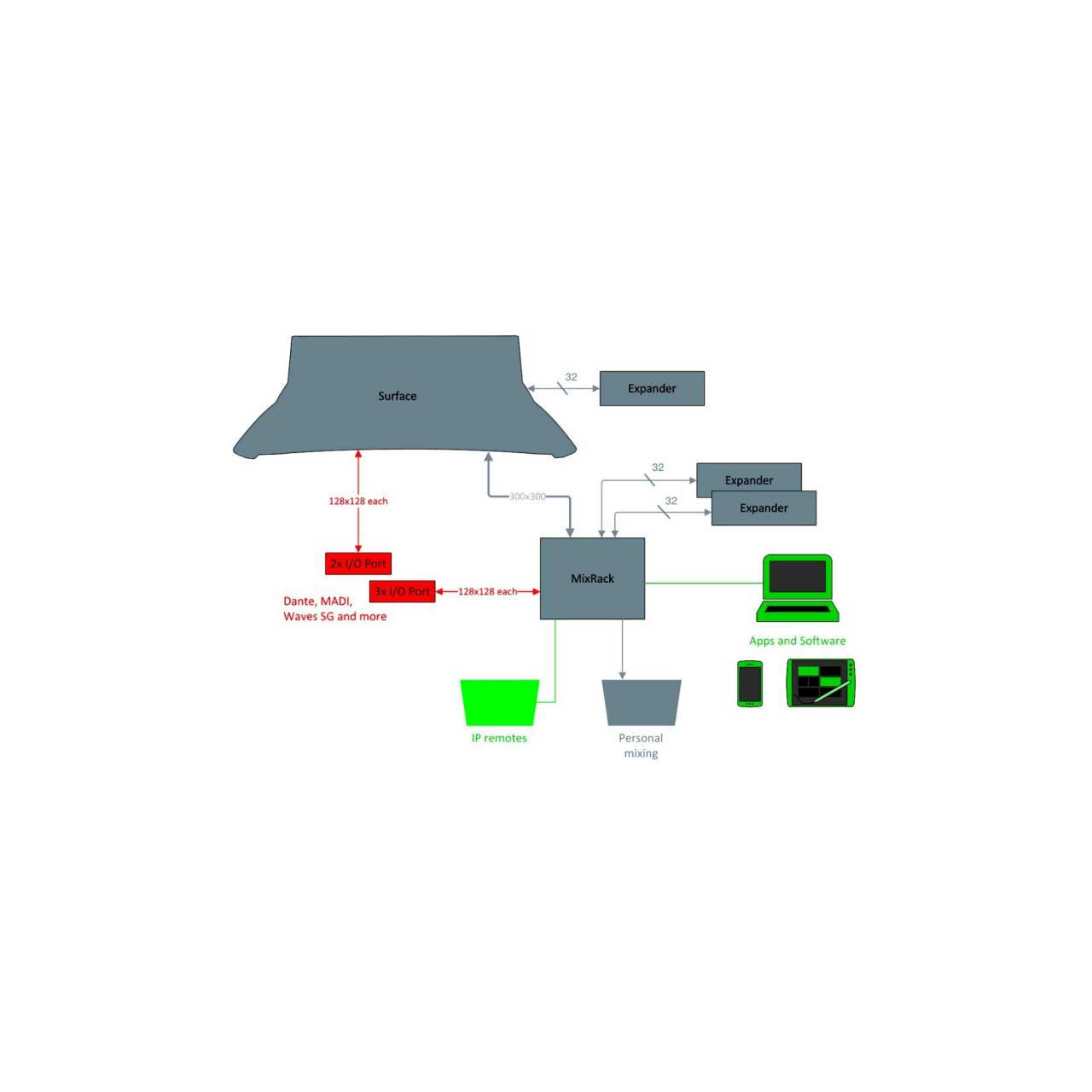

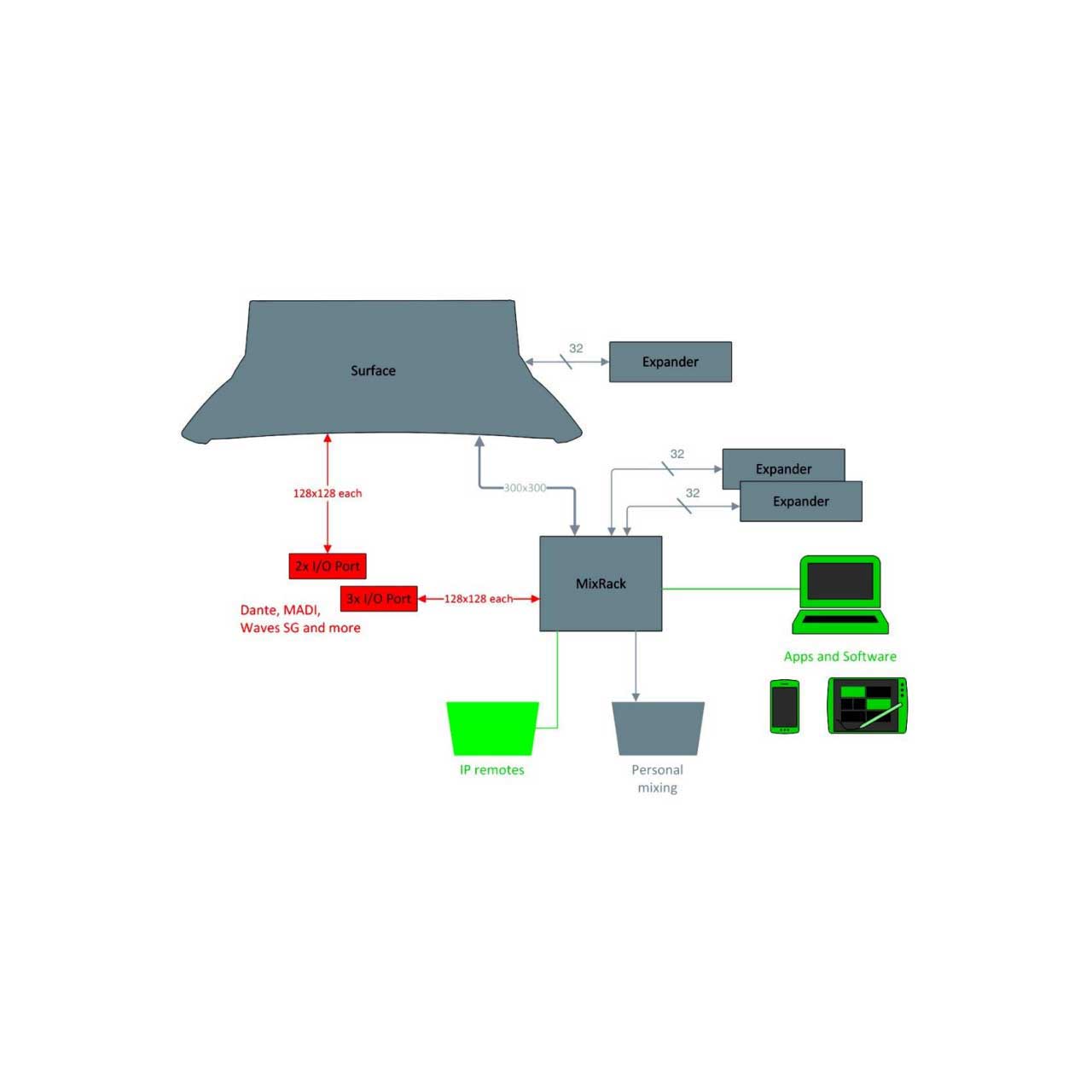

    • Connection hub
      - Dual Redundant GigaACE gigabit link to MixRack
      - 1x Redundant DX link for I/O expansion
      - 2x I/O Port - 128 ch 96 kHz
      - 2x Network ports
      - Wordclock BNC I/O
      - Video output
    • Dual Redundant, Hot swappable power supply

  • Specifications:

    • Inputs
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analog Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kω (Pad out), >10kω (Pad in)
    • Mic EIN: -127dB with 150ω source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
    • Digital Inputs:
      - AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 ω
      - SRC range 32k - 192kHz, with bypass option

      System
    • Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out, signal @ 0dB (meter)
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz +/- 20 PPM
    • ADC: 24-bit Delta-Sigma
    • DAC: 24-bit Delta-Sigma
    • Latency:
      - 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
      - + 5 samples, Surface to Mixrack (GigaACE hop)
      - + 8 samples, DX32 to Mixrack (DX hop)
    • Operating Temperature Range:
      - Fitted with MPS16 V1 300W: 32 °F to 95 °F
      - Fitted with MPS16 V2 250W: 32 °F to 104 °F
    • Mains Voltage Operating Range: 100-240V AC, 50/60Hz
    • Mains Power Consumption:
      - 300W Max (MPS16 V1 300W)
      - 250W Max (MPS16 V2 250W)

    • Outputs:
    • Analog XLR Outputs: Balanced, Relay protected
    • Output Impedance: <75ω
    • Nominal Output +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise:
      - -92dBu (muted, 20-20kHz)
      - -90dBu (muted, 20-40kHz)
    • Digital Outputs:
      - AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 ω
      - 96kHz sampling rate, switchable to 48kHz, 44.1kHz

      Dimensions:
    • Length: 36.3 In
    • Width: 50.8 In
    • Height: 22 In
    • Weight: 110.2 lbs

  • Item Includes:

    • 1x AH-DLIVE-S5
    • 1x Ac Cable
    • 1x Dust Cover
    • 1x Manual

  • Warranty:

    • 3 Year Warranty

  • GTIN:

    6938122242524
