Allen & Heath AH-DLIVE-DM0 dLive S Class MixRack - 128x64 FPGA 3 Option Card Slots ME-1 Port Dual DX Expander Link

ITEM #: AH-DLIVE-DM0 MFG #: AH-DLIVE-DM0

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: In Stock
iAvailability Description Popup


    AH-DLIVE-DM0 - Overview

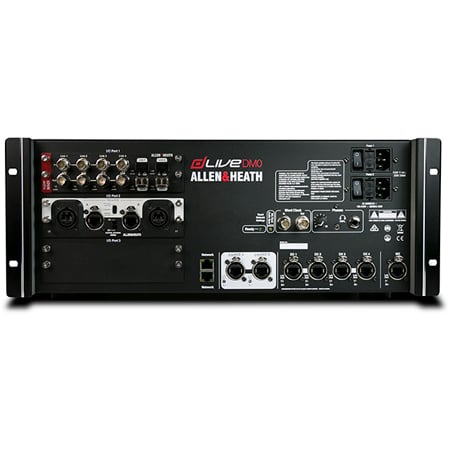

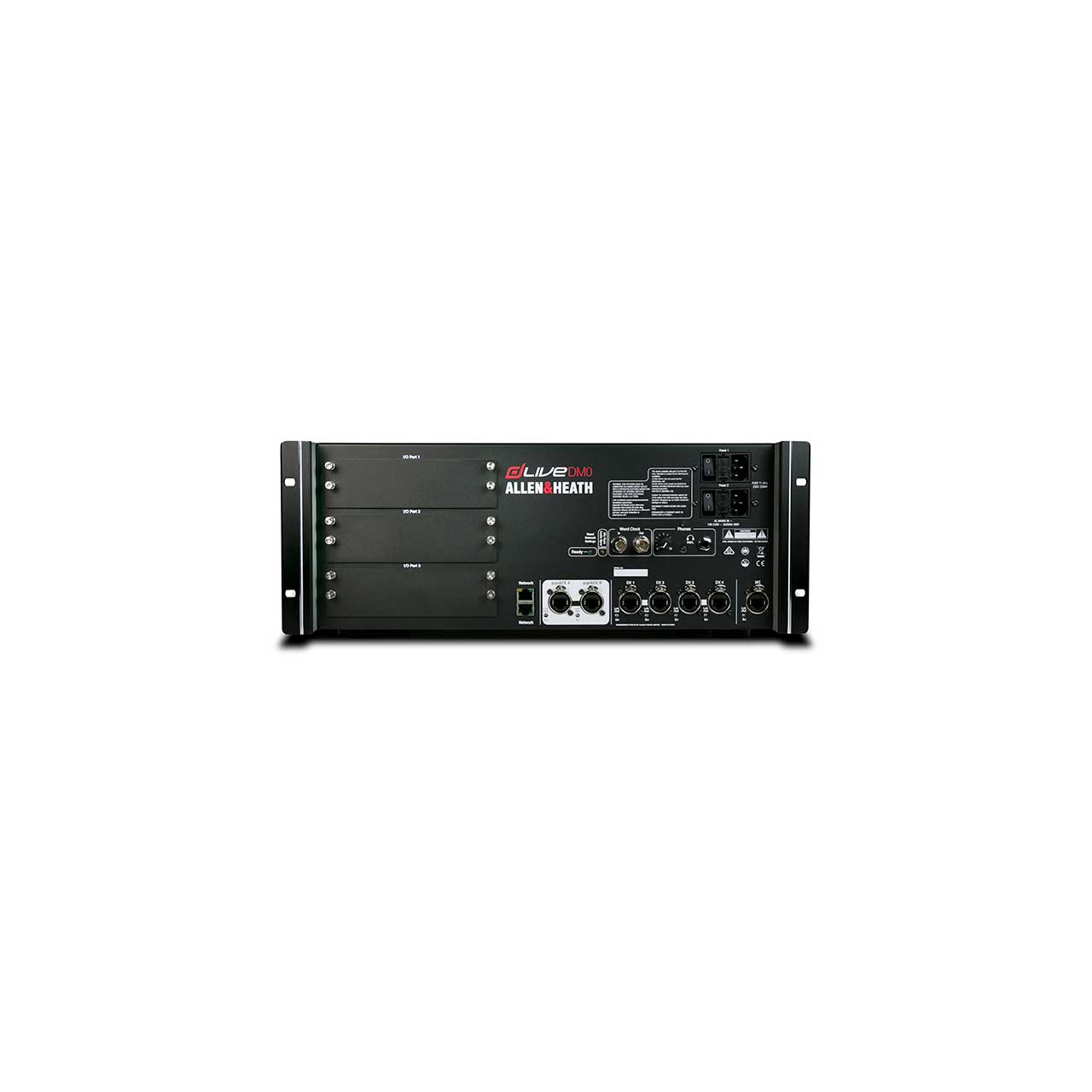

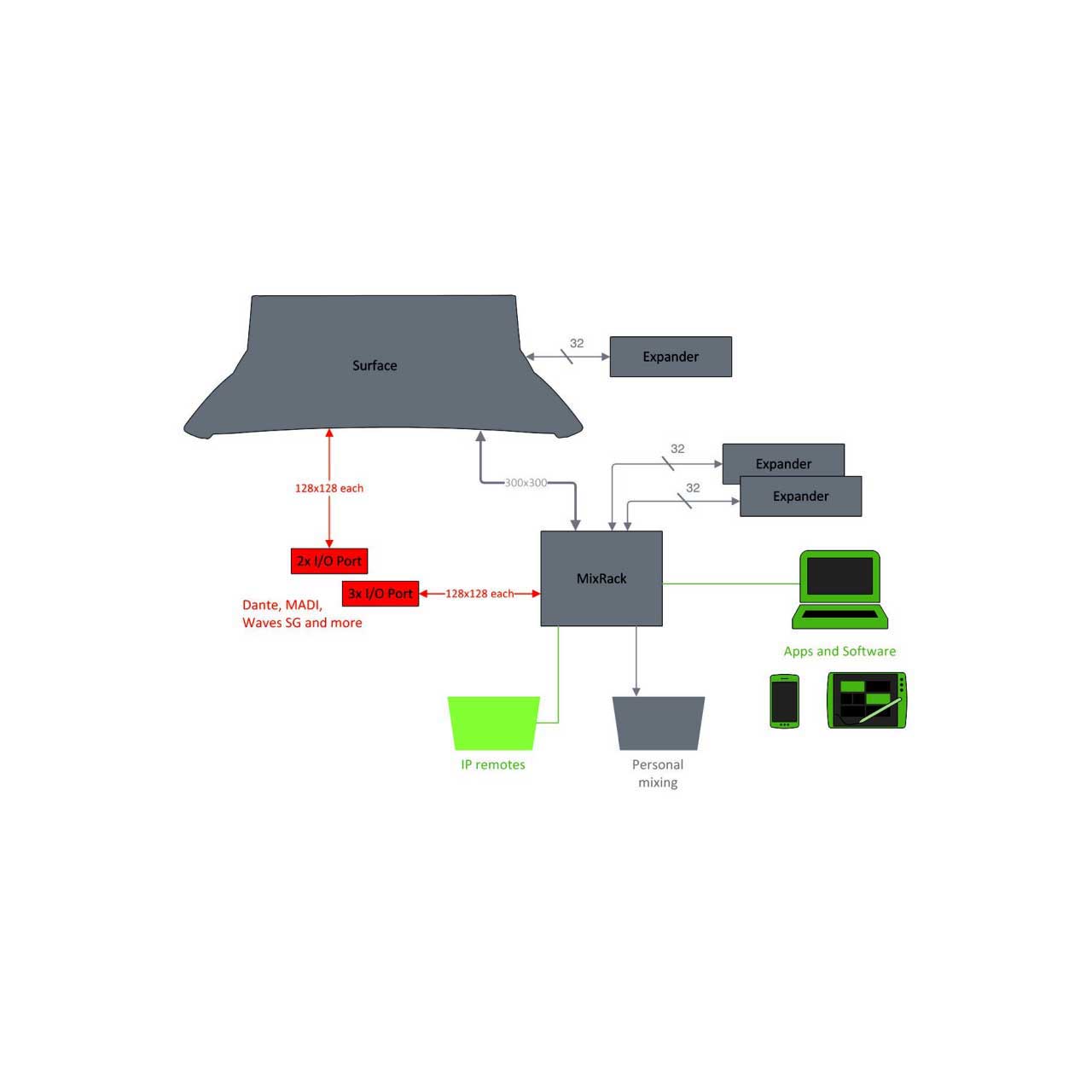

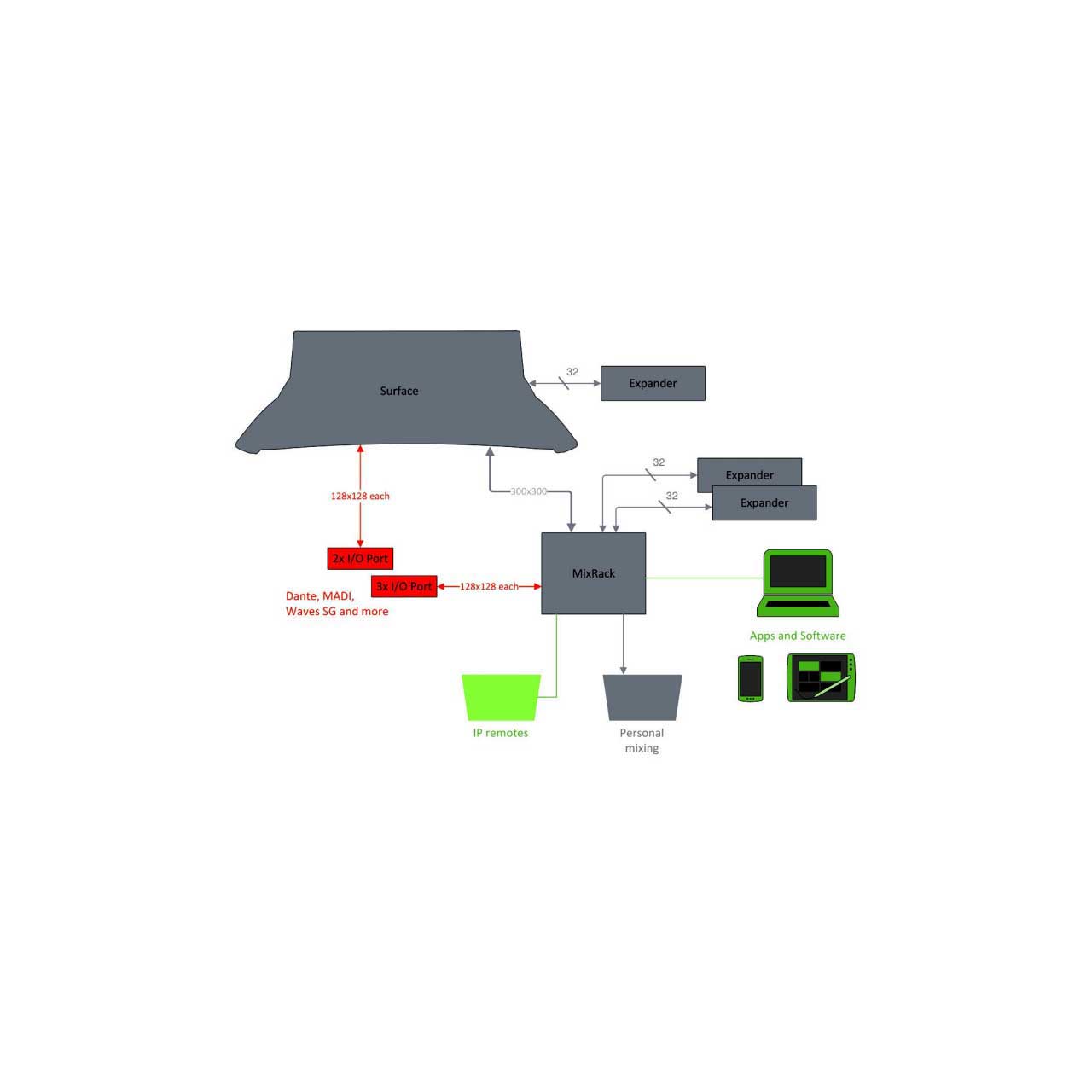

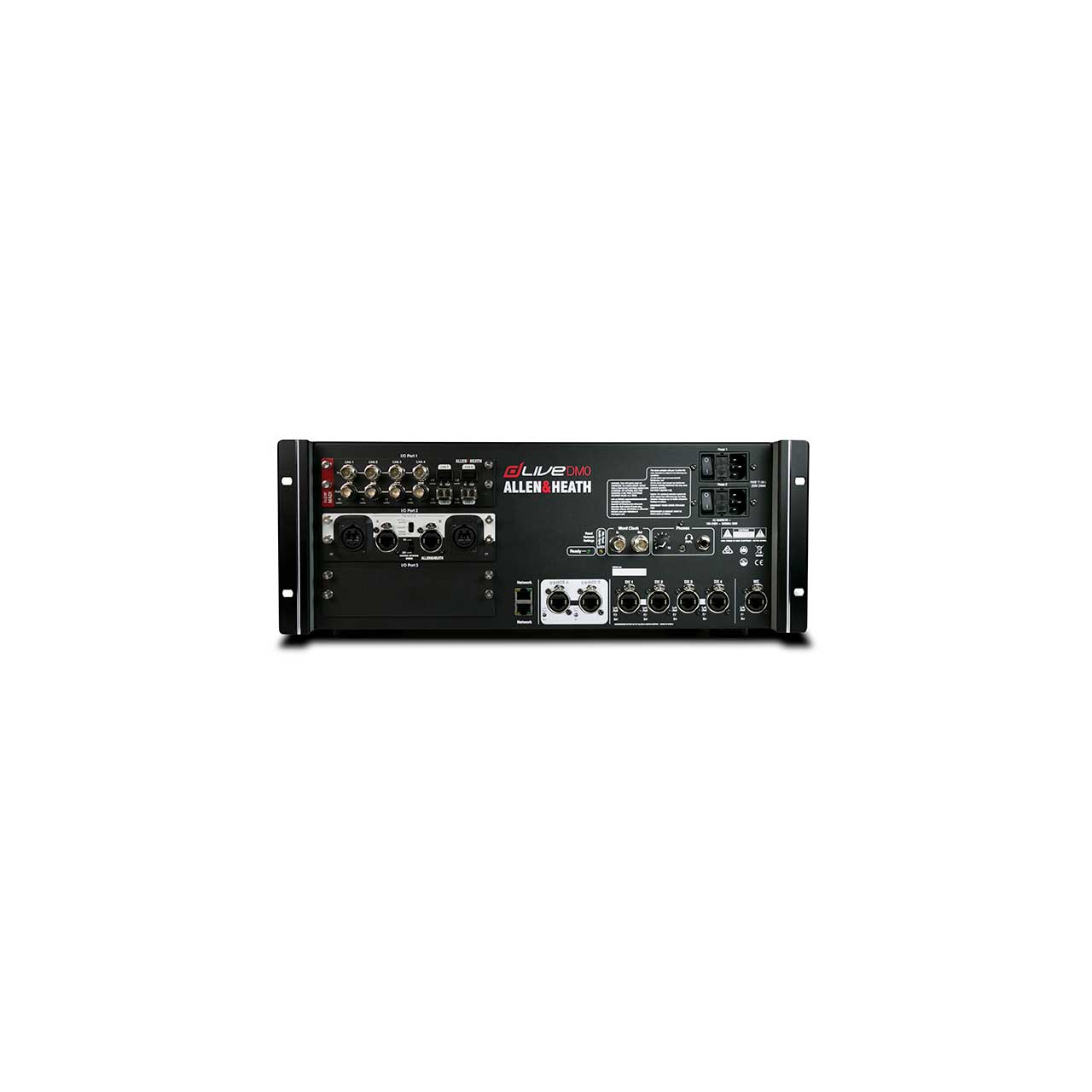

    At just 4U, the Allen & Heath AH-DLIVE-DM0 is the most compact dLive MixRack and is targeted at distributed audio scenarios and digital splits. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It can be controlled with a dLive Surface, using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP. All dLive MixRacks feature the same mix engine and can work with the full 128 channels by adding DX expanders and digital sources.

    XCVI Core
    The power of dLive emanates from the XCVI Core - pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class leading latency at an ultra-low 0.7ms.

    DEEP Processing
    Our DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive's input and mix channels. An array of bespoke algorithms including Graphic EQs, Compressors and a 64 channel Automatic Mic Mixer (AMM) can be inserted on the fly without burning FX slots and without the setup, latency and license hassles associated with external plug-ins - they're right there, where you need them, whenever you need them. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.

    • Features:

      • XCVI 160×64 FPGA core
        - 96kHz sample rate
        - Variable bit-depth for ultimate precision and noise performance
        - Virtually infinite mix headroom thanks to 96bit accumulator
        - Class leading, ultra-low latency at 0.7ms
      • 128 Input Channels with full processing
      • 64 Mix Outputs with full processing
      • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
        - LR, LCR and up to 5.1 mains mode
        - Multiple PFLs
      • 16 RackExtra FX with dedicated stereo returns
      • 24 DCAs
      • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
      • Built-in signal generator and RTA
      • New preamp design for extra transparency
      • Unique Active PAD circuit for consistent performance with any source
      • Connection hub
        - gigaACE gigabit link to Surface
        - 2x DX links for I/O expansion
        - I/O Port - 128 ch 96 kHz
        - Dedicated ME-1 48kHz port
        - 2x Network ports
        - Wordclock BNC I/O
      • Dual redundant power supply
      • Add up to 46 DX I/O expanders via DX Hub modules or DX Link cards
      • Flush front panel with ultra quiet fan
      • Reversible rack ears design

    • Specifications:

      • System:
      • dBFS Alignment: +18dBu = 0dBFS
      • Meter Calibration: 0dB meter = -18dBFS
      • Meter Peak indication: -3dBFS
      • Sampling Rate: 96kHz +/- 20 PPM
      • ADC: 24-bit Delta-Sigma
      • DAC: 24-bit Delta-Sigma
      • Latency:
        - + 5 samples, Surface to Mixrack (GigaACE hop)
        - + 8 samples, DX32 to Mixrack (DX hop)
      • Operating Temperature Range: 32 °F to 95 °F
      • Mains Power: 100-240V AC, 47-63Hz, 90W max (per PSU)

        Dimensions:
      • Length: 19 In
      • Width: 23.7 In
      • Height: 13 In
      • Weight: 33 lbs

    • Item Includes:

      • 1x AH-DLIVE-DM0 MixRack
      • 1x IEC cable
      • 1x 1M CAT cable
      • 1x Manual

    • Warranty:

      • 3 Year Warranty

    • GTIN:

      6938122246454
