Allen & Heath AH-DLIVE-DM32 dLive S Class MixRack 32x16 I/O - 128x64 FPGA 3 Option Card Slots ME-1 Port Dual DX Expander

ITEM #: AH-DLIVE-DM32 MFG #: AH-DLIVE-DM32

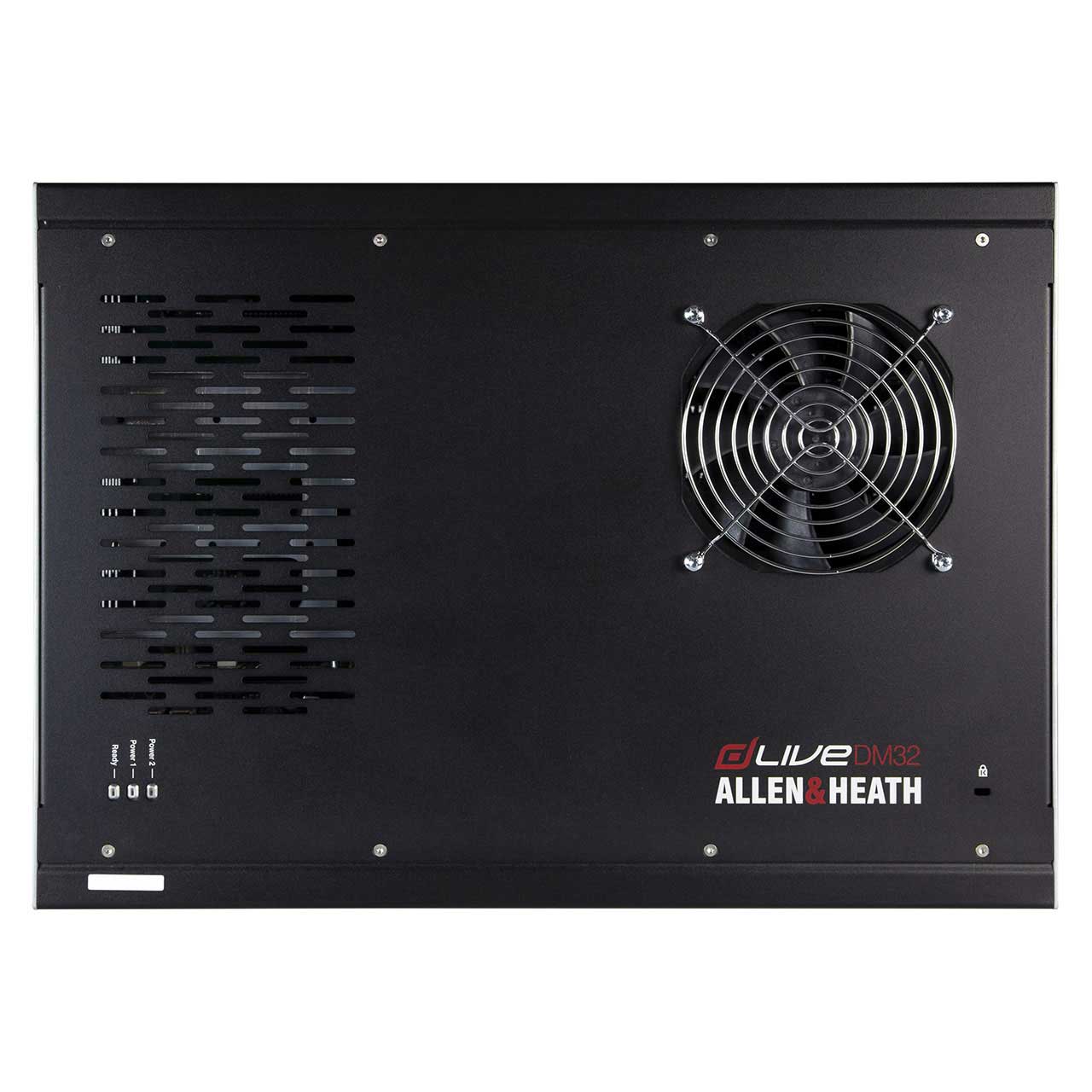

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    AH-DLIVE-DM32 - Overview

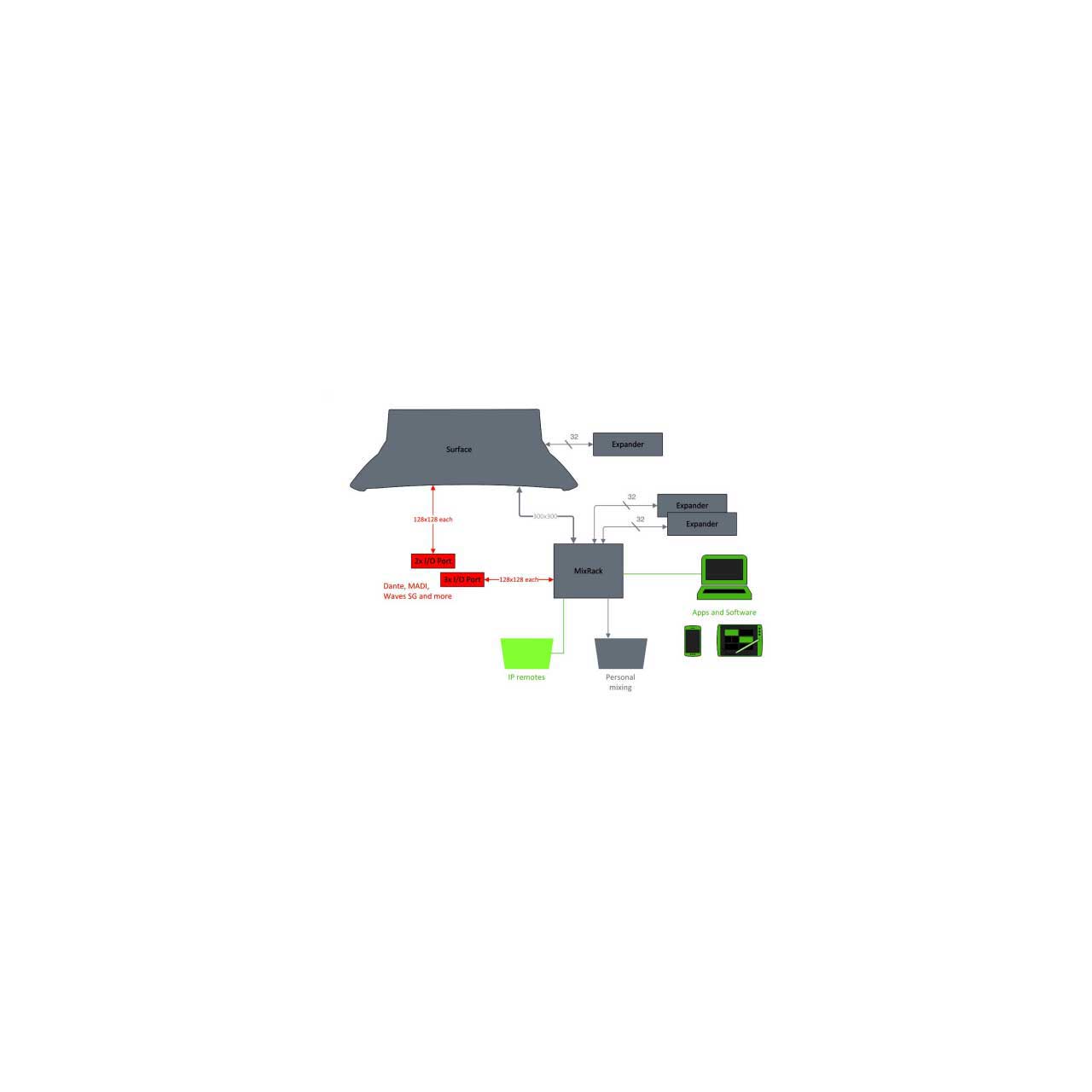

    The Allen & Heath AH-DLIVE-DM32 MixRack is the heart of any dLive system. housing the XCVI processing core. The DM32 is compatible with any dLive S class or C class Surface. It also can be ran with a laptop, iPad, via the Allen & Heath range of IP controllers, or with third part controlers via TCP/IP. All dLive MixRacks are capable of mixing the full 128 x 64 channels by using DX expanders or through patching digital sources

    XCVI Core
    The power of dLive emanates from the XCVI Core - pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160+64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class leading latency at an ultra-low 0.7ms.

    DEEP Processing
    Our DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive's input and mix channels. An array of bespoke algorithms including Graphic EQs, Compressors and a 64 channel Automatic Mic Mixer (AMM) can be inserted on the fly without burning FX slots and without the setup, latency and license hassles associated with external plug-ins - they're right there, where you need them, whenever you need them. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.

    • Features:

      • 32 mic/line inputs, 16 line outputs
      • XCVI 160×64 FPGA core
        - 96kHz sample rate
        - Variable bit-depth for ultimate precision and noise performance
        - Virtually infinite mix headroom thanks to 96bit accumulator
        - Class leading, ultra-low latency at 0.7ms
      • 128 Input Channels with full processing
      • 64 Mix Outputs with full processing
      • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
        - LR, LCR and up to 5.1 mains mode
        - Multiple PFLs
      • 16 RackExtra FX with dedicated stereo returns
      • 24 DCAs
      • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
      • Built-in signal generator and RTA
      • New preamp design for extra transparency
      • Unique Active PAD circuit for consistent performance with any source

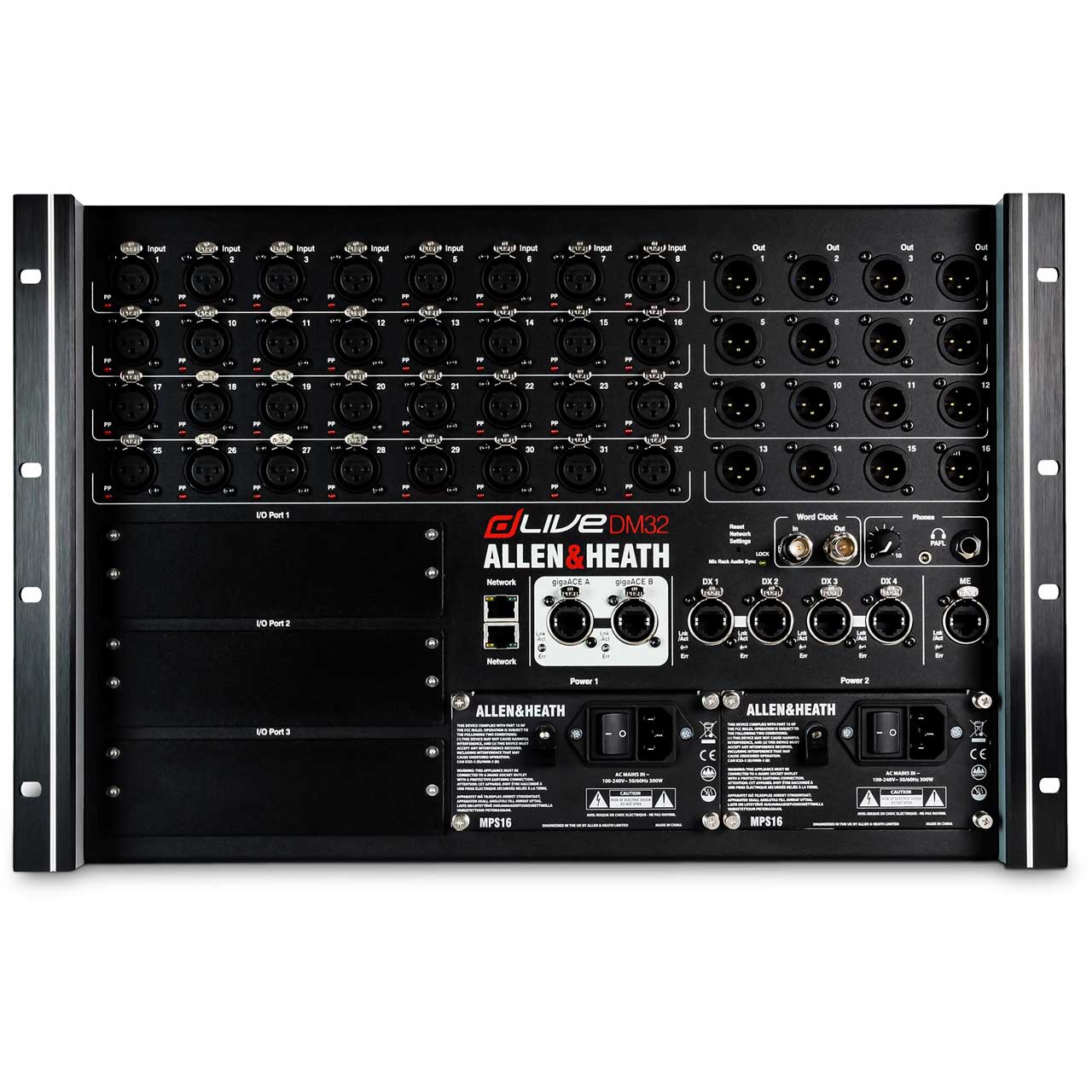

      • Connection hub
        - Dual redundant GigaACE gigabit link to Surface
        - 2x redundant DX links for I/O expansion
        - 3x I/O Ports - 128 ch 96 kHz each
        - Dedicated ME-1 48kHz port
        - 2x Network ports
        - Wordclock BNC I/O
      • Dual redundant, hot swappable power supply
      • Add up to 46 DX I/O expanders via DX Hub modules or DX Link cards
      • Flush front panel with ultra quiet fan
      • Reversible rack ears design

    • Specifications:

      • Inputs
      • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
      • Mic/Line Preamp: Fully recallable
      • Input Sensitivity: -60 to +15dBu
      • Analog Gain: +5 to +60dB, 1dB steps
      • Pad: -20dB Active PAD
      • Maximum Input Level: +30dBu (PAD in)
      • Input Impedance: >4kω (Pad out), >10kω (Pad in)
      • Mic EIN: -127dB with 150ω source
      • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V

        System
      • Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out, signal @ 0dB (meter)
      • Dynamic Range: 110dB
      • System Signal to Noise: -92dB
      • Frequency Response: 20Hz - 30kHz +0/-0.8dB
      • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
      • Headroom: +18dB
      • Internal operating Level: 0dBu
      • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
      • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
      • Meter Peak indication: -3dBFS (+19dBu at XLR out)
      • Sampling Rate: 96kHz +/- 20 PPM
      • ADC: 24-bit Delta-Sigma
      • DAC: 24-bit Delta-Sigma
      • Latency:
        - 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
        - + 5 samples, Surface to Mixrack (GigaACE hop)
        - + 8 samples, DX32 to Mixrack (DX hop)

        Outputs:
      • Analog XLR Outputs: Balanced, Relay protected
      • Output Impedance: <75ω
      • Nominal Output +4dBu = 0dB meter reading
      • DAC: 24-bit Delta-Sigma
      • Maximum Output Level: +22dBu
      • Residual Output Noise:
        - -92dBu (muted, 20-20kHz)
        - -90dBu (muted, 20-40kHz)

        Dimensions:
      • Length: 16.5 In
      • Width: 23.2 In
      • Height: 18.5 In
      • Weight: 38.6 lbs

        Power/Temperature:
      • Operating Temperature Range:
        - Fitted with MPS16 V1 300W: 32 °F to 95 °F
        - FItted with MPS16 V2 250W: 35 °F to 104 °F
      • Mains Power Consumption (MPS16):
        - 300W Max (MPS16 V1 300W)
        - 250W Max (MPS16 V2 250W)
      • Mains Voltage Operating Range: 100-240V AC, 50/60Hz

    • Item Includes:

      • 1x AH-DLIVE-DM32 MixRack
      • 1x IEC cable
      • 1x 1M CAT cable
      • 1x Manual

    • Warranty:

      • 3 Year Warranty

    • GTIN:

      6938122242647
