    PTZ-NDI3-X20B - Overview

    Witness the power of NDI®|HX3, AIDA style
    NDI®|HX is one of the most prominent, rising technologies seen in broadcast workflows all over the world. Through the recent months, advancement on the HX protocol has lead to Newtek's beloved protocol getting a serious upgrade.. NDI®|HX3. HX3 introduces a faster, visually lossless alternative that rivals even Full-Bandwidth NDI® without the hardware. That means less latency, better quality, and more savings on any workflow!

    Taking AIDA's popular X20 solution, they tweaked their formula to deliver the best NDI®|HX3 experience one can have, with less latency, more visual quality, and most importantly a price point that won't break the bank. Trust AIDA, this camera will change the NDI®|HX game for good.

    Now Auto-Tracking Capable!
    AIDA Imaging has deployed an auto-tracking firmware upgrade! Using facial recognition AI, you can now automatically track a person effortlessly, without the need to control your camera. How it works is incredibly simple: first, head to the webUI and look for the Auto-Tracking Tab. Then, center the target you want to Auto Track, while making sure that it's in clear view and is alone. After that, just hit the "Enable Auto-Tracking" button, and you're good to go!

    HX3 Forever!
    The PTZ-NDI3-X20 is pushed to its limits with HX3 by allowing the NDI® stream to run at up to 60mb/s (4x the bitrate of NDI®|HX.) This of course leads to better visual quality, and lowered latency all around!

    No-Hassle Integration
    As always, the PTZ-NDI3-X20 comes pre-loaded with its NDI|HX3 license key. Less time typing IlIllI, and more time streaming your dreams!

    Tally Light Integration
    The PTZ-NDI3-X20 comes with the same Tally found on their other PTZ's, making it discreet and easy for talents to follow!

    (Un)limited Ways to Control
    The PTZ comes standard with a physical remote, web UI control, as well as SONY VISCA, VISCA OVER IP, and NDI control. You will never run out of ways to move this camera!

    Get Up Close and Personal
    The PTZ comes loaded with a 20x Optical zoom, which allows for a wide FOV of 60°, to a zoomed in 4°. No quality lost here!

    The PTZ That Keeps Giving
    This PTZ is capable of running NDI|HX3, SDI, IP and HDMI streams simultaneously, making this the ultimate streaming machine.

    PoE+ Capable
    With the ability to run power, control and video over one ethernet cable, you will never use the wall plug again.

    • Features:

      • NDI®|HX3 streaming capable for even lower latency video streaming and PTZ control over NDI®|HX3 Protocol.
      • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
      • Advanced digital image processor provides vivid and detailed images with full access feature sets.
      • Full-HD up to 120 frames (NDI®|HX, IP, HDMI only) and 60 frames (NDI®|HX3, 3G-SDI) simultaneously.
      • Built for multiple use-case scenarios, including fast action sports and racing for slow-motion playbacks.
      • Power Optical Zoom capability up to 18X.
      • 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
      • Built-in OSD controls for customizable image settings.
      • Comes in either a White or Black shell for further customization

    • Specifications:

      • Video
      • Image Sensor: 1/3" Progressive CMOS
      • Effective Pixels: Horizontal: 1920, Vertical: 1080
      • Pixel Size: 2.13 µm (H) x 2.13 µm (V)
      • Resolution: 1080p & 1080i: 1920 x 1080
      • Resolution Rate: 1080 120p/100p (HDMI, IP, NDI®|HX only), 60p/59.94p/50p/30p/29.97p/25p, 24p/23.98p, 1080 60i/59.94i/50i: 720 60p/59.94p/50p/30p/29.97p/25p
      • Output: HDMI, 3G-SDI: NDI®|HX3 / RTSP / RTMP / SRT
      • Color Space: 4:2:2 (YCbCr) 10bit

        Function
      • White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
      • Focus: Auto, Manual
      • Shutter Speed: 1 to 1/10,000 Sec.

        Lens
      • Lens: 20X HD Optical Zoom
      • Focal Length: 4.9~98mm
      • F-Stop: F1.5 ~ F3.0
      • Viewing Angle: 60° (wide) ~ 4° (tele)

        PTZ
      • Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
      • Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s
      • Presets: 128 Positions (via web) 10 Positions (via remote)

        Standard
      • IP Protocol: UDP/IP, RTSP/RTMP, SRT, NDI®|HX, NDI®HX3

        Audio
      • Input: 3.5mm TRS Stereo Audio Port
      • Sample Rate: 16/24/32 Bits

        Physical

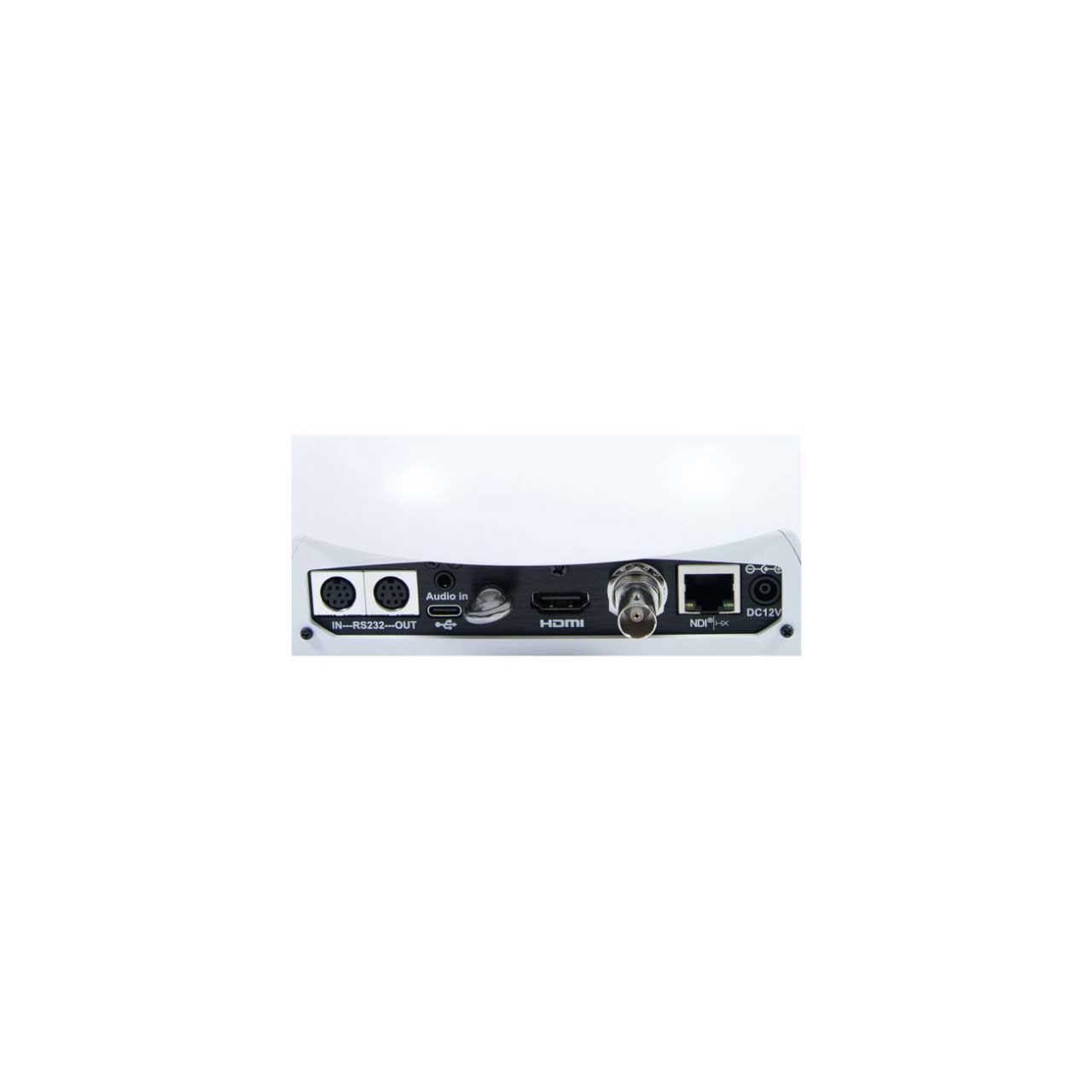

      • Camera Control Protocol: VISCA, VISCA over IP, NDI, Interface: RS-232C IN & OUT, RJ-45, Remote Controller
      • Operation Temp 32°F - 104°F
      • Dimension 196.85mm x 190m x 176.5mm / 7.75" x 7.48" x 6.95"
      • Weight 1.4kg / 3.1lbs
      • Power 12VDC (+9 - +15VDC), PoE+ (IEEE802.3at Standard Required) 24watts min

    • Item Includes:

      • 1x AIDA Imaging AIDA-PTZ-NDI3-X20
      • 1x Camera Mounting Bracket
      • 1x Power Adapter & Cable
