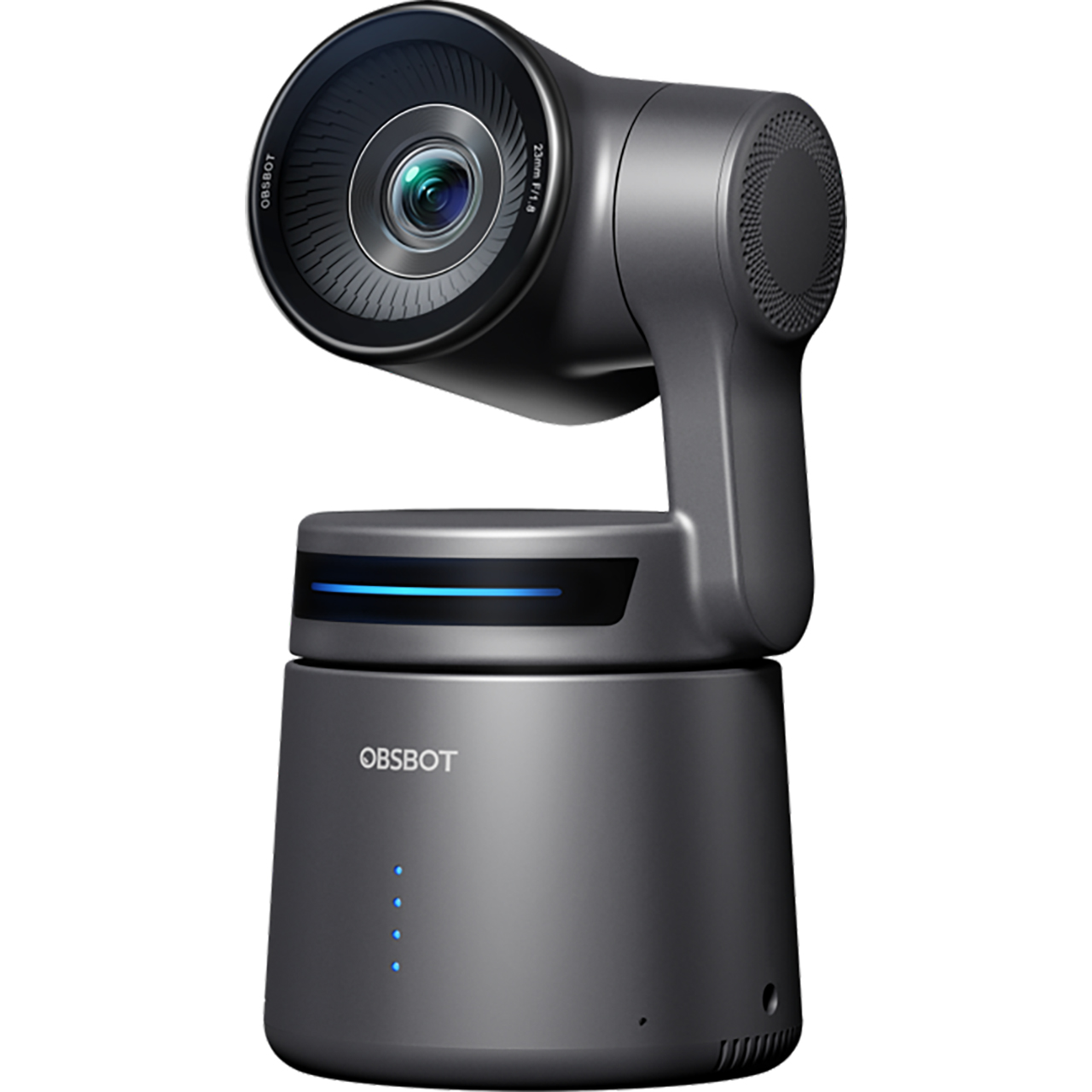

OBSBOT Tail Air Pack Auto-Director AI Tracking 4K PTZ Streaming Camera with NDI Activated - 4K at 30fps / 1080p at 60fps

ITEM #: OBS-TAIL-AIR-NDI MFG #: TAIL AIR NDI

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$598.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAIL AIR NDI - Overview

AI-Powered 4K PTZ Streaming Camera

Introducing the OBSBOT Tail Air NDI. Integrating OBSBOT's most powerful AI technologies and superior image system into an elegant and classical body, OBSBOT Tail Air could bring you the next-level video streaming experience with the industry-advanced AI Tracking and excellent Multi-Cam setup, mastermind your every moment and unleash your maximum creativity, right on Air.

Immersive 4K Resolution Shooting
OBSBOT Tail Air shoots videos in 4K@30fps and 1080p@60fps, providing 4 times the resolution than HD videos, which allows more detailed footage and greater potential for editing and livestreaming.

Catch the Starlight in the Darkness
Thanks to the enlarged 2μm pixel size and advanced camera components, OBSBOT Tail Air is able to gather more light, capture brighter frames, reveal finer details, and produce less noise videos. More detailed images can be clearly presented even in challenging dim environments.

Fabulous. Fast. Focus.
Utilizing TOF (Time of Flight) technology, OBSBOT Tail Air can precisely calculate the Time of Flight and accurately measure the distance between the camera and the target. This advanced feature enhances focus efficiency in both bright and low-light shooting by emitting a beam of infrared light.

Your Always-on Cameraman
Activate Human Tracking and OBSBOT Tail Air will smoothly follow the subject, freeing you from gimbal adjustments. The intelligent tracking algorithm seamlessly keeps the subject in frame, enabling hands-free operation to concentrate on capturing outstanding video.

Bring Your Buddy into the Spotlight!
OBSBOT Tail Air has succeeded and enhanced the pet tracking function from the OBSBOT Tail. The improved Animal Tracking feature is now more accurate and intelligent than ever before, making it easier to show off your beloved cat, dog, or horse companions in your shot videos.

Track Anything You Like
Activate the Object Tracking feature on OBSBOT Tail Air and discover endless creative possibilities. There is nothing you can't track, only targets you've never imagined before. It's time to explore new tracking targets and bring your innovative ideas to life!

Manage the Moment in Multi View
Activate AI Director Grids feature, OBSBOT AI algorithm will automatically divide the captured video into different grids in real time, such as AI Auto Framing grid and Preset Positions preview, etc.. Click the grid where you want it on Air to swiftly manage your live stream image.

Magic Happens Without Wand
Effortlessly manage your OBSBOT Tail Air with intuitive Gesture Control 2.0 to simplify video shooting process. The newly-added dynamic gestures enable seamless and precise zoom adjustments, while the "ok" gesture allows you to remotely start/stop recording.

NDI Connection Arrived!

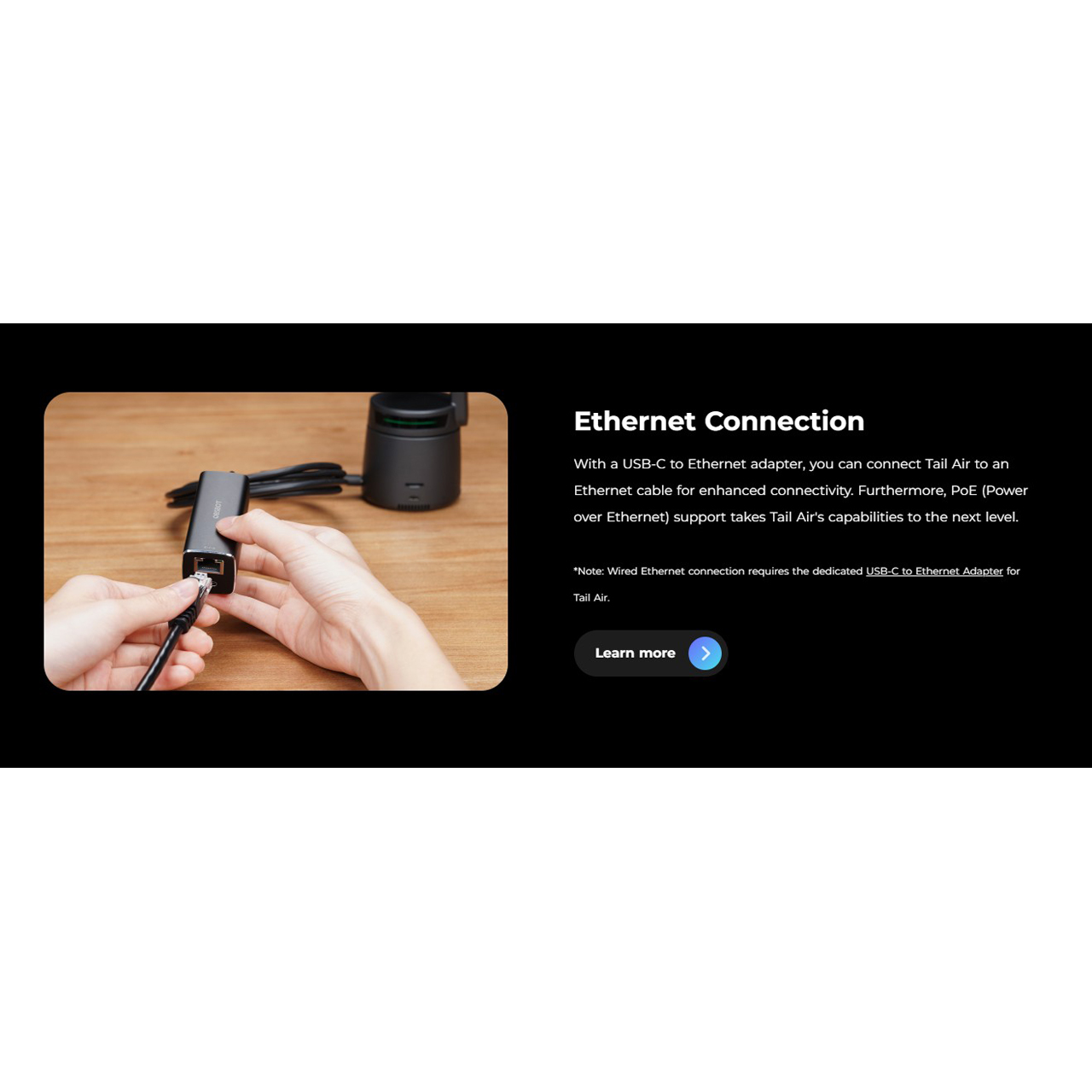

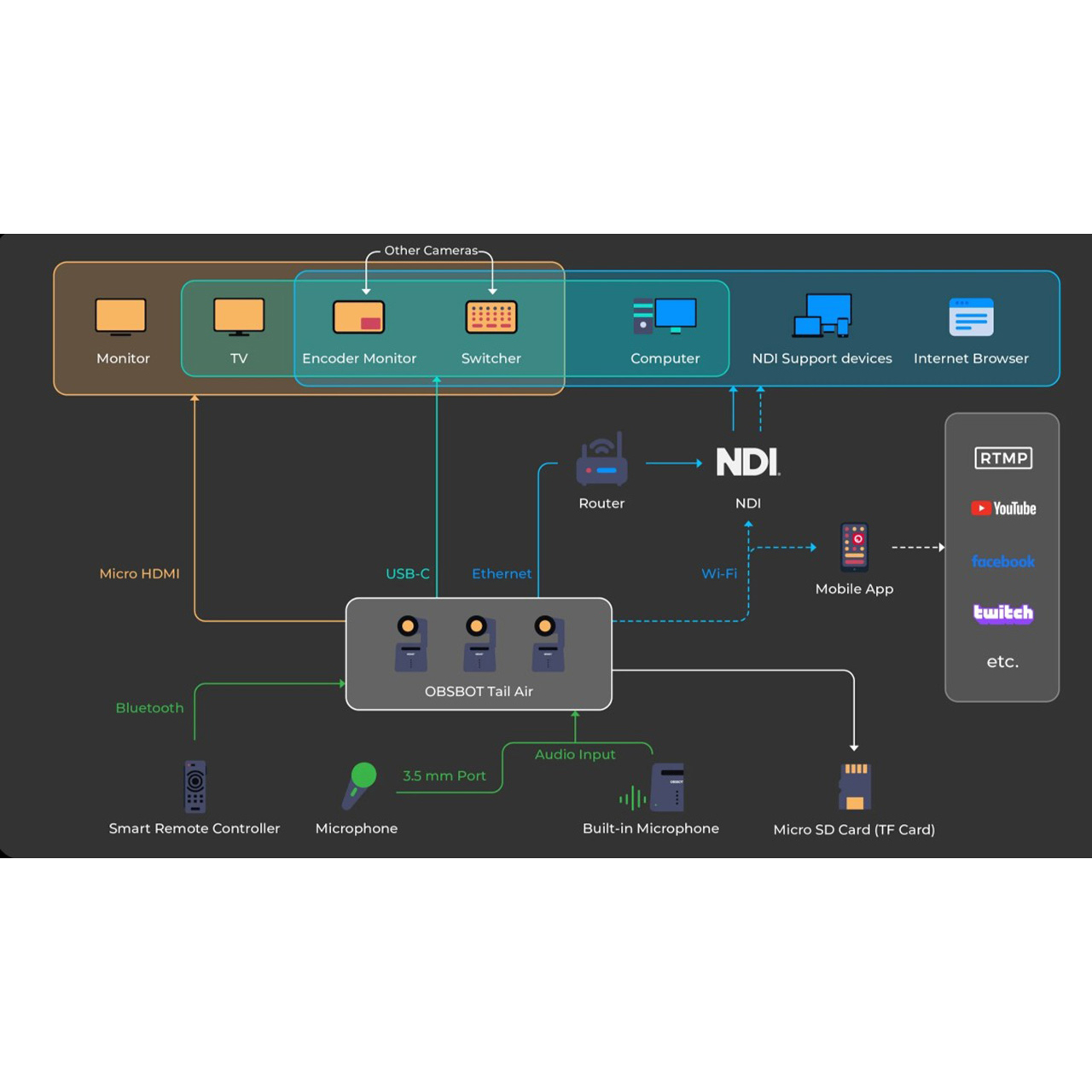

NDI is one of the most advanced video technologies that merges high-quality, low-latency video, audio, controls, and metadata into one stream. Tail Air, which is compatible with NDI via wireless and Ethernet connections, offers endless potential for creating efficient, easy-to-use live streams on a network for single or multi-camera setups.

  • Features:

    • NDI Support
    • AI Tracking
    • UHD 4K Resolution
    • Exclusive Application
    • Tiniest 4K PTZ Camera
    • Smart Remote Controller

  • Specifications:

      General
    • Dimensions (LxWxH):
      - Working State: 2.7" x 2.9" x 5.2" (69.65mm x 73.25mm x 132.5mm)
      - Off State: 2.7" x 2.9" x 5.3" (69.65mm x 73.25mm x 135.5mm)
    • Shipping Weight: 1lbs (0.4kg)
    • AI Chip: Integrated AI chip, Trillions of calculations per second
    • Auxiliary Functions: Gesture Control
    • Memory Card Type: Micro SD Card (up to 512GB) -exFAT (Recommended)/FAT32; U3 card (minimum write speed 30MB/S) recommended.

      Camera
    • Image Sensor: 1/1.8" CMOS
    • Macro Pixel Size: 2.0μm x 2.0μm
    • Effective Pixels: 8.4 million
    • Effective Pixel Resolution: 3856x2176
    • Lens System: 8 Optical Lenses
    • Zoom Range: 4x digital zoom
    • FOV (D): 85°
    • FOV (H): 77.3°
    • ISO Range: 100 - 6400
    • Exposure Value: ±3EV
    • Electronic Shutter Speed: 1/8000s to the limit of frames per second
    • Focus: Auto Focus/Manual Focus
    • Aperture: f/1.8
    • Equivalent Focal Length: 23mm
    • White Balance: 2000K - 10000K
    • Gyroscope: 6-axis Gyroscope

      Shooting
    • Photo Resolution: 4K, 1080p
    • Video Resolution:
      - 4K@30/29.97/25/24fps
      - 1080p@/60/59.94/50/48/30/29.97/25/24fps
      - 720p@/60/59.94/50/48/30/29.97/25/24fps
    • Max Video Storage Bit Rate:
      - H264: 100Mbps
      - H265: 80Mbps
    • Video Format: MJPEG, H264, H265

      2-Axis Gimbal
    • Gimbal Installation: Non-removable
    • Controllable Range:
      - Pan: ±150°
      - Tilt: -65° - 32°
    • Mechanical Range:
      - Pan: ±160°
      - Tilt: ±90°
    • Max Controllable Speed: 120°/s
    • Angle Jitter: ±0.02°

      Audio
    • Audio Input:
      - Built-in 2x MEMS Microphones
      - Built-in 3.5mm TRS Connector (AUX)
      - Support MIC IN/LINE IN
    • Audio Modes: Noise Reduction/Stereo Sound
    • Audio Format: AAC/PCM

      Wi-Fi
    • Operating Frequency: 2.4G/5.8GHz
    • Signal Transmission Range: 2.4G 140m, 5.8G 80m
    • Transmission Power:
      - 2.4GHz: <18dBm (FCC/CE/SRRC/MIC)
      - 5.1GHz: <15dBm (FCC/CE/SRRC/MIC)
      - 5.8GHz: <15dBm (FCC/CE/SRRC)

      Bluetooth
    • Protocol: BLE 5.0
    • Operation Frequency Range: 2.400GHz - 2.4835GHz

      USB
    • USB: 2.0

      Charger & Battery
    • Input: 5V/2A
    • Quick Charge Protocol: Don't Support
    • Charging Time: 90 Minutes (Power off status)
    • Operating Time: 154 minutes (Tested in a laboratory environment while recording 1080p/30fps video and should be used for reference only)
    • Battery Type: Lithium Polymer(Li-po)
    • Battery Capacity: 1500mAh
    • Battery Energy: 11.4Wh
    • Battery Voltage: 7.6V

      Operating Environment
    • Camera Working Environment Temperature: 14°F - 104°F (-10°C - 40°C)
    • Battery Charging Ambient Temperature: 14°F - 104°F (-10°C - 40°C)
    • Battery Operating Ambient Temperature: 14°F - 104°F (-10°C - 40°C)

  • Item Includes:

    • 1x Tail Air NDI

  • GTIN:

    0768490143149
