Alfatron ALF-10XUSB2C USB 2.0 FHD 1080p Streaming PTZ Camera with 10x Optical Zoom - Skype/Teams/Zoom Compatible - Black

ALF-10XUSB2C - Overview

Full HD Resolution for High-Quality Video Streaming!

• Features:

  • Full HD Resolution: 1/2.9-inch-high quality CMOS sensor. Resolution is up to 1920x1080 with a frame rate of up to 30 fps
  • Optical Zoom Lens: 10X Optical Zoom lens. Field of view 66°(Wide) 8.8°(Tele)
  • Leading Auto Focus Technology: Fast, accurate, and stable autofocusing technology
  • Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
  • Control Interface: RS485, RS232 (cascade connection)
  • Multiple Control Protocols: Supports VISCA, PELCO-D, PELCO-P protocols; Supports automatic identification protocols.
  • Quiet Pan / Tilt Movement: With high accuracy step driving motor, the camera can pan/tilt extremely quiet and smooth
  • Multiple presets: Up to 255 presets; 10 presets via remote control.
  • USB or 12V DC Powered


• Specifications:

  • Model 10x Camera Parameters
  • Sensor: 1/2.9-inch-high quality CMOS sensor
  • Effective Pixels: 2.07 megapixel, 16:9
  • H264/H265/MJPG:
  • 1920x1080P@30/25/20/15/10/5fps
  • 1280*720P@30/25/20/15/10/5fps
  • 960*540@30/25/20/15/10/5fps
  • 800*600@30/25/20/15/10/5fps
  • 720*576@30/25/20/15/10/5fps
  • 720*480@30/25/20/15/10/5fps
  • 640*480@30/25/20/15/10/5fps
  • 640*360@30/25/20/15/10/5fps
  • 352*288@30/25/20/15/10/5fps
  • 320*240@30/25/20/15/10/5fps
  • YUY2:
  • 1280*720@10/5fps
  • 800*600@10/5fps
  • 640*480@30/25/20/15/10/5fps
  • 640*360@30/25/20/15/10/5fps
  • 320*180@30/25/20/15/10/5fps
  • View Angle: 8.8° ~ 66°
  • Focus Length: F=4.34mm~41.66mm
  • AV: F1.85 - F2.43
  • Optical Zoom: 10X
  • Digital Zoom: 10X
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D - 3D DNR
  • White Balance: Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
  • Focus: Auto / Manual/ One Push Focus
  • Exposure: Auto / Manual
  • BLC: On/Off
  • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >50dB
  • Input Voltage: 12V
  • Input Current: Maximum: 4.98A
  • Power Consumption: Maximum: 2.5W
  • Stored Temperature: -40°~+70°
  • Storage Humidity: 20%~90%
  • Working Temperature: -10°~+50°
  • Working Humidity: 20%~80%
  • Dimension (W*H*D): 156.8mmx112.6mmx139.5mm
  • Weight: 1KG
  • Application: Indoor
  • Pan Rotation: -170°~+170°
  • Tilt Rotation: -30°~+30°
  • Pan Control Speed: 0.1 ~60°/sec
  • Tilt Control Speed: 0.1~40°/sec
  • Preset Speed Pan: 60°/sec, Tilt: 40°/sec
  • Preset Number: 255 presets (10 presets via remote control)


  • USB Feature
  • Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc.
  • Video Compression Format: MJPG/H264/H265
  • USB Communication Protocol: UVC

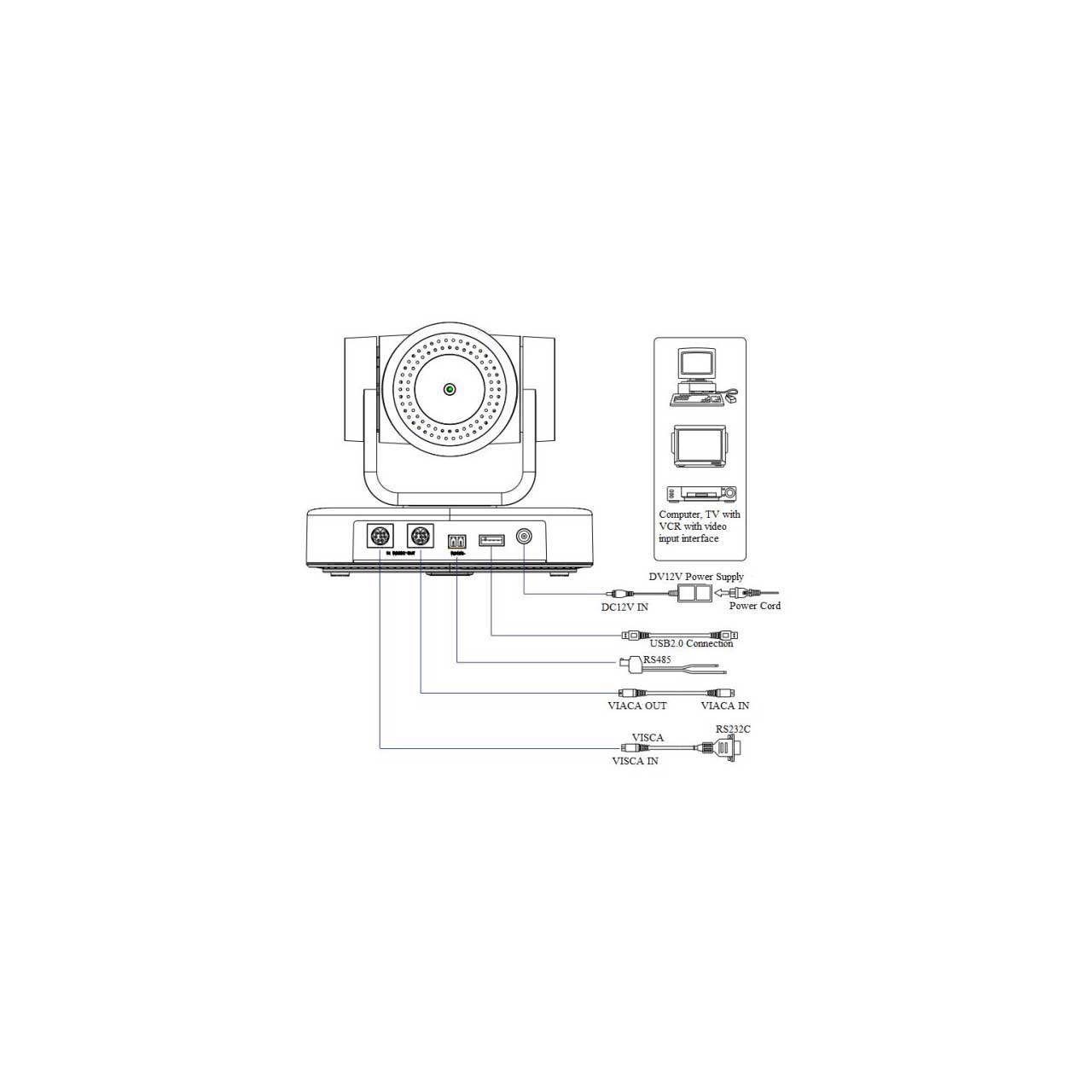

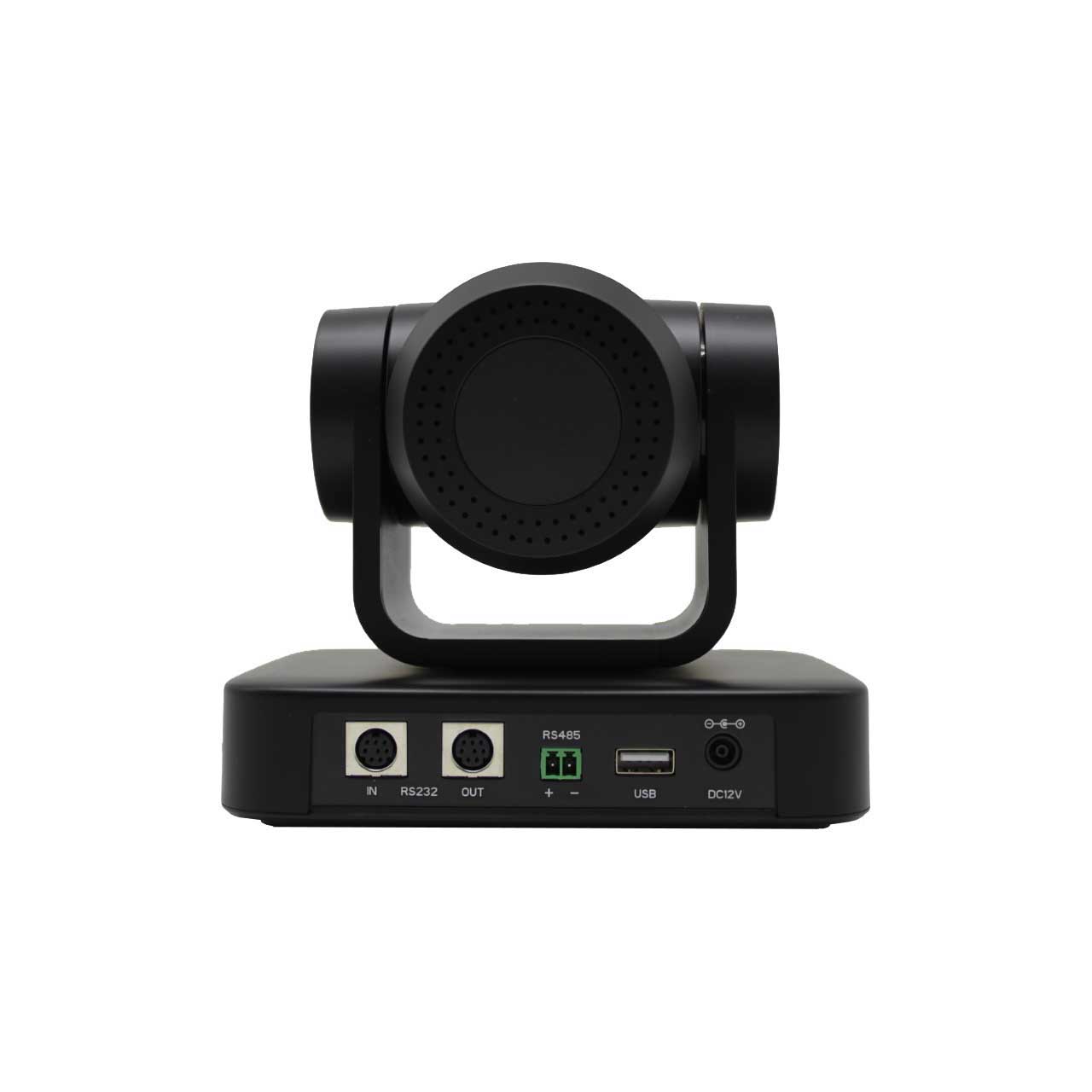

  • Input/output Interface
  • Video Output: USB2.0 Interface
  • Video Compression Format: MJPG, H.264, H.265
  • Control Interface: RS232 (IN/OUT), RS485
  • Control Protocol: VISCA/Pelco-D/Pelco-P
  • Power Interface: HEC3800 outlet (DC12V) or USB


• Item Includes:

  • 1x ALF-10XUSB2C PTZ Camera
  • 1x Power Supply
  • 1x RS232 Control Cable
  • 1x IR Remote Control
  • 1x User Manual
  • 1x Warranty Card
  • 1x USB2.0 Cable
  • 1x Shelf Mount Bracket


• Warranty:

  • 7 Year Warranty


• GTIN:

  0781159971198
