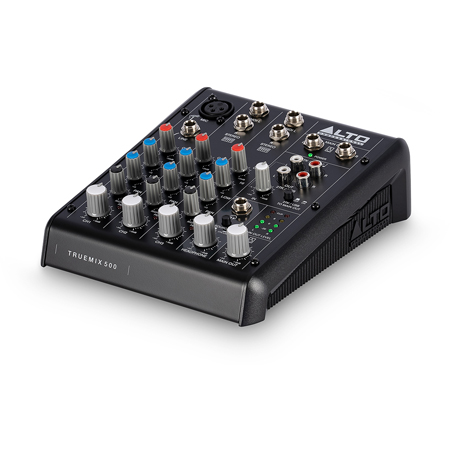

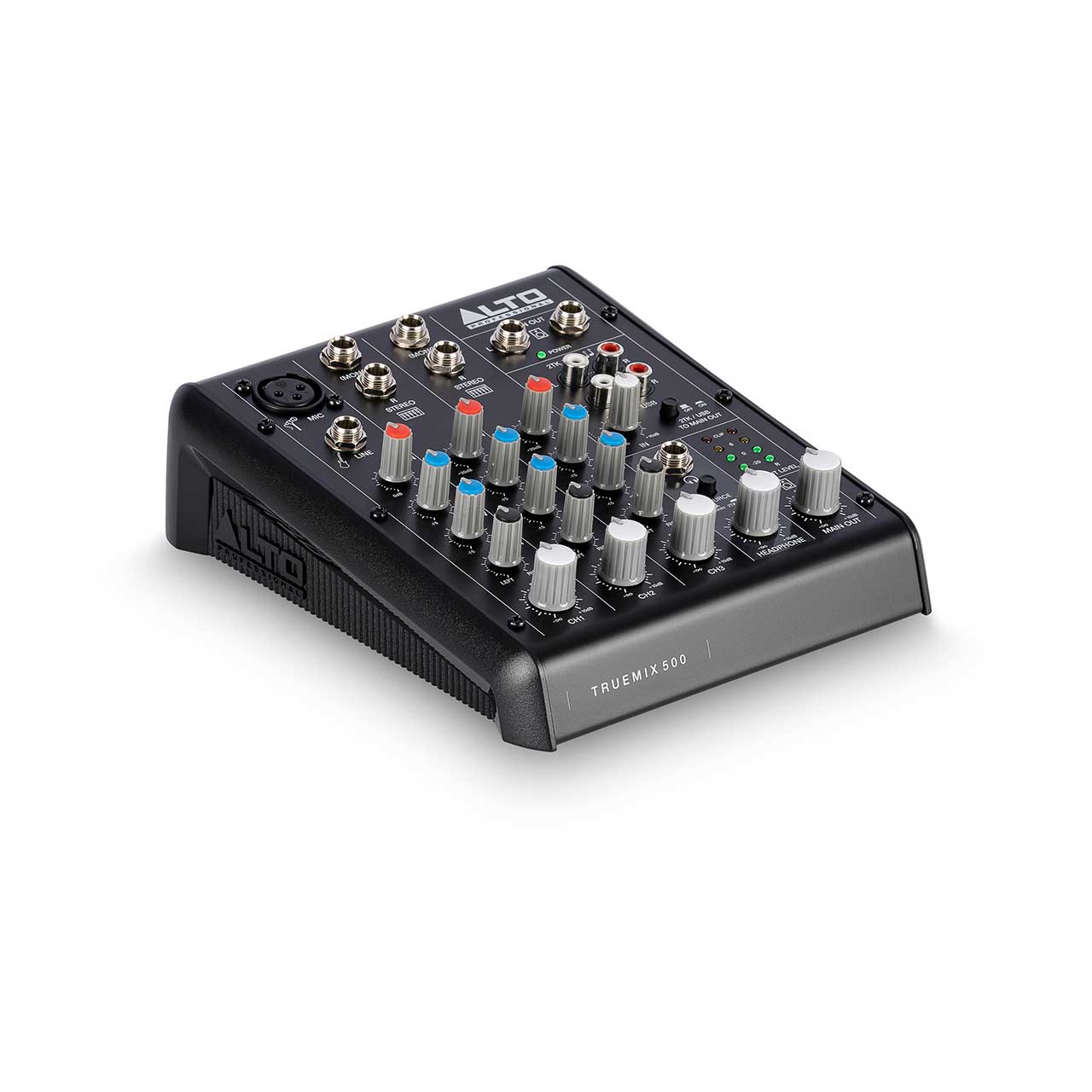

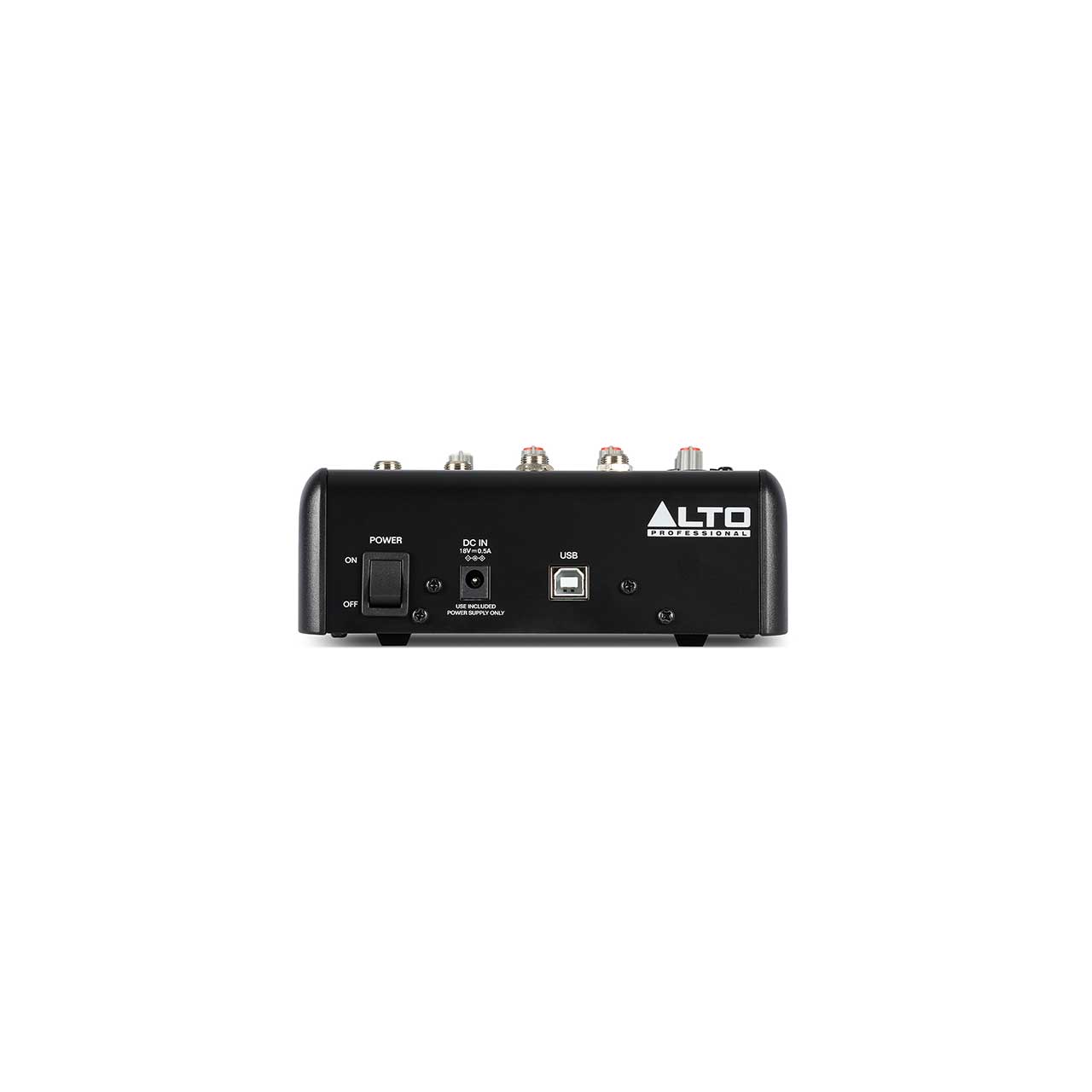

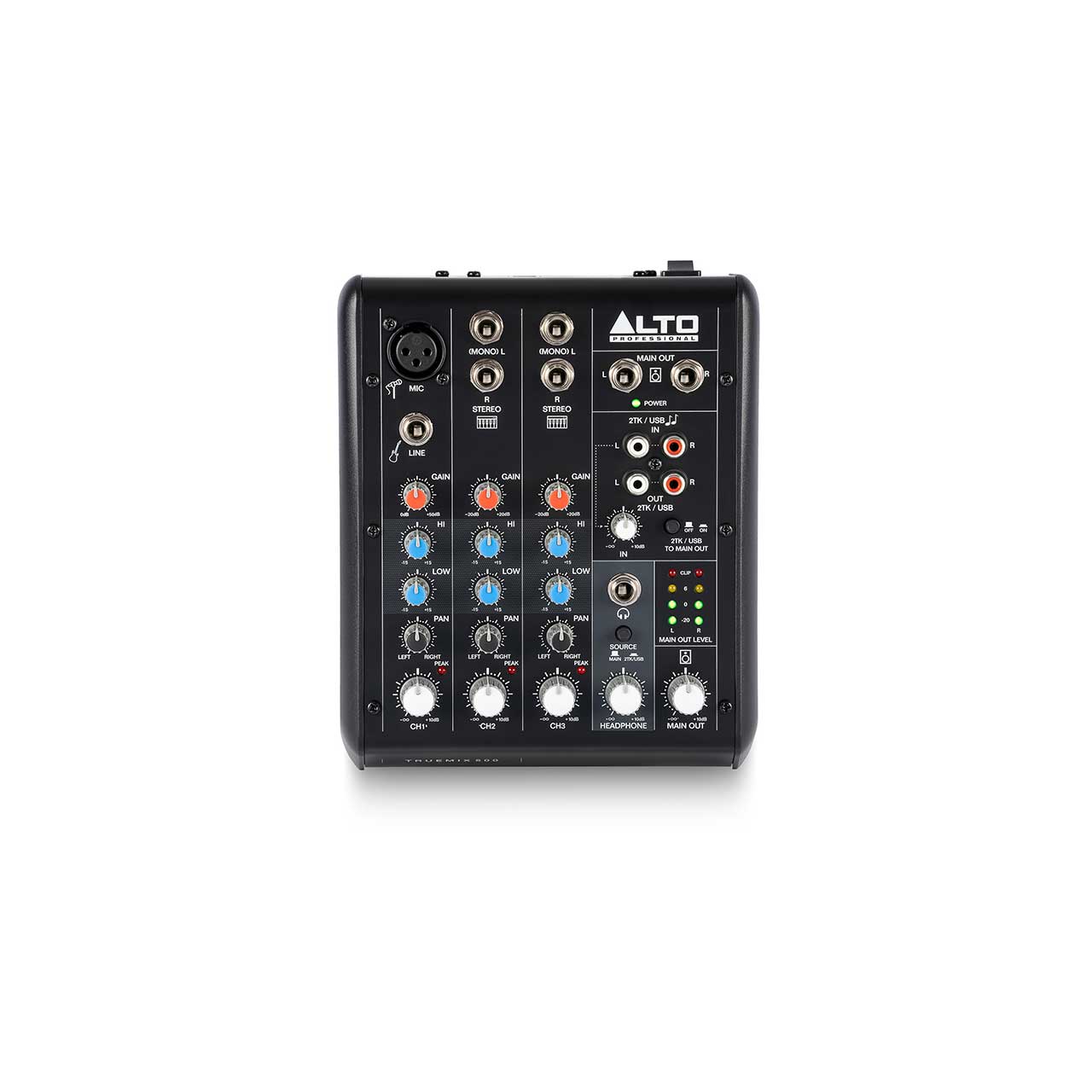

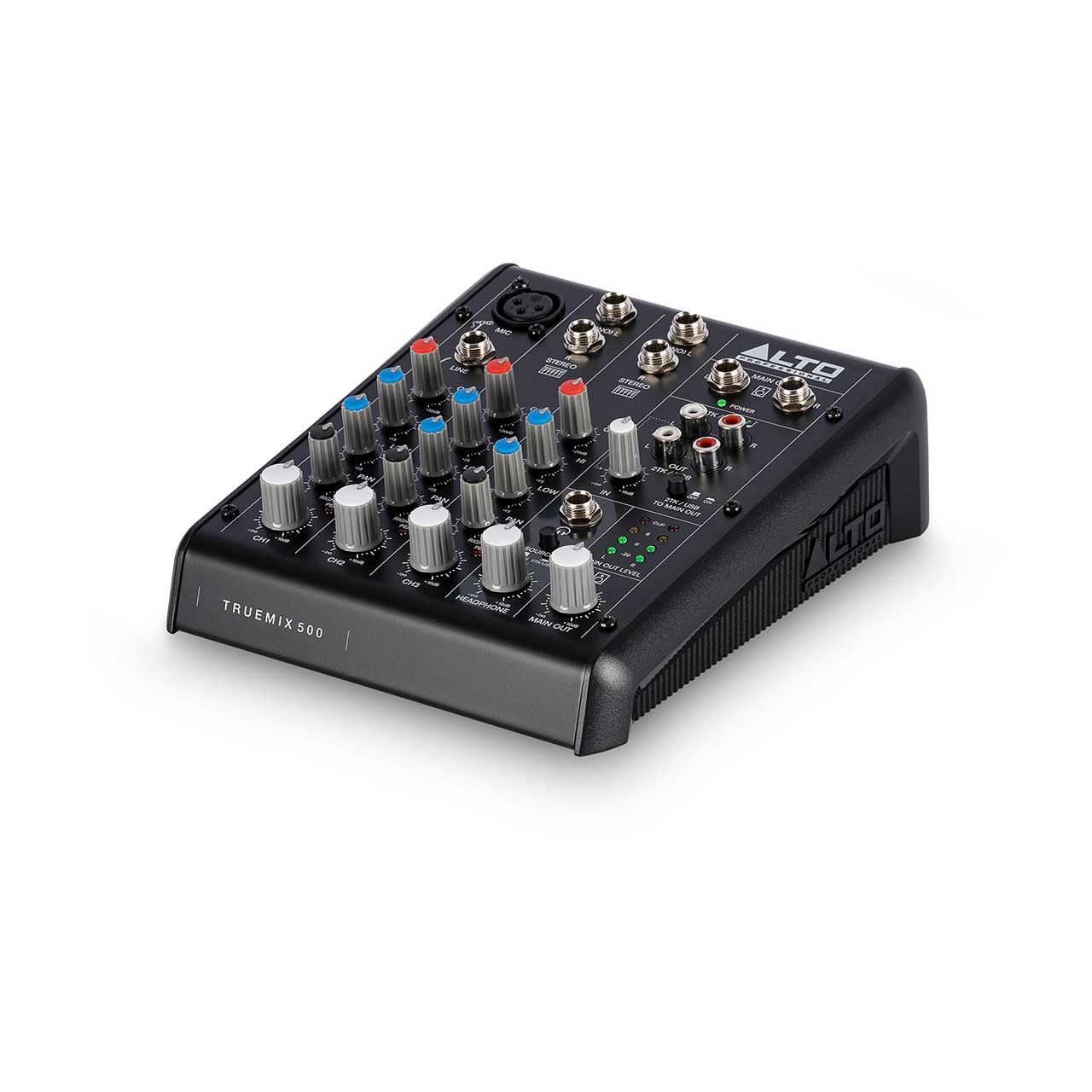

Alto Professional TrueMix 500 Portable 5-Channel Analog Mixer with USB

ITEM #: ALT-TRUEMIX500X MFG #: TRUEMIX500X

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    TRUEMIX500X - Overview

    Simple-to-Use Analog Audio Mixing for Any Application
    The Alto Professional TrueMix 500 (TRUEMIX500XUS) is a portable mixer with a built-in stereo USB audio interface that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The Mic Input Channel offers an XLR input that's great for connecting a dynamic mic. This channel also has a balanced 1/4" line input for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced 1/4" TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with color coded knobs that make it easy to dial in your perfect sound when operating in low-light situations. Connecting the TrueMix 500 to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 500 is your perfect companion for no-nonsense audio mixing and recording on the go.

    • Features:

      • USB I/O for audio playback and stereo recording
      • 1/4" Main, Tape, and Headphone outputs
      • Mic input channel with 48v phantom power and balanced line input
      • Two stereo input channels with balanced 1/4" TRS jacks
      • Two-band EQ on all channels
      • 2-track inputs w/ assignable routing: Main Mix or Headphone Out

    • Specifications:

      • Frequency Response
      • 20 Hz - 22 kHz (±1 dB)

        THD+N
      • < 0.005% (@ 4 dBu, 1 kHz)

        Gain Range:
      • Mic inputs (Channels 1): 0 - 44 dB
      • Line inputs (Channels 1): 12 dBu - 30 dBu
      • Line inputs (Channels 2/3): 0 dBu

        Max Voltage Gain
      • 74 dB (MIC INPUT to MAIN MIX OUTPUT)
      • 80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
      • 30 dB (MIC INPUT to MON SEND)

        SNR (Signal-to-Noise ratio)
      • > 110 dBu

        Crossover Frequency
      • Adjacent inputs: < -80 dB @ 1 kHz
      • Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)

        Impedance
      • Mic inputs: 3.9 kΩ
      • All other inputs: > 10 kΩ
      • 2TK outputs: 1 kΩ
      • All other outputs: 120 Ω

        Equalization
      • High: ±15 dB @ 12 kHz
      • Low: ±15 dB @ 80 Hz

        Connectors
      • (2) 1/4" (6.35 mm) TRS outputs
      • (2) 1/4" (6.35 mm) TRS stereo L/R inputs
      • (1) 1/4" (6.35 mm) TRS headphone outputs
      • (1) Standard RCA L/R input
      • (1) Standard RCA L/R output
      • (4) XLR inputs
      • (1) USB type-B input
      • (1) DC power input

        Controls
      • (1) Power switch
      • (6)Volume control knobs (1 per input and output)
      • (3) Stereo pan control knobs (1 per channel)
      • (3) EQ Low control knobs (1 per channel)
      • (3) EQ Hi control knobs (1 per channel)
      • (3) Gain control knobs (1 per channel)
      • (2) Locking Switch Buttons

        Main Mix
      • Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output
      • 2TK output: (2) unbalanced RCA, 0 dBu max output
      • Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω

        Indicators
      • (1) Power LED
      • (3) Peak LEDs
      • (8) Main Out Meter LEDs

        Power
      • Connection: DC
      • Voltage: 18V, 500 mA
      • Consumption: 9W

        Dimensions (WxDxH)
      • 6.3 x 7.6 x 2.6" (159.5 x 193 x 66 mm)

        Weight
      • 2 lbs. (.9 kg)
