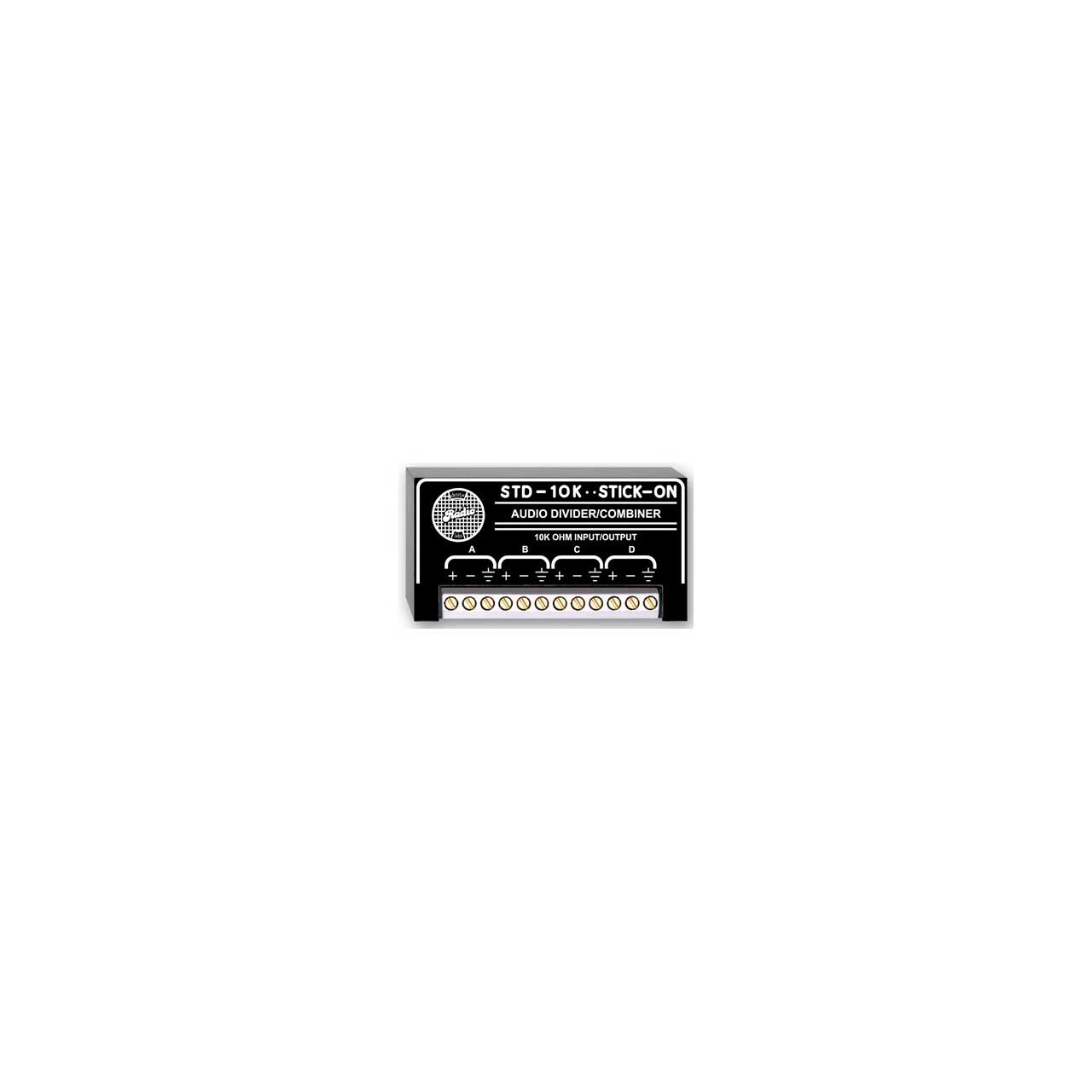

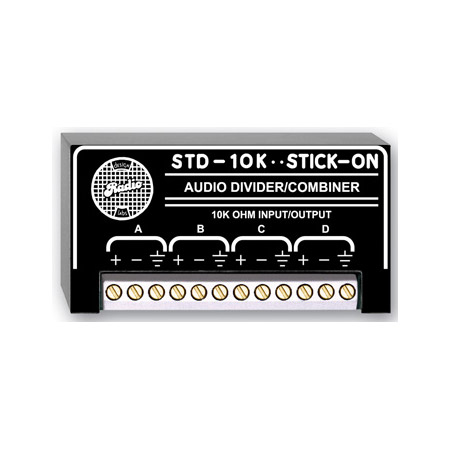

RDL STD-10K Passive Audio Divider/Combiner - 10 k Ohm

ITEM #: STD-10K MFG #: STD-10K

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    STD-10K - Overview

    Each STD module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The STD modules are available in 150 Ohm, 600 Ohm and 10 k Ohm models. All inputs and outputs are balanced. The STD-10K is passive and does NOT require the PS24v power supply.

    • Features:

      • 10 k Ohm Operation
      • Combine Audio Signals to a Single Output
      • Filter RF from an Audio Line
      • Combine Stereo Signals
      • Feed a Mono Signal to Stereo Inputs
      • Combine Multiple Mics to a Single Amp
      • Compactness of RDL STICK-ONs
    • GTIN:


    STD-10K - Required Accessories
