    ACN-LSW - Overview

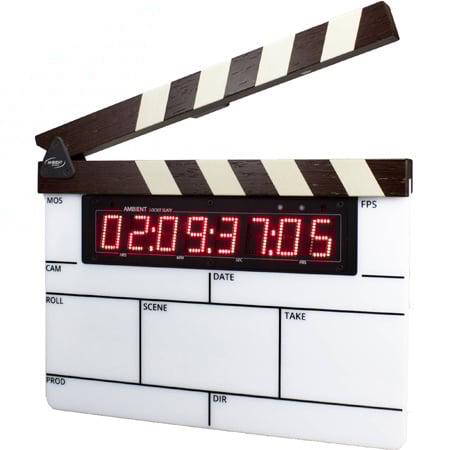

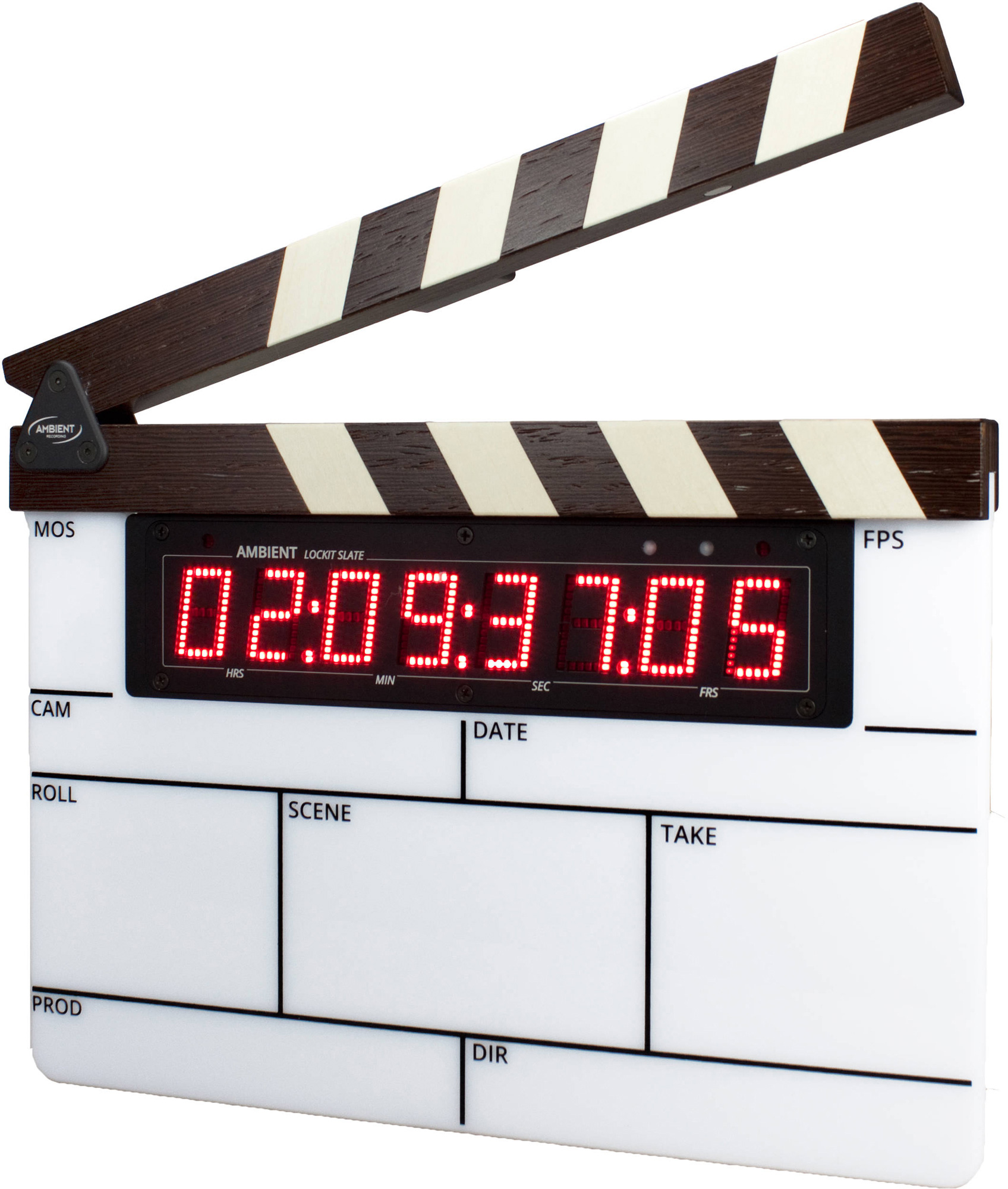

    The Ambient Recording ACN-LS timecode slate is a highly accurate smart-slate system featuring a unique product design and functionality.

    The completely revised LED timecode display features double the brightness at less than half of the power consumption of its predecessor. This allowed us to reduce the batteries to only 4 AA cells while still achieving prolonged battery life. Additionally, we equipped the new slate with light and motion sensors. Thus, the brightness can adjust automatically to the local light conditions, and the timecode display flips when the slate is turned upside down. The easy removable handle allows for perfect one-handed operation.

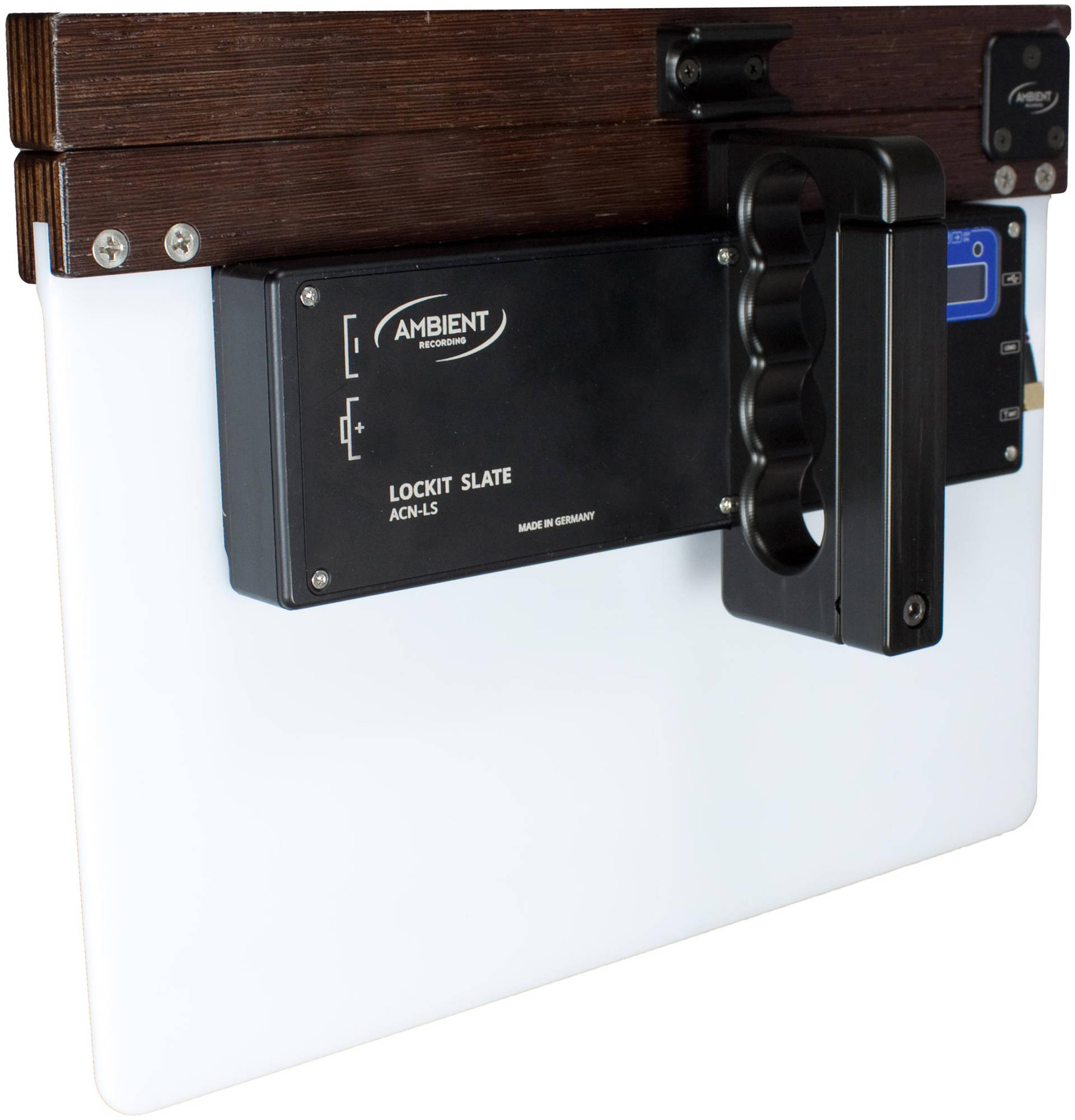

    With it's revolutionary modular construction, the electronic section of the Lockit Slate can also serve as a fully functional, compact standalone display for documentary or desktop use.

    Housed in a machined, pearl-blasted and anodized aluminum body, it can easily withstand the roughest production conditions.

    • Features:

      • Transmit the clapped time directly to the script app
      • Use the Lockit Slate as Midi TC display and interface
      • Wooden clap sticks available
      • Free-of-charge LockitScript App
    • Specifications:

      • Highly accurate timecode generator
      • Supports all SMPTE frame rates
      • Adjustable TC offset
      • Generator buffered timecode transceiver
      • Full ACN support
      • Clap time transmission via ACN
      • Drift of less than 1 frame a day (~0,1ppm, 0,0ppm within ACN))
      • OLED Display for configuration
      • Extremly bright LED TC display
      • Conversion between LTC and MTC (via USB)

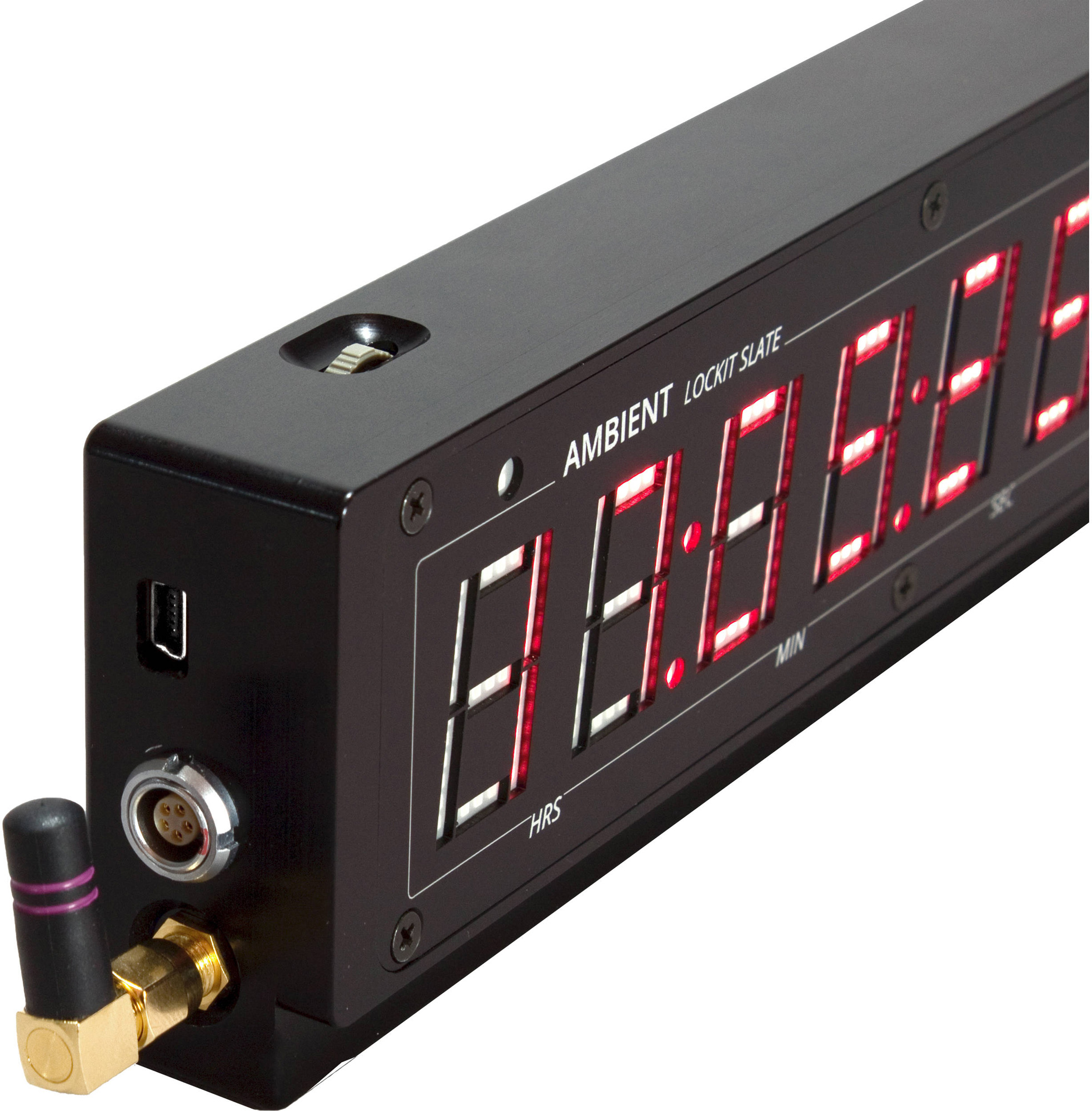

      • RS232, USB and GP I/O port
      • Rugged aluminum body
      • Easy changeable slate body
      • Stand alone mode
      • Only 4 AA batteries
      • Lockit Slate (ACN-LS | ACN-LSW)
      • Dimensions (W x H x D): approx. 11 inch x 8.5 inch x 1.2 inch (280 x 215 x 30 mm)
      • Weight: approx. 2.4 lbs (1100 g)

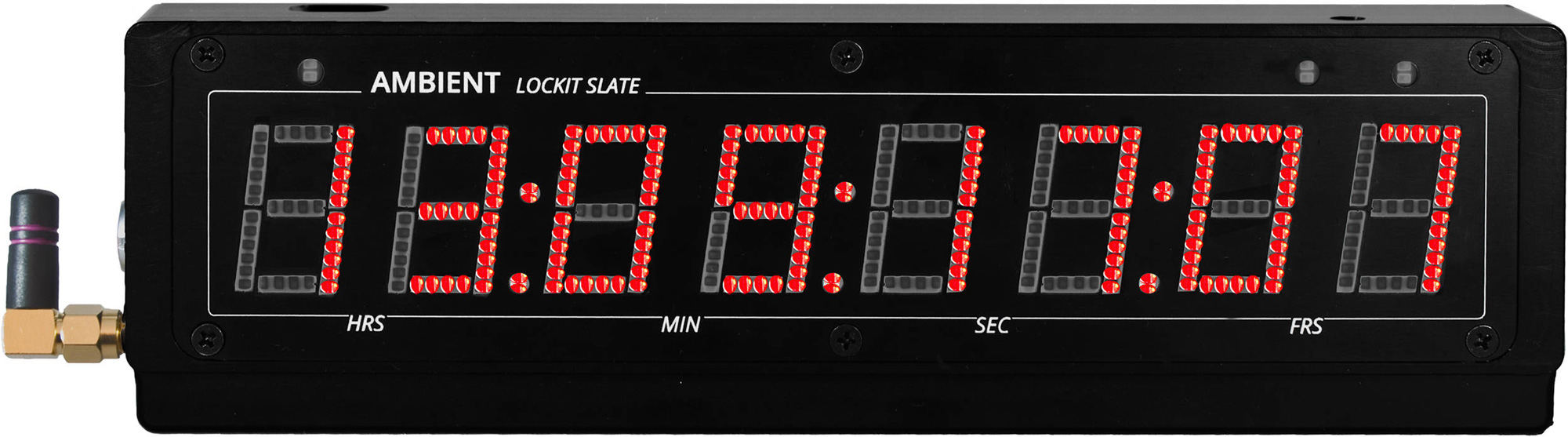

      • Display module (ACN-LD)
      • Dimensions (W x H x D): approx. 8.2 inch x 2.5 inch x 1.2 inch (210 x 65 x 27 mm)
      • Weight (without batteries): approx. 1 lb (450 g)
