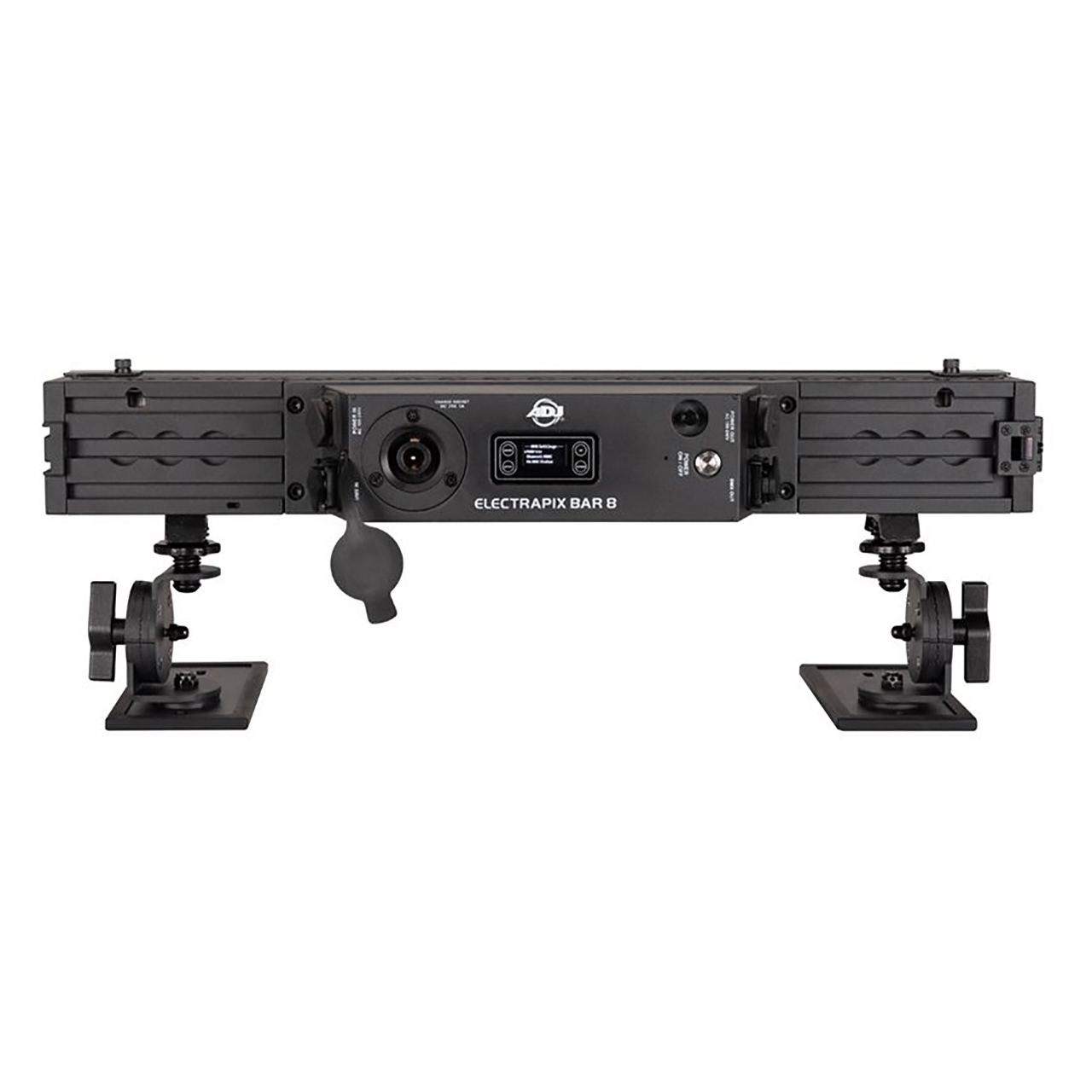

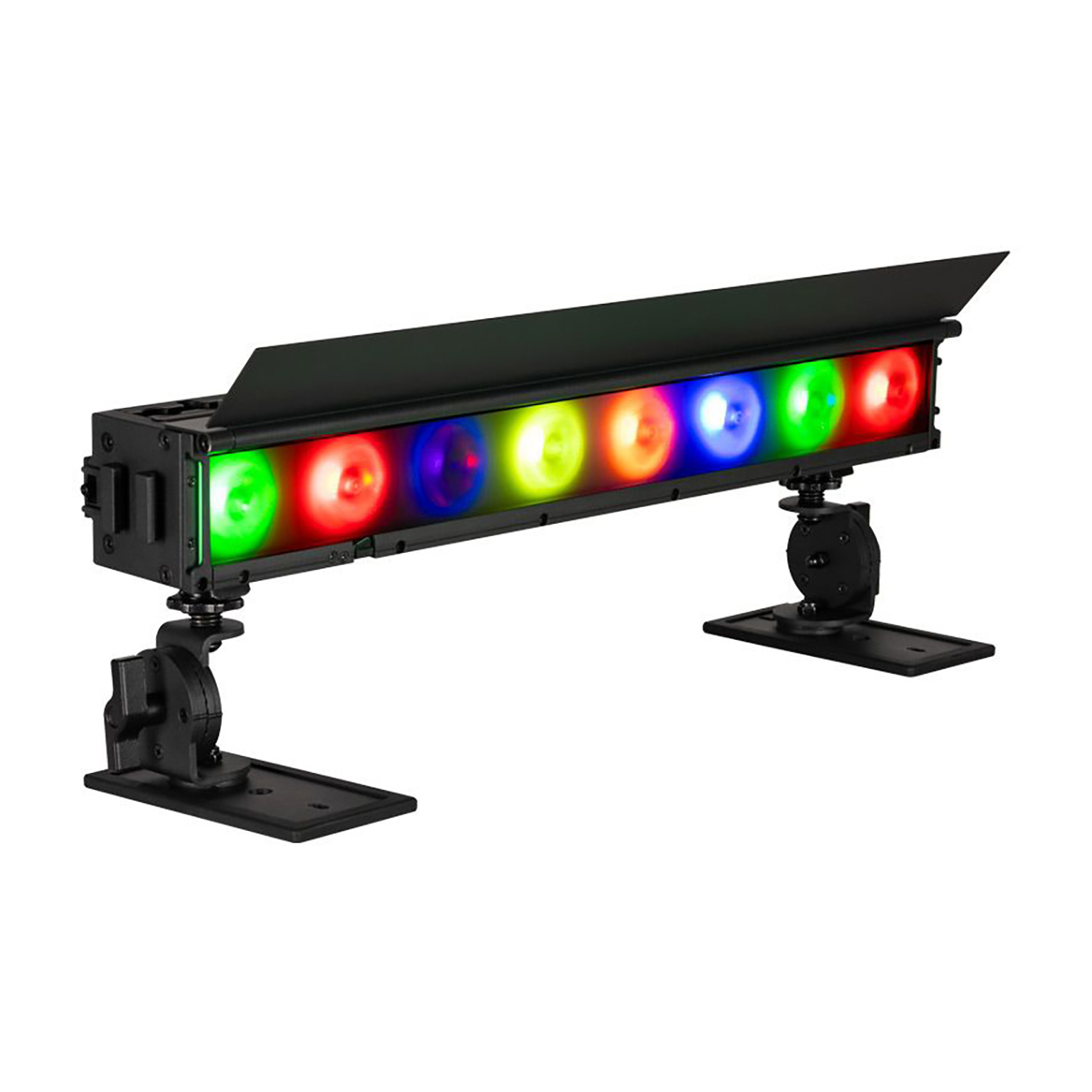

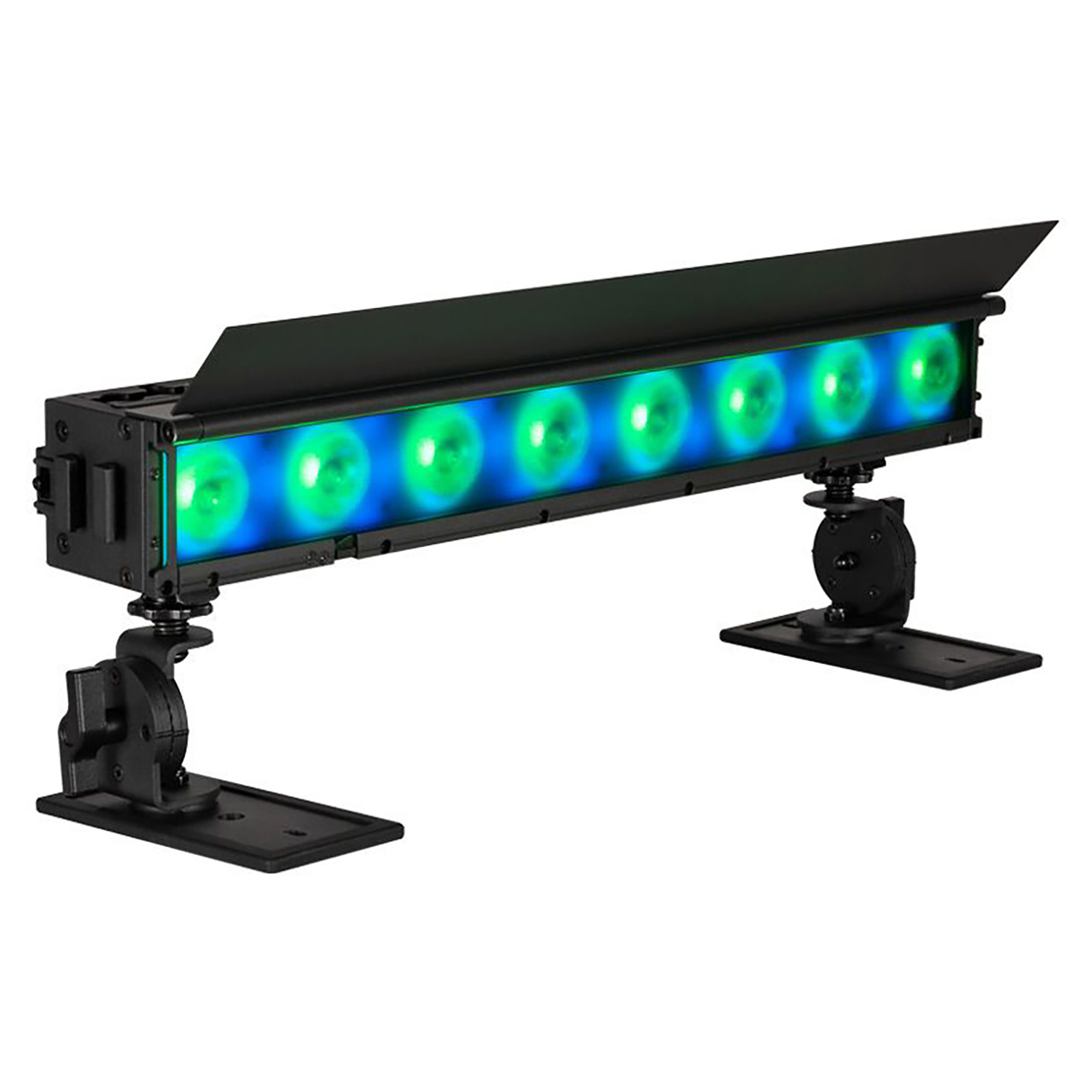

ADJ ELE080 Electrapix Bar 8 Lithium Ion Battery Powered Wireless DMX Lighting Fixture Bar - 1.6 Feet / 0.5 Meters

ITEM #: AMDJ-ELE080 MFG #: ELE080

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,519.95

Our Price:

$1,099.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ELE080 - Overview

The ADJ ElectraPix Bar 8 is a cutting-edge, .5-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers up to 20 hours of battery operation.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 8 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additional, up to four ElectraPix Bar 8 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Bar 8 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 8, where innovation meets performance.

Please Note: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
    • Battery or Wall Powered
    • Up to 20 Hour Battery Operation
    • Battery Operation (Menu Option)
    • Individual Pixel Control
    • Built-In Foreground LED Programs
    • Built-In Background LED Programs
    • Variable White Color Temperature Control (2,300K ~ 9,900K)
    • English & Spanish User Menu
    • Built-In Alarm
    • Color Calibrated LED's
    • User Selectable LED Refresh Rates (900Hz ~ 25K)
    • 6 User Selectable Dim Modes
    • 4 User Selectable Dim Curves
    • Electronic Strobe (0.3Hz ~ 11Hz)
    • Electronic Dimming
    • Attach up to four (4) ElectraPix Bar 8 to the Accu Stand VFB1 vertical floor base

  • Specifications:

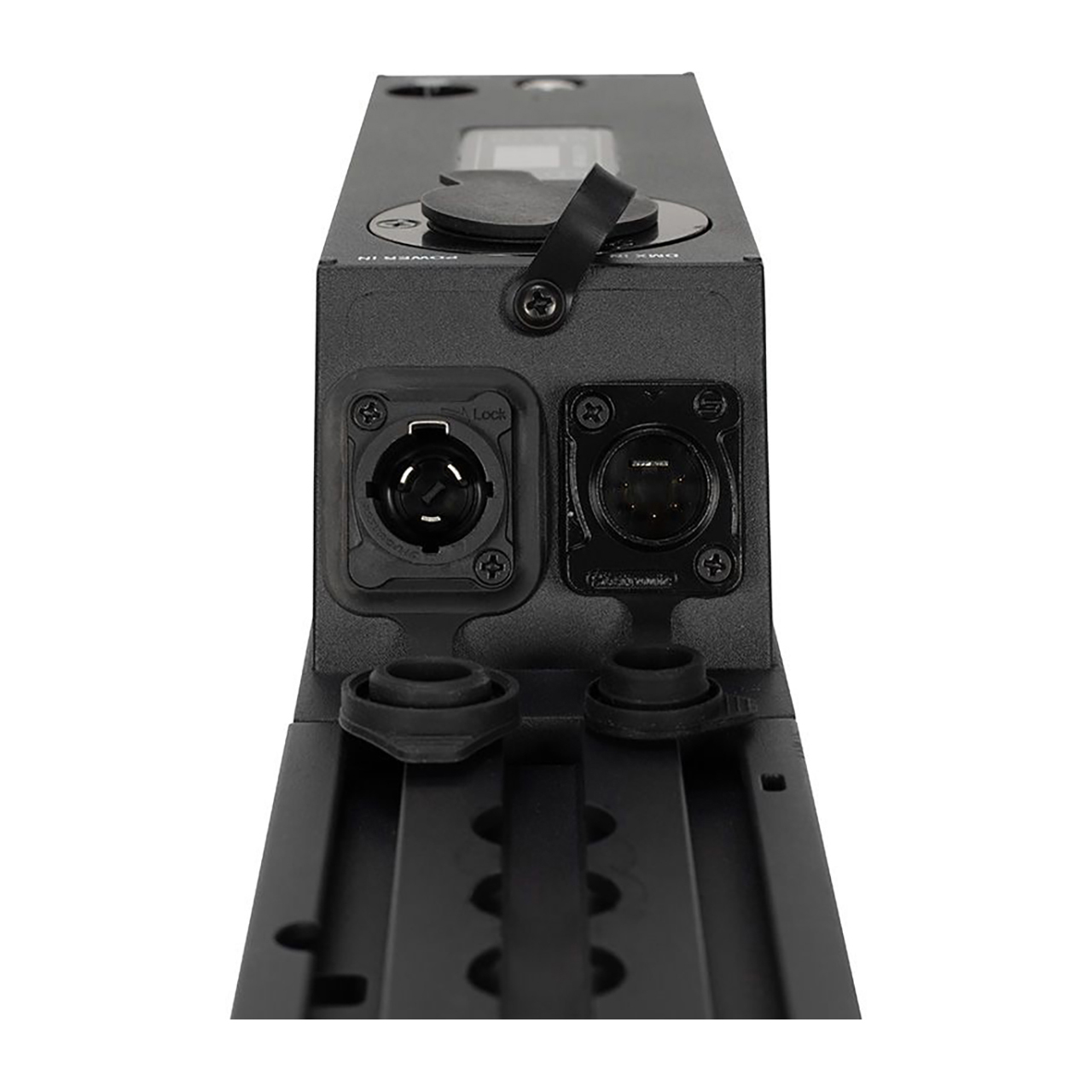

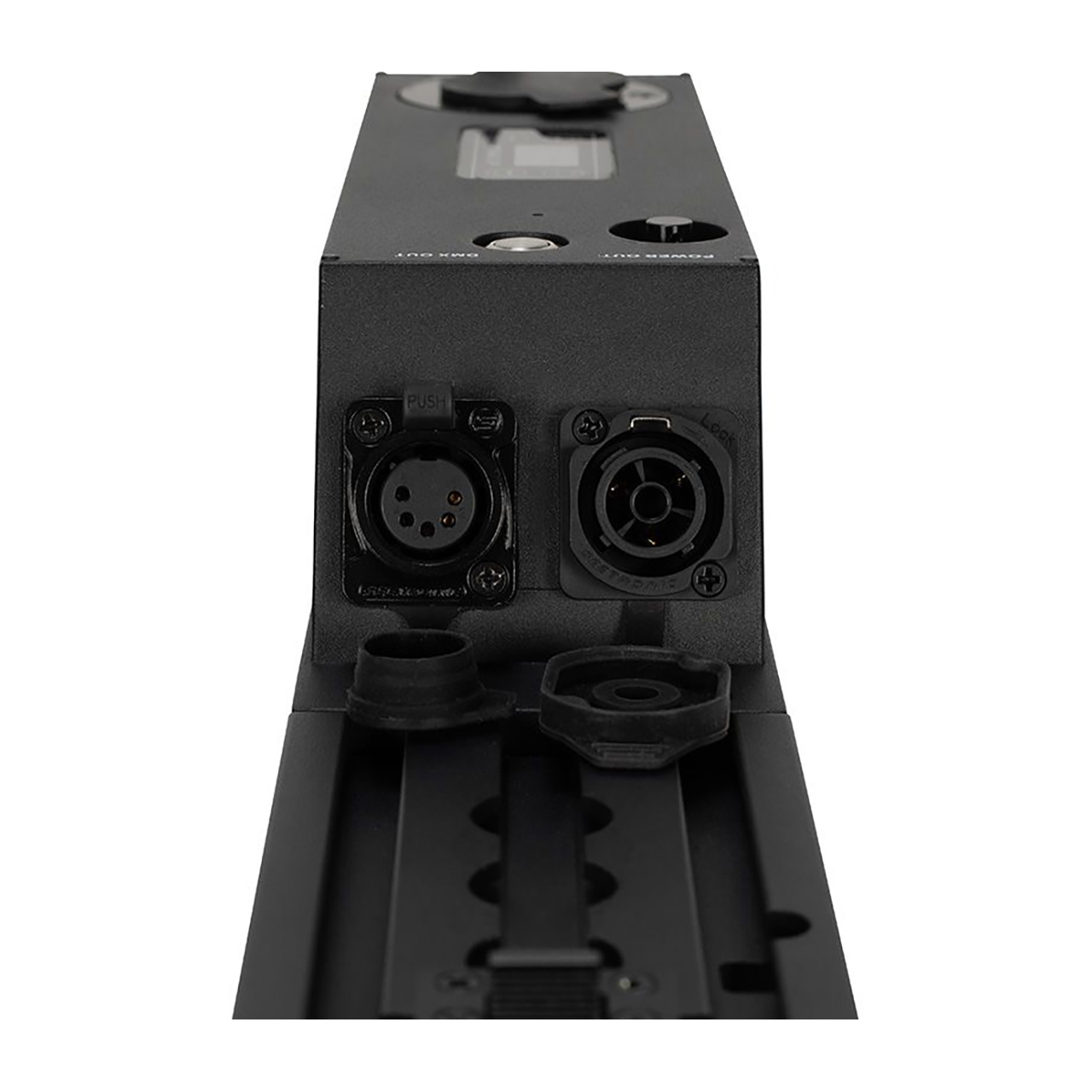

    • Connections
    • 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
    • Outdoor Locking Power Sockets
    • Battery Charging Socket

      Dimensions & Weight
    • Dimensions: 3.72” x 23.1” x 10.6” (94.5mm x 586.7mm x 268.7mm)
    • Weight: 16.1 lbs. (7.3 kg)

      Power
    • AC100-240V/50Hz-60Hz Input
    • 60W Power Consumption
    • Link 15 pieces @120VAC or 28 pieces @ 230VAC

      Battery
    • Rechargeable Lithium ion
    • Battery Capacity: 7,000mAh
    • Battery Voltage: 22.2V
    • Charge Time, AC Power: 5 Hours (To Full)
    • Charge Time, Flight Case: 5 Hours (To Full)
    • Up to 20 Hour Battery Operation
    • Battery Cycles: 500

      Thermal
    • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
    • Storage Temperature: -22°F to 113°F (-30°C to 45°C)

      Certifications & IP Rating
    • CE
    • cETLus (Pending)
    • FCC
    • IP65

  • Item Includes:

    • 1x ADJ ElectraPix Bar 8
    • 1x Outdoor Locking Power Cable
    • 1x UCIR24 Remote
    • 1x 20° Diffusion Filter

  • Warranty:

    • 2-Year Limited Warranty

  • GTIN:

    0810087372705
