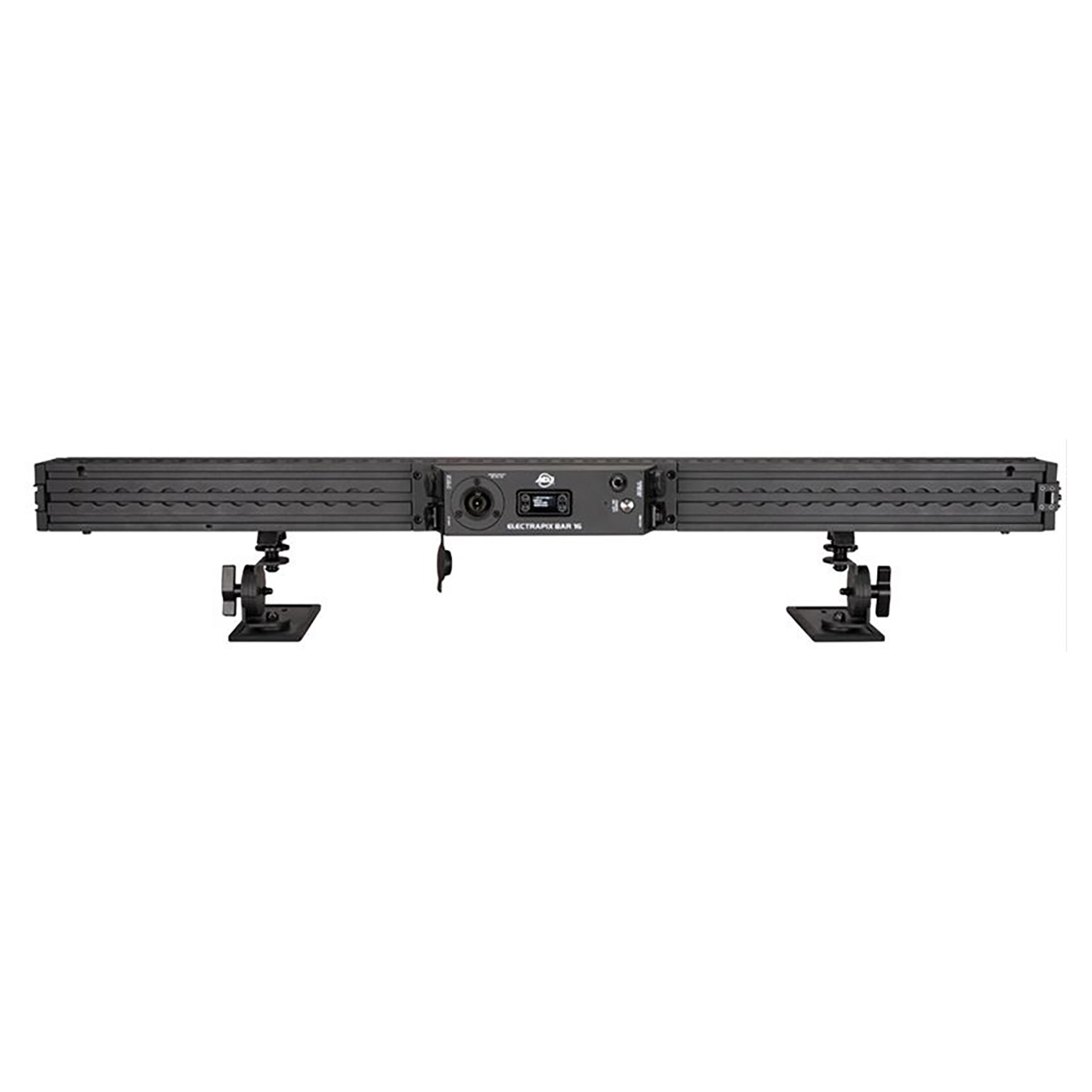

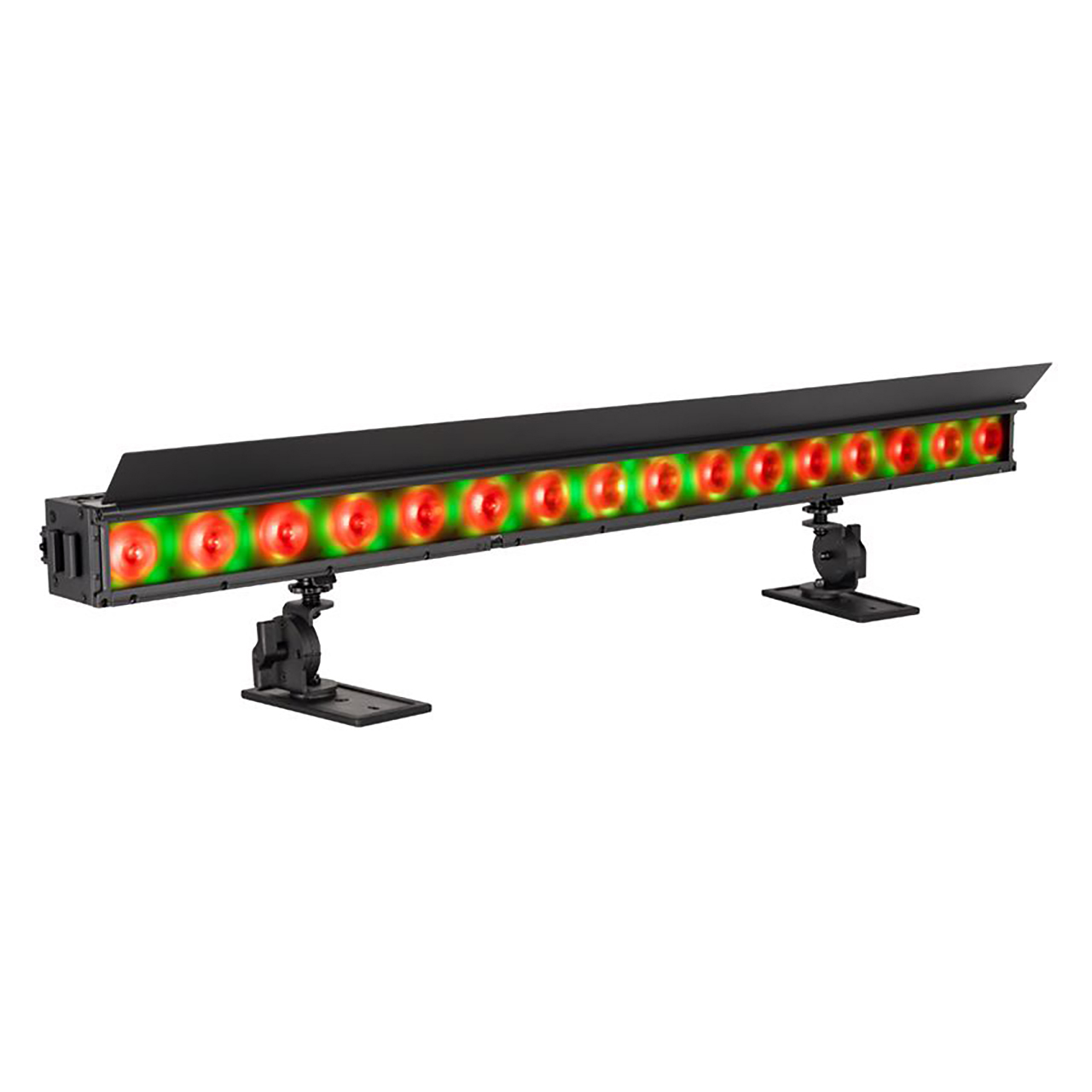

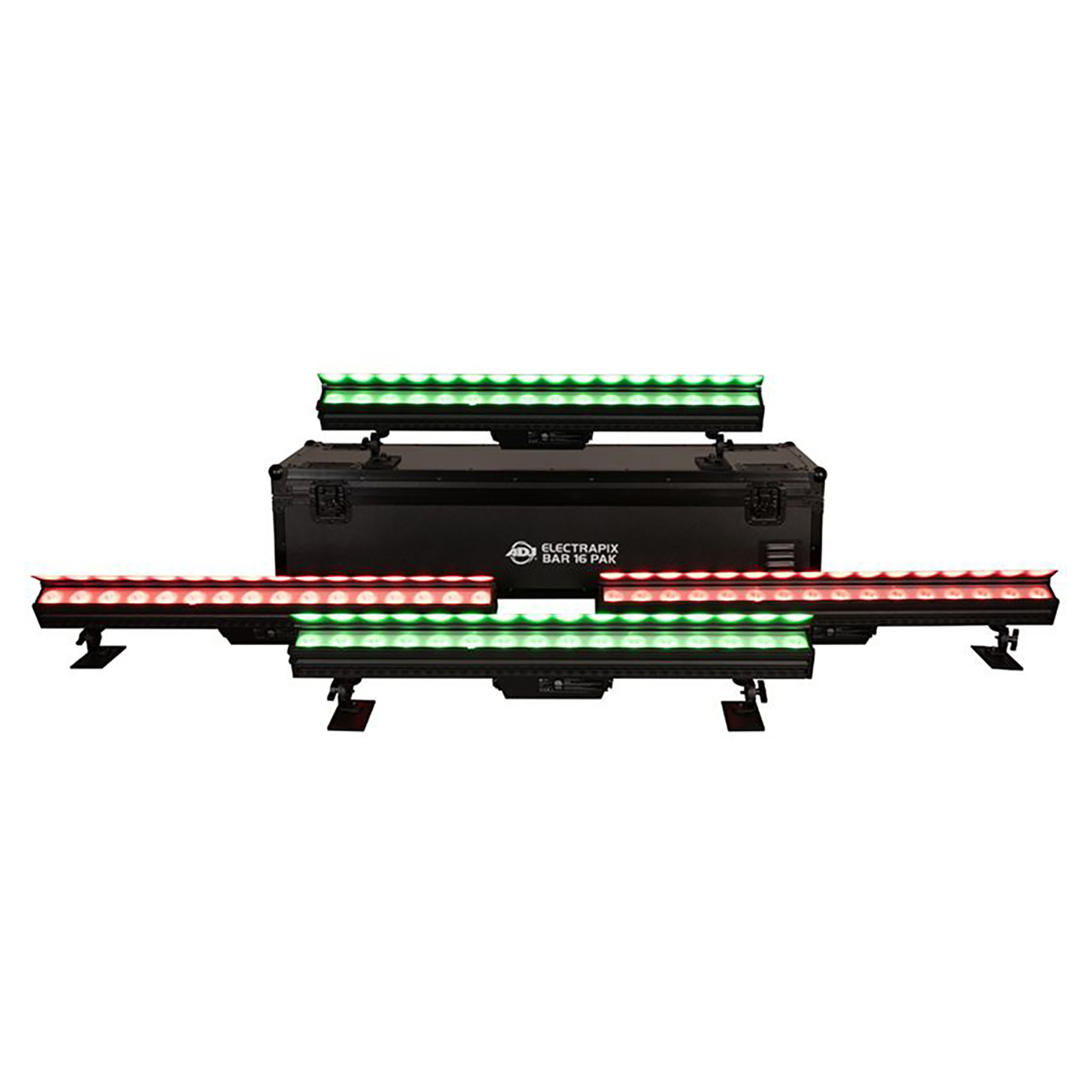

ADJ ELE367 Electrapix Bar 16 Pak Including Four ElectraPix Bar 16 Li-Ion DMX Bars and Robust Road Case

ITEM #: AMDJ-ELE367 MFG #: ELE367

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,999.95

Our Price:

$7,149.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


ELE367 - Overview

The ADJ ElectraPix Bar 16 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.

Key Components:
1. ElectraPix Bar 16 fixtures (4x): Unleash the power of four (4) ElectraPix Bar 16 fixtures, each equipped with state-of-the-art technology including, long-life LEDs, battery-powered and wireless DMX. These lights deliver vivid and customizable colors, allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions, concerts, or any event where lighting plays a crucial role.

2. Charging Bases (4x): Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.

3. UC-IR24 Remote Control (1x): Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colors, brightness, and other settings from a distance, providing you with convenient control over your lighting environment.

4. Outdoor Locking Power Cable (4x): Designed for durability and reliability, the outdoor locking power cables ensures a secure and weather-resistant connection.

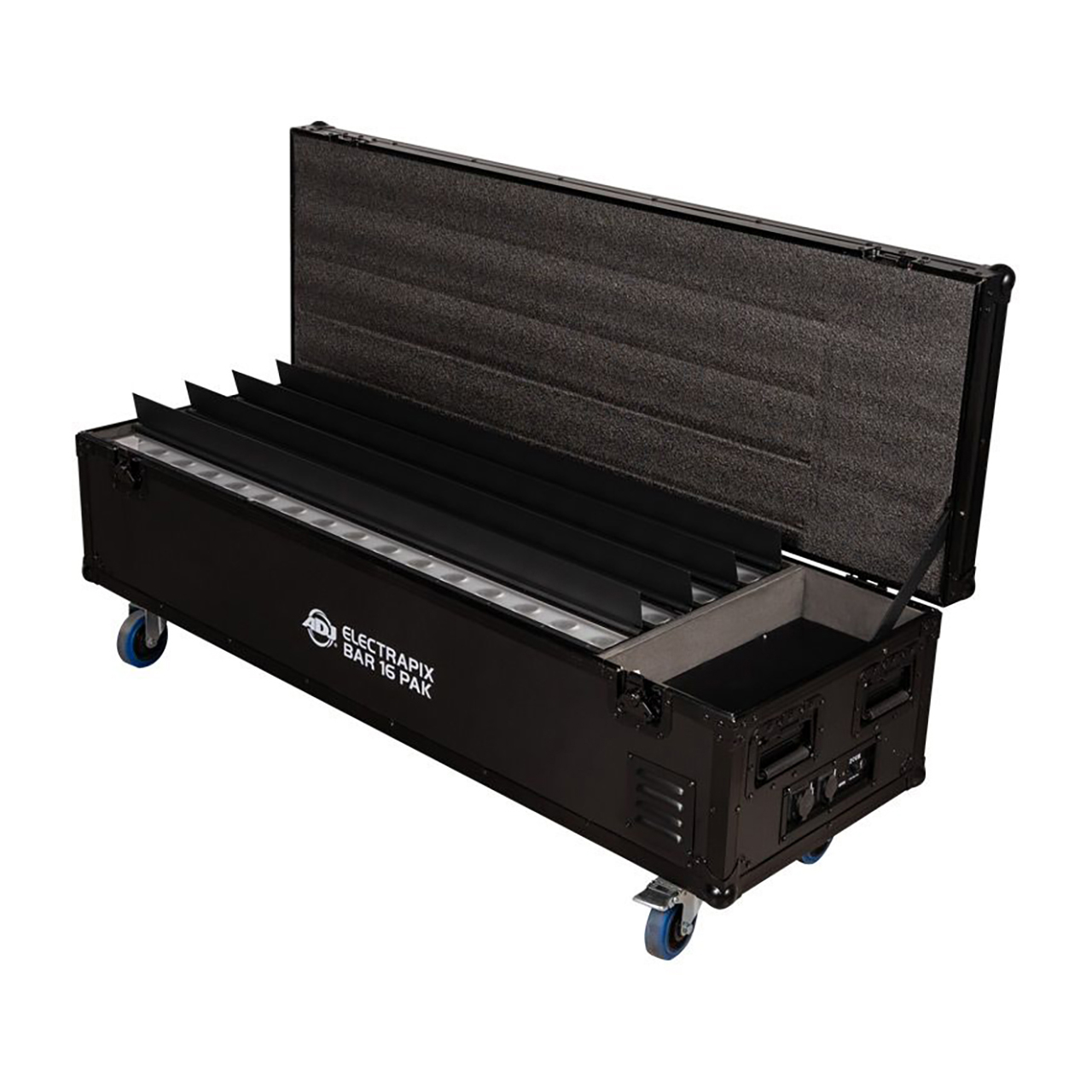

5. ElectraPix Bar 16 FC (Flight Case) (1x): Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 16 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 56.8" x 19.6" x 18.1" (14434x98.44x59.9mm) ensure that your lighting setup remains protected during transit.

With the ElectraPix Bar 16 Pak, you have a versatile and complete lighting solution that combines innovation, convenience, and portability, making it an ideal choice for lighting and event professionals. Illuminate your world and captivate your audience with the power of ElectraPix Bar 16.

Please Note: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 16 Pixel, Hex Color LED (RGBAL+UV) LED Bar
    • Battery or Wall Powered
    • Up to 20 Hour Battery Operation
    • Battery Operation (Menu Option)
    • Individual Pixel Control
    • Built-In Foreground LED Programs
    • Built-In Background LED Programs
    • Variable White Color Temperature Control (2,300K ~ 9,900K)
    • English & Spanish User Menu
    • Built-In Alarm
    • Color Calibrated LED's
    • User Selectable LED Refresh Rates (900Hz ~ 25K)
    • 6 User Selectable Dim Modes
    • 4 User Selectable Dim Curves
    • Electronic Strobe (0.3Hz ~ 11Hz)
    • Electronic Dimming
    • Attach up to two (2) ElectraPix Bar 16 to the Accu Stand VFB1 vertical floor base

  • Specifications:

    • Connections
    • 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

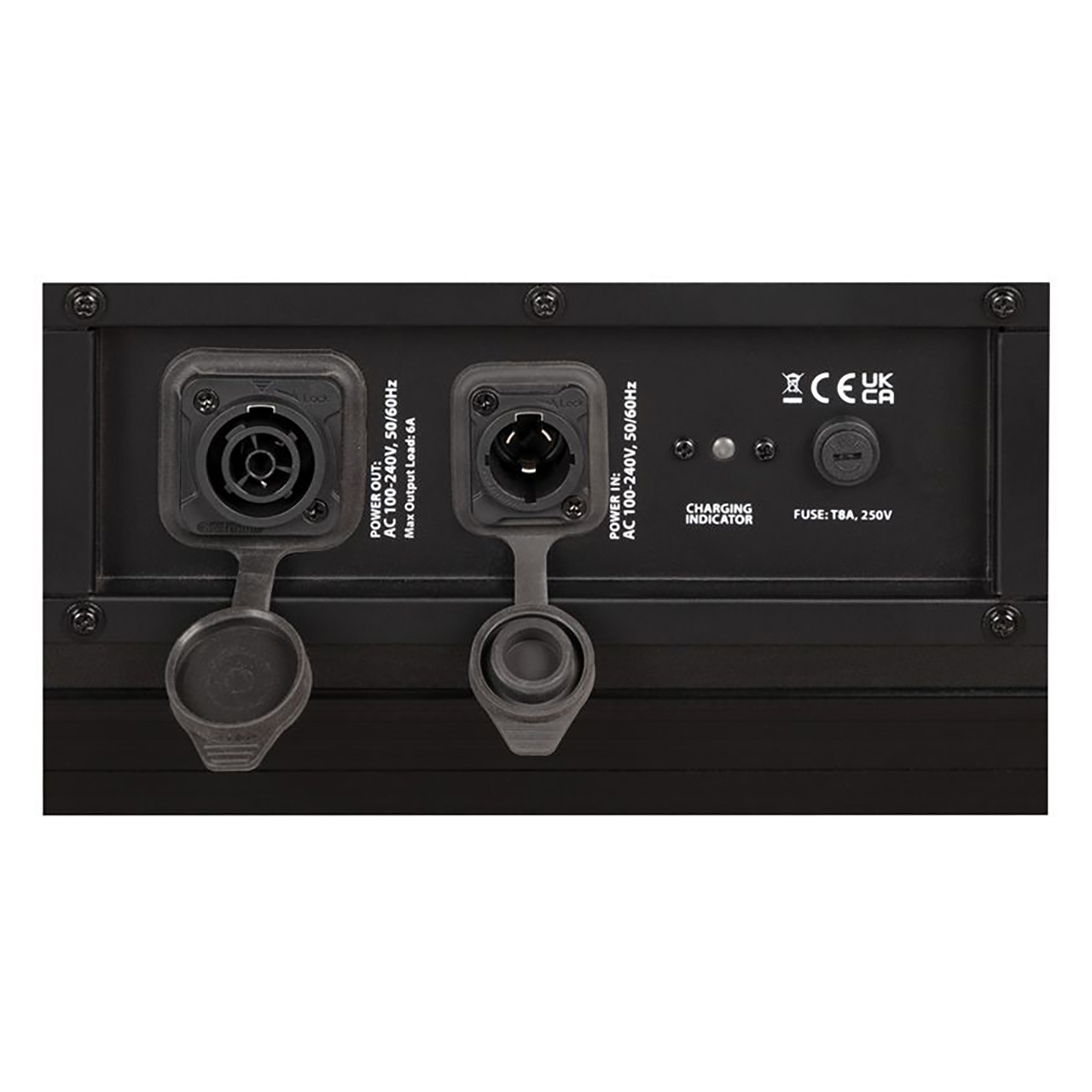

    • Outdoor Locking Power Sockets
    • Battery Charging Socket

      Dimensions & Weight:
    • Dimensions: 3.72" x 45.6" x 10.6" (94.5mm x 1158. 7mm x 268. 7mm)
    • Weight: 26.9 lbs. (12.2 kg)

      Power:
    • AC100-240V/50Hz-60Hz Input
    • 90W Power Consumption
    • Link 10 pieces @120VAC or 18 pieces @ 230VAC

      Battery:
    • Rechargeable Lithium ion
    • Battery Capacity: 14,000mAh
    • Battery Voltage: 22.2V
    • Charge Time, AC Power: 5.5 Hours (To Full)
    • Charge Time, Flight Case: 5.5 Hours (To Full)
    • Up to 20 Hour Battery Operation
    • Battery Cycles: 500

      Thermal:
    • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
    • Storage Temperature: -22°F to 113°F (-30°C to 45°C)

      Certifications & IP Rating:
    • CE
    • cETLus (Control # 4002034)
    • FCC
    • IP65

  • Item Includes:

    • 4x ElectraPix Bar 16 Pak (Fixtures)
    • 1x ElectraPix Bar 16 FC (Flight Case)
    • 4x ElectraPix Bar 16 IPCB (Charging bases and power supplies)
    • 1x UC-IR24 Wireless Infrared Controller
    • 1x IP65 Locking Power Cable

  • Warranty:

    • 2-Year Limited Warranty

  • GTIN:

    0810087372750
