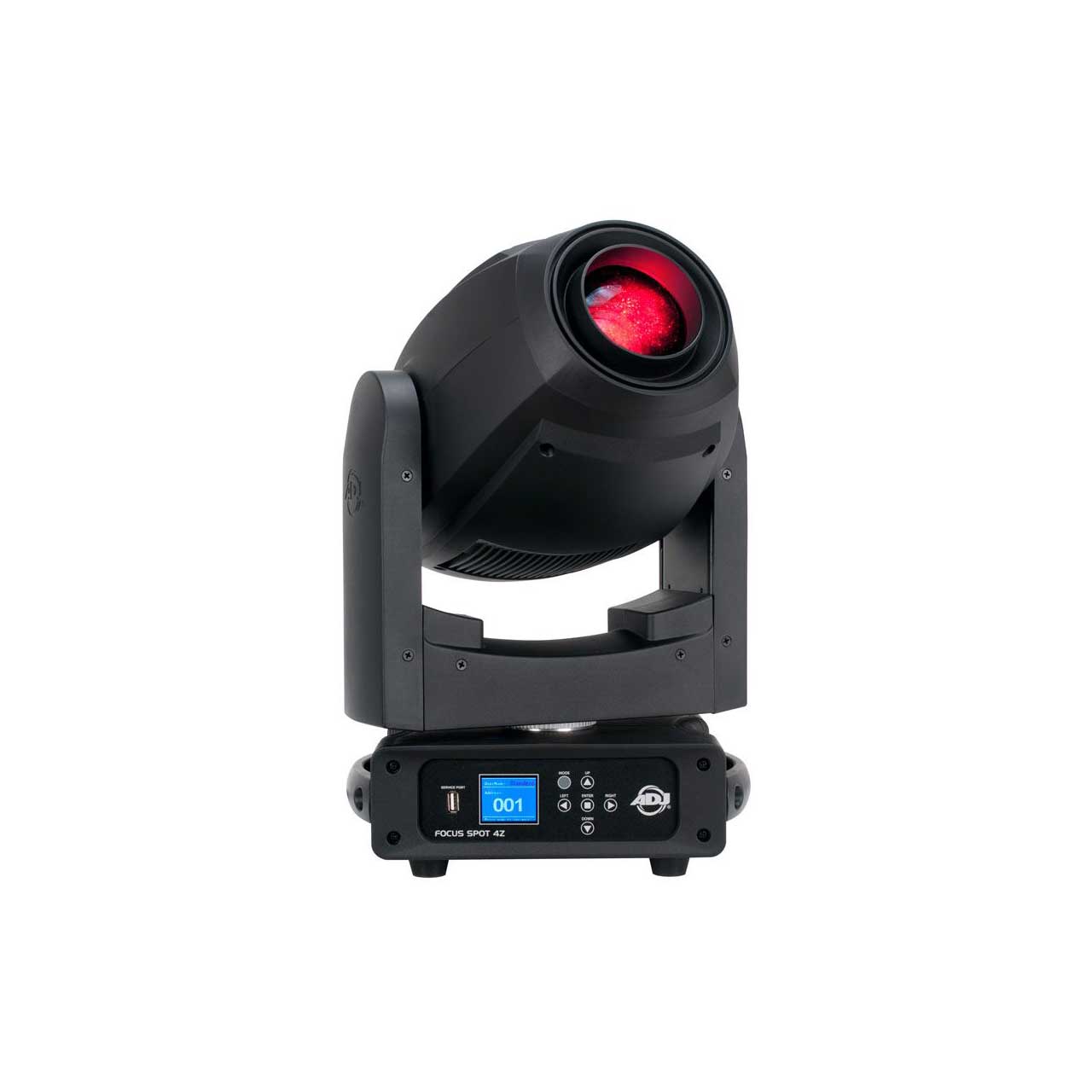

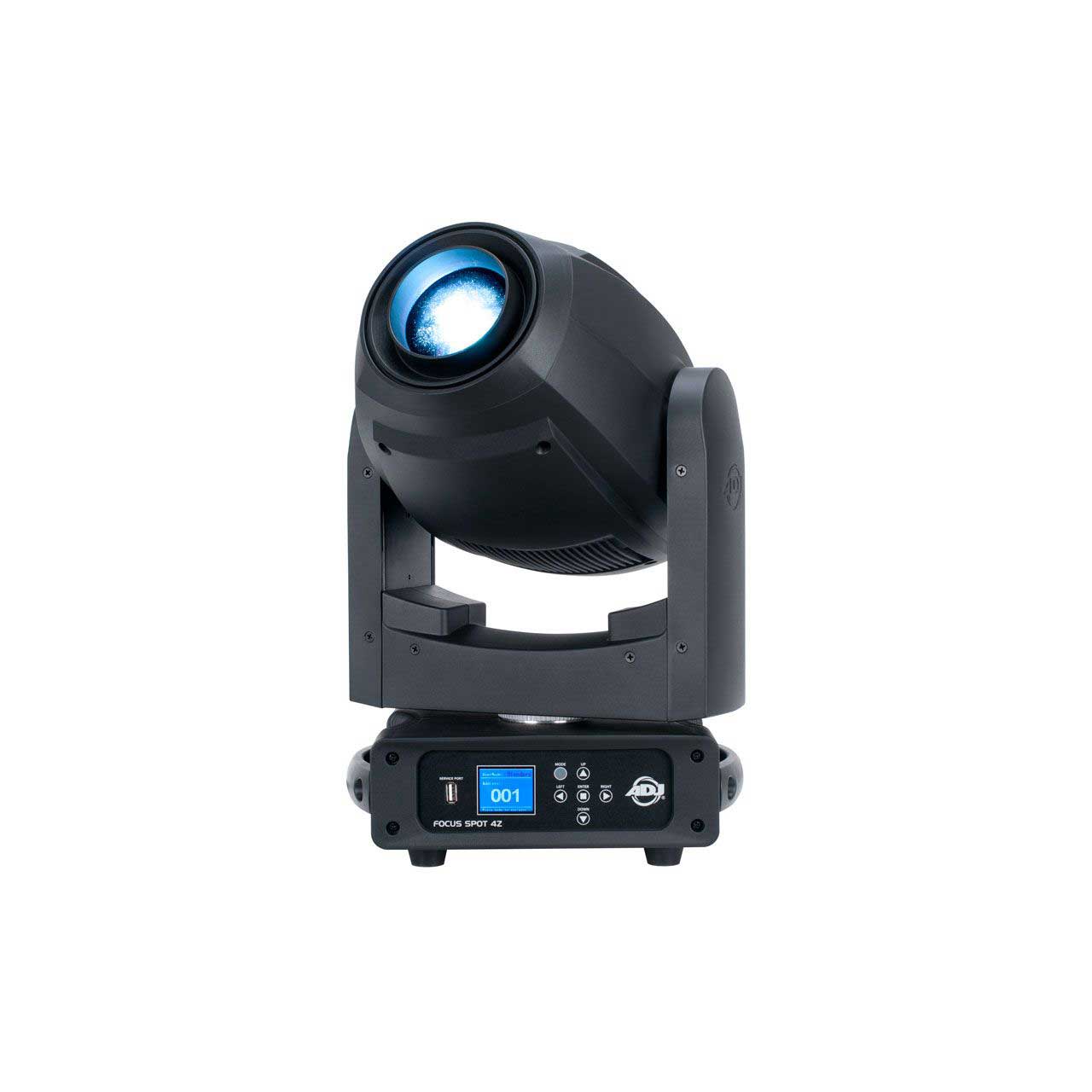

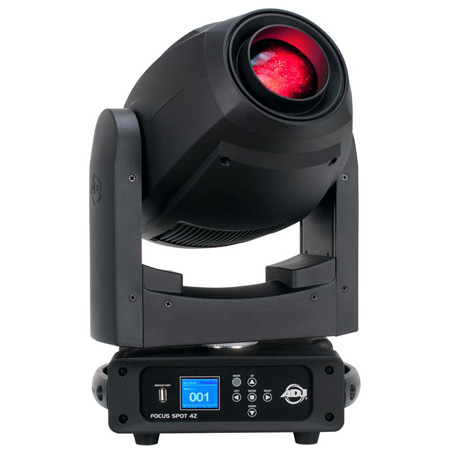

ADJ FOCUS SPOT 4Z 200W LED Moving Head Spot Fixture with Motorized Focus & Motorized Zoom (11 - 22° - Black

ITEM #: AMDJ-FOC200 MFG #: FOC200

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,099.95

Our Price:

$1,499.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FOC200 - Overview

The Focus Spot 4Z (FOC200) is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

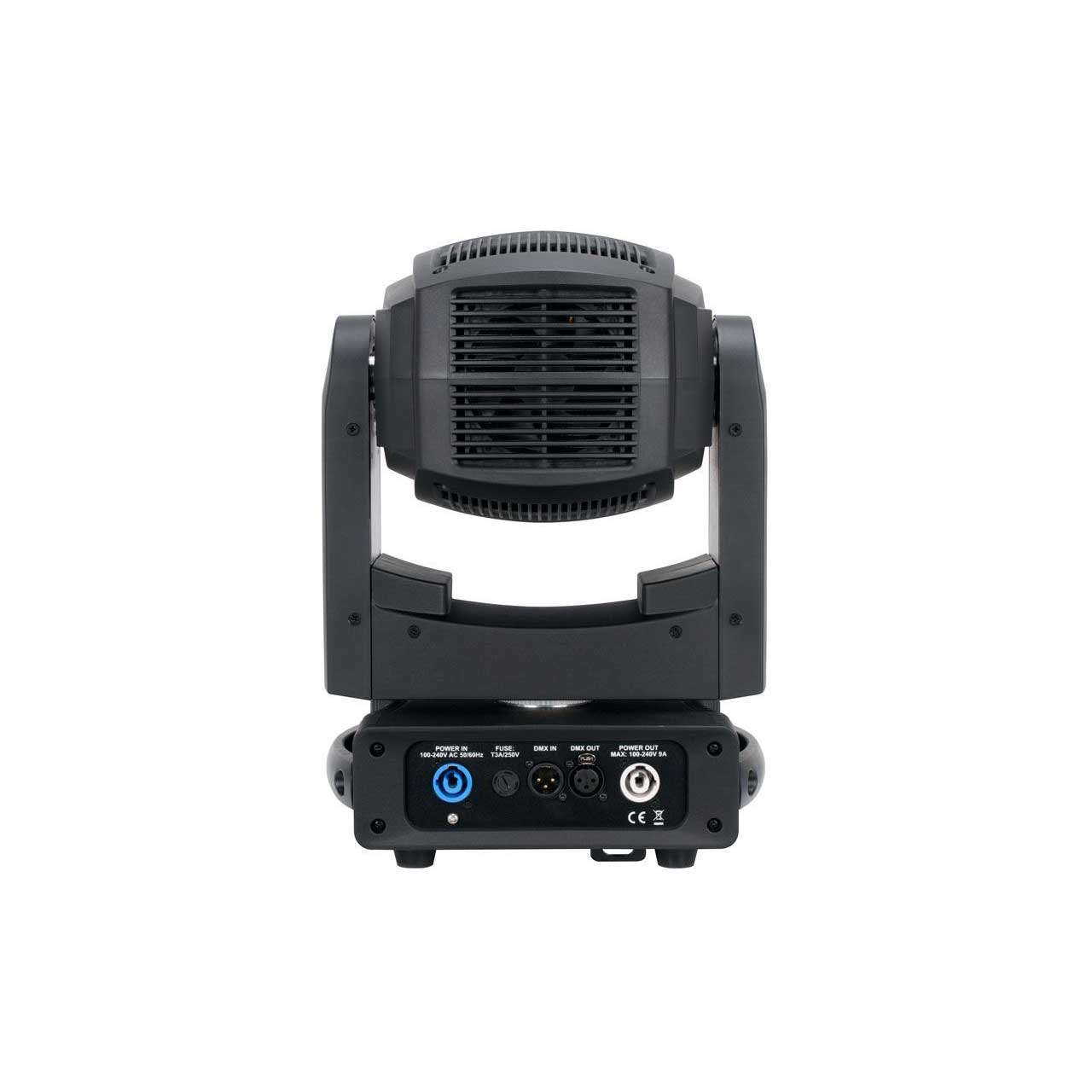

The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

The Focus Spot 4Z fits in the ADJ DRC MH road case.

  • Features:

    • Motorized Focus
    • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
    • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
    • 0-100% smooth dimming
    • Various strobe speeds
    • USB firmware update port
    • 2 cooling fans

  • Specifications:

    • Light Source
    • 200W Cool White LED Engine (50,000 hr.)

      Color Wheel
    • 8 dichroic colors + white

      GOBO Wheel
    • 6 aluminum GOBOs + open
    • All GOBOs removable & rotatable
    • GOBO Shake Effect
    • GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

      Prism Wheel
    • Prism Wheel 1: Rotatable 5-facet Linear
    • Prism Wheel 2: Rotatable 6-facet Circular
    • Prism Indexing

      Control
    • 3 DMX Channel Modes: 16/18/22 Channels
    • Color LCD display with 6-button function menu
    • Data In/Out: 3-pin DMX
    • Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
    • Control Mode: DMX512 or internal programs
    • 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
    • 0-100% smooth dimming
    • Various strobe speeds
    • USB firmware update port
    • With Wired Digital Communication Network
    • RDM (Remote Device Management)

      Pan/Tilt
    • Pan: 540 & 630 degrees
    • Tilt: 270 degrees

      Physical
    • Dimension (LxWxH): 7.15 x 10.97 x 18" (181.5 x 278.6 x 457.4mm)
    • Weight: 23Lbs (10kg)

      Rating/Approvals
    • cETLus approved (Control #4010765)

  • Item Includes:

    • 1x Omega Bracket
    • 1x 6 ft/3M Locking power to Edison cable
    • 1x Safety Cable

  • Warranty:

    • 2 years

  • GTIN:

    0818651025811
