ADJ FOCUS SPOT 4Z PEARL 200W LED Moving Head Spot Fixture with Motorized Focus & Motorized Zoom (11 - 22°

ITEM #: AMDJ-FOC225 MFG #: FOC225

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,849.95

Our Price:

$1,299.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    FOC225 - Overview

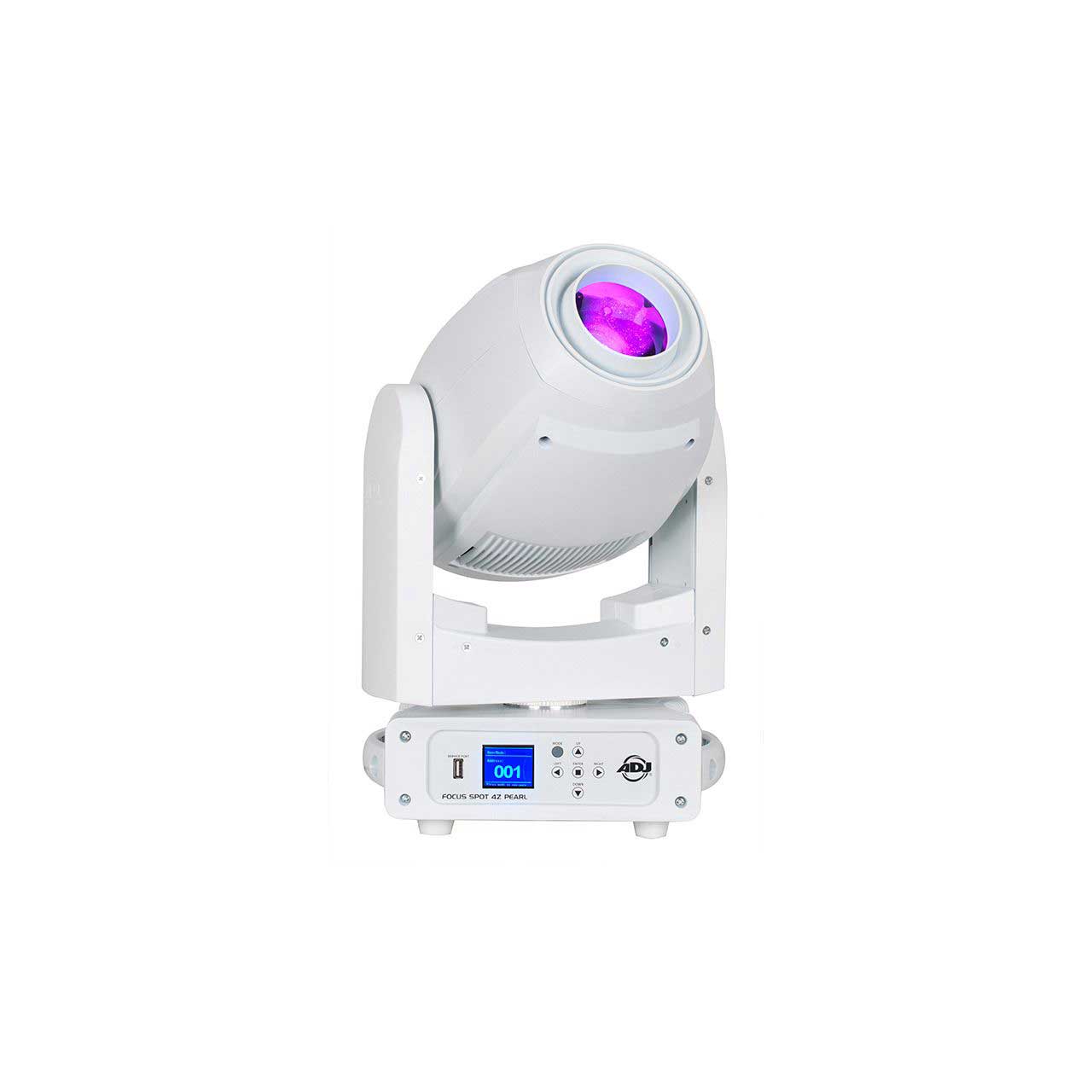

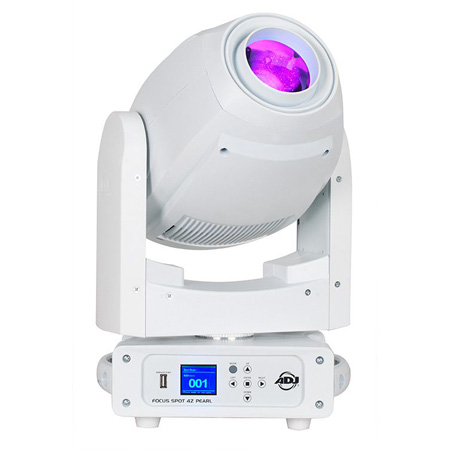

    The Focus Spot 4Z Pearl (FOC225) is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom), and has a white exterior housing. Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

    The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

    The Focus Spot 4Z Pearl fits in the ADJ DRC MH road case.

    • Features:

      • Motorized Focus
      • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
      • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
      • 0-100% smooth dimming
      • Various strobe speeds
      • USB firmware update port
      • 2 cooling fans
      • White exterior housing

    • Specifications:

      • Light Source
      • 200W Cool White LED Engine (50,000 hr.)

        Color Wheel
      • 8 dichroic colors + white

        GOBO Wheel
      • 6 aluminum GOBOs + open
      • All GOBOs removable & rotatable
      • GOBO Shake Effect
      • GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

        Prism Wheel
      • Prism Wheel 1: Rotatable 5-facet Linear
      • Prism Wheel 2: Rotatable 6-facet Circular
      • Prism Indexing

        Control
      • 3 DMX Channel Modes: 16/18/22 Channels
      • Color LCD display with 6-button function menu

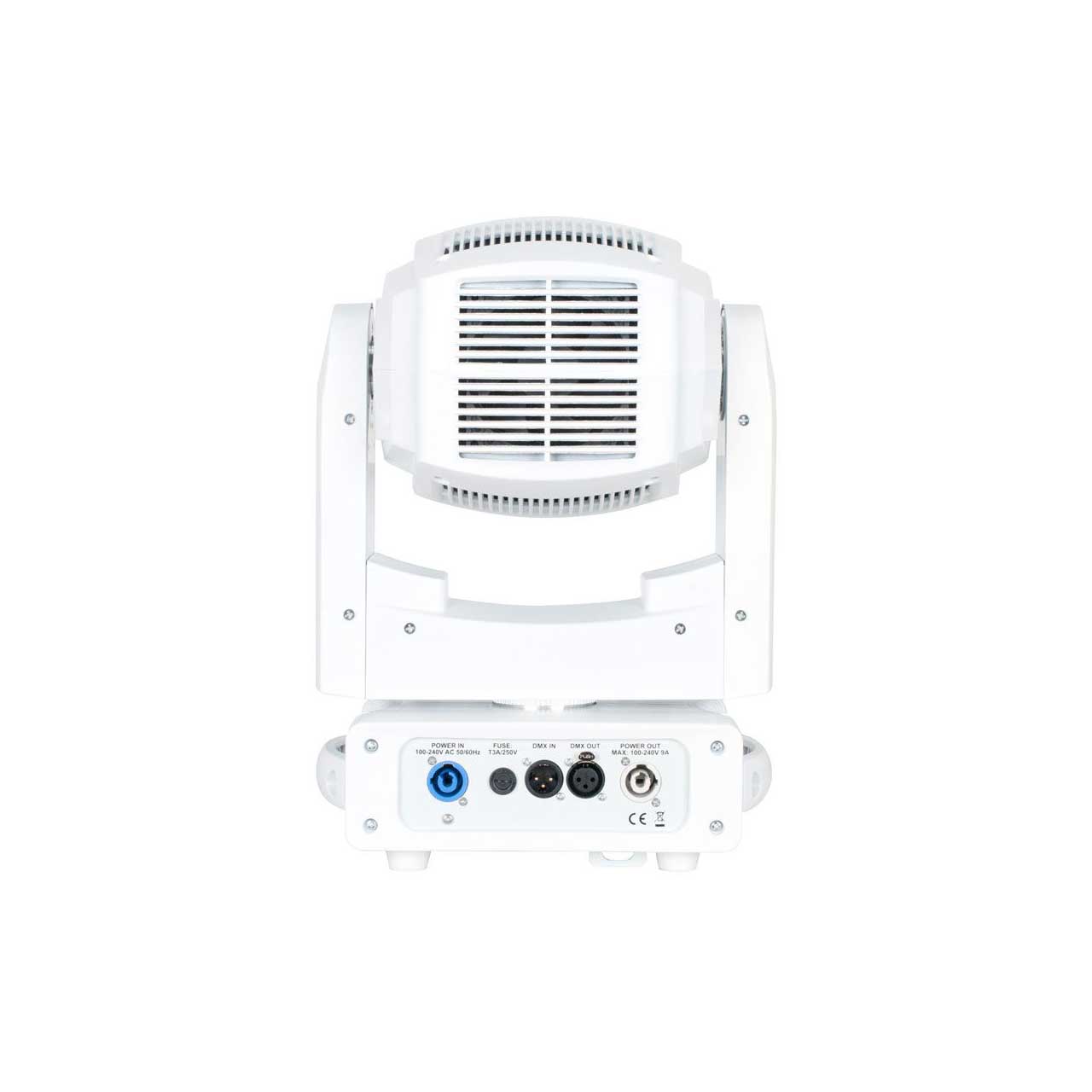

      • Data In/Out: 3-pin DMX
      • Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
      • Control Mode: DMX512 or internal programs
      • 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
      • 0-100% smooth dimming
      • Various strobe speeds
      • USB firmware update port
      • With Wired Digital Communication Network
      • RDM (Remote Device Management)

        Pan/Tilt
      • Pan: 540 & 630 degrees
      • Tilt: 270 degrees

        Physical
      • Dimension (LxWxH): 7.15 x 10.97 x 18" (181.5 x 278.6 x 457.4mm)
      • Weight: 23Lbs (10kg)

        Rating/Approvals
      • cETLus approved (Control #4010765)

    • Item Includes:

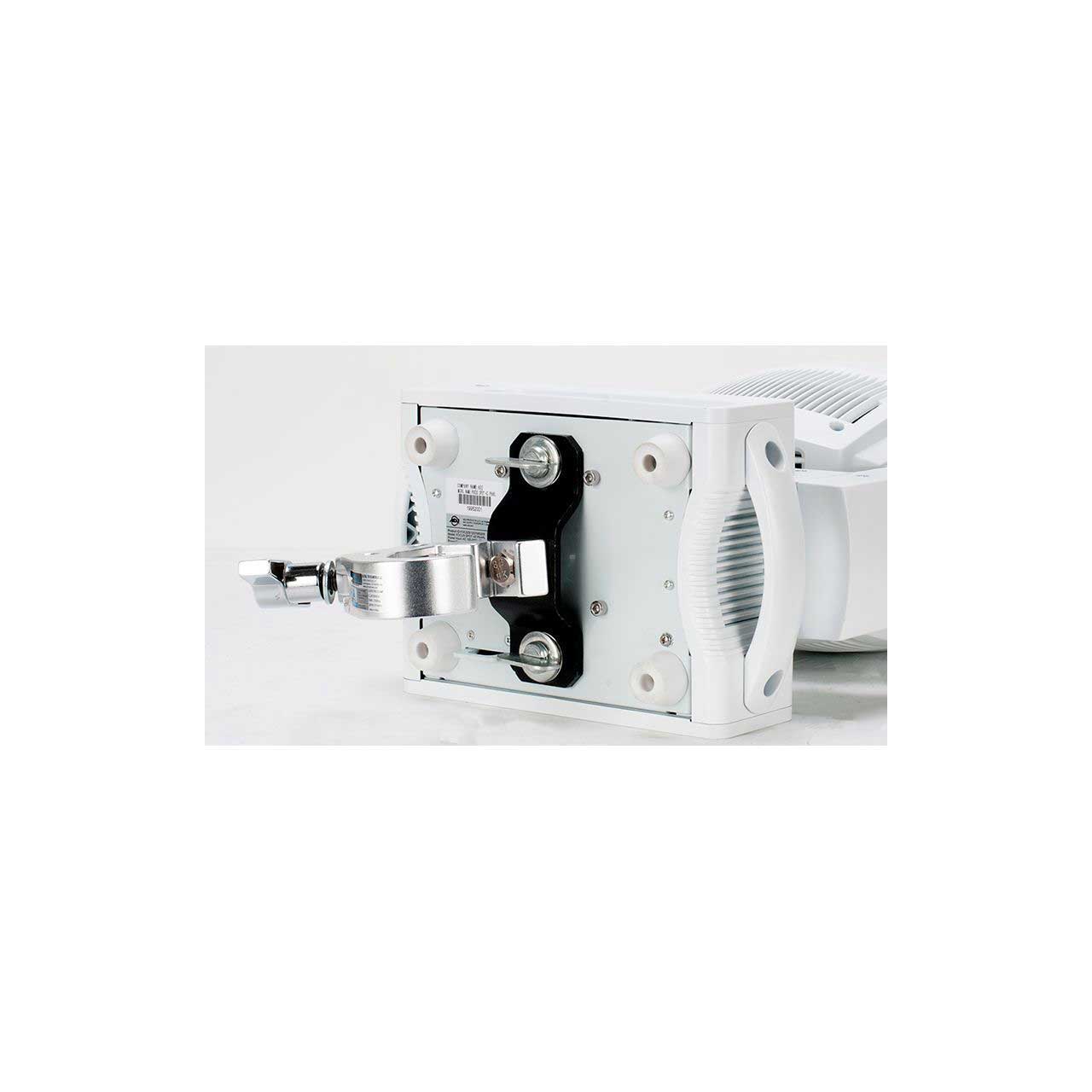

      • 1x Omega Bracket
      • 1x 6 ft/3M Locking power to Edison cable
      • 1x Safety Cable

    • Warranty:

      • 2 years

    • GTIN:

      0818651026245
