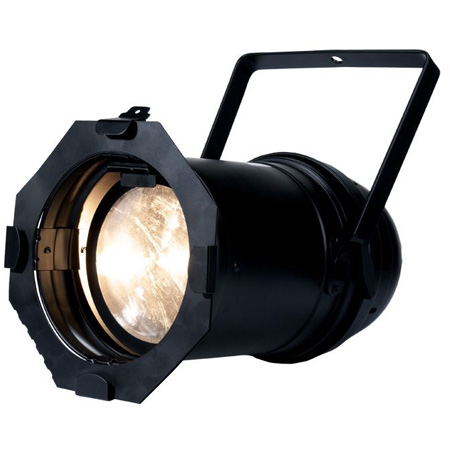

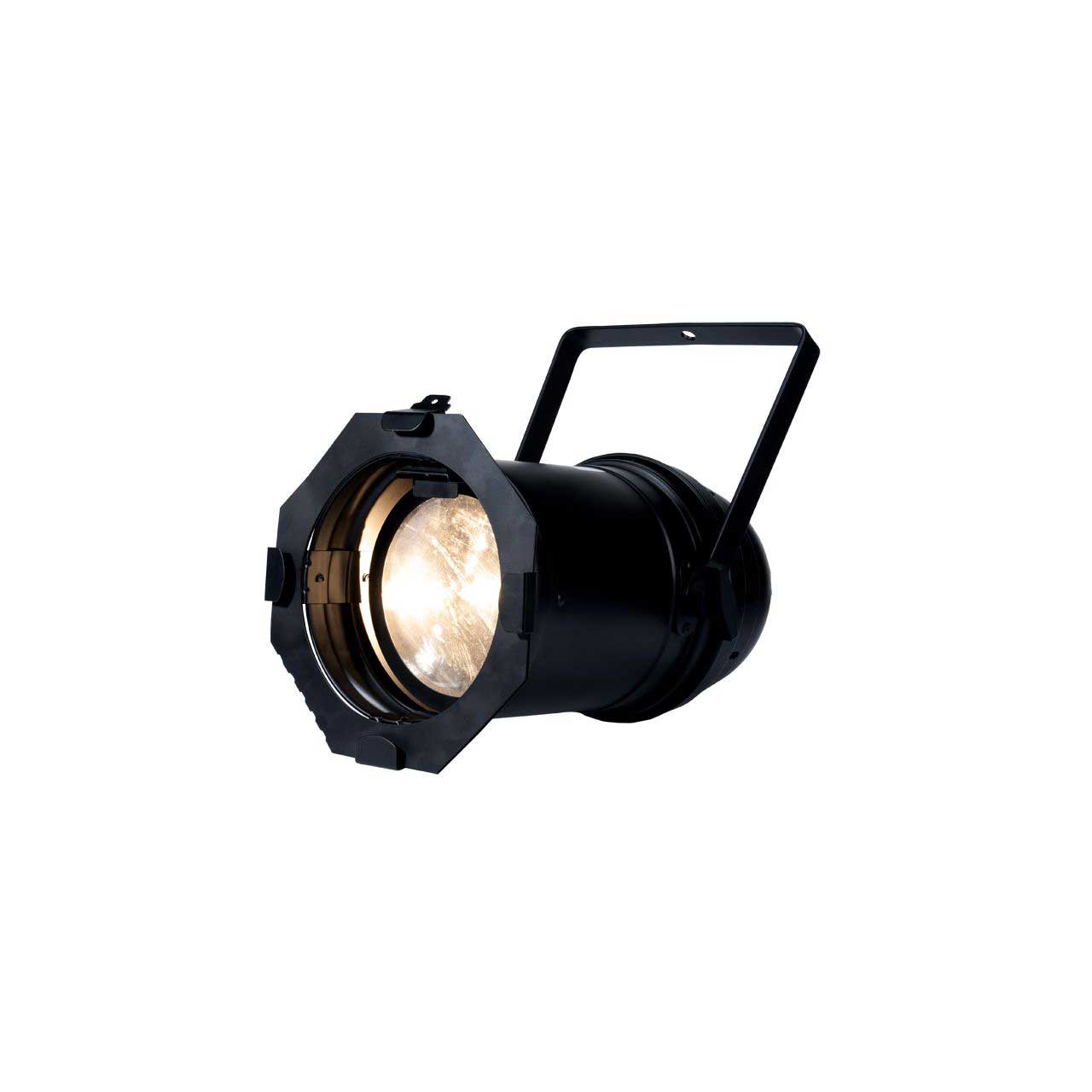

ADJ PAR829 PAR Z100 3k 100Watt Warm White LED Par Can with DMX Control - Black

ITEM #: AMDJ-PAR829 MFG #: PAR829

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AMDJ-PAR829

PAR829 - Overview

The ADJ PAR829 Par Z100 3K is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 100W warm white C.O.B. (Chip On Board) LED with a color temperature of 3000K. Its output is comparable to a 1000W halogen sealed beam Par. It is equipped with 5 different beam angle options that may be changed by hand. Locking power In/Out allows for the fixtures power to be daisy chained, while 5-pin DMX connections allow for the units data to be daisy chained.

The Par Z100 3K allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won't get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.

  • Features:

    • 4-button DMX menu display on rear panel

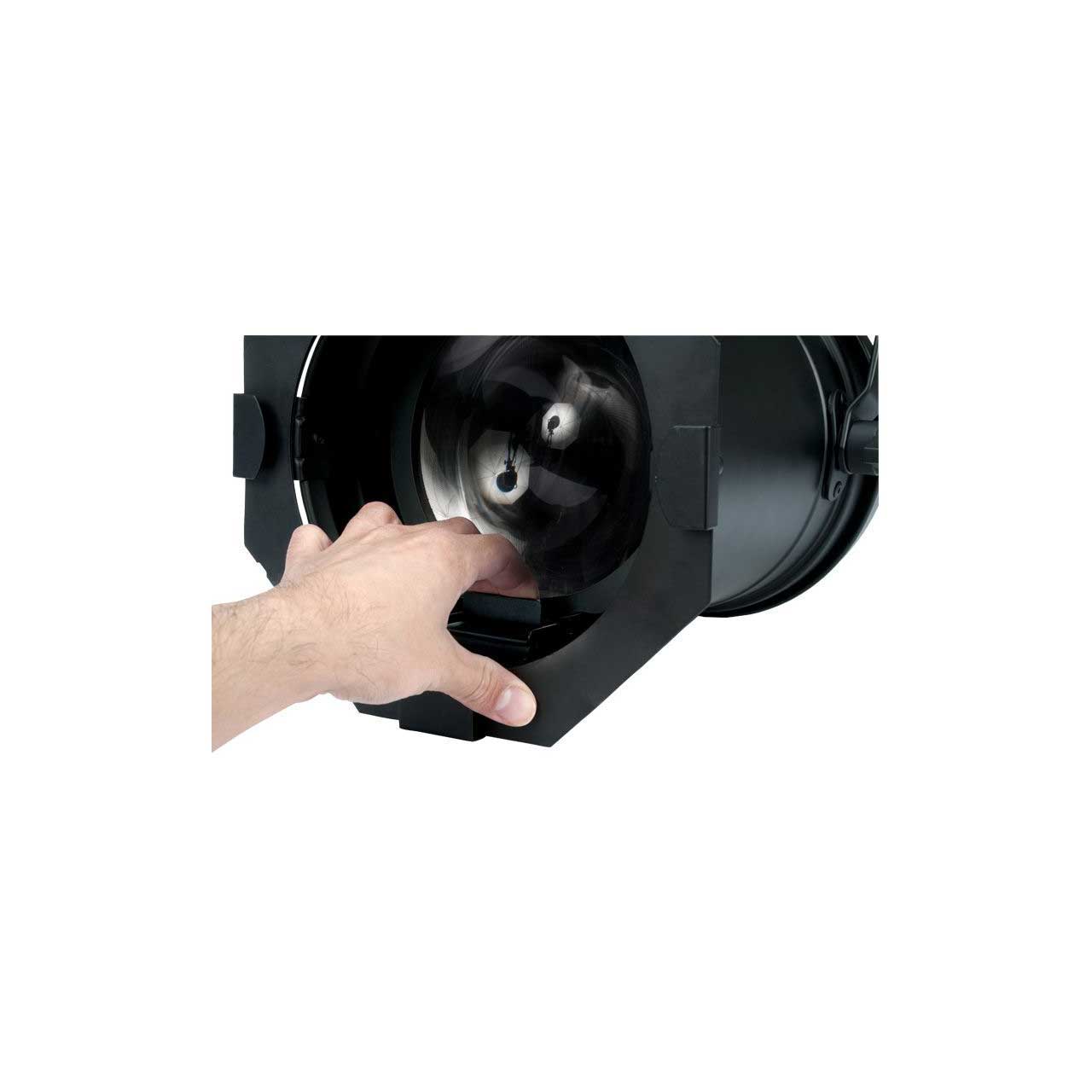

    • Adjustable latch to manually change beam angle
    • Includes gel frame for diffusion filters (Diffusion filter sold separately)
    • Strobe effect (25Hz max)
    • Flicker Free Operation
    • Electronic Dimming: 0 - 100% with 5 dimming curves
    • Run all night - No duty cycle
    • Black aluminum exterior housing
    • ETL Approved

  • Specifications:

    • Optical
    • 100 Watt COB Warm White LED (3000K)
    • Life expectancy: rated at 50,000 hrs.
    • LUX: 7135 (9°); 4440 (15°); 2236 (20°); 1266 (25°); 812 (30°)
    • CRI: 90
    • Beam angle: 9, 15, 20, 25 or 30-degree (manual adjustment)
    • PWM frequency:1200Hz

      Connection
    • DMX: 5-pin DMX In/Out With Wired Digital Communication Network
    • Locking Power In/Out

      Control
    • Control protocol: DMX-512
    • 2 DMX Channels

      Electrical
    • Power Draw Total (All LED's @ Full On): 115W, 0.964A @ 120V/60Hz, 112W, 0.5A @ 220V/50Hz
    • Multi-voltage operation: AC 100-240V, 50/60Hz
    • Daisy chain: 15 fixtures (120V); 25 fixtures (230V)

      Dimensions / Weight
    • Dimensions (LxWxH): 19.5"x 10.75"x 10.75" / 491x 272x 273mm
    • Weight: 7.5 lbs. / 3.4kg.

      Approvals
    • ETL Approved

  • Item Includes:

    • 1x Hanging bracket
    • 1x Power cord

  • Warranty:

    • 2 years

  • GTIN:

    0818651020922
