ADJ Saber Spot RGBL 20 Watt LED Pinspot Light - Advanced ACL Lens - 5.7 Degree Beam Angle

ITEM #: AMDJ-SAB673 MFG #: SAB673

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$249.95

Our Price:

$179.99

Availability: Preorder
iAvailability Description Popup


    SAB673 - Overview

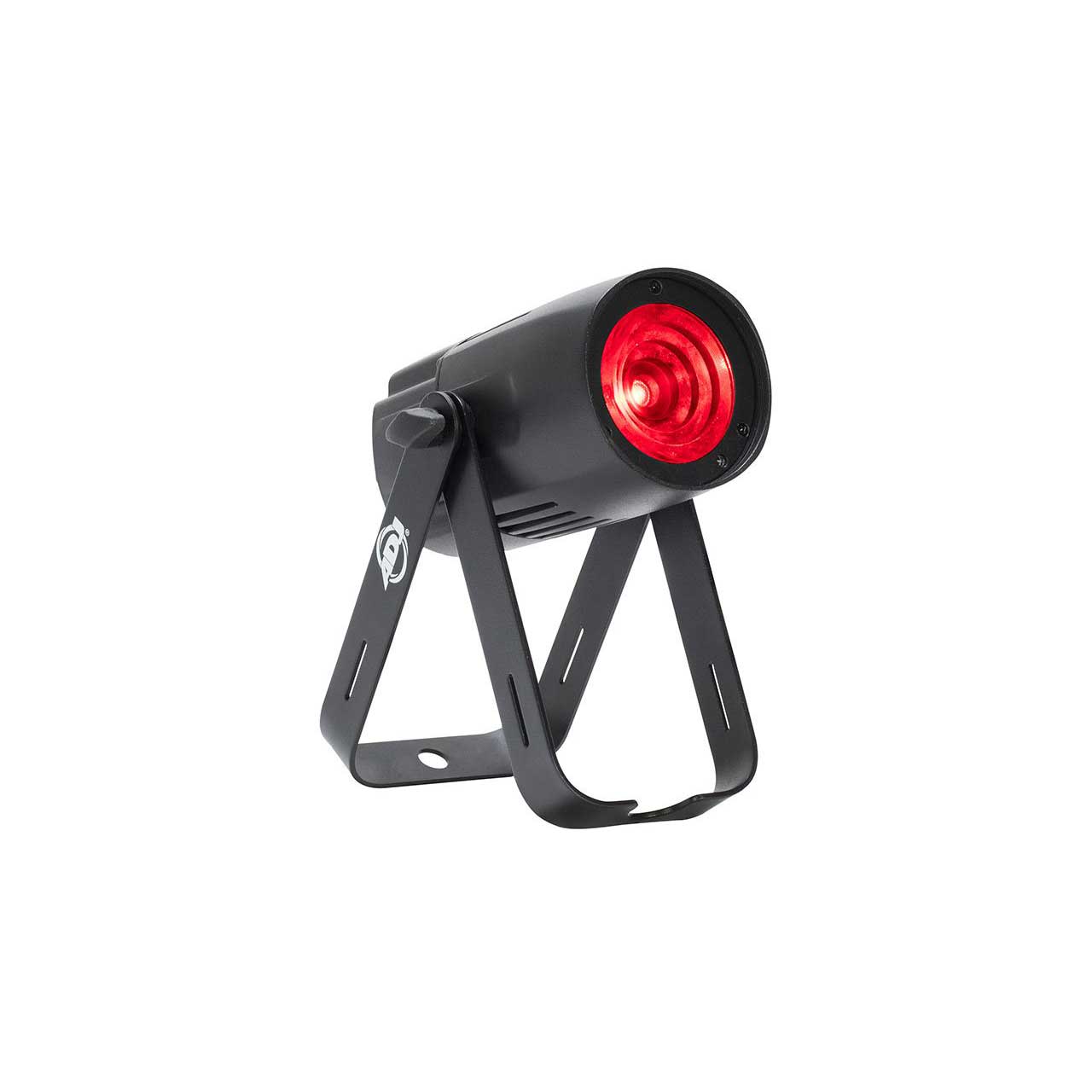

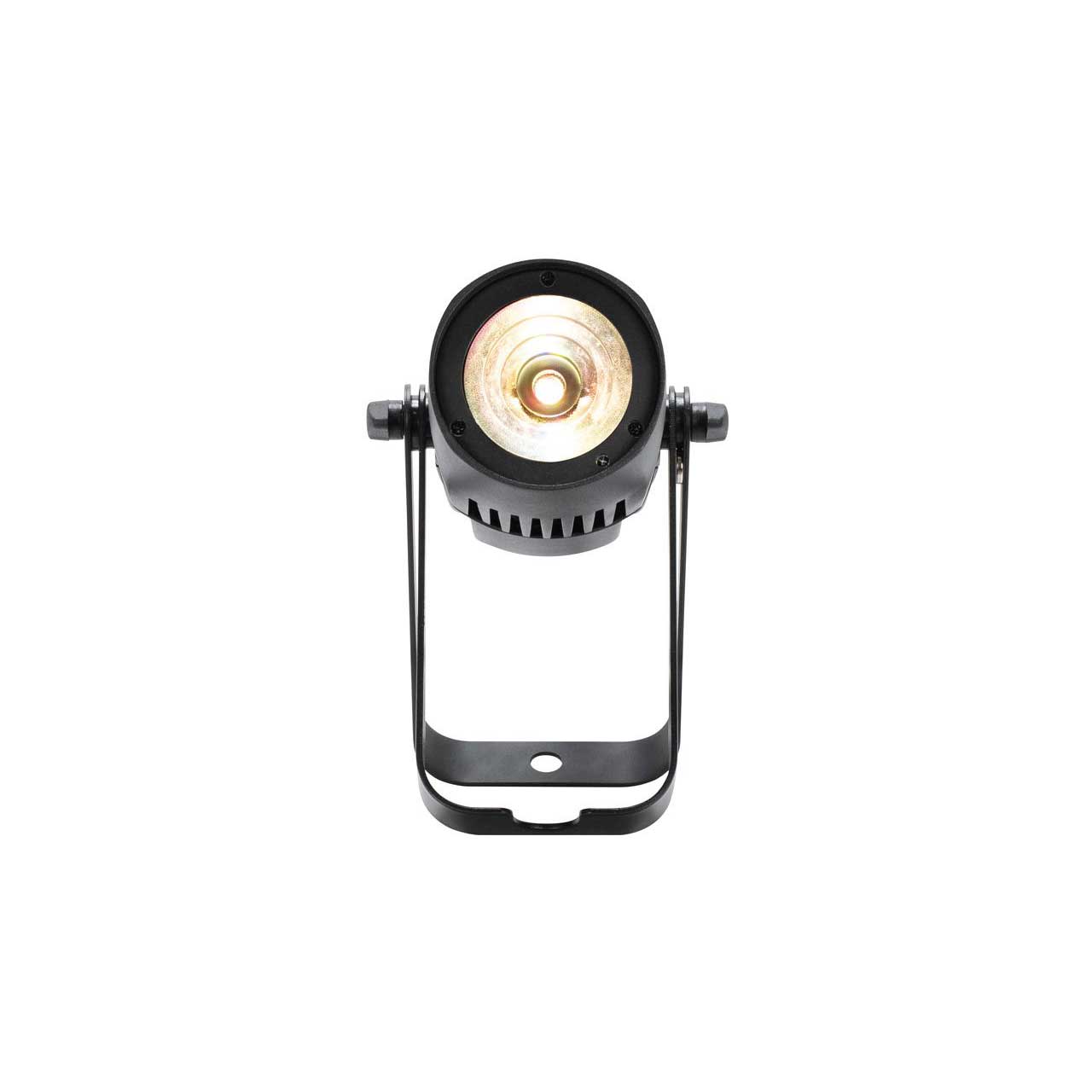

    Building on the success of its predecessor, the American DJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red, blue, green and lime) LEDs source, advanced ACL lens and a tight 5.7-degree beam angle, the Saber Spot RGBL is designed for spotting tables, objects or mirror balls, and creating mid-air beam effects for lightshows.

    This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has white color temperature presets ranging from 2000K to 9900K.

    A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

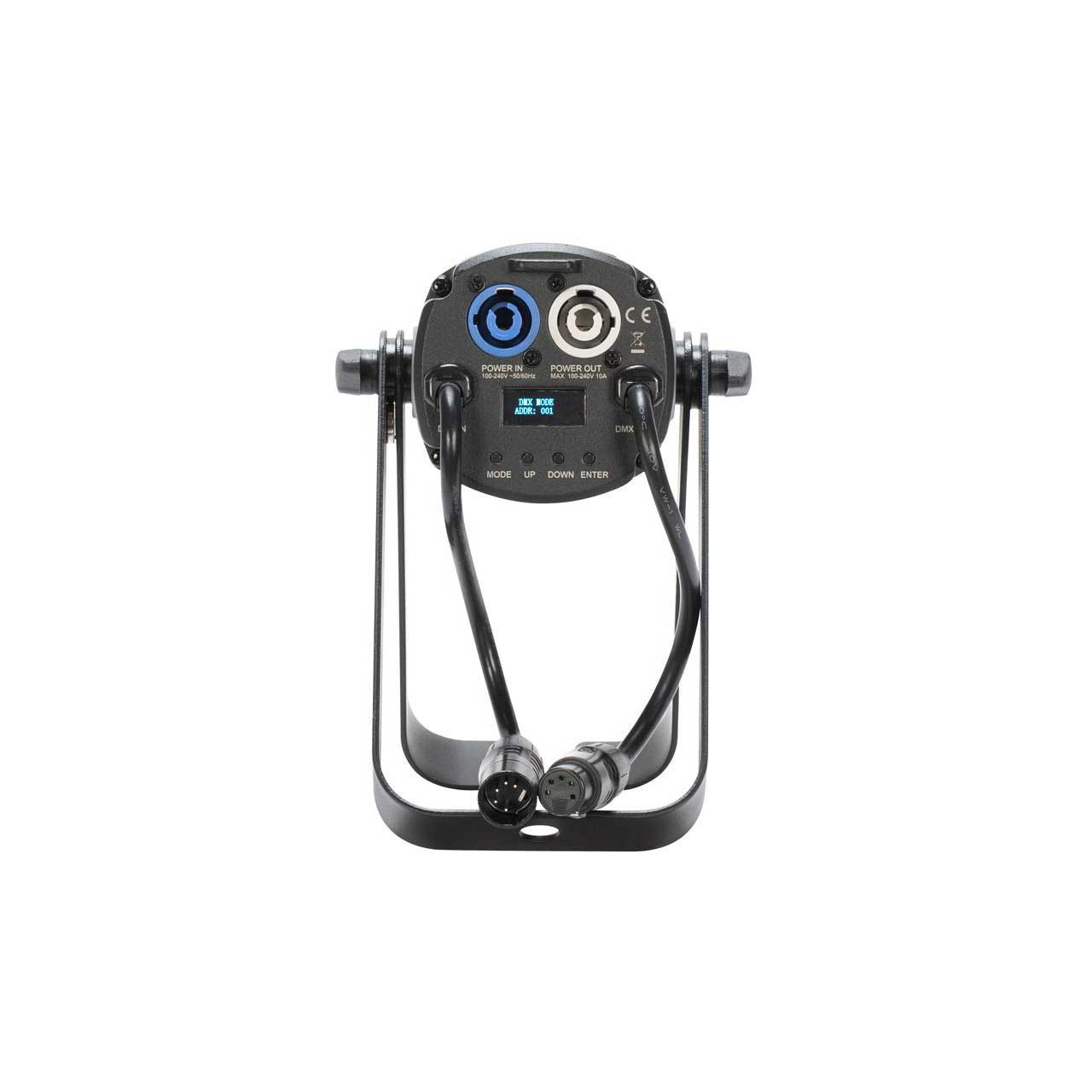

    The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.

    • Features:

      • DMX and RDM Compliant
      • Color Temperature Presets
      • 63 Built-in Color Macros
      • 13 Built-in Color Changing Programs
      • 4-button Digital Display for easy navigation
      • Electronic Dimming 0 - 100%
      • Includes a scissor yoke to be hung, or set on the ground
      • Light Source: 20 Watt, RGBL LED
      • 30,000 Hour LED Life Expectancy
      • 5.7° Beam Angle
      • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
      • 3.6KHz LED Refresh Rate
      • 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL

    • Specifications:

      • Electrical:
      • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
      • Power draw 120V 60Hz: 16.7W, 0.243 Amps
      • Power draw 230V 50Hz: 16.7W, 0.147 Amps
      • Power Output Current: 1.2A (14W)
      • Power Linking: 57pcs @120V, 95pcs @230V

        Physical:
      • Dimensions (LxWxH): 6.69" x 5.31" x 8.46" (170mm x 135mm x 215mm)
      • Weight: 3.2 lbs (1.45 kg)
      • Color: Black

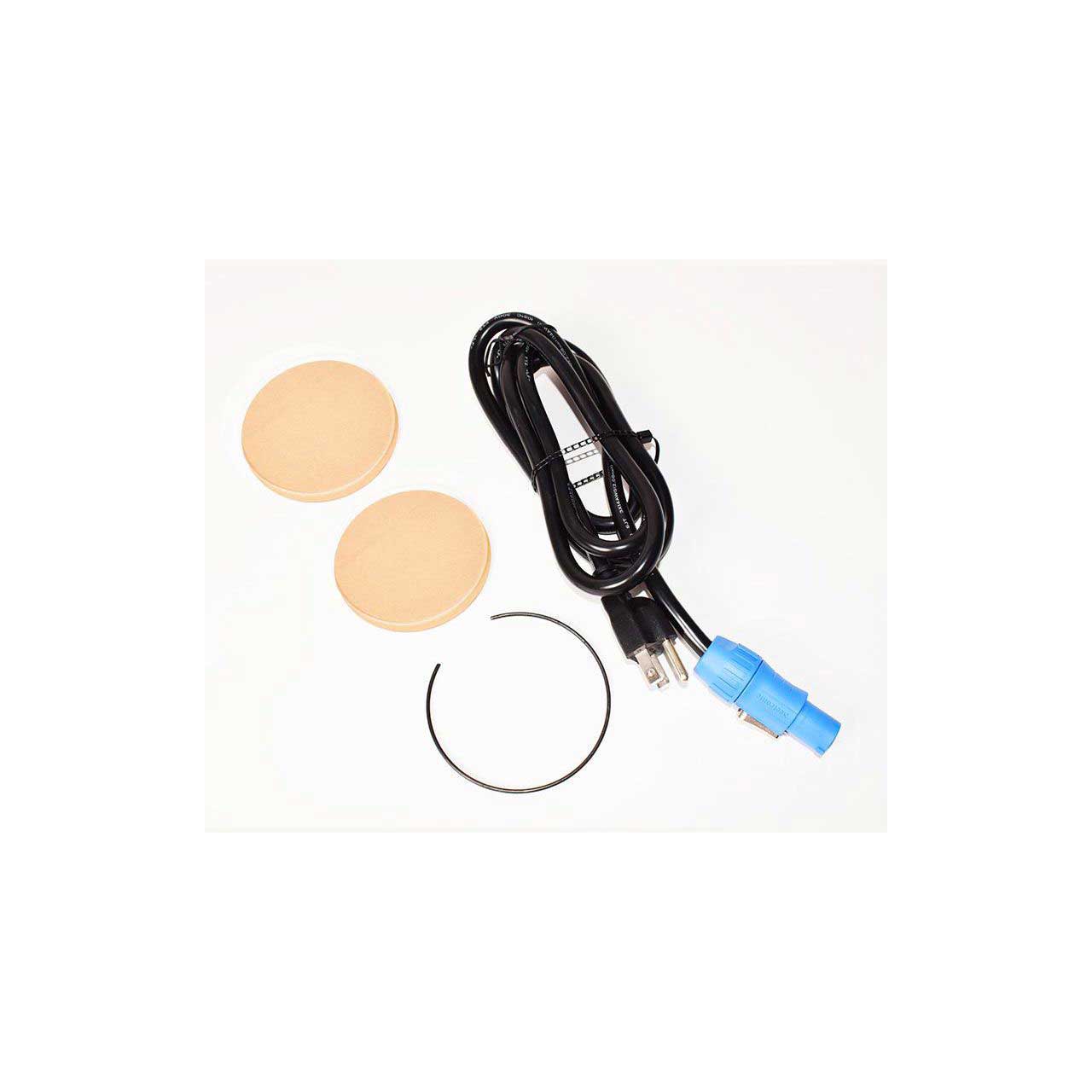

    • Item Includes:

      • 1x American DJ Saber Spot RGBL
      • 1x 1.83m Indoor locking power cord
      • 1x 2 frost filter lens (10-degree & 45-degree)
      • 1x Metal clip ring for frost filter lens

    • Warranty:

      • 2-Year Warranty

    • GTIN:

      0810087372828
