Chauvet WELLFITXX6 WELL Fit X Uplight Fixtures - 6 Pack

ITEM #: CHVT-WELLFITXX6 MFG #: WELLFITXX6

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,022.72

Our Price:

$5,300.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


WELLFITXX6 - Overview

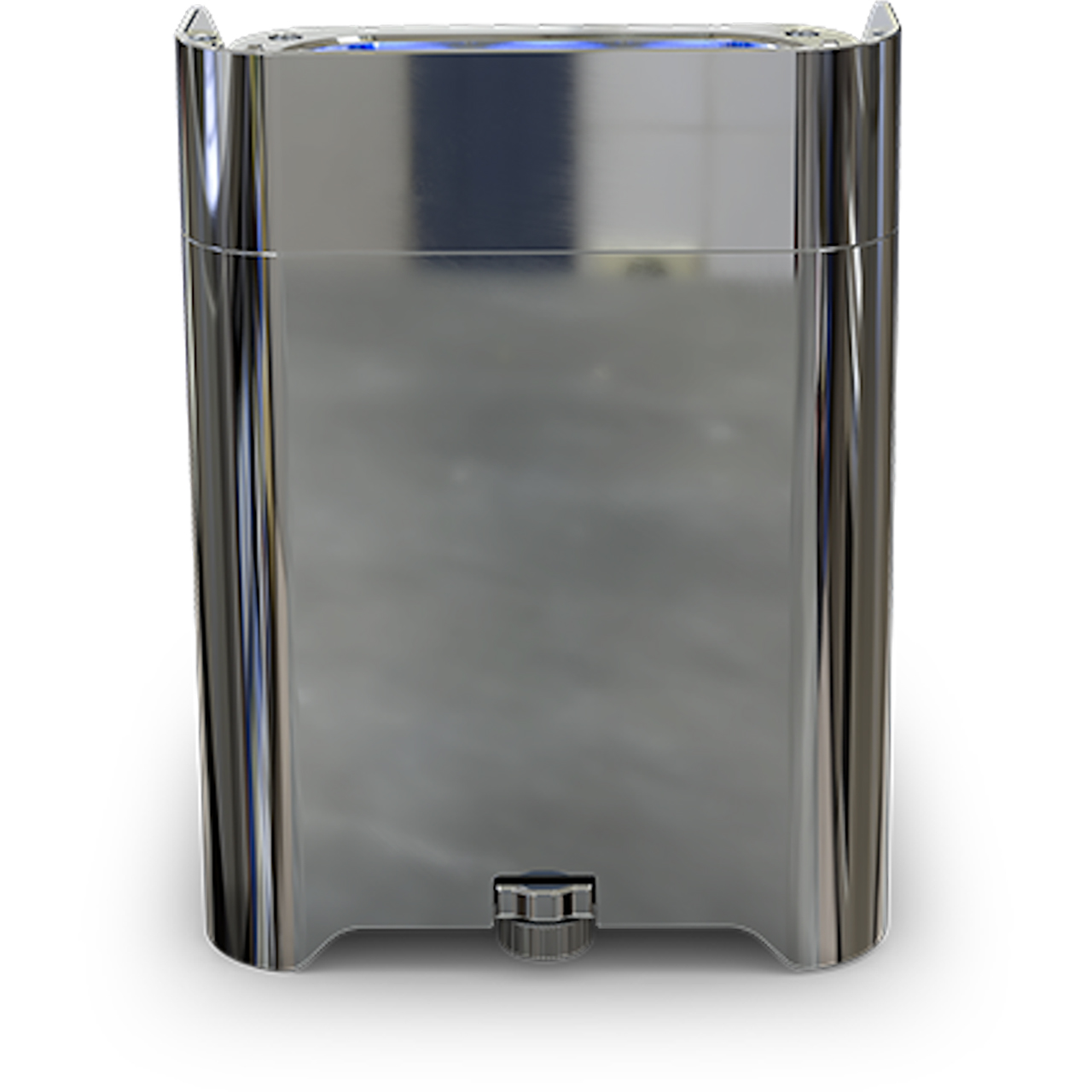

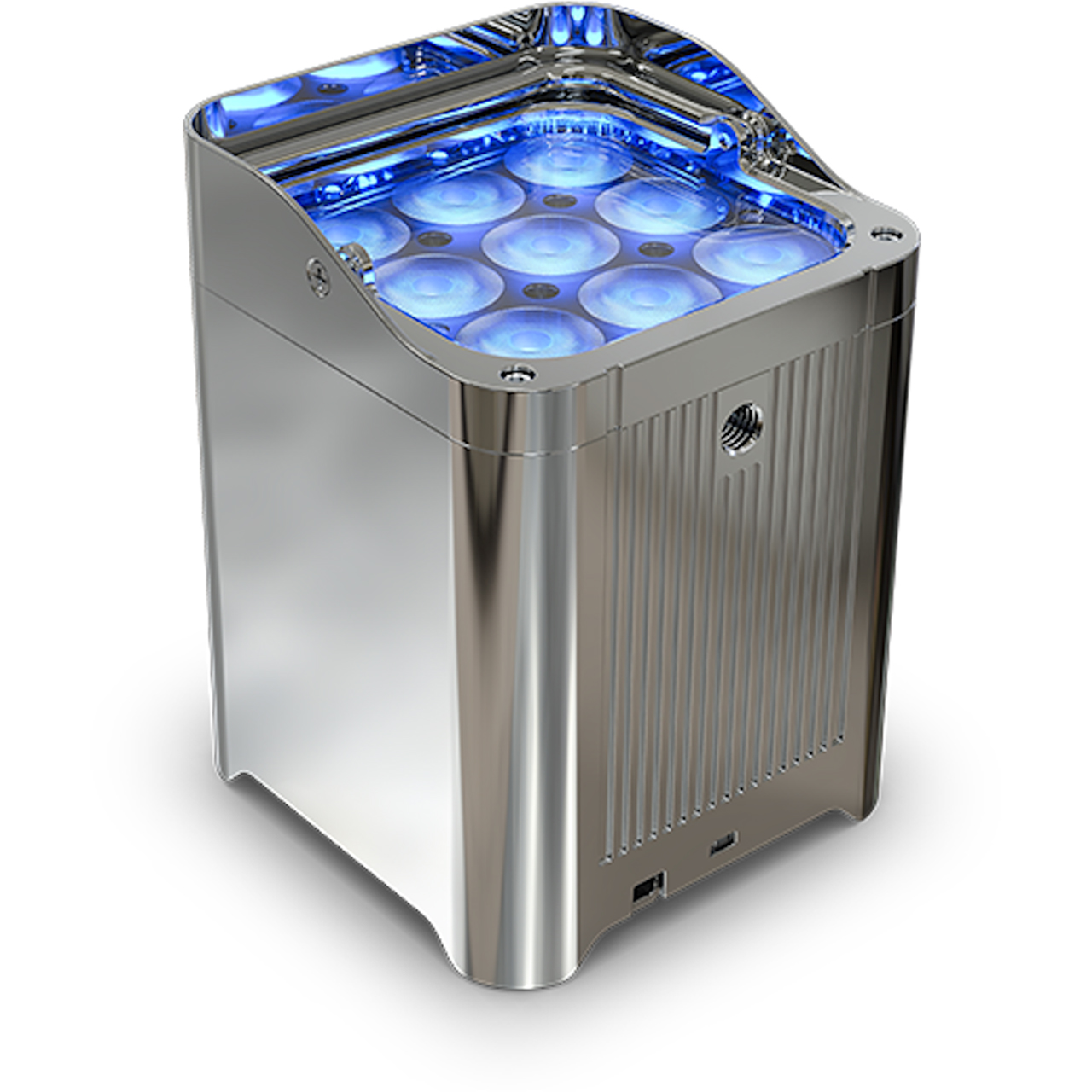

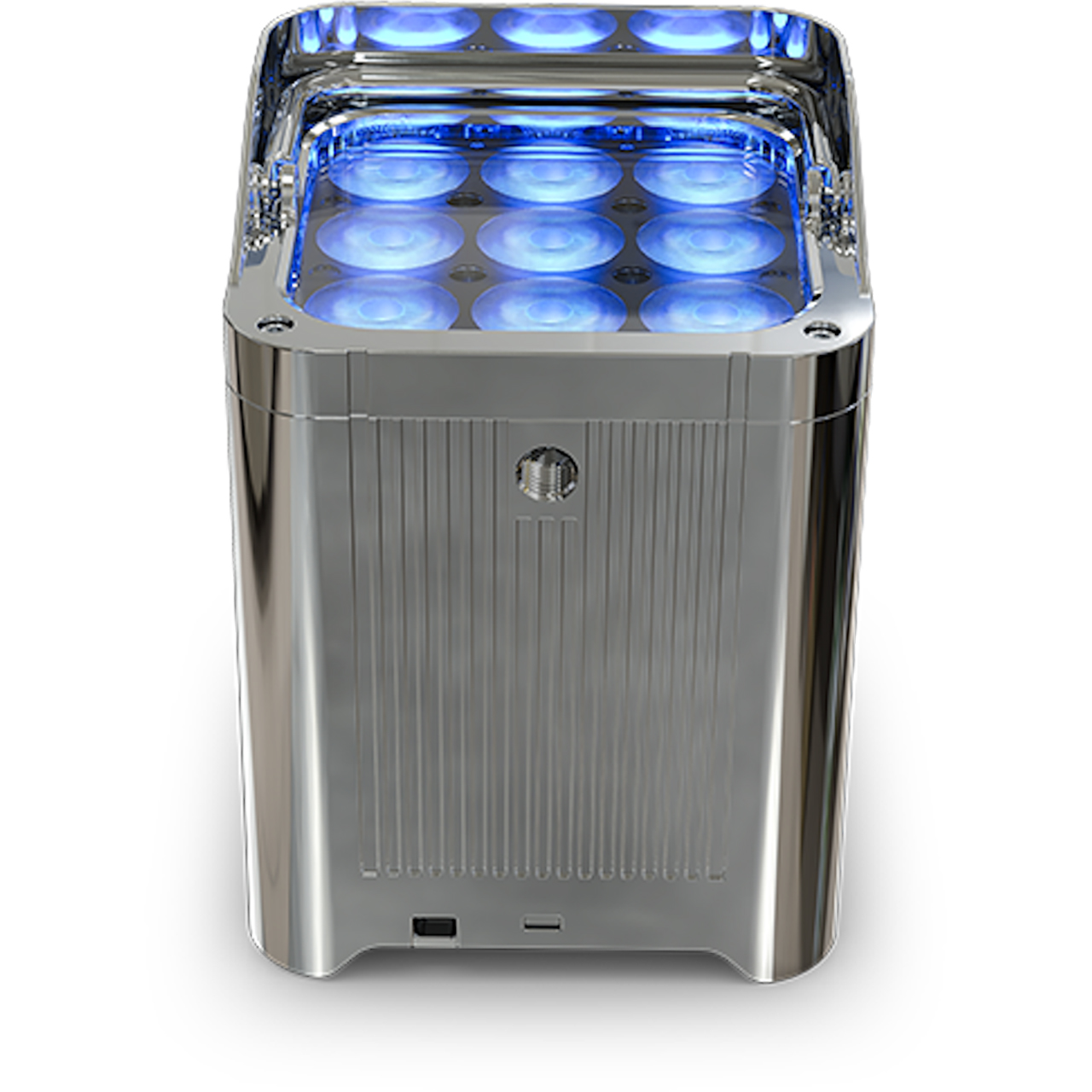

The Chauvet Professional WELLFITXX6 is a professional-grade kit containing six WELL Fit X wireless, battery-powered LED uplights. As part of the upgraded "X" series, these fixtures feature RGBWW LEDs - combining Red, Green, Blue, and Warm White - for enhanced color mixing and increased light output compared to the standard WELL Fit line. Each unit carries an IP65 weatherproof rating and a chrome finish, making them suitable for both indoor and outdoor event environments.

The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more d‚cor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates via USB-C to the fixtures while the units remain seated in the charging case.

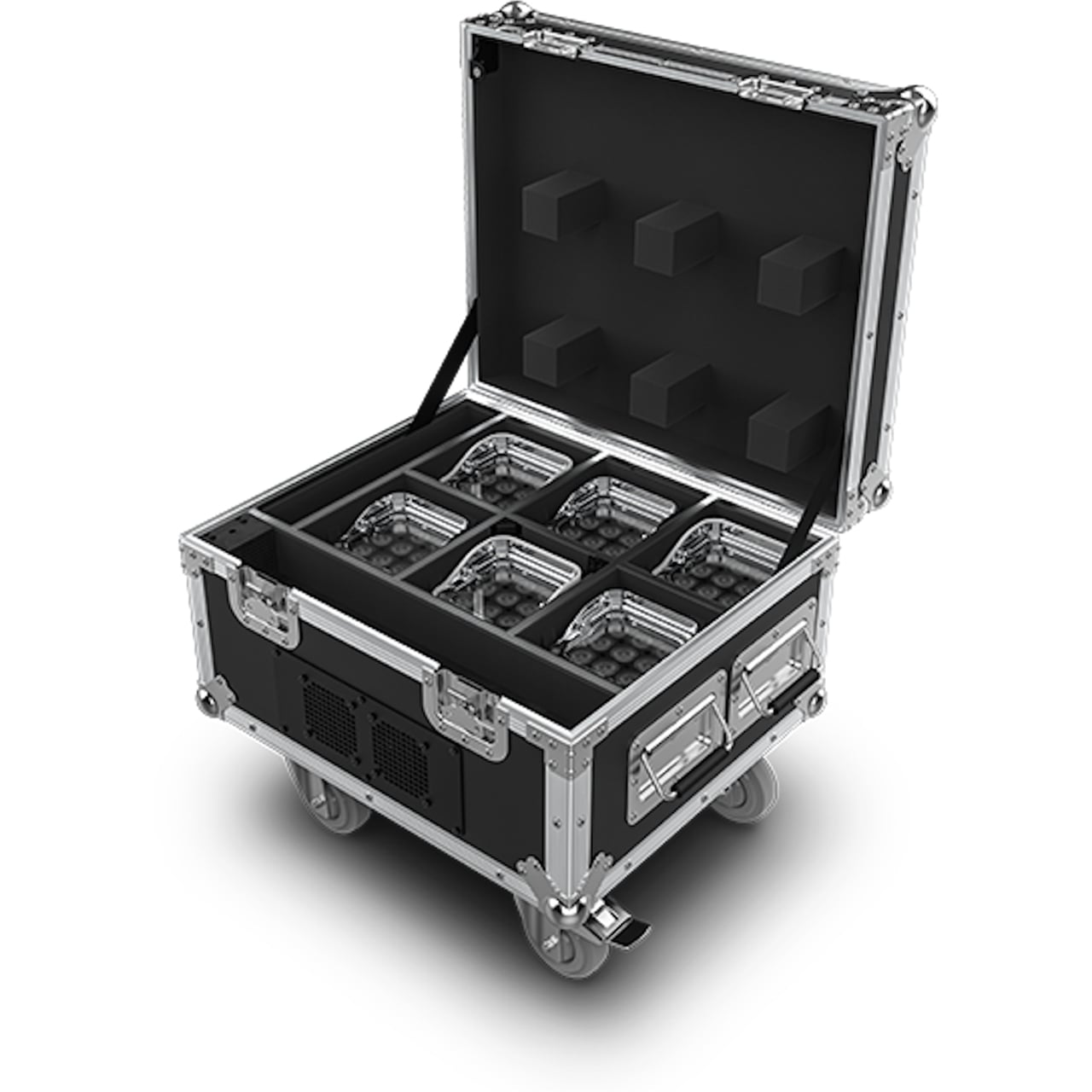

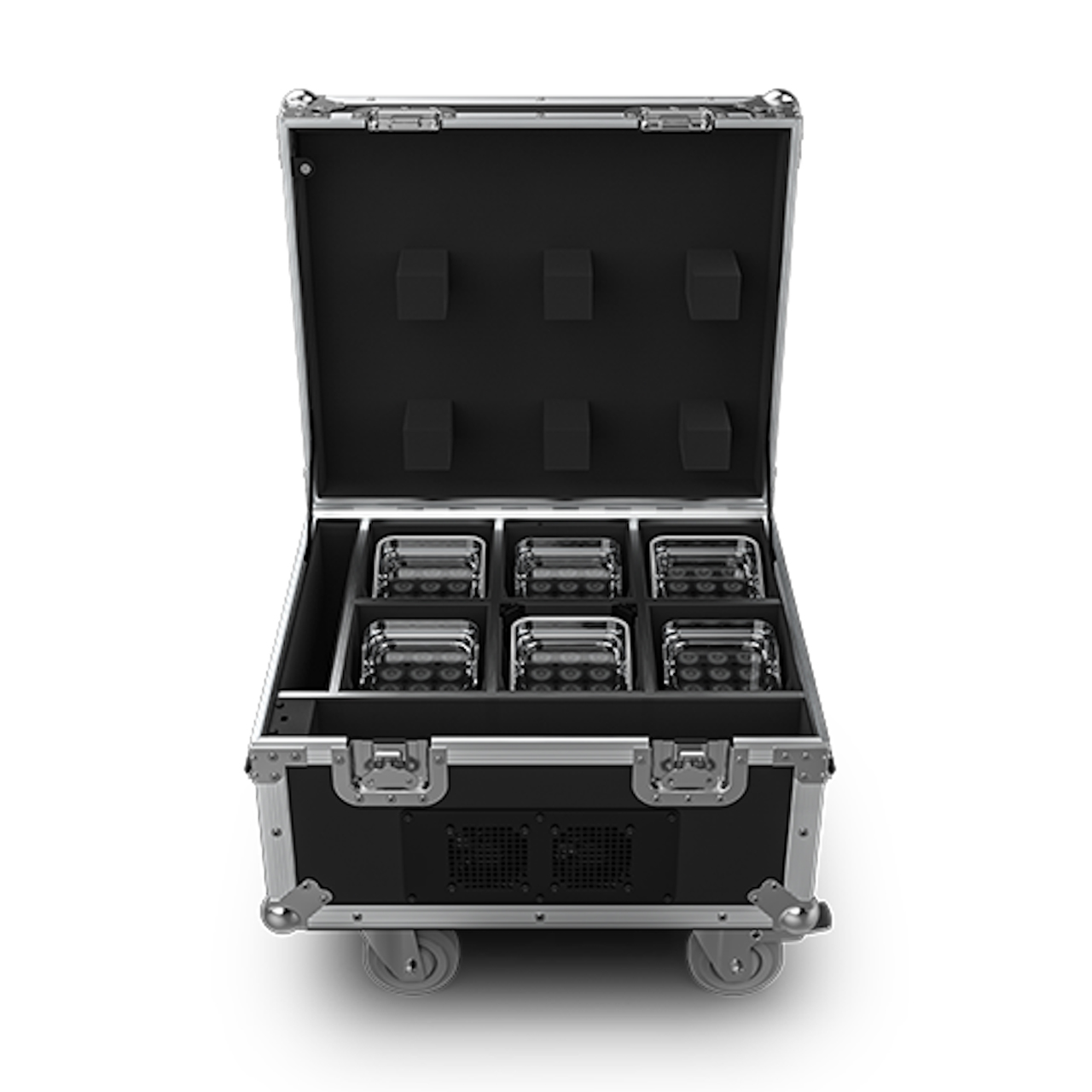

The kit is designed for fast, efficient deployment and comes fully equipped out of the box. A road-worthy flight case with built-in charging circuitry allows all six fixtures to charge simultaneously with the lid closed, while an included RF remote enables immediate wireless control. Additional accessories include a Seetronic TRUE1 power cord and a filter pack for beam shaping.

On the technology side, the WELL Fit X includes several standout features. Built-in PWM adjustment ensures flicker-free output, making the fixtures well-suited for film and broadcast applications and a built-in theft alarm provides both audible and visual alerts.

  • Features:

    • A fully realized kit of six battery operated chrome IP65-rated uplight-style fixtures with nine RGB warm white LEDs, and a beam angle of 11.3°
    • Charging case designed to charge with the lid closed to save warehouse space
    • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
    • Built-in battery charger allows fixture to operate while charging (Single charging cable sold separately)
    • Control over RDM, CRMX, or RF
    • Easy connection to WELL CONNECT box and ConnectFX app
    • USB-C port for convenient software updates
    • Pressure equalizing M6 Gore valve
    • Adjustable front foot for adjusting fixture angle
    • Kensington lock position
    • Built-in safety cable attachment point
    • Easy-to-read OLED display
    • Built-in theft alarm (audio and visual notification)
    • Built-in PWM adjustment
    • Included RF remote
    • Included 6 pack charging case

  • Specifications:

      Optical
    • Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
    • Color Temperature (range): 2600K - 10,000K
    • Beam Angle: 11.5°
    • Field Angle: 21.1°
    • Lumens: 1762 lm (OFF battery setting)
    • Illuminance: 1087 lux @ 5m (OFF battery setting)
    • Lumens: 1944 lm (5-hour battery setting)
    • Illuminance: 1205 lux @ 5m (5-hour battery setting)
    • Lumens: 1233 lm (8-hour battery setting)
    • Illuminance: 764 lux @ 5m (8-hour battery setting)
    • Lumens: 821 lm (12-hour battery setting)
    • Illuminance: 507 lux @ 5m (12-hour battery setting)
    • Lumens: 550 lm (18-hour battery setting)
    • Illuminance: 339 lux @ 5m (18-hour battery setting)
    • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4000Hz, 6,000Hz, 25000Hz

      Electrical
    • Input Voltage: 100V - 240VAC, 50/60Hz (auto-ranging)
    • Single Unit:
      • Power and Current (single unit charging):
       - 43W, 0.74A @ 100V, 60Hz
       - 42W, 0.64A @ 120V, 60Hz
       - 42W, 0.52A @ 208V, 60Hz
       - 42W, 0.47A @ 230V, 50Hz
       - 42W, 0.47A @ 240V, 50Hz
    • 6 Pack Case:
      • 3 units @ 120V
      • 4 units @ 208V
      • 5 units @ 230V
      • Power and Current:
       - 239W, 3.94A @ 100V
       - 238W, 3.44A @ 120V
       - 235W, 2.48A @ 208V
       - 235W, 2.32A @ 230V
       - 235W, 2.27A @ 240V

      Battery
    • Battery Type: Lithium Ion
    • Rechargeable: Yes
    • Battery Charge Time: 1.6 hours
    • Battery Life: 3hr, 5hr, 8hr, 12hr
    • Battery Power: 25.9V, 4.4Ah

      Connections
    • Power Connection: 5.5mm right-angle barrel jack
    • Cable Length (charger): 8.5ft (2.6m)(sold separately)
    • Power Input (charging case): Seetronic TRUE1 IP65
    • Power Output (charging case): Seetronic TRUE1 IP65
    • Software Connection: USB-C

      Control
    • Control Protocol: RDM, CRMX, NFC, RF
    • DMX Channels: 5, 8, or 12
    • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
    • Wireless WDMX "G" Compatibility: G4S
    • Wireless Lumen Radio Compatibility: CRMX

      Dynamic Effects
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0Hz - 30Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Dim Curves: 4
    • Built-In Automated Programs: Yes
    • Customizable Programs: No

      Physical
    • Dimensions - Fixture: 4.9" x 4.9" x 6.9" (126mm x 126mm x 176mm)
    • Dimensions - 6 Pack Case: 21.8" x 18.5" x 13.5" (554mm x 470mm x 345mm)
    • Weight (single unit) 7.0lbs (3.2kg)
    • Weight (shipping weight): 98.3lbs (44.6kg)
    • Exterior Color: Chrome
    • Housing Material: Aluminum diecast
    • Temperature (startup): -4°F - 113°F (-20°C - 45°C)
    • Temperature (operating): -22°F - 113°F (-30°C - 45°C)

      Certifications/Qualifications
    • CE, FCC, UKCA
    • IP Rating: IP65, temporary outdoor/wet use (fixture)
    • IP Rating: IP20 (case)

  • Item Includes:

    • 6x WELL FIT X
    • 1x 6 slot charging case
    • 1x Basic RF controller
    • 1x True 1 power cable
    • 1x QRG
