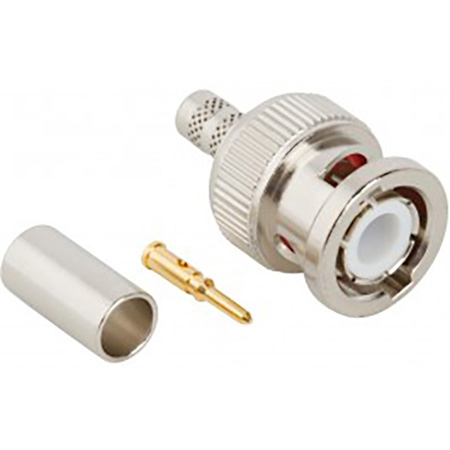

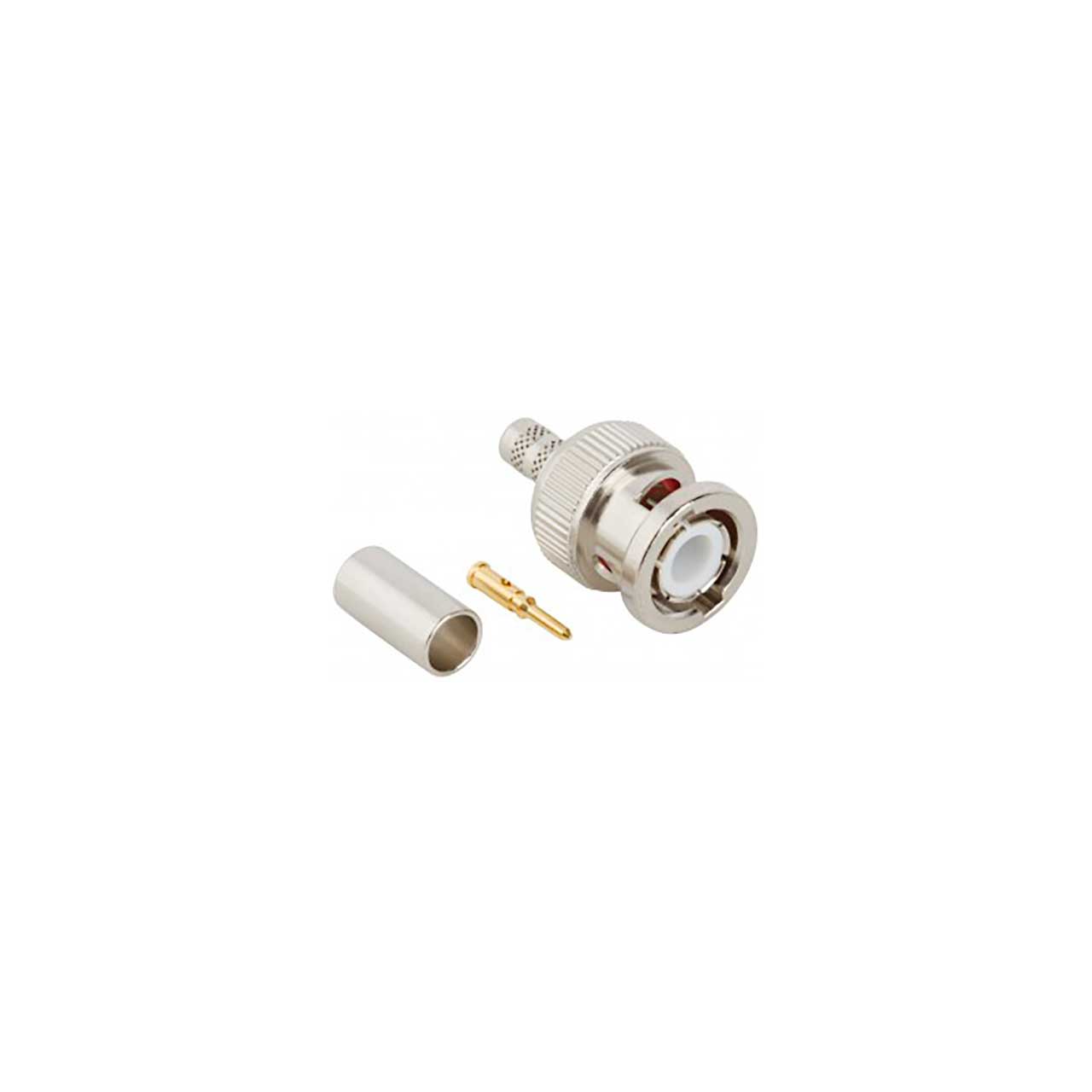

Amphenol 112597 RF Connector BNC Straight Crimp Plug for LMR-200 - 50 Ohm

112597 - Overview

• Specifications:

  • Gender: Plug
  • Orientation: Straight
  • Termination Style: Cable - Crimp
  • Impedance (Ohms): 50
  • Body Finish: Nickel
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material: Brass
  • Contact Termination Style: Crimp
  • Insulator Material: PTFE
  • Cable Group: C2
  • Cable Type: Belden 7807A, LMR-200
  • Coupling Mechanism: Bayonet
  • Max Frequency (GHz): 4
  • Polarity: Standard
  • Min. Temp. (Celsius): -65
  • Max. Temp. (Celsius): 165
  • Mating Cycles: 500
  • Weight (Grams): 10.4
  • Package Type: BAG
